What did you mod today?

3049 posts / 0 new
Last post
T18
Offline
Last seen: 42 min 26 sec ago
Joined: 02/14/2016 - 15:29
Posts: 626

vwpieces wrote:
Thanks!
Some discussion was in this thread about the stripping and polishing. If you are reading through the thread you should come across the info in a page or 2.
I will check… but if you search the thread for
Stripping
polishing
Lye
or even 2000 grit
you will find it. That S2+ was originally Blue. Stripped with Lye and wet sanded up to 2000 grit and polished with Mothers aluminum polish.

OH, I got ya, I did pick up some what was it called Simply Purple or something down that line and have read of countless other options including what you’ve mentioned here, I’ve read through all the stripping processes I could find but I jump around a lot and hadn’t really seen such a fine example of the end product so this strikes me as a premium example for sure, you did a great job, so now I have to go get whatever it was that I bought out of my trunk and get to work, oh wow that is so clean, just a beautiful example of what I imagined and hoped for when I do mine. Really does put the spurs to me, well sort of.. ha ha
Thank you for the reply VW and by the way while I have you here, I am still sitting on that Ti X6 we talked about months ago on another thread and did follow your suggestion and went and looked through the pills/spacers made by Kirbu..?? The Russian fella?
I think I know what to put together when ordering these parts, but do you mind if when I get my thoughts in order here and a list if I PM it to you for review prior to making a colossal mistake?
I know you know what your doing and I can’t really say that about myself with confidence so would really appreciate someone to just double check before I jump?? Thanks VW
gchart
gchart's picture
Online
Last seen: 9 min 36 sec ago
Joined: 03/19/2016 - 11:57
Posts: 644
Location: Central IL

I’ve been thinking about stripping & polishing one, but something I don’t remember hearing a verdict on… after stripping, will the aluminum oxidize? If so, do you just re-polish it? Clear coat it?

T18
Offline
Last seen: 42 min 26 sec ago
Joined: 02/14/2016 - 15:29
Posts: 626

I had read that one person claimed that Museum wax worked well, I can’t confirm that of course.

Edit: By the way I have a lot of Mothers aluminum polish and I am reasonably certain that not only does it polish it also puts a protective coating down as well, how durable I don’t know but I do know that once I’d go through a spend a lot of time polishing the rims on my collectable it would hold up real well and for quit awhile in this rainy muddy state of WA. I could just hose spray the mud off and dry and it would still be shiny like when I polished.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA
gchart wrote:
I’ve been thinking about stripping & polishing one, but something I don’t remember hearing a verdict on… after stripping, will the aluminum oxidize? If so, do you just re-polish it? Clear coat it?

Raw Aluminum Oxidizes instantly. It takes special primers to get paint to adhere so Clear Coat isn’t a great idea. After sanding and polishing it it does take some time for ti to generate actual cristals of oxidization, like years, if it’s not exposed to salts or other harsh environments. Oh, your skin oils may cause faster corrosion if your PH is acidic.

Once it is polished it will last for a long time. And already being polished makes it easy as cleaning it to get it back up to shiny with another quick polish. Car Wax will help on long term storage.

@ T18
I use Sodium Hydroxide crystals (Lye) dissolved in water and warmed in the microwave for a minute after dilution to help a weaker solution work better. Please read up on it as there are potential dangers involved. Wet sanding starts with 400 on a sanding block moving the block around the circumference. 800, 1200, 1500 and working up to 2000 Grit. Polishing with a Bounty paper towel with Mothers polish worked into the towel before using. Once the desired finish is achieved I use Dish detergent to wash off the Black polish from light and my hands. You will want to grease the threads after stripping anno off. Raw threads can be coarse and gall if tightened dry.
ALL sanding and polishing is by hand. Machines, buffers, dremels can not achieve a smooth mirror finish.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

T18 wrote:
I had read that one person claimed that Museum wax worked well, I can’t confirm that of course.

Edit: By the way I have a lot of Mothers aluminum polish and I am reasonably certain that not only does it polish it also puts a protective coating down as well, how durable I don’t know but I do know that once I’d go through a spend a lot of time polishing the rims on my collectable it would hold up real well and for quit awhile in this rainy muddy state of WA. I could just hose spray the mud off and dry and it would still be shiny like when I polished.

Have heard the Museum wax but never tried it. I like to wash anything I polish after. It changes the color to more silver, brighter IMO. Any wax willad the protection after washing. No joke some car enthusiasts use Pledge furniture polish as a quick shine. I am partial to Mothers Carnauba Gold. Easy to apply and get off the residue.

T18
Offline
Last seen: 42 min 26 sec ago
Joined: 02/14/2016 - 15:29
Posts: 626

Thanks for the Info VW, cut and pasted to book of important stuff, to do someday very soon.. Smile

Jerommel
Jerommel's picture
Offline
Last seen: 3 days 7 hours ago
Joined: 01/04/2014 - 13:18
Posts: 3497
Location: the Hague, Netherlands

I did a driver mod.
FET+1 modded to 19+1, totalling 20× 7135.
Here’s the pics:

I’m just not a fan of direct drive, so the FET had to go.

Original plan was 12x or 14× 7135 for an Astrolux S3, but:

Inside a copper sheet 16mm circle 19 of them will fit. Smile
This will fit snugly in most pills for decent cooling (with some thermal goo).

Positioned them with grey epoxy before soldering them to the copper enclosure.

Added solder paste for thermal and electrical path to the copper ‘wall’.

Heating it up inside a pill to keep the wall in shape.
Had to do it twice because the paste loses about 50% volume when soldered.

Thin ring for the + and a fatter one for the – output. Both have lips for soldering leads.
Behold a 6.65 Ampere Constant Current donut.

Leads on driver PCB for + to the 19× 7135 and – from the on board 7135 to the – output of the donut.
Made some room with a rotary tool so the copper wall can be soldered to the outer ring trace of the PCB.
Hole in PCB for + wire spring bypass.

More epoxy as solder mask and to keep the parts in place and to join PCB and donut.

Donut and PCB soldered together, bypassed spring added.

Output side. Black wire soldered to output lip of the donut.

Epoxy added to secure the lot a little extra.

NOT TESTED YET ! Shocked Praying it will work… Facepalm

I’ll be using it (if it works) in a S2+ triple with either XP-G3 or 219C.
Waiting on blue S2+ host and XP-G3 S4 3A from Fasttech.
Planning on de-anodizing and polishing the S2+, especially after seeing that beauty vwpieces produced.
I don’t like coloured lights too much, but i wanted that switch boot. Smile

Looking for:

5” parabolic reflector (for recoil light)

(I’ll be back around the 28th)

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA
Thumbs UpThumbs Up Jerommel! Someone said it can’t be done.
Enderman
Enderman's picture
Online
Last seen: 3 min 26 sec ago
Joined: 11/03/2016 - 22:42
Posts: 1262
Location: Vancouver, Canada

Nice job, great way of packing all those chips in a small space Smile
I personally would have tested before filling it with epoxy, but watevs Silly

Hey, how are you? :)

Jerommel
Jerommel's picture
Offline
Last seen: 3 days 7 hours ago
Joined: 01/04/2014 - 13:18
Posts: 3497
Location: the Hague, Netherlands

Enderman wrote:
Nice job, great way of packing all those chips in a small space Smile
I personally would have tested before filling it with epoxy, but watevs Silly

You’re right of course…
I ‘beeped’ with DMM for short circuits and conduction and all was well.
The driver was working before i removed the FET.
The risky bit was soldering the donut to the PCB, so i can only hope it went well.. FacepalmParty

We’ll see…

Looking for:

5” parabolic reflector (for recoil light)

(I’ll be back around the 28th)

sedstar
Offline
Last seen: 3 days 34 min ago
Joined: 04/03/2013 - 18:23
Posts: 914
Location: East coast, united states...

this a USA penny, thats the year on it… i made my own USB soldering microscope. based on pictures from a sub-100 dollar commercial unit? i have more magnification and 10x the working height…

 photo Picture 001_zpsbonfjpcg.jpg

the tech is done, just nuts and bolts to go from mock up to prototype… i think i might be able to blow the commercial units out of the water, maybe… i’m thinking of a moveable table under it maybe… heh heh…

With enough black coffee and cigarettes? all things are possible…

I am currently still shipping… REAL GENUINE CREE xp-g emitters, the classic… brace yourself? as low as 20 cents apiece!! Check out the SALES THREAD, everyone is happy… then PM me

SALES THREAD:
http://budgetlightforum.com/node/52528

if you are into reloading? this is my site… I inherited the remains of what was once arguably the best reloading site on the internet… its the “BLF” of reloading sites…

http://reloadbench.freeforums.net/

if you think night vision would be cool? It IS… this site i am a member of, and its basically the “BLF” of home made scratch-built digital night vision. They are at the leading forefront of advanced DIY for digital night vision, and thats gun mounted or handheld… builds rival and exceed commercial offerings…

http://nightvisionforumuk.com/

CRX
CRX's picture
Online
Last seen: 1 min 24 sec ago
Joined: 04/02/2013 - 15:27
Posts: 1628
Location: Scotland

Manker E14 18500 battery tube

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

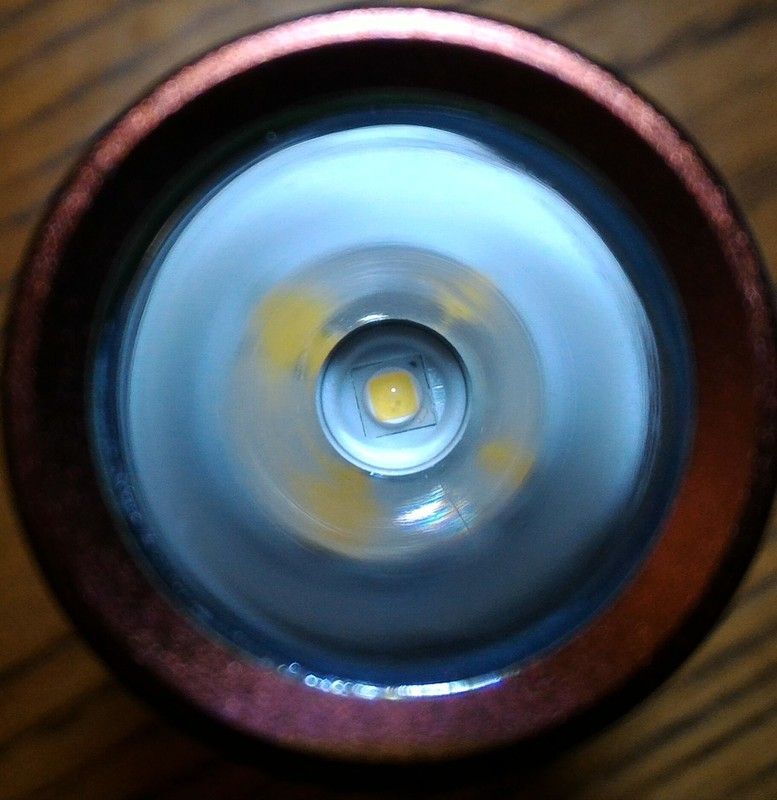

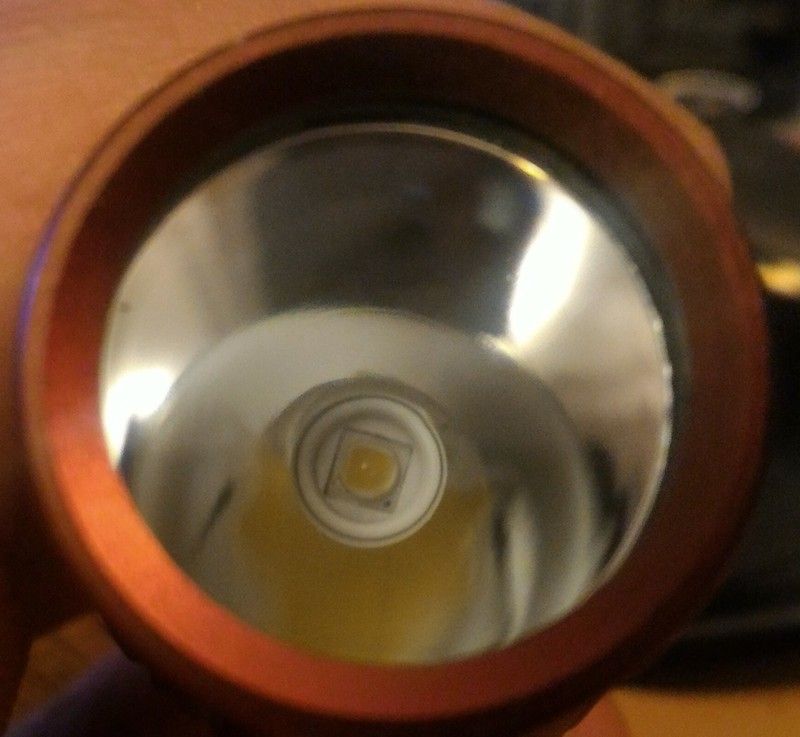

Went through one of these cheapie unbranded 18650 lights. Has a charge port but it is dependent on the charger or wall wart for the charging capabilities. 3.5mm power port.
Modes are H, L, Strobe on a softer remote SW feel. I do like these lights and have a few around the house. Snagged off ebay auctions for $1 or $2. They have plastic reflectors but offer a nice spot and no artifacts.
I swapped the 20mm MCPCB with an aluminum DTP Nichia 219B 4000K high CRI. It has a pressed in emitter shelf and that was removed, sanded flat and good thermal paste. Driver output was about 900mA on High and I stacked another 1R0 resistor to the existing 2 already there. I used the same value as the existing resistors 3X 1R0 is now 0.333 ohm from previous 0.5 ohm. Jumped the output to 1.3A and is a nice increase but well within reason for this light. Also replaced the wires and added some lead to the solder.
Others have emitter swaps but the results of this one turned out good. May go through the others to put the resistor into those too.

spacer looks like its not seated flat but it is, just shadow from the light I used for the pic. Reflector is actually shiny too and that looks dull, but its not.

little better in some ways…

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

This was a $1.75 light off ebay auction. Advertised as 12W but only drew 4.7W. Swapped all the beads to 3W WW 4000K and stuffed one of those 20W Flood light drivers into it. Had a few drivers and first used one I knew was going to deliver 20W. Ran the light about an hour and just thought it got too warm. Dug out another “20W” driver and gave it a test. 12.4W and it really is not noticeably dimmer than it was at 19W on the other driver. These 20W drivers should deliver 600mA with voltage between 24-38V DC, so the 9X 3W fall into the range.
This light has good bones… Good fins, good pressed in shelf for the board with descent thickness. Used a moderate anount of thermal grease spread evenly. Locked the shelf and MCPCB in better, 3 screw holes that were not originally used, with some Stainless metric socket head screws and washers… It’s tight now. There is also some added pressure from the outer bezel on the optics.

Not sure where I am going to use this but it was something to do today. Confident it could run 24/7 without issues.


giorgoskok
giorgoskok's picture
Offline
Last seen: 16 min 47 sec ago
Joined: 11/13/2015 - 10:46
Posts: 1949
Location: Greece

Nice work vwpieces …

I modded an Ultrafire S5 some weeks ago , with a Nichia 219C 5700k 80+ CRI on Noctigon , flashed biscotti on a 7135×8 driver that i installed , and changed reflector for an OP reflector from Convoy S2+ .

One great light for 10$ … Beer

Now i have still to mod the one you did too , i just have to get some Nichia’s (probably 219B) and some 16mm DTP boards .

Coppet
Coppet's picture
Offline
Last seen: 3 hours 38 min ago
Joined: 12/05/2016 - 01:11
Posts: 69
Location: Deutschland

I like to have the Lumintop Tool Copper with the electronic switch from the Tool Ti, here it is.
The whole story: http://budgetlightforum.com/node/52749



ZozzV6
ZozzV6's picture
Offline
Last seen: 2 hours 28 min ago
Joined: 03/24/2016 - 12:19
Posts: 580
Location: Hungary
Rufusbduck
Rufusbduck's picture
Offline
Last seen: 3 hours 28 min ago
Joined: 04/04/2012 - 15:34
Posts: 10302
Location: Golden state

Built up a tiny10 7135 driver(2 chip stack) with guppy drive and installed it in a BLF 348.

Three Tanna leaves to give him life, nine to give him movement. But what if he eats the whole bag?

Scott

pinkpanda3310
pinkpanda3310's picture
Offline
Last seen: 11 hours 57 min ago
Joined: 12/28/2013 - 08:45
Posts: 1145
Location: Perth

Modded a DQG26650 with one of Everett’s colour drivers. The only thing left is to order a lens for it.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

giorgoskok wrote:
Nice work vwpieces …

Now i have still to mod the one you did too , i just have to get some Nichia’s (probably 219B) and some 16mm DTP boards .

Glad you saw the post. Was thinking of sending it to ya.
Wish I could program a driver… Still learning basics. I was proud of the resistor mod on that one because I was flying by the seat of my pants and generally copy what others do on electronics mods. May do 2X 1R0 stacked on the next. 0.25 ohm may still be under 2A, shooting for 1.5A to be safe.

giorgoskok
giorgoskok's picture
Offline
Last seen: 16 min 47 sec ago
Joined: 11/13/2015 - 10:46
Posts: 1949
Location: Greece

It’s really easy to get into flashing firmwares .
If you want to , just send me a message and i think i will be able to help you .

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

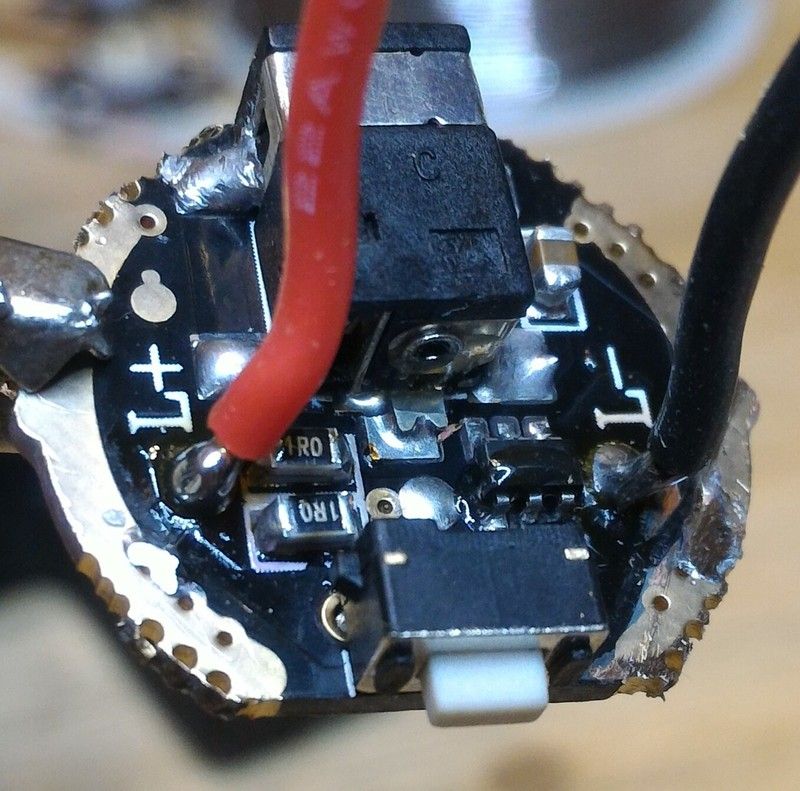

Did another 18650 rechargeable. Added 2X 1R0 resistors and get 2.0A as I guessed. Some pics

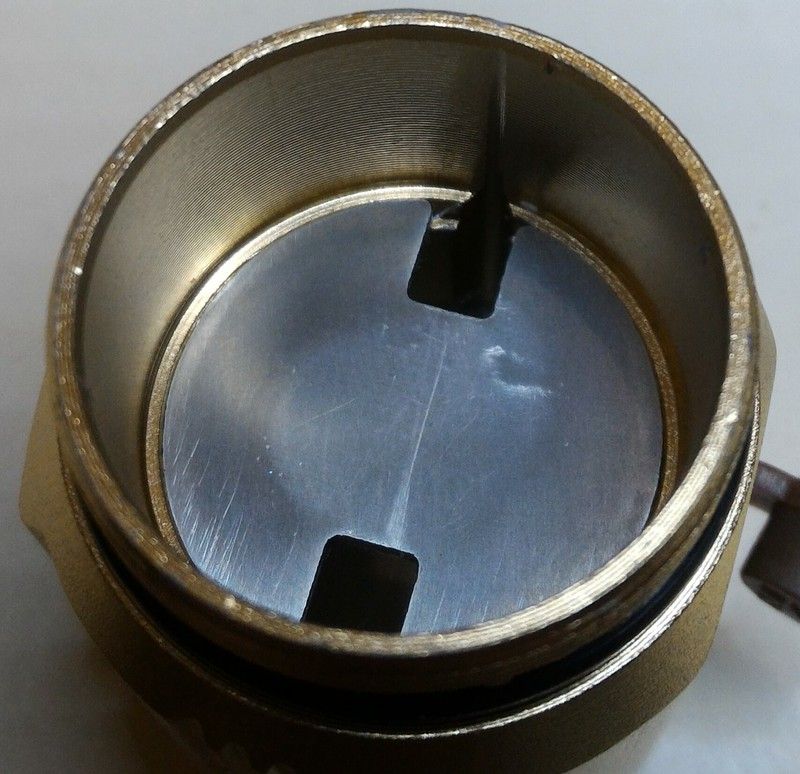

Sanded the spacer and fitted

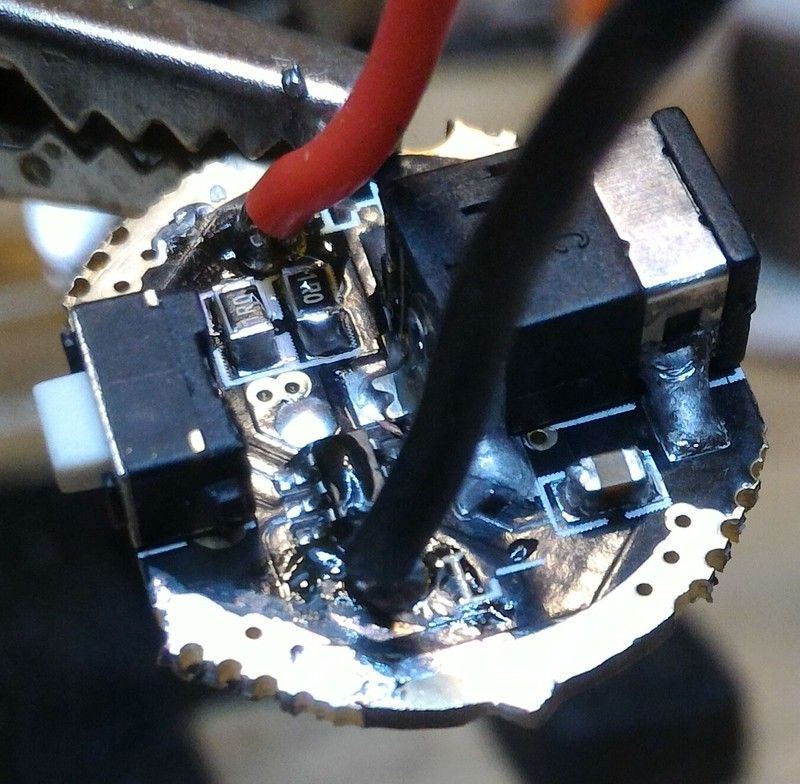

Double stacked resistors and the driver. This one had a hot glue Booger between the SW and charge port. Made it miserable…

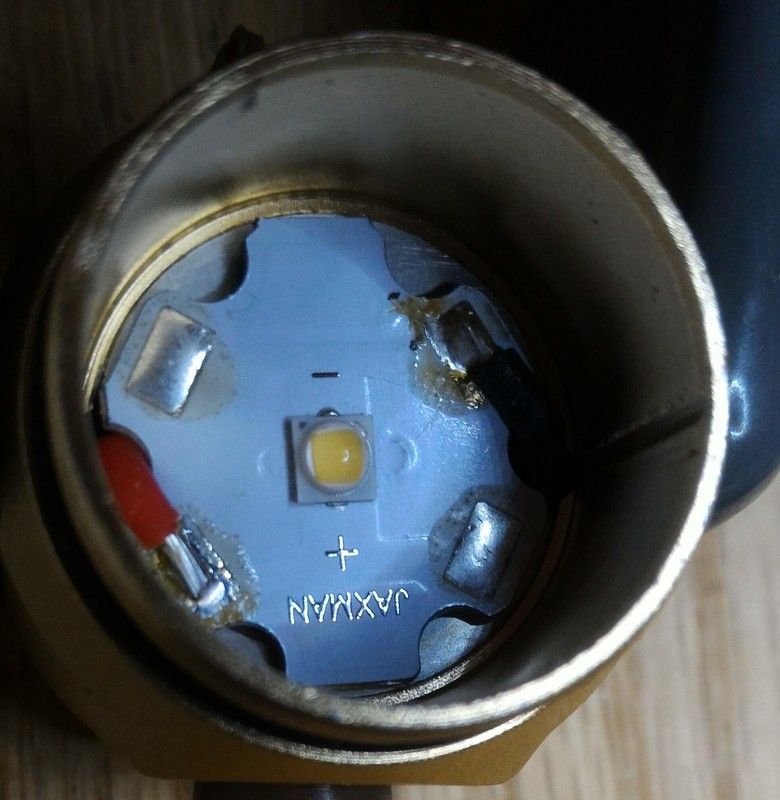

Used a Jaxman Nichia 219B 4000K high CRI on a 20mm DTP aluminum.

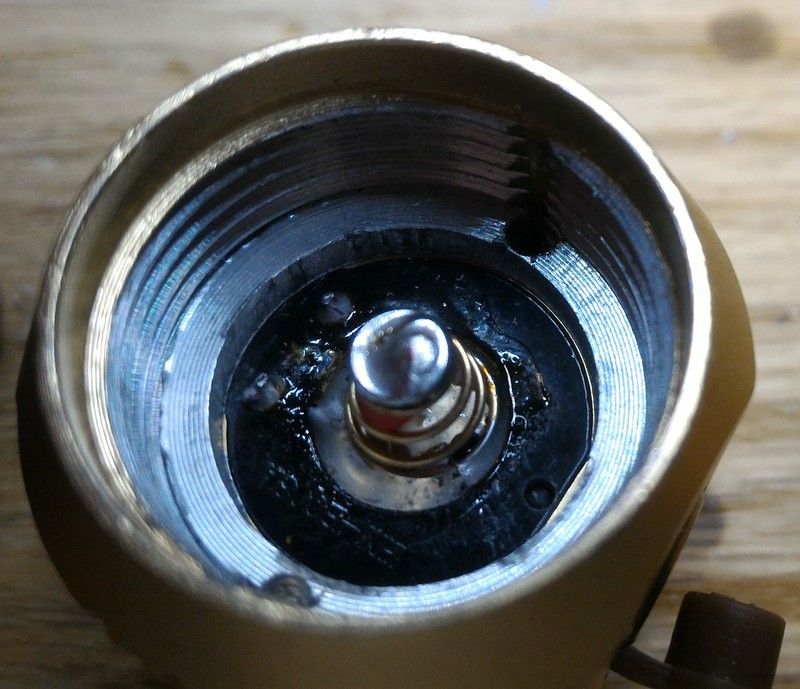

Bypassed the driver spring… because I was in there and the iron was on.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

Another…

Eagle Eye X7 XP-L HI 3A got some boost today. Killer 26650 light IMO.
MtnE 20mm Fet+1 and bypassed SW spring. Didn’t check amps because the tail switch assembly ring is difficult to get started and scratches get worse on the tail finish.

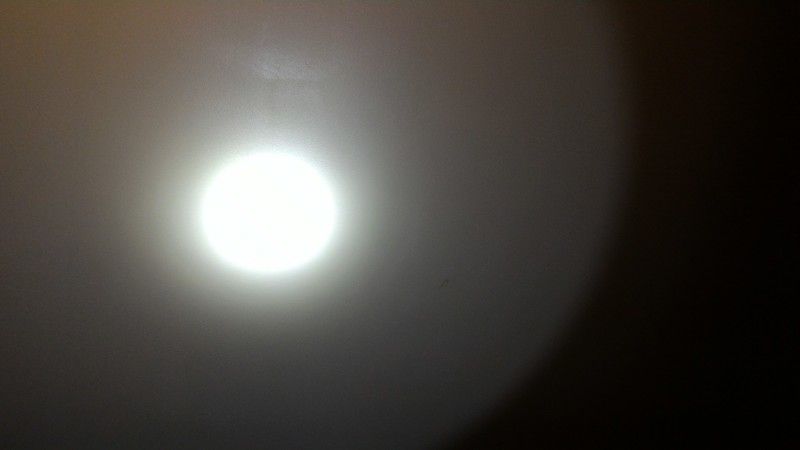

Ceiling shot of spot



gchart
gchart's picture
Online
Last seen: 9 min 36 sec ago
Joined: 03/19/2016 - 11:57
Posts: 644
Location: Central IL

I stripped for the first time today.

Stripped a flashlight, that is. I got this grey S2+ for like $6. But upon getting it, I couldn’t stand the color so it’s sat in its box for a month or so.

But I got inspired by vwpieces to strip and polish it. It’s not perfect, but much better than that ugly grey.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

I like it. Thumbs UpThumbs Up
Mine WAS Blue. Got it for the metal SW but couldn’t take the color any more. Tried to bake it and really got ugly, not changing color. So I went bare naked.
Most of the time I take pics of a polished light and see that I need to do-over. Back to 2000 wet and usually harder polish cause it’s late and frustrated. Worn 2000 paper will help also.

Grease the threads, and I usually wipe a thin coat of oil inside. Sometimes the Lye is not rinsed off good enough and white oxidization forms in a few days.

gchart
gchart's picture
Online
Last seen: 9 min 36 sec ago
Joined: 03/19/2016 - 11:57
Posts: 644
Location: Central IL

Thanks for the tips Beer

I really like the metal switch, but that’s OK. Having the silicone one on this just means that it’ll get an illuminated tailcap soon. I’m thinking white or white & blue on this one, should go with the bare metal nicely.

vwpieces
vwpieces's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/17/2016 - 19:49
Posts: 1068
Location: PA, USA

Coffee is working this morning… Tiny parts.

SF348 got a new emitter. Yeah, another 219B 4000K High CRI.
Cleaned up the pill, removed burrs and flatened best I could. Opened the reflector a bit too much and got a couple scratches, but oh well it fits the emitter. There was no thermal paste on it. reflowed the emitter to the original 8mm aluminum MCPCB.

Bought it cause it was $4.50 but never used this light because it was an awful color. Now I may grab it on occasion.





Got tired of the SF348 screaming “Polish me, Polish Me!” Hope the voices will stop now.

CRX
CRX's picture
Online
Last seen: 1 min 24 sec ago
Joined: 04/02/2013 - 15:27
Posts: 1628
Location: Scotland

Locator switch light on the S10R II i got from – X3 -

-X3-
-X3-'s picture
Offline
Last seen: 24 min 15 sec ago
Joined: 07/16/2014 - 03:28
Posts: 1267
Location: France, Angers

Sweet mod !
You like tinkering with small LEDs don’t you ? Big Smile

Slowly sinking into the dark abyss of addiction...MUST buy lights !

My Flashlight public album (mods, emitter swaps, eye candy)

My reviews channel (French language, Olight, Thorfire : 30+ lights tested)

My personal channel (including Olight SR mini, S1, S2, S1A and S-mini disassembly)

M4DM4X's deals and coupons

steel_1024
steel_1024's picture
Offline
Last seen: 4 hours 51 min ago
Joined: 10/17/2016 - 14:06
Posts: 69
Location: Taiwan

TA driver, Bistro

Eagle-eye X7

XP-G3 5000K

Sorry for my poor english.

Pages
