2019 Flashlight Host and Uncommon Budget Flashlights

527 posts / 0 new
Last post
TexasToasted
TexasToasted's picture
Offline
Last seen: 38 min 2 sec ago
Joined: 10/25/2012 - 08:48
Posts: 1012
Location: Texas Gulf Coast
A380
A380's picture
Offline
Last seen: 2 weeks 3 days ago
Joined: 01/02/2012 - 16:48
Posts: 103
Location: Sabadell, Catalonia.

Freeme, any link for that big zoomie?

freeme
freeme's picture
Offline
Last seen: 10 hours 14 min ago
Joined: 11/14/2013 - 22:00
Posts: 8084

This one? cool

A380 wrote:
Freeme, any link for that big zoomie?

©freemex1thedeals.com

A380
A380's picture
Offline
Last seen: 2 weeks 3 days ago
Joined: 01/02/2012 - 16:48
Posts: 103
Location: Sabadell, Catalonia.

Yes, that one.

Tom E
Tom E's picture
Offline
Last seen: 57 min 56 sec ago
Joined: 08/19/2012 - 08:23
Posts: 12408
Location: LI NY

SKV89 wrote:
Anyone have any experience with this one. The 10mm thick copper sounds interesting.

http://enogear.com/pd.jsp?id=22#_pp=2_359



I received my Nightwatch IRA from enogear yesterday - site is till down though. The IRA is one big chunk of alum with also a nice chunk of copper press fit, acting as a thick shelf for the MCPCB, which is also copper, anchored with 2 screws. It looks like a modder drilled out the shelf, cut a piece off of copper bar stock, and press fit it in there nicely.

It's one sic light, maybe the best heat sync'ing you will find in this size. But it only has a XHP-70, not XHP-70.2, but think enogear listed it that way, though looks like everywhere else it's listed at 3600 with a XHP-70.2. Max on turbo was only 2600 lumens on a Shockli 5500, think it was listed at 3600. UI doesn't quite match what's described on other listings - no manual, no shred of paper included and came in a plain, cheap OEM unmarked white box, in a bubble wrap bag. No spare o-ring, lanyard, etc. Not a good way to ship a heavy light, but the shipping bag had some padding to it, not your typical BG or GB bag. No shipping damage whatsoever.

The UI is a bit clunky - for the side switch, must cycle thru modes to turn it off for regular modes. For the lowest mode and turbo though, you can single click them off (press&hold for lo-lo, dbl click for turbo).

Can use the power tail switch though for power ON/OFF and last mode memory.

It's a very moddable light, so far - easy driver and LED access, no LED's under the switch though but maybe the switch board can be replaced. I'm looking at modding to a XHP70.2, custom 6V driver, using two 26350's - should be able to fit the cells with some modding for fitting longer cell space - brass button to replace the driver spring, mods to tail to get the tail switch deeper, etc. Think it would be a waste of the heat sync to only use a 3-4V LED.

Tom E
Tom E's picture
Offline
Last seen: 57 min 56 sec ago
Joined: 08/19/2012 - 08:23
Posts: 12408
Location: LI NY

MascaratumB wrote:
I also thought of it! Using colours is a thing they like to do! Well gotta wait and see how that ends Big Smile Meanwhile, also from Amutorch, the AX3: https://item.taobao.com/item.htm?spm=a1z10.1-c.w4004-18170312572.1.28e65b10FjSyel&id=576068793490

Just received the Amutorch AX3 - at turn on about 3000 lumens, but both LED's light up very low when not on, about a good low moonlight. So have to unscrew the tail to  completely shut off the LED's, oh boy... I bought it for modding potential, so a tear down will tell me how moddable it is, and if so, the problem will be corrected.

kikkoman
kikkoman's picture
Offline
Last seen: 4 months 4 days ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

Found 2 interesting 18650 cheapies on AE:

  1. - 7.53$
    fairly beefy, finish looks good, anodized threads….apparently has a lighted tailcap that shows battery status (red/green)

seen this branded as Sanyi or Boruit

link

  1. - 3.87$
    available as both zoomie and reflectored (seems to use the same head though) – has no proper LED shelf I think.
    USB charger in the tailcap right besides the clicky. This had me puzzled for a bit, looks like they use a pair of diodes + fuse or PTC across the driver to make this work. Probably a 4056 in the TC. I wonder how good charge termination is. Very interesting.

I wonder if the TC legos onto other lights, that reverse diode in the driver should be easy to do and not affect operation of most drivers.

EDIT: just noticed the Wuben LT35 and L50 use what looks like the exact same tailcap. Hmmmm…….

Link

Someone took it apart (this is the driver):

I ordered them both out of curiosity. Plus the cheapest C8 I could find – 4.15$ Party

Lightbringer
Lightbringer's picture
Online
Last seen: 14 min 30 sec ago
Joined: 08/30/2016 - 14:12
Posts: 9976
Location: nyc

I finally managed to twist’n‘pull hard enough to get the pill out of the “Thorfire” CT01s. Will see if I can’t scare up a moderate-current driver and nicer LED to replace the hateful little ones inside the light now.

Hardware-wise, it doesn’t look too bad, but the evil blue/purple beam and craptastic driver definitely need purging.

Will see what I got in “inventory” that I can stick in there…

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

kikkoman
kikkoman's picture
Offline
Last seen: 4 months 4 days ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

A-ha! #1 has a tailcap driver with a momentary. That’s how there’s a battery indicator in the boot.
The driver looks similar to the on the Ultrafire zoomie has, with a few minor differences. In the head there’s a 50 ohm resistor to the body, but 220 work too.
The thermal path in the head is bad. The LED sits on a pill that’s sandwiched between reflector and body, otherwise freely slides in the head with ~0.2mm clearance to the walls.
I managed to press it in with some copper shim stock, it should be a lot better now.
I need to wrap my head around the driver, maybe there’s a way to get something like Anduril running in this thing.
The XM-L2 clone went out, a 5000k 90+ LH351D went in.

Driver:

  1. has fewer surprises. I does have a LED shelf, ~3mm thick, it’s press-fit and not as bad as I thought.
    Quite long (129mm), the reflector is pretty deep (22mm dia x 20mm).
    The USB tailcap is a stacked construction and probably uses a 4056 charging controller. I have to do measurements yet, I expect charge termination voltage to be a bit on the low side due to the diode solution.
    This one got a 4000k 85CRI LH351C instead of the angry blue XM-L clone.

Next-mode memory and strobe+SOS, of course. Facepalm Otherwise this would be quite okay for under 4 dollars.

TC:

Driver (with the diodes + fuse that allow TC charging):

LouieAtienza
Offline
Last seen: 7 months 1 week ago
Joined: 11/17/2018 - 15:15
Posts: 593
Location: New York
Tom E wrote:

SKV89 wrote:
Anyone have any experience with this one. The 10mm thick copper sounds interesting.


http://enogear.com/pd.jsp?id=22#_pp=2_359






I received my Nightwatch IRA from enogear yesterday – site is till down though. The IRA is one big chunk of alum with also a nice chunk of copper press fit, acting as a thick shelf for the MCPCB, which is also copper, anchored with 2 screws. It looks like a modder drilled out the shelf, cut a piece off of copper bar stock, and press fit it in there nicely.


It’s one sic light, maybe the best heat sync’ing you will find in this size. But it only has a XHP-70, not XHP-70.2, but think enogear listed it that way, though looks like everywhere else it’s listed at 3600 with a XHP-70.2. Max on turbo was only 2600 lumens on a Shockli 5500, think it was listed at 3600. UI doesn’t quite match what’s described on other listings – no manual, no shred of paper included and came in a plain, cheap OEM unmarked white box, in a bubble wrap bag. No spare o-ring, lanyard, etc. Not a good way to ship a heavy light, but the shipping bag had some padding to it, not your typical BG or GB bag. No shipping damage whatsoever.


The UI is a bit clunky – for the side switch, must cycle thru modes to turn it off for regular modes. For the lowest mode and turbo though, you can single click them off (press&hold for lo-lo, dbl click for turbo).


Can use the power tail switch though for power ON/OFF and last mode memory.


It’s a very moddable light, so far – easy driver and LED access, no LED’s under the switch though but maybe the switch board can be replaced. I’m looking at modding to a XHP70.2, custom 6V driver, using two 26350’s – should be able to fit the cells with some modding for fitting longer cell space – brass button to replace the driver spring, mods to tail to get the tail switch deeper, etc. Think it would be a waste of the heat sync to only use a 3-4V LED.

Kaidomain seems to have them as well, and with an SST-40 option…

Lightbringer
Lightbringer's picture
Online
Last seen: 14 min 30 sec ago
Joined: 08/30/2016 - 14:12
Posts: 9976
Location: nyc

Must… resist…

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

Tom E
Tom E's picture
Offline
Last seen: 57 min 56 sec ago
Joined: 08/19/2012 - 08:23
Posts: 12408
Location: LI NY

Well, now that I have a couple XHP50.2 3V LED's on order from Cutter, one is definitely going into the IRA. 16 amps in this light? No problem at all...

Agro
Agro's picture
Online
Last seen: 28 sec ago
Joined: 05/14/2017 - 11:16
Posts: 5038
Location: Ślōnsk

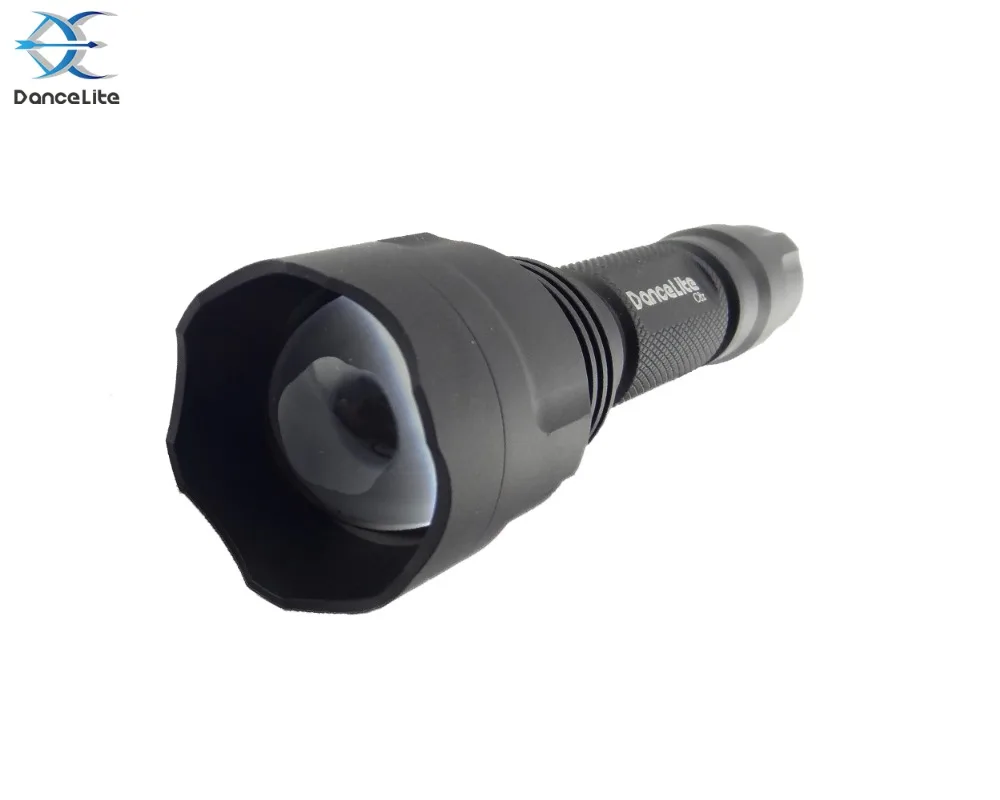

What’s up with the lens? Frosted outside except for a small roughly-hexagonal part in the middle? Weeeeird.

https://www.aliexpress.com/item/Good-Quality-DanceLite-C8z-CREE-XM-L2-U3-5-Mode-Focus-Zoomable-LED-Flashlight-Torch-1×18650/32792598751.html

Agro
Agro's picture
Online
Last seen: 28 sec ago
Joined: 05/14/2017 - 11:16
Posts: 5038
Location: Ślōnsk
MascaratumB
MascaratumB's picture
Offline
Last seen: 3 hours 18 min ago
Joined: 10/29/2016 - 12:12
Posts: 4225
Location: Portugal

Agro wrote:

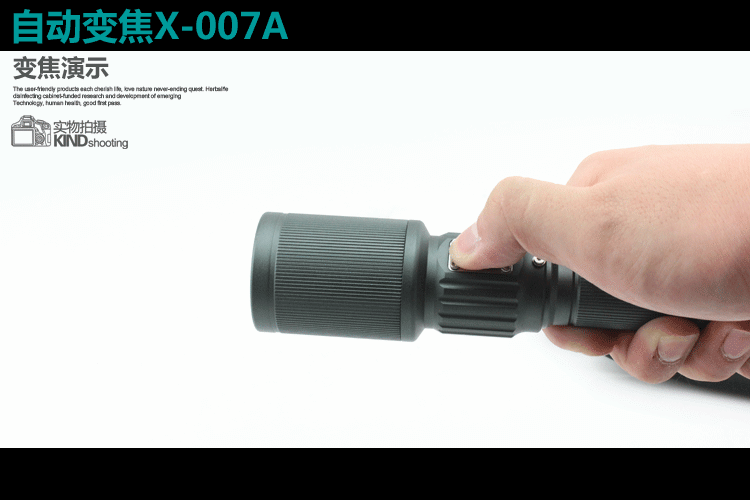

Electric zoomie:

https://www.aliexpress.com/item/WholeSale-50sets-lot-Authentic-imported-...

Hum…I guess I wouldn’t rely on that Silly
Still, it is a different thing to see!

[REVIEWS] AMUTORCH: S3 / S3 vs 219c / AM30 / AX1 / VG10 /// SOFIRN: SF14 + SP10A / SP32A / SP10B /// NITEFOX: UT20 / ES10K / K3 /// ODEPRO: KL52 / B108 /// ACEBEAM: H20 / TK16 /// BLITZWOLF: BW-ET1 /// DQG: AA Slim Ti /// HC-LIGHTS: SS AAA /// XTAR: PB2 Charger /// OLIGHT: M2R Warrior /// WUBEN: TO10R / E05 / T70 / E10 /// ON THE ROAD: M1 / i3 / M3 Pro /// ROVYVON: A2 + A5R / E300S / A8 /// KLARUS: XT1C /// LUMINTOP: Tool AA V2.0 + Tool 25 /// LIVARNOLUX: 314791 /// SKILHUNT: M150

Tricks: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 /// TIR Lenses: 1 / 2 /// Others: Biscotti 3 + 1*7135 / Triple TIR w/ XP-G2 ///// My Collection ///// My Review's Blog (PT)

GIVEAWAY: 1

JasonWW
JasonWW's picture
Online
Last seen: 3 min 29 sec ago
Joined: 10/22/2016 - 11:41
Posts: 11898
Location: Houston Texas

Agro wrote:
What’s up with the lens? Frosted outside except for a small roughly-hexagonal part in the middle? Weeeeird.

https://www.aliexpress.com/item/Good-Quality-DanceLite-C8z-CREE-XM-L2-U3-5-Mode-Focus-Zoomable-LED-Flashlight-Torch-1×18650/32792598751.html

Maybe it gets rid of the artifacts at the outer edge of the beam you typically see with zoomies?

Texas Ace Lumen Tube calibrated with Maukka lights

Click this to go to signature links.

contactcr
Offline
Last seen: 1 hour 32 min ago
Joined: 05/19/2017 - 18:52
Posts: 2854
Location: US

Wonder if a wavien collar would fit, or if it’s even any good to begin with

freeme
freeme's picture
Offline
Last seen: 10 hours 14 min ago
Joined: 11/14/2013 - 22:00
Posts: 8084

Most likely it is just the reflection of the bezel.

Agro wrote:
What's up with the lens? Frosted outside except for a small roughly-hexagonal part in the middle? Weeeeird. !https://ae01.alicdn.com/kf/HTB1mzhCPFXXXXclXXXXq6xXFXXXI/201701094/HTB1m...! https://www.aliexpress.com/item/Good-Quality-DanceLite-C8z-CREE-XM-L2-U3...

©freemex1thedeals.com

JasonWW
JasonWW's picture
Online
Last seen: 3 min 29 sec ago
Joined: 10/22/2016 - 11:41
Posts: 11898
Location: Houston Texas

freeme wrote:

Most likely it is just the reflection of the bezel.


Agro wrote:
What’s up with the lens? Frosted outside except for a small roughly-hexagonal part in the middle? Weeeeird.

https://www.aliexpress.com/item/Good-Quality-DanceLite-C8z-CREE-XM-L2-U3-5-Mode-Focus-Zoomable-LED-Flashlight-Torch-1×18650/32792598751.html


I checked that. It shows up in 2 different pictures from different angles. It definitely looks frosted.

See below.

Hmmm, hang on. This kinda looks like the same picture, just rotated 75°. I bet it is just the really deep bezel shroud making a reflection. Notice the 6 points of the bezel and the 6 sides on the lens? I bet it’s not frosted.

Texas Ace Lumen Tube calibrated with Maukka lights

Click this to go to signature links.

contactcr
Offline
Last seen: 1 hour 32 min ago
Joined: 05/19/2017 - 18:52
Posts: 2854
Location: US

They also have a re-branded Nightwatch IRA w/ 50.2 and no SS bezel:

https://www.ebay.com/itm/2600Lm-DanceLite-DF8-Self-Denfense-CREE-XHP50-2-18W-Powerful-LED-Flashlight-Lamp/264235622566

And some type of larger driver heatsink fin reflector C8 design, looks like kiriba-ru’s heatsink head but w/ reflector, using those uncoated Nightwatch springs:

https://www.ebay.com/itm/DanceLite-C12-CREE-XP-L-Hi-V3-AMC7135%C3%9712-4200mA-2-Group-3-5-Mode-LED-Flashlight/264235622592

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 16 hours 1 min ago
Joined: 11/29/2017 - 12:34
Posts: 5463
Location: Canada

For some reason, your link did not work.

Here is a fixed link:
https://www.ebay.com/itm/DanceLite-C12-CREE-XP-L-Hi-V3-AMC7135×12-4200mA-2-Group-3-5-Mode-LED-Flashlight/264235622592

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

JasonWW
JasonWW's picture
Online
Last seen: 3 min 29 sec ago
Joined: 10/22/2016 - 11:41
Posts: 11898
Location: Houston Texas

Keep in mind Ebay links are only good for maybe 3 months then go dead. Typically.

Texas Ace Lumen Tube calibrated with Maukka lights

Click this to go to signature links.

contactcr
Offline
Last seen: 1 hour 32 min ago
Joined: 05/19/2017 - 18:52
Posts: 2854
Location: US

More digging, presumably this listing means it’s the same lens as UniqueFire UF-1505,UF-T20 – so nothing ground breaking here I suppose.

https://www.aliexpress.com/store/product/1PC-NEW-37-8mm-x-17-4mm-Transparent-Clear-Focus-Convex-Lens-Optical-Glass-For-UniqueFire/613721_32836423622.html

Agro
Agro's picture
Online
Last seen: 28 sec ago
Joined: 05/14/2017 - 11:16
Posts: 5038
Location: Ślōnsk

A 348-like light with a lens?
https://www.aliexpress.com/item/High-Power-White-LED-Flashlight-Portable-Flash-Light-Small-Penlight-Mini-Torch-Lamp-Little-Pocket-Lights/32935039418.html

I’m not sure, at the wall it looks like a round spot but the beam itself seems to have spill. Other beamshots clearly show lights with lenses. But 1 clearly shows another light and the others don’t show the light at all.

Too bad the tail switch spoils the look.

freeme
freeme's picture
Offline
Last seen: 10 hours 14 min ago
Joined: 11/14/2013 - 22:00
Posts: 8084

JKK70

©freemex1thedeals.com

Chatika vas Paus
Offline
Last seen: 29 min 40 sec ago
Joined: 09/03/2017 - 13:46
Posts: 606

I have this flashlight! For some month. with xhp70.2 in neutral white and OP reflector.

luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 1 hour 49 min ago
Joined: 07/07/2013 - 09:09
Posts: 2294
Location: X

Anyone seen zoomie host in Sofirn SF30A style but made for 18650 bat only?

I need to find suitable host with smaller glass lenses, 1×18650 tube,anodized threads… Sofirn SF30A would do but body is to wide for 25,4mm WE adjustable mount Sad

freeme
freeme's picture
Offline
Last seen: 10 hours 14 min ago
Joined: 11/14/2013 - 22:00
Posts: 8084

Convoy BD04?

©freemex1thedeals.com

luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 1 hour 49 min ago
Joined: 07/07/2013 - 09:09
Posts: 2294
Location: X
freeme wrote:

Convoy BD04?

It has plastic lens, and while I have nothing against plastic lenses since they will throw further and have clearer die projection than most commercial available glass lenses with LED emitter it does not fit in mine project…

I need glass lens in zoomie(small lightweight and practical zoomie) so that it can hide laser emitter (VCSEL) imperfections or better to say to make them blurry…

This is how VCSEL looks under plastic(acrylic zoomie):

Glass lenses should kinda merge(blur) that imperfections which plastic/acrylic lens perfectly projects…

kikkoman
kikkoman's picture
Offline
Last seen: 4 months 4 days ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

@luminarium iaculator — have you looked into the Trustfire Z9? Glass lens according to mfr, 1” body diameter, not sure about the anodized threads…. 12 dollars and change at Fasttech. USB charging in the Ultrafire UF-Z9USB, otherwise the same.

The UF-V3 clearly stood model for the Sofirn, definitely no anodized threads though.
