Nichia E17A/E21A series (April 19th: updated with output tests in the OP)

72 posts / 0 new
Last post
djozz
djozz's picture
Online
Last seen: 2 min 37 sec ago
Joined: 09/07/2012 - 17:04
Posts: 11029
Location: Amsterdam

I ordered some R8000 ones from lumitronics, both 17A and 21A, should be in tomorrow afternoon. I hope to do a test later this week.

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

Excellent. I’m imagining making my own gapless xhp70 and -50 emitters. Only tests will tell if they can compete in output.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

They’re bright and comes in 9080! No tint shift so far.
With XP sinkpad you get oval beam, 2p E21A non isolated, with XM sinkpad you get 4p E21A non isolated. Cathode must be soldered to the MCPCB’s thermal pad. Scrap the masking paint between pads for best result (minimal solder thickness). Also to get the most flat arrays.
Any non conductive thermal pad will do. Best with thin thermal grease on an anodized heatsink.

djozz
djozz's picture
Online
Last seen: 2 min 37 sec ago
Joined: 09/07/2012 - 17:04
Posts: 11029
Location: Amsterdam

EasyB wrote:
Excellent. I’m imagining making my own gapless xhp70 and -50 emitters. Only tests will tell if they can compete in output.

Yes, 4× 17A should exactly fit an (DTP) XP-pad, all minusses (cathodes) soldered on the thermal pad. The body has become led-minus, a minor problem to solve Party
clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

And with this one we can get the almost impossible to get: 9080 4500K Nichia
I’ll post my result with 2pcs sm503 and 2 pcs sm303 on a XM DTP board later

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

It seems there are two ways to deal with the lack of a thermal pad. One way is just to electrically isolate the MCPCB from the flashlight body. As clemence suggested, an anodized shelf with thermal grease should isolate fine, but most shelves are not anodized. Another simple way to electrically isolate the MCPCB is to put a layer of kapton tape around the perimeter of the MCPCB so there is no metal-to-metal contact, then fill the space between shelf and star with thermal paste. Kapton tape is 25-50 microns thick and thermal paste has at least 2 W/mK thermal conductivity, so with a 16mm MCPCB the thermal resistance of the thermal paste is 0.25-0.5 K/W, which is pretty small. Anyway, there are lots of solutions to the problem, but this is the one I was thinking of using.

The other way, as djozz is suggesting, is to electrically connect the flashlight body to the (+) or (-) of the LEDs. I read your description of how to have the LED positive connected to the body, but how would you deal with having the LED negative connected to the body? Putting the driver in the tailcap is one way…

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

With DTP XM MCPCB it will create a funny beam



Will be a trending topic with DTP XP MCPCB





My suggestion is to use DTP aluminum XP MCPCB, then anodize the back side. Easy and straighforward application with existing host.

This will be a very nice 3 Volt class 4,2mm quad die!! With the possibility for tint mixing and individual control.



- Clemence

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

Eventhough the thermal pad isn't enough for all LEDs to sit on, I gave them a try...

Please don't complain about it, they're tiny, harder to handle, and fly easily. The sm303 9080 is thicker by 0,1mm. Let's see how Djozz handle the smaller E17A later.



ultra low current by multimeter could lit them all





Could be Windows next logo





Gaps, yes I know...





Fits aliexpress XML optics loosely







Pleasant 4500K







And....pffffffftttt! one dead at 4,6A. With proper MCPCB these should handle up to 8A





The burns damage all through the MCPCB and short the whole array. Three survived, I'll keep them for later test



djozz
djozz's picture
Online
Last seen: 2 min 37 sec ago
Joined: 09/07/2012 - 17:04
Posts: 11029
Location: Amsterdam

Thanks for the nice tests! Pity about the burnt led. At 4.6A that is just 1.15A per led (well, ‘just’ as in the usual BLF expectations). Let’s hope that it handles more current when better mounted.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia
djozz wrote:
Thanks for the nice tests! Pity about the burnt led. At 4.6A that is just 1.15A per led (well, ‘just’ as in the usual BLF expectations). Let’s hope that it handles more current when better mounted.

And that was using the 20mm XP DTP MCPCB with the largest thermal pad. Sinkpad XP has much smaller thermal pad. I guess your E17A will fit better in XP MCPCB

Texas_Ace
Texas_Ace's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 03/24/2016 - 07:44
Posts: 4430
Location: Everything is brighter in Texas

Very interesting test, not sure why I want not subscribed to this thread.

If guns cause crime, then pencils cause misspelled words.

In general, the art of government consists of taking as much money as possible from one party of the citizens to give to the other. -- Voltaire (1764)

Texas Avenger Driver Series

My LED Test series - XP-L2 V5  - Nichia 219C 90+ CRILatticebright "XM-L"XHP35 & PWM efficiency - XHP50 - XP-L V5 - XM-L2 U2 - XP-G3 S5  - XP-L HI V2 - Oslon Square & direct comparison to Djozz tests - Nichia 319A - Nichia 219B 9080 CRI - Nichia 219C D320 - Nichia 229AT

Complete collection of all my LED tests

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

Thanks for the test. That is disappointing; the die doesn’t actually extend to the edge of the package, making it impossible to create a gapless quad.

Texas_Ace
Texas_Ace's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 03/24/2016 - 07:44
Posts: 4430
Location: Everything is brighter in Texas
EasyB wrote:
Thanks for the test. That is disappointing; the die doesn’t actually extend to the edge of the package, making it impossible to create a gapless quad.

The gap would be so small as to be unnoticeable in an actual light except for maybe a zoomie I bet.

I am more confused at the early death of the LED myself. Even before the datasheet limits.

If guns cause crime, then pencils cause misspelled words.

In general, the art of government consists of taking as much money as possible from one party of the citizens to give to the other. -- Voltaire (1764)

Texas Avenger Driver Series

My LED Test series - XP-L2 V5  - Nichia 219C 90+ CRILatticebright "XM-L"XHP35 & PWM efficiency - XHP50 - XP-L V5 - XM-L2 U2 - XP-G3 S5  - XP-L HI V2 - Oslon Square & direct comparison to Djozz tests - Nichia 319A - Nichia 219B 9080 CRI - Nichia 219C D320 - Nichia 229AT

Complete collection of all my LED tests

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio
Texas_Ace wrote:
EasyB wrote:
Thanks for the test. That is disappointing; the die doesn’t actually extend to the edge of the package, making it impossible to create a gapless quad.

The gap would be so small as to be unnoticeable in an actual light except for maybe a zoomie I bet.

I am more confused at the early death of the LED myself. Even before the datasheet limits.


The gap looks to be at least as large as in the XHP70, though it will probably be less noticeable because of the phosphor covering, sort of like the XHP50.2. But whether or not you see a donut hole in the beam, gaps reduce the peak beam lux in a reflector light.
Texas_Ace
Texas_Ace's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 03/24/2016 - 07:44
Posts: 4430
Location: Everything is brighter in Texas
EasyB wrote:
Texas_Ace wrote:
EasyB wrote:
Thanks for the test. That is disappointing; the die doesn’t actually extend to the edge of the package, making it impossible to create a gapless quad.

The gap would be so small as to be unnoticeable in an actual light except for maybe a zoomie I bet.

I am more confused at the early death of the LED myself. Even before the datasheet limits.


The gap looks to be at least as large as in the XHP70, though it will probably be less noticeable because of the phosphor covering, sort of like the XHP50.2. But whether or not you see a donut hole in the beam, gaps reduce the peak beam lux in a reflector light.

Looks way smaller then an XHP70 to my eye, got to remember that this is a 3535 footprint they are sitting on, the xhp70 sits on a 7070 footprint, twice the size.

To me it looks lighter packed then an xhp50. In fact it would not be hard to figure out, if clemence can measure the total size of the dies we can compare that to the total size of the xhp50 dies.

If guns cause crime, then pencils cause misspelled words.

In general, the art of government consists of taking as much money as possible from one party of the citizens to give to the other. -- Voltaire (1764)

Texas Avenger Driver Series

My LED Test series - XP-L2 V5  - Nichia 219C 90+ CRILatticebright "XM-L"XHP35 & PWM efficiency - XHP50 - XP-L V5 - XM-L2 U2 - XP-G3 S5  - XP-L HI V2 - Oslon Square & direct comparison to Djozz tests - Nichia 319A - Nichia 219B 9080 CRI - Nichia 219C D320 - Nichia 229AT

Complete collection of all my LED tests

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

The E21A package width is 2.1mm, so similar to the XHP70 individual die size. Estimating from measuring images:

The width of the gap between the dies in the XHP70 is about 7% of one die width. For the E21A quad pictured above, it is about 13%, even taking into account the small gap between the packages. So there is comparatively more dim/unlit area in the E21A quad.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

FYI, those picture taken with ultra low current from my multimeter. And I haven’t use silicone to bridge the air gaps in between tiles to reduce photon crossing losses.

MRsDNF
MRsDNF's picture
Offline
Last seen: 9 hours 29 min ago
Joined: 12/22/2011 - 21:18
Posts: 11563
Location: A light beam away from the missus in the land of Aus.

Nice testing clemence. The gaps must of been so small that its not untill you take a macro shot that they appear large. Thumbs Up

My current and or voltage measurements are only relevent to anything that I measure.

Budget light hobby proudly sponsored by my Mastercard and unknowingly paid for by a hard working wife.

djozz said "it came with chinese lettering that is chinese to me".

old4570 said "I'm not an expert , so don't suffer from any such technical restrictions".

Old-Lumens. Highly admired and cherished member of Budget Light Forum. 11.5.2011 - 20.12.16. RIP.



djozz
djozz's picture
Online
Last seen: 2 min 37 sec ago
Joined: 09/07/2012 - 17:04
Posts: 11029
Location: Amsterdam

clemence wrote:
FYI, those picture taken with ultra low current from my multimeter. And I haven’t use silicone to bridge the air gaps in between tiles to reduce photon crossing losses.

What I had not hoped for with the 17A and 21A: the actual die under the phosfor is clearly smaller than the full dimension of the led, thus the fading edges. That will not be solved by filling the gaps with silicone. A quad led set-up will face the same challenges that the first gen. XHP leds (and the old MC-E and MK-R) have: no smooth reflector for this quad!
clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia
djozz wrote:
clemence wrote:
FYI, those picture taken with ultra low current from my multimeter. And I haven’t use silicone to bridge the air gaps in between tiles to reduce photon crossing losses.
What I had not hoped for with the 17A and 21A: the actual die under the phosfor is clearly smaller than the full dimension of the led, thus the fading edges. That will not be solved by filling the gaps with silicone. A quad led set-up will face the same challenges that the first gen. XHP leds (and the old MC-E and MK-R) have: no smooth reflector for this quad!

Silicone will reduce phosphor surface temperature by reducing the photons bounced back and accumulates heat on the phosphor surface. Each time the photons hit air gap, they will bounced back unless in straight line. I didn’t mention it to cure the cross mark.

FYI, they survived 8A (for a minute or two). Still editing the pictures

- Clemence

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia




EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

Well that looks a bit more promising. The picture really shows which parts need better heat sinking. Do you know if noctigon XP16/20 MCPCBs use 2oz copper thickness? It seems like the area/layout of the copper on the MCPCB could make a big difference, too. On noctigon stars the trace from the pos and neg contact is the width of the footprint (3.5mm). On the other hand, on this 20mm TPAD I have in front of me the trace is thinner and there is a bottle neck of 1mm right at the footprint; not as good for heat transfer. Ideally the trace would spread out and cover as much area as possible to increase the heat transfer across the insulating layer to the metal below, just like the Nichia 119 MCPCB that djozz designed.

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

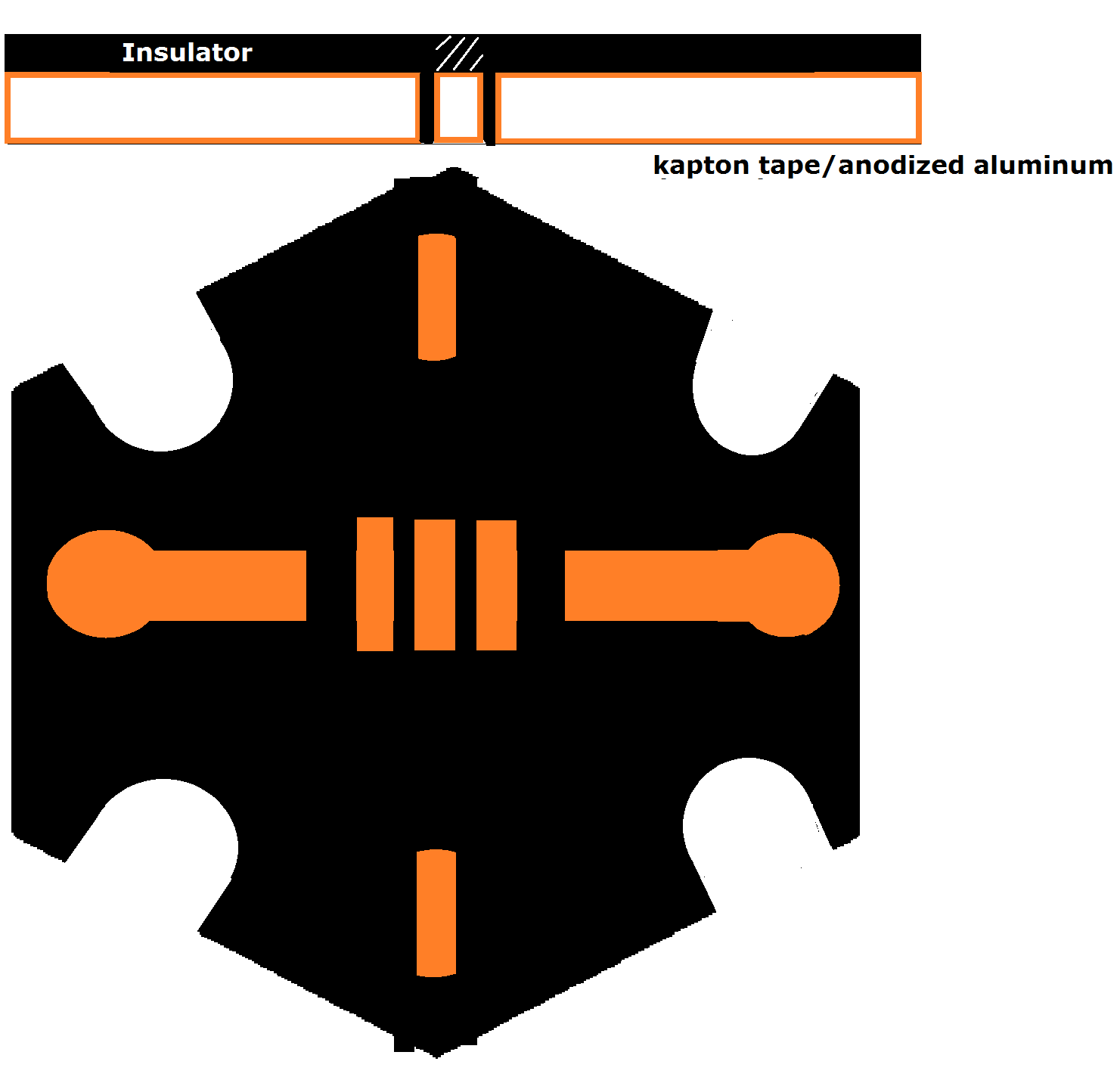

Based on my thoughts above, I think I came up with a good MCPCB design for good heat transfer from the non-DTP LED contact. Start with a copper disk or sand off all the insulating stuff on a copper MCPCB. Then put down some Kapton tape covering all the area except for the DTP area where the LED cathode will connect. Cover all the Kapton tape area with copper tape; this will be the other LED contact. I have some copper tape that is 2-3 thousandths of an inch thick, which is about 2oz thickness. I made a mock-up of this design on a TPAD MCPCB; see picture.

The copper tape is electrically isolated from the bulk copper below. The Kapton tape doesn’t have very high thermal conductivity, but is very thin, about 1-2 thousandths, which is about 3-4x thinner than the dielectric layer on MCPCBs, by the look of it. When the Kapton tape is spread out over a 20mm MCPCB the extra thermal resistance is only about (40microns)/[(300mm^2)(0.12W/mK)]=1.1 K/W. This should make for good thermal transfer away from both LED contacts. I tried soldering on the copper tape, and the copper tape adhesive got a little soft when everything was at soldering temperature, but once it cooled down it stuck well again.

Lexel
Lexel's picture
Offline
Last seen: 49 min 4 sec ago
Joined: 11/01/2016 - 08:00
Posts: 2900
Location: Germany

The Sinkpad has a way better heat transfer from the outer solder pads than Noctigon

if you look right the positive and negative side go all the way over the star like a bar between the 2 wire pads
it looks pretty much like your self made star cut to half width

maybe someone makes a board with insulated base and 3 DTP pads insulated by a dielectric

[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, S42, K01 / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp

[Mods] Skilhunt H03 short / Klarus XT12GTS / colorful anodisation

[Sale] TA drivers Narsil or Bistro, XHP35 E2-3C

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

That would work well, but I doubt someone makes it.

I estimate that, in my design above, the bottleneck is the thinness of the copper tape. Heat will have trouble traveling laterally. Using ~1mm copper shim instead of the tape should greatly improve the lateral heat transfer.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

It’s done already. 144A and E21A are exactly what the new VirEnce board all about. Only one problem left: $$$$
Until then, Djozz board is your best option. It has very large copper pour for its size and thick copper base. One problem for extreme BLF application is the dielectric used is only 3 W/MK.
A single E21A can be driven really hard > 3A on Djozz board. His last test showed that 144A with 4 times the heat performed OK.

- Clemence

EasyB
Offline
Last seen: 8 hours 36 min ago
Joined: 03/09/2016 - 15:24
Posts: 1184
Location: Ohio

I’m planning on a quad configuration, though.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia
EasyB wrote:
I’m planning on a quad configuration, though.

You can do that too….4 pcs in a single row. Just scrape the masking paint. But, no real use in most FL

chouster
Offline
Last seen: 11 hours 17 min ago
Joined: 02/20/2014 - 15:05
Posts: 680
Location: germany

Great posts, Clemence! Very nice job you did there with handling these tiny tiny LEDs.

clemence
clemence's picture
Offline
Last seen: 21 hours 53 min ago
Joined: 07/12/2015 - 02:58
Posts: 1022
Location: Bali - Indonesia

chouster wrote:
Great posts, Clemence! Very nice job you did there with handling these tiny tiny LEDs.

Wait later until Djozz come with his E17A. I myself is rather not to deal with them

Pages
