Small Sun – ZY-T08 Best of both worlds (beamshots uploaded)

This is my third mod of this budget flashlight and let me tell you, this host has to be every modders dream. Side by side batteries, right size, good heatsinking, robust and pretty well made. This one came from Fasttech but other parts were purchased from Kaidomain, my new favorite one stop shop.

Part list:
1. ZY-T08 – $24.09 (Fasttech)
2. 3x XPL-HI V2 4500K (20mm MCPCB) – $19.77 (Kaidomain)
3. MTN FET driver – $15,00 (Mountain Electronics)
4. 58mm AR coated lens – $3.46 (Kaidomain)
5. 3x Trit Vials (1.5mm x 6mm) – $21.63 (Fasttech)
6. 3× 25.5mm x 25mm reflectors – $9.39 (Kaidomain)
7. 22mm Brass Pill – $3.49 (Kaidomain)
8. Other supplies (copper, wires, springs, rubber boot, switch, sand paper…) – $15.00 (mostly local stores)

I also made around 30 different parts and managed to stuff them all in this little project of mine.

So it turned out to be a over hundred dollar flashlight, just in parts…
Was it worth it? I’ll let you be the judge…

1. Small Sun and most of the parts

2. Switch side pimping. Stock switch is to be replaced with reliable Omten.

3. Round ring extension on the tailcap is cut and base is sanded and polished.

4. Switch side parts are ready.

5. Copper plate soldered, spring bypasses done. There wont be any electrical resistance there.

6. Top side. One continues 18 AWG wire to conduct current to the body. Second continues wire goes from top of the spring directly to the switch.

7. Made a 5mm fiberglass plate. It is to be used as a reflector holder and a contact plate.

8. Three 25.5mm (width) x 25mm (depth) reflectors. It is going to be a tight fit.

9. Making holes for reflectors.

10. It came up nice.

11. Reflectors epoxied.

12. Top side. Touch of sand paper and some paint is all it needs for a perfect finish.

13. Pill parts. It is going to be assembled from three sections. These are parts for two of them.

14. Bottom part done (soldering).

15. Brazing the middle section. I’m going to use few aluminum parts mainly to save on the overall weight.

16. Cooking pot. Had to apply almost 400 C to melt brazing rods. It is a success.

17. Two sections of the pill almost done.

18. Top plate done, three part pill is at the finish line. Now it needs some minor tweaking to fit properly. I’ll come back to that.

19. Making the contact plate. Copper plate for battery contact, positive wires soldered trough the metal. On the other side (inside the flashlight head), brass pill is going to hold the driver and rest on a aluminum plate for better heatsinking.

20. Contact plate parts done.

21. Contact plate done.

22. A touch of arctic alumina epoxy to join the brass pill and aluminum plate is all there is left to do. So how do I connect the negative contact to driver with minimum electrical resistance? We’ll come back to that.

23. Pill parts done. Threaded, sanded to fit and polished.

24. Different angle.

25. Middle part bolted.

26. Top part bolted.

27. Pill finished. As you may have noticed, I had to made another top section. Brazing flat surfaces didn’t hold. It came apart during drilling.

28. Making custom centering rings. Had to sand them down (bottom 0.5mm, top 0.5mm) and reduce the width from 8mm to 6mm. Three XPL’s on 20mm MCPCB’s trimmed to fit are in the background.

29. Ground problem solved. 18 AWG wire brazed to the head of the flashlight. Other end of the wire is going to be soldered to the drivers pill.

30. Assembly day. Ain’t that a pretty sight. There’s still lot of work ahead.

31. Cut to fit MCPCB’s arranged. Reflectors are going to press them down. No gluing needed there. Tailor made centering rings are going to hold LED’s in their place.

32. Pill epoxied with Arctic Alumina, all contacts soldered. Pill holder is going to be lightly glued with plain silicone.

33. Finished ZY-T08 Triple. I even managed to polish the metal inside the cooling fins using a rope. Got a few blisters on my hands doing this but it was worth it.

34. You gotta love this sight. Three warm XPL-HI’s inside 25mm x 25mm OP reflectors surrounded with trit vials.

35. Please ignore scratched lens. I ruined them during the build process, new lens are on the way from Kaidomain. Pay attention to the blue circles around the reflectors. I don’t know how that happened but it sure looks beautiful and it doesn’t affect the beam at all.

36. Green trits in half-light.

I’ll make current measurements and post them later. I will also try to make beam shots for you to see what a beautiful beam this flashlight produces. There is a distinguished hot spot and a smooth transition to spill. So, is this thrower or flooder? Let me say, best of both worlds.

Did you like my ZY-T08 Triple? Please comment.

Cheers

Edited by: Cula on 02/07/2017 - 17:29
vinte77
Offline
Last seen: 2 hours 52 min ago
Joined: 03/04/2014 - 18:43
Posts: 323
Location: California

Great job on the light! One of these days I have to polish out my lights to a mirror finish like you have.

kiriba-ru
kiriba-ru's picture
Offline
Last seen: 35 min 39 sec ago
Joined: 01/17/2016 - 02:34
Posts: 1343
Location: Russia

Wonderfull.
I think anyone whod like to copy this build can find ready plastic holder for 3 or 4 20mm optics in 50mm size.
You are right, this host is one of the best both in heat transfert to outside surfaces and convection to the air.
P.S. Please PM me. Id like to giveaway you one interesting part.

Meanwhile in Russia: https://twitter.com/CrazyinRussia

zeremefico
zeremefico's picture
Offline
Last seen: 1 hour 56 min ago
Joined: 03/27/2012 - 02:44
Posts: 1265
Location: Greece

Pure porn

₪₪₪₪ ΟΥΔΕΝ ΚΡΥΠΤΟΝ ΥΠΟ ΤΟΝ ΗΛΙΟ ₪₪₪₪

My YouTube channel

Flashlights & edc gear

K40M F16

The Miller
The Miller's picture
Offline
Last seen: 3 weeks 1 day ago
Joined: 12/14/2015 - 12:08
Posts: 9947
Location: Charente France

Wow very nice and impressive!

Rufusbduck
Rufusbduck's picture
Offline
Last seen: 2 months 1 week ago
Joined: 04/04/2012 - 15:34
Posts: 10365
Location: Golden state

Nice mod. I’m guessing the circles are reflected light from the inside of the exterior lens/air interface illuminating the epoxy around the reflector(if that makes any sense).

Three Tanna leaves to give him life, nine to give him movement. But what if he eats the whole bag?

Scott

Jerommel
Jerommel's picture
Offline
Last seen: 16 hours 31 min ago
Joined: 01/04/2014 - 13:18
Posts: 4443
Location: the Hague, Netherlands

You did an awesome job ! Thumbs Up

..waiting for parts..

Still looking for 5” parabolic reflector (for recoil light)

Gerrit
Offline
Last seen: 4 hours 2 min ago
Joined: 06/20/2013 - 04:44
Posts: 198
Location: NL

Culla, you’ve done a fantastic job.

Let There Be Light

-X3-
-X3-'s picture
Offline
Last seen: 1 hour 37 min ago
Joined: 07/16/2014 - 03:28
Posts: 1684
Location: France, Angers

As usual, this mod is top notch !
I’m truly jealous of your skills/patience/ideas !
Good job !

"Hey -X3-, do you have a flashlight ?"   "-X3-, can I borrow one of your flashlights ?"

My Flashlight public album (mods, emitter swaps, eye candy)

My reviews channel (French language, Olight, Thorfire : 30+ lights tested)

My personal channel (including Olight SR mini, S1, S2, S1A and S-mini disassembly)

FmC
FmC's picture
Online
Last seen: 5 min 42 sec ago
Joined: 03/31/2013 - 05:23
Posts: 1979
Location: AU

Awesome mods. Thanks for sharing Beer

MRsDNF
MRsDNF's picture
Offline
Last seen: 4 hours 1 min ago
Joined: 12/22/2011 - 21:18
Posts: 11690
Location: A light beam away from the missus in the land of Aus.

Couldn’t agree more with everyone’s comments. Amazing effort and skills. Thanks for posting it up.

My current and or voltage measurements are only relevent to anything that I measure.

Budget light hobby proudly sponsored by my Mastercard and unknowingly paid for by a hard working wife.

djozz said "it came with chinese lettering that is chinese to me".

old4570 said "I'm not an expert , so don't suffer from any such technical restrictions".

Old-Lumens. Highly admired and cherished member of Budget Light Forum. 11.5.2011 - 20.12.16. RIP.



djozz
djozz's picture
Offline
Last seen: 48 min 18 sec ago
Joined: 09/07/2012 - 17:04
Posts: 11217
Location: Amsterdam

Outstanding work again!
You chose one of the ugliest hosts around (in my opinion) but that does not matter, after you’re done it is a wow light!! Shocked

giorgoskok
giorgoskok's picture
Offline
Last seen: 10 hours 5 min ago
Joined: 11/13/2015 - 10:46
Posts: 2411
Location: Greece

Another 5* mod from you Cula ! Beer

Thanks for sharing…

WestBam
WestBam's picture
Offline
Last seen: 41 min 45 sec ago
Joined: 02/23/2016 - 17:04
Posts: 294
Location: Hungary

Wow, nice mod, great job Thumbs Up

Manx
Offline
Last seen: 11 hours 40 min ago
Joined: 03/17/2014 - 10:24
Posts: 831
Location: Italy

WOW!!
Avesome job!!!!
Bravo!!!!!! Thumbs Up

www.youtube.com/channel/UCeDhMPm0L1yvr3LpygDPgMw my flashlights/knives/gear video reviews
www.absoluteblack.net my dark comics

pieman7
pieman7's picture
Offline
Last seen: 2 days 18 hours ago
Joined: 01/30/2015 - 14:04
Posts: 236
Location: Minnesota

Impressive! Thank you for taking the time to take pics at each step of the process.
Questions:
1) Is there any “springiness” or compression room remaining in the spring bypass setup? In other words, any wiggle-room for slightly different lengths of batteries? Maybe this doesn’t matter since protected cells will never be used here Wink
2) What is your preferred method of sanding and polishing the exterior? Great idea using rope for the cooling fins!

Beachlogger
Offline
Last seen: 3 hours 7 min ago
Joined: 12/04/2013 - 23:08
Posts: 960
Location: S.E. Alaska

You could be a jeweler, Love

Sledgestone
Offline
Last seen: 3 days 17 hours ago
Joined: 11/07/2015 - 06:55
Posts: 581
Location: Sweden

Fantastic job! I only wish I had the knowledge to do something similar myself… One day I’ll try to mod something. I think I’ll start with a S2+ triple.

san san
Offline
Last seen: 38 min 28 sec ago
Joined: 02/21/2013 - 11:56
Posts: 28
Location: spain

AMAZING MOD.

Cula
Cula's picture
Offline
Last seen: 10 hours 56 min ago
Joined: 11/14/2014 - 02:04
Posts: 318
Location: Croatia

Thank you guys for your comments Beer .

Rufusbduck wrote:
Nice mod. I’m guessing the circles are reflected light from the inside of the exterior lens/air interface illuminating the epoxy around the reflector(if that makes any sense).

You are indeed right. It is a reflection from AR lenses.

djozz wrote:
Outstanding work again! You chose one of the ugliest hosts around (in my opinion) but that does not matter, after you’re done it is a wow light!! Shocked
Big Smile
pieman7 wrote:
Impressive! Thank you for taking the time to take pics at each step of the process. Questions: 1) Is there any “springiness” or compression room remaining in the spring bypass setup? In other words, any wiggle-room for slightly different lengths of batteries? Maybe this doesn’t matter since protected cells will never be used here Wink 2) What is your preferred method of sanding and polishing the exterior? Great idea using rope for the cooling fins!

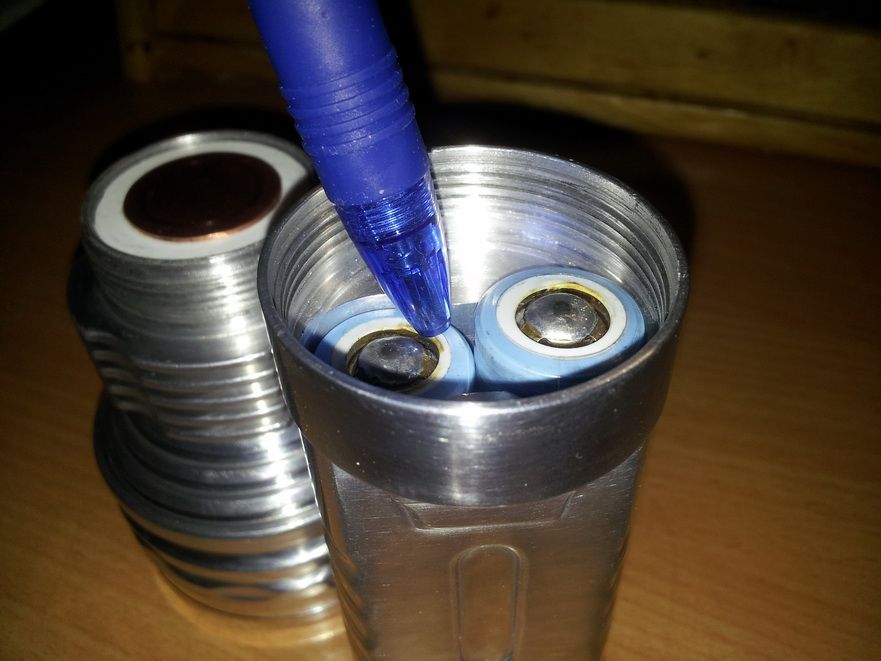

1) Barely, don’t have any protected ones to try. I can’t be sure.

2) I used something like this mounted on my bench drill (https://www.amazon.co.uk/d/brv/Wolfcraft-2178000-Hobby-Polishing-Metals-...) and a lot of elbow grease Smile . This kit can be bought in almost every hardware store.

ImA4Wheelr
Offline
Last seen: 6 hours 23 min ago
Joined: 02/03/2013 - 14:51
Posts: 7480
Location: SC

Very nice build and thread.  Congrats and thank you for sharing. Smile

Cythras
Cythras's picture
Offline
Last seen: 2 hours 5 min ago
Joined: 09/27/2016 - 19:30
Posts: 175
Location: Canada

Holy crap. That is beautiful; your mirror polished parts are always breathtaking. I’ve seen something similar to the blue rings before; I think It’s caused by the AR coating on the glass. I have a 20mm AR lens with an unknown origin, and it projects a blue ring of light from it for some strange reason.

Cula
Cula's picture
Offline
Last seen: 10 hours 56 min ago
Joined: 11/14/2014 - 02:04
Posts: 318
Location: Croatia

Here are some beamshots. Pictures don’t do the justice but that is the best I could do with my limited photograph skills.

Also did current measurements:
Low low – 0.12A
Low – 0.18A
Mid – 1.14A
High – 3.27A
Turbo – 11.10A

1. White wall

2. Control 1 (lots of street light, distance 70 meters)

3. Beamshot 1

4. Control 2 (distance 25 meters)

5. Beamshot 2

Cheers Beer

Mike C
Mike C's picture
Offline
Last seen: 17 hours 5 min ago
Joined: 01/22/2014 - 08:03
Posts: 1736
Location: Sweden

Nice build! How long did the polishing take?

Is the ZY-T08 tail switch only, or dual switch? I thought I saw somewhere that newer models have an E-switch.

Nicolicous
Nicolicous's picture
Offline
Last seen: 25 min 30 sec ago
Joined: 04/16/2016 - 08:28
Posts: 785
Location: Australia

Good work Cula

Can you lend me some money to buy new flashlights?

Cula
Cula's picture
Offline
Last seen: 10 hours 56 min ago
Joined: 11/14/2014 - 02:04
Posts: 318
Location: Croatia

Mike C wrote:
Nice build! How long did the polishing take?

Is the ZY-T08 tail switch only, or dual switch? I thought I saw somewhere that newer models have an E-switch.

Hi Mike,

Polishing took several hours, lots of corners, hard to get places , sharp edges. Very difficult task, especially cooling fins. It came out very nice but far from perfect.

ZY-T08 is a tail switch only.

I think there is another similar model with the side switch but there is something wrong with it (something glued, cannot be taken apart if my memory serves me right). There is a review on this forum but I can’t find it anymore.

Mike C
Mike C's picture
Offline
Last seen: 17 hours 5 min ago
Joined: 01/22/2014 - 08:03
Posts: 1736
Location: Sweden

Thanks, good to know. I have an old one with a tail switch which I converted to 2S for a MT-G2. I found it too large for tail-switch only so I mounted a side E-switch, so now it’s dual switch.

LightRider
LightRider's picture
Offline
Last seen: 3 weeks 3 days ago
Joined: 08/05/2015 - 09:52
Posts: 2007
Location: U.P. MI, USA

Nice lighted basketball court you have there! You could start a night league. Big Smile
