my own XML2, XHP50.2 HI´s, not chemical dedomed, as good as XPL HI´s

58 posts / 0 new
Last post

Pages

Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
my own XML2, XHP50.2 HI´s, not chemical dedomed, as good as XPL HI´s

Edited by: Lexel on 02/23/2018 - 18:25
AgentSteel
AgentSteel's picture
Offline
Last seen: 13 hours 32 min ago
Joined: 02/21/2017 - 12:04
Posts: 380
Location: FRA

How did you do it? Thumbs Up

Quidquid latine dictum sit, altum sonatur

doubleone44
doubleone44's picture
Offline
Last seen: 2 months 1 week ago
Joined: 08/05/2015 - 11:42
Posts: 172
Location: The Netherlands

Nice slice!

Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
AgentSteel wrote:
How did you do it? Thumbs Up

Beer its just using good German bear to develop that technique

doubleone44 wrote:
Nice slice!

the final LED is not sliced

luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 47 min 21 sec ago
Joined: 07/07/2013 - 09:09
Posts: 1955
Location: X
Lexel wrote:
AgentSteel wrote:
How did you do it? Thumbs Up

Beer its just using good German bear to develop that technique

doubleone44 wrote:
Nice slice!

the final LED is not slived

Beer Yes that is the key I agree!

Beer in combination with right flat washer and dremmel polish tool Wink

Modding is making something how you want it to be, not how it comes stock...

Old-Lumens

Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
luminarium iaculator wrote:
Lexel wrote:
AgentSteel wrote:
How did you do it? Thumbs Up

Beer its just using good German bear to develop that technique

doubleone44 wrote:
Nice slice!

the final LED is not slived

Beer Yes that is the key I agree!

Beer in combination with right flat washer and dremmel polish tool Wink

I have a Dremel, but its not used for it

AgentSteel
AgentSteel's picture
Offline
Last seen: 13 hours 32 min ago
Joined: 02/21/2017 - 12:04
Posts: 380
Location: FRA

now I see the wilkinson razor blade in the picture! Facepalm

Quidquid latine dictum sit, altum sonatur

vinte77
Offline
Last seen: 4 hours 1 min ago
Joined: 03/04/2014 - 18:43
Posts: 669
Location: California

Wow, nice job lexel!

ARsee
ARsee's picture
Offline
Last seen: 1 week 6 days ago
Joined: 02/19/2017 - 13:16
Posts: 1143
Location: Right here

A peel washer would be handy for slicing domes off too.
Nice and clean there, Lexel Thumbs Up

DavidEF
DavidEF's picture
Offline
Last seen: 5 hours 56 min ago
Joined: 06/05/2014 - 06:00
Posts: 5947
Location: Salisbury, North Carolina, USA

It looks nice. But, how can it be as good as XPL?

Reason is not automatic. Those who deny it cannot be conquered by it. Do not count on them. Leave them alone.
-Ayn Rand

Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
DavidEF wrote:
It looks nice. But, how can it be as good as XPL?

I mean from the surface smoothness they are even better than XPL HIs

I can do this with all LEDs

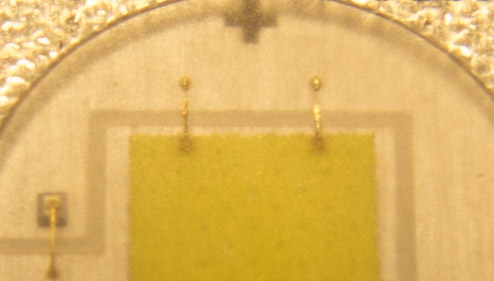

one thing with bond wires is the fine tuning

Firts attempts look like this

Bond wired cut

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 5 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 2960
Location: The Motor City

Sliced and then sanded/polished down with 1500 or finer with a washer as a guide to maintain width/flatness.

The silicone surface needs to be cleaned thoroughly and little bit of debris, when the emitter heats up will burn the silicone.

KB1428 “Live Life WOT”

gravelmonkey
Offline
Last seen: 6 hours 58 sec ago
Joined: 08/17/2012 - 20:28
Posts: 204
Location: UK/South America

Wow that looks pretty tidy.

As everyone else seems to be guessing the technique, I’m going guess microtome

Grad
Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
KawiBoy1428 wrote:
Sliced and then sanded/polished down with 1500 or finer with a washer as a guide to maintain width/flatness.

and the winner is
KawiBoy1428

but yes those microscope slice machines might work as well, but are out of my budget

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 5 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 2960
Location: The Motor City
Lexel wrote:
KawiBoy1428 wrote:
Sliced and then sanded/polished down with 1500 or finer with a washer as a guide to maintain width/flatness.

and the winner is
KawiBoy1428

but yes those microscope slice machines might work as well, but are out of my budget

WinkThumbs Up

KB1428 “Live Life WOT”

MRsDNF
MRsDNF's picture
Offline
Last seen: 29 min 15 sec ago
Joined: 12/22/2011 - 21:18
Posts: 12372
Location: A light beam away from the missus in the land of Aus.

Sweet. Nice Lexel. Thumbs Up

My current and or voltage measurements are only relevent to anything that I measure.

Budget light hobby proudly sponsored by my Mastercard and unknowingly paid for by a hard working wife.

djozz said "it came with chinese lettering that is chinese to me".

old4570 said "I'm not an expert , so don't suffer from any such technical restrictions".

Old-Lumens. Highly admired and cherished member of Budget Light Forum. 11.5.2011 - 20.12.16. RIP.



CRX
CRX's picture
Online
Last seen: 5 min 38 sec ago
Joined: 04/02/2013 - 15:27
Posts: 2706
Location: Scotland

Looks great Thumbs Up

DavidEF
DavidEF's picture
Offline
Last seen: 5 hours 56 min ago
Joined: 06/05/2014 - 06:00
Posts: 5947
Location: Salisbury, North Carolina, USA

So, when does sale start? Innocent

Reason is not automatic. Those who deny it cannot be conquered by it. Do not count on them. Leave them alone.
-Ayn Rand

vinte77
Offline
Last seen: 4 hours 1 min ago
Joined: 03/04/2014 - 18:43
Posts: 669
Location: California
DavidEF wrote:
So, when does sale start? Innocent

I second this, “when does the sale start?”

Yokiamy
Yokiamy's picture
Offline
Last seen: 11 hours 46 min ago
Joined: 10/18/2016 - 15:47
Posts: 1092
Location: Netherlands

Good tip Lexel, might try it myself sometime.
Do you think it will work on XPL2 HD? It should outperform XPL-hi in my opinion
Have to buy some razorblades first, always use my Philishave Wink

Thijsco19 wrote:

a regular symptom of flasholism Big Smile

“Flasholism is the most severe form of flashlight use and involves the inability to manage your flashlight use habits. It is also commonly referred to as flashlight use disorder. Flashlight use disorder is organized into three categories: mild, moderate and severe. Each category has various symptoms and can cause harmful side effects. If left untreated, any type of flashlight use can spiral out of control.”

Lexel
Lexel's picture
Online
Last seen: 3 min 7 sec ago
Joined: 11/01/2016 - 08:00
Posts: 4114
Location: Germany
Yokiamy wrote:
Good tip Lexel, might try it myself sometime. Do you think it will work on XPL2 HD? It should outperform XPL-hi in my opinion Have to buy some razorblades first, always use my Philishave Wink

Razor blade is the first step
I used a thicker washer for it as first step

Then a 2. 0.1mm thinner washer for the 1500grit paper

3. Washer 0.1mm thinner
start with 2500 grit
used 5000 then
last a very old used 5000 one

Agro
Online
Last seen: 4 min 16 sec ago
Joined: 05/14/2017 - 11:16
Posts: 2585
Location: Ślōnsk

Looks great.
May I suggest XHP35 E4?
What’s the source of washers?

southland
southland's picture
Offline
Last seen: 1 hour 33 min ago
Joined: 11/04/2012 - 07:15
Posts: 3171
Location: Georgia, USA

Nice work.

NikolaS
NikolaS's picture
Offline
Last seen: 1 month 5 days ago
Joined: 02/07/2014 - 13:26
Posts: 1272
Location: intersection of all roads

I have done this long time ago with XHP70, and used only 1000 grit sandpaper to leave the surface little bit muddy and claen everything with isopropyl alcohol. Results are amazing in terms of throw and beam looks phenomenal.
Only downside is lumens lost up to 20%…

Great work Lexel !

Yokiamy
Yokiamy's picture
Offline
Last seen: 11 hours 46 min ago
Joined: 10/18/2016 - 15:47
Posts: 1092
Location: Netherlands

Ok, i just tried it with XPL2 HD, i can confirm, it is harder then it looks.

You really have to have the good size shim and it would be nice if you have it from alu or another hard material, since the plastic convoy butterfly spacer which i used is too soft.

I (accidently) cut off the rim of the spacer and ended up quite low, but i managed to get a nice and clean cut. (Don’t know if there is any material left to sand it down to get it even flatter)
Do i see a bondwire over there ?

The result is good, but not what i hoped for, throw improved but it still shows the ugly yellow/greenish corona

Have to compare it with fresh charged cells against a XPL-HI to get real world results and see if it outthrows XPL-Hi

Thijsco19 wrote:

a regular symptom of flasholism Big Smile

“Flasholism is the most severe form of flashlight use and involves the inability to manage your flashlight use habits. It is also commonly referred to as flashlight use disorder. Flashlight use disorder is organized into three categories: mild, moderate and severe. Each category has various symptoms and can cause harmful side effects. If left untreated, any type of flashlight use can spiral out of control.”

The_Driver
The_Driver's picture
Offline
Last seen: 1 hour 26 min ago
Joined: 10/20/2016 - 05:51
Posts: 1119
Location: Germany

You need to remove all phosphor around the die to get rid of the yellow corona.

EasyB
Offline
Last seen: 6 hours 10 min ago
Joined: 03/09/2016 - 15:24
Posts: 1476
Location: Ohio
The_Driver wrote:
You need to remove all phosphor around the die to get rid of the yellow corona.

That would turn it into a blue corona and reduce the lumen output.

Newlumen
Newlumen's picture
Offline
Last seen: 2 hours 43 min ago
Joined: 05/27/2017 - 00:19
Posts: 1551
Location: United states

I think this is how skylumen do it too.. he shave dome on sst40 lately and it doesnt turn out green. Output is great too. Here is his sst40 shave dome led.

408486_DD-_EC32-4013-8134-628_A1_D0_CD07_A

The_Driver
The_Driver's picture
Offline
Last seen: 1 hour 26 min ago
Joined: 10/20/2016 - 05:51
Posts: 1119
Location: Germany
EasyB wrote:
The_Driver wrote:
You need to remove all phosphor around the die to get rid of the yellow corona.

That would turn it into a blue corona and reduce the lumen output.

You can keep a tiny layer, but practically speaking removing most of it will imrpove the beam quality.

djozz
djozz's picture
Online
Last seen: 55 sec ago
Joined: 09/07/2012 - 17:04
Posts: 13070
Location: Amsterdam
The_Driver wrote:
EasyB wrote:
The_Driver wrote:
You need to remove all phosphor around the die to get rid of the yellow corona.

That would turn it into a blue corona and reduce the lumen output.

You can keep a tiny layer, but practically speaking removing most of it will imrpove the beam quality.


Maybe cutting it away at an edge, say 45 degrees, makes for the best beam? Nice work Yokiami!

link to djozz tests

“I used to think that top environmental problems were biodiversity loss, ecosystem collapse and climate change. I thought that thirty years of good science could address these problems. I was wrong. The top environmental problems are selfishness, greed and apathy, and to deal with these we need a cultural and spiritual transformation. And we scientists don’t know how to do that.”   (Gus Speth)

vinte77
Offline
Last seen: 4 hours 1 min ago
Joined: 03/04/2014 - 18:43
Posts: 669
Location: California

So Lexel when are you going to start offering the dedomed LEDs for sale?
