But when I pair it with an LH351D, it also works fine, but it glows ever so faintly when it should be off.
Ah, good to hear that I'm not the only one.
Oh good, same haha, I worried I screwed something up (which I suppose could still be).
I don't think it's so bad aesthetically. I almost like it, if it's not draining my battery more than any other emitter would. More on that below.
And functionally not terrible, especially if the emitter is just capable of turning on at extremely low currents, right? Because that would mean it's not using more current than a different emitter would be, it just so happens to be lighting up with that current. I suppose that would need to be tested.
Anywho, to see if it's the fet or the AMCs, couldn't we just desolder the components off of each channel, or even the lower AMC bank one at a time and see if that changes things? Not the most scientific, but just maybe haha.
Quick update, I got my hands on one of the lights I modded with the prebuilt driver you sent me Lexel, and I swapped an LH351D into it, and it still does the faint glow. Does it in the light, and set up by itself. So I think we’ve ruled out user error? Very odd.
Hope I don’t come off as upset, or demanding answers. It’s just a curious thing. I haven’t measured the standby current, but I’m not too worried about it.
Quick update, I got my hands on one of the lights I modded with the prebuilt driver you sent me Lexel, and I swapped an LH351D into it, and it still does the faint glow. Does it in the light, and set up by itself. So I think we’ve ruled out user error? Very odd.
Hope I don’t come off as upset, or demanding answers. It’s just a curious thing. I haven’t measured the standby current, but I’m not too worried about it.
Did you also try cleaning off any leftover flux than might be causing a tiny circuit? Like brush it with alcohol?
Did you also try cleaning off any leftover flux than might be causing a tiny circuit? Like brush it with alcohol?
I have not, although zeroflow did, or at least he states he cleaned them. I would assume with alcohol. I will clean mine as well, for completeness, and come back.
Did you also try cleaning off any leftover flux than might be causing a tiny circuit? Like brush it with alcohol?
I have not, although zeroflow did, or at least he states he cleaned them. I would assume with alcohol. I will clean mine as well, for completeness, and come back.
I think I let speak pictures a bit, unfortunately only my phone camera I forgot there
bought a new shiney apartment, started to pack a lot stuff to move there fully till 31. Nov,
so thought I got enough time to get a few things done

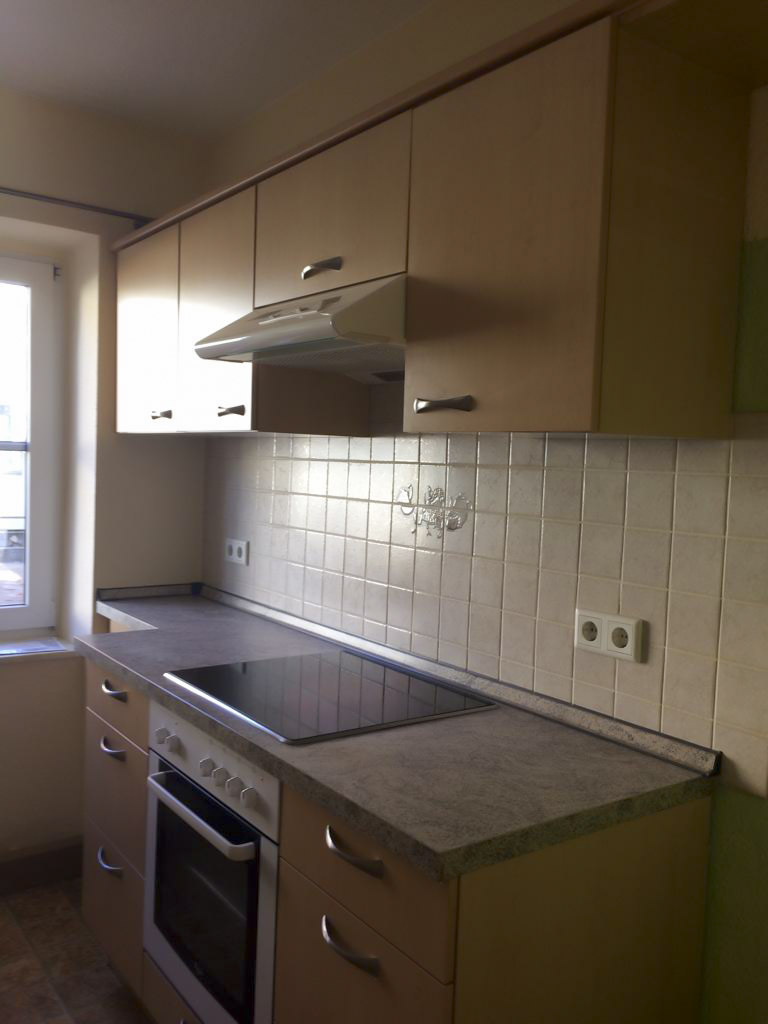

Looks OK 2 minor things on to do list

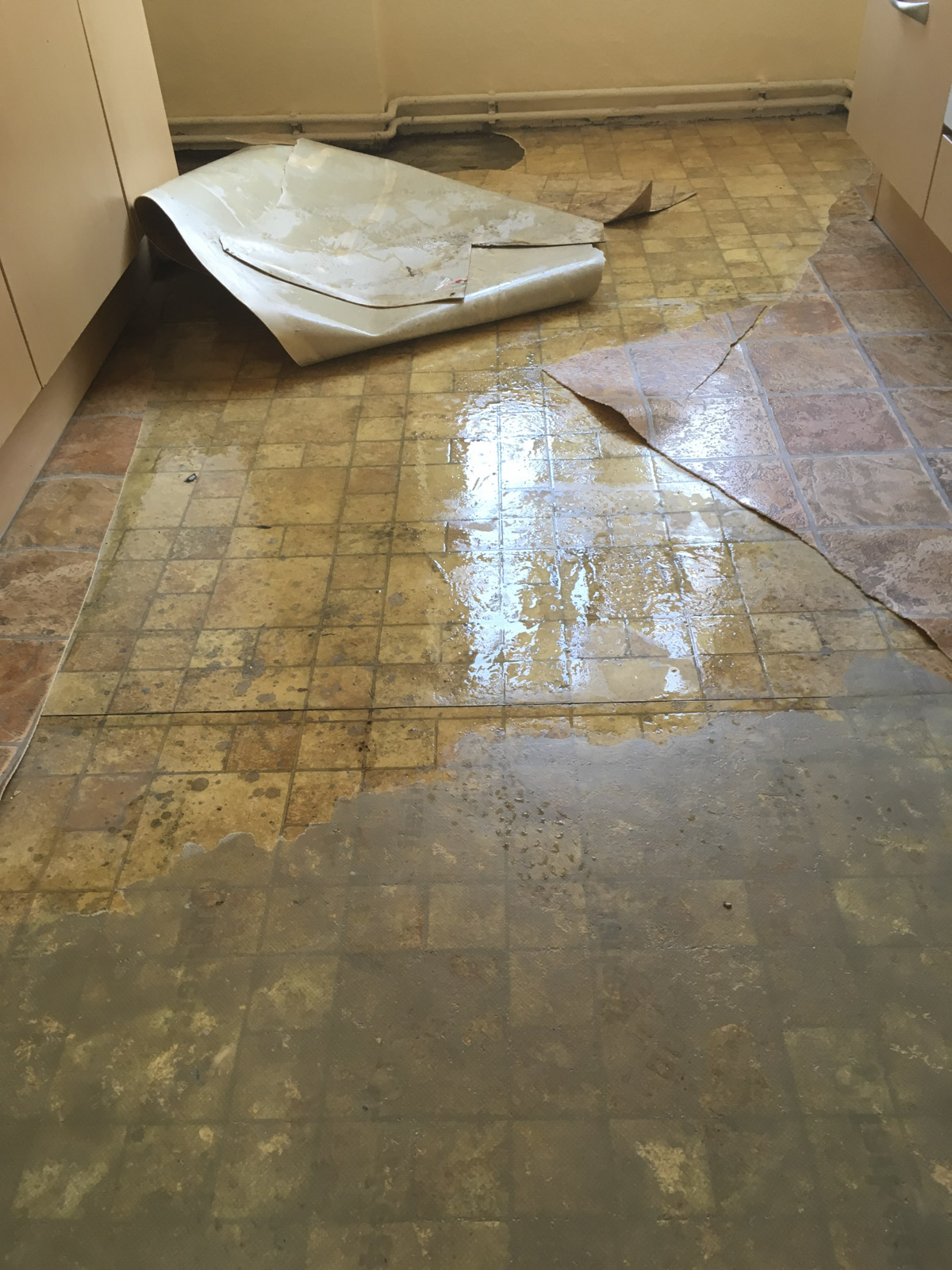

maybe someone did a bad move when disconnecting washing or dish machine or so as I discovered water
getting worse
removing the dish machine to get below the kitchen part
You know woods color right?

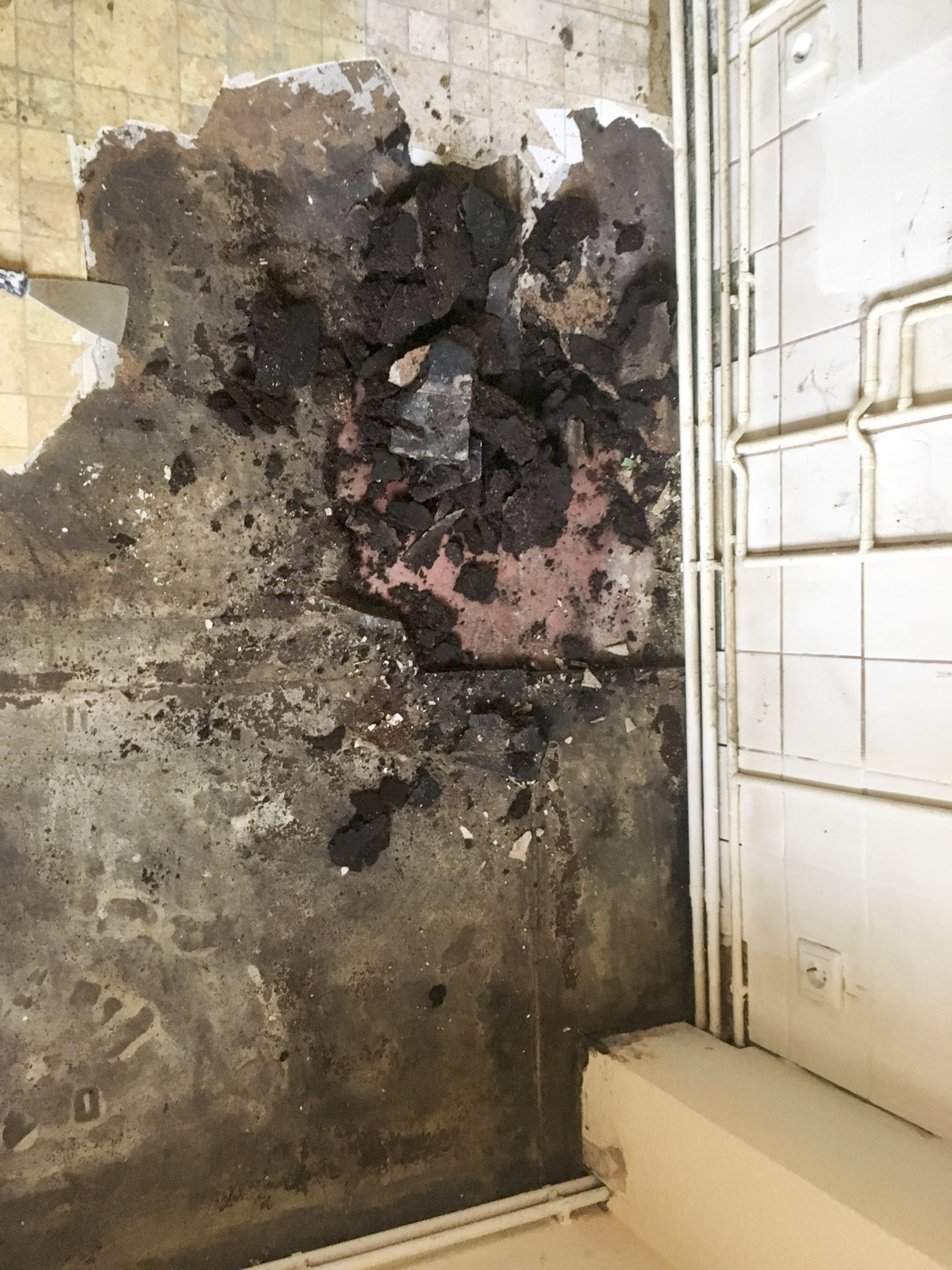

finally below the dish machine I found black stuff that turned out be have been wood a long time ago

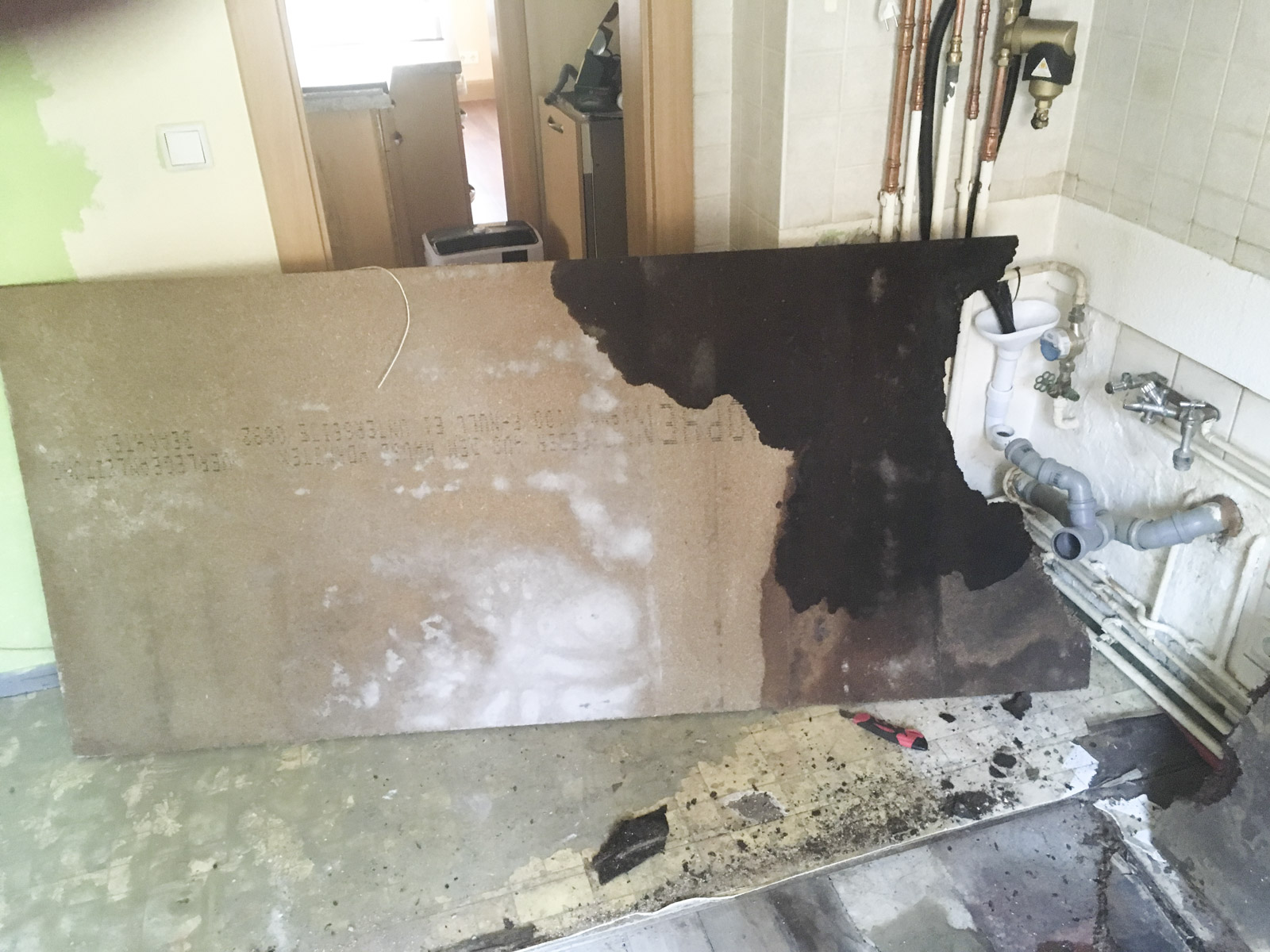

had to remove kitchen for further investigation
