The XHP70.2 8,000 Lumen BLF-GT With Beam Shots!!!!!!!

133 posts / 0 new
Last post

Pages

vestureofblood
vestureofblood's picture
Offline
Last seen: 15 hours 33 min ago
Joined: 08/17/2012 - 15:21
Posts: 1838
Location: Missouri
The XHP70.2 8,000 Lumen BLF-GT With Beam Shots!!!!!!!

In this video I show the awesome superpower of the XHP70.2 in a giga-thrower. See how to swap the emitter and boost the driver current.


.
.
Please let us hear what you think Smile

5/20/18 Update

To answer the question about sustainability I did a test with the final version of the light from turn on to 90 seconds. The output is quite stable because of the large copper mcpcb, however the light does heat up very fast. I took the temp readings on the lowest part of the “neck” piece. I would say realistically at 60 seconds you should power it down, by 90 seconds touching it gets a little sketchy.

.
.
.
Speaking to the “dark cross” issue. I know others have said their reflector created a dark cross using this LED. I tried the reflector from my first batch of the group buy, as well as the two that arrived recently and did NOT get this from any of them. However, the second two reflectors were not tested until after the dome of the LED had been removed. I also tried using 2 other thicknesses of isolator with the reflector I used in my video. 2.5mm is thickness from the factory, so I tried a 2mm and a 3mm. None of these produced a dark cross, but they did seem to effect the corona and hot spot a little. At a quick glance I would say that the 2mm one reduced the corona, and the 3mm one increased it.

A final note. While I do take care to produce the most accurate number sets that I can be aware that I am working with a brand new light meter which I have only spent about one hour calibrating my system to. Six lights from preferred sources were used, but fine tuning is still needed.

In Him (Jesus Christ) was life; and the life was the light of men. And the light shineth in darkness; and the darkness comprehended it not.
http://asflashlights.com/ Everyday Carry Flashlights, plus Upgrades for Maglite.

Edited by: vestureofblood on 05/20/2018 - 16:50
td1042k
Offline
Last seen: 8 months 2 weeks ago
Joined: 11/19/2017 - 22:34
Posts: 143
Location: Cincinnati, Ohio

I need these parts!

Ultrafire C12 XHP70 2S 18650 Mtn Elec 6V Zener mod driver (super donut beam!)
Ultrafire C12 XPL-HI BLF-A6 FET driver
Convoy L6 Mtn Elec D4 UI driver, XHP70.2
Utorch UT02 NW
BLF Q8
BLF A6 NW
BLF GT XHP35
BLF GT (GT70 CONVERSION CW(SOON))
Skilhunt H03 NW
Astrolux MF02 NW
Astrolux MF01 XP-G3
Sofirn SF14
Sofirn SP32A
Emisar D4 XP-L HI CW
SK68 knockoff
Mini Mag Lite 2X AAA
Convoy M1 build (4X XPL 3V MCPCB, Mnt Elec FET driver)

hIKARInoob
hIKARInoob's picture
Online
Last seen: 3 min 31 sec ago
Joined: 08/28/2016 - 08:15
Posts: 4048

Superb video. Very entertaining and easy to watch, and at the same time very informative. Kudos and thank you!

emarkd
emarkd's picture
Offline
Last seen: 3 days 23 hours ago
Joined: 04/14/2015 - 22:04
Posts: 1602
Location: Georgia, USA

Nice build and great video, thank you. I have basically the same build (XHP70.2, TA 3-channel FET) in a Convoy L6 that I like a lot, but the focus this larger GT brings to that build is really something else. I may be tearing into mine…

Nicolicous
Nicolicous's picture
Online
Last seen: 6 min 57 sec ago
Joined: 04/16/2016 - 08:28
Posts: 1469
Location: Australia

very nice tutorial.

thanks man

Nico -.-

td1042k
Offline
Last seen: 8 months 2 weeks ago
Joined: 11/19/2017 - 22:34
Posts: 143
Location: Cincinnati, Ohio
emarkd wrote:
Nice build and great video, thank you. I have basically the same build (XHP70.2, TA 3-channel FET) in a Convoy L6 that I like a lot, but the focus this larger GT brings to that build is really something else. I may be tearing into mine…

I have the same build in my L6 as well. It is amazingly bright but the GT makes an awesome host for this combo. I think that’s the main reason I got the GT

Ultrafire C12 XHP70 2S 18650 Mtn Elec 6V Zener mod driver (super donut beam!)
Ultrafire C12 XPL-HI BLF-A6 FET driver
Convoy L6 Mtn Elec D4 UI driver, XHP70.2
Utorch UT02 NW
BLF Q8
BLF A6 NW
BLF GT XHP35
BLF GT (GT70 CONVERSION CW(SOON))
Skilhunt H03 NW
Astrolux MF02 NW
Astrolux MF01 XP-G3
Sofirn SF14
Sofirn SP32A
Emisar D4 XP-L HI CW
SK68 knockoff
Mini Mag Lite 2X AAA
Convoy M1 build (4X XPL 3V MCPCB, Mnt Elec FET driver)

netprince
Offline
Last seen: 17 hours 20 min ago
Joined: 06/14/2012 - 13:48
Posts: 529
Location: Virginia
td1042k wrote:
I need these parts!

Same… I want to do this too…

lawallac
lawallac's picture
Offline
Last seen: 14 hours 27 min ago
Joined: 01/04/2012 - 15:31
Posts: 419
Location: WI

Awesome video and good discussion at the end. I hope we are able to get this mod soon. It will be really interesting how this compares to the much more expensive Luminous. Do you have any guess what the Lumen output would be prior to the dedome but with the mosfet?

twisted raven
Offline
Last seen: 5 hours 20 min ago
Joined: 03/13/2016 - 11:10
Posts: 485
Location: texas

What’s the lumen output over time with the mosfet driver? Can the GT host handle the heat?

M4D M4X
M4D M4X's picture
Offline
Last seen: 1 hour 3 min ago
Joined: 03/19/2014 - 05:17
Posts: 7802
Location: Austria (GMT + 1)

great video!



already member of M4DM4X.com ?

the best deals are waiting for YOU!

BIG THANKS for helping me by using my REFLinks

before you buy elsewhere mail me: MARTIN@M4DM4X.COM - i will try to save you money!

LichtAn
Offline
Last seen: 2 months 1 day ago
Joined: 03/08/2018 - 02:37
Posts: 322
Location: Germany

Will the LED run on full power with the short tube? BTW I love your videos! Big Smile

td1042k
Offline
Last seen: 8 months 2 weeks ago
Joined: 11/19/2017 - 22:34
Posts: 143
Location: Cincinnati, Ohio
LichtAn wrote:
Will the LED run on full power with the short tube? BTW I love your videos! Big Smile

This will definitely require VTC6’s or 30Q’s either way!

Ultrafire C12 XHP70 2S 18650 Mtn Elec 6V Zener mod driver (super donut beam!)
Ultrafire C12 XPL-HI BLF-A6 FET driver
Convoy L6 Mtn Elec D4 UI driver, XHP70.2
Utorch UT02 NW
BLF Q8
BLF A6 NW
BLF GT XHP35
BLF GT (GT70 CONVERSION CW(SOON))
Skilhunt H03 NW
Astrolux MF02 NW
Astrolux MF01 XP-G3
Sofirn SF14
Sofirn SP32A
Emisar D4 XP-L HI CW
SK68 knockoff
Mini Mag Lite 2X AAA
Convoy M1 build (4X XPL 3V MCPCB, Mnt Elec FET driver)

AlexGT
AlexGT's picture
Offline
Last seen: 7 hours 36 min ago
Joined: 06/07/2012 - 17:39
Posts: 4380
Location: Texas

Thank you for another awesome video Beer This is exactly the mod I plan to do over the weekend, What width shim did you end up using for proper focus of the XHP-70.2, did you have to change it after dedome? I like the DIY tool you made for dedoming the LED without removing it Thumbs Up What width is that metal guide you used for cutting the dome?

Can’t wait for my XHP-70.2 order from MTN to arrive today…!

Thanks
AlexGT

Texas_Ace
Texas_Ace's picture
Offline
Last seen: 10 hours 4 min ago
Joined: 03/24/2016 - 07:44
Posts: 8566
Location: Everything is brighter in Texas

Very impressive results. I rounded all my prior numbers down as I was worried they might be unreasonably high. Good to see that someone else got even better numbers.

Also, some of the difference in the readings can be attributed to the tint. I as well as others have noted rather significant differences in readings when testing LED’s of the same bin but with different tints. Sometimes as much as 10-15%.

I just posted the drivers for sale here: http://budgetlightforum.com/node/60564

The mcpcb’s are still unknown. I think lumintop will make them but no idea when.

Till then this sinkpad should be able to work with some sanding of the edges:

http://www.sinkpad.com/inner-product.php?id=83

Although I would not use it with an 80cri LED, they pull too much current and I would worry about them overheating on the aluminum.

giorgoskok
giorgoskok's picture
Offline
Last seen: 13 hours 4 min ago
Joined: 11/13/2015 - 10:46
Posts: 2669
Location: Greece

In for 4* xhp70.2 mcpcbs Big Smile

LichtAn
Offline
Last seen: 2 months 1 day ago
Joined: 03/08/2018 - 02:37
Posts: 322
Location: Germany
td1042k wrote:
LichtAn wrote:
Will the LED run on full power with the short tube? BTW I love your videos! Big Smile

This will definitely require VTC6’s or 30Q’s either way!

I would be fine with that. I got an MF04 on preorder, that’s why I’m asking. Big Smile

G0OSE
G0OSE's picture
Offline
Last seen: 2 hours 4 min ago
Joined: 09/03/2014 - 12:34
Posts: 849
Location: uk

I’d definitely be in for an led and board (if sold together) would be even better if we could somehow order a ‘kit’ with the resistor, led and board….. wishful thinking maybe Silly
Either way 1 board please.

Texas_Ace
Texas_Ace's picture
Offline
Last seen: 10 hours 4 min ago
Joined: 03/24/2016 - 07:44
Posts: 8566
Location: Everything is brighter in Texas
G0OSE wrote:
I’d definitely be in for an led and board (if sold together) would be even better if we could somehow order a ‘kit’ with the resistor, led and board….. wishful thinking maybe Silly Either way 1 board please.

A kit is what I have had in mind from the start. Wink

G0OSE
G0OSE's picture
Offline
Last seen: 2 hours 4 min ago
Joined: 09/03/2014 - 12:34
Posts: 849
Location: uk

Nice one TA Thumbs Up You da man! Cool
Oh and forgot to thank VOB for another great video! Cheers man!

td1042k
Offline
Last seen: 8 months 2 weeks ago
Joined: 11/19/2017 - 22:34
Posts: 143
Location: Cincinnati, Ohio

If there’s ever a kit available I’m totally in for a set

Ultrafire C12 XHP70 2S 18650 Mtn Elec 6V Zener mod driver (super donut beam!)
Ultrafire C12 XPL-HI BLF-A6 FET driver
Convoy L6 Mtn Elec D4 UI driver, XHP70.2
Utorch UT02 NW
BLF Q8
BLF A6 NW
BLF GT XHP35
BLF GT (GT70 CONVERSION CW(SOON))
Skilhunt H03 NW
Astrolux MF02 NW
Astrolux MF01 XP-G3
Sofirn SF14
Sofirn SP32A
Emisar D4 XP-L HI CW
SK68 knockoff
Mini Mag Lite 2X AAA
Convoy M1 build (4X XPL 3V MCPCB, Mnt Elec FET driver)

Lexel
Lexel's picture
Offline
Last seen: 12 hours 35 min ago
Joined: 11/01/2016 - 08:00
Posts: 5530
Location: Germany

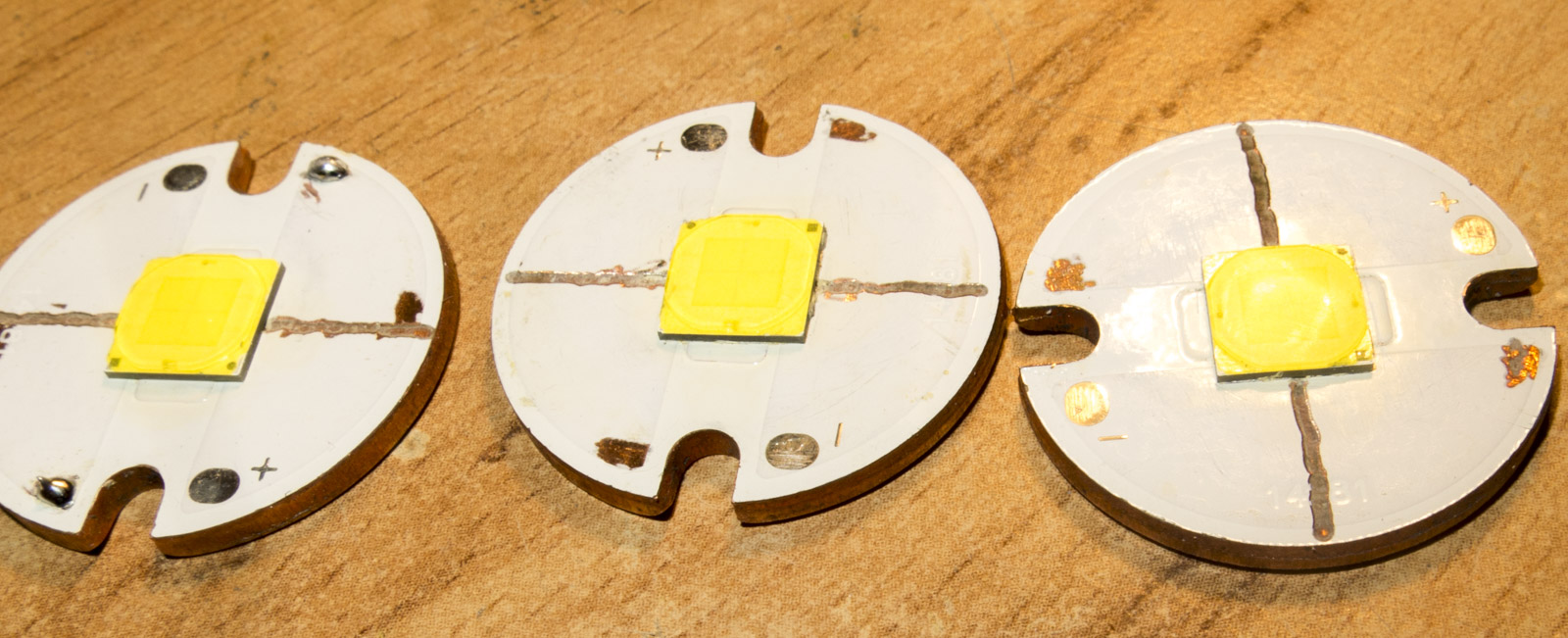

With a bit careful centering and if you are willing to drill new holes it is possible to get also a 25mm LED board fitting in the GT like I did with a CFT-90

I also have made a new driver with lastest development in way more efficient P-Channel mosfets utilized

note for GT the center viases on spring pad taped with Kapton

Today I sliced sanded and polished 3 MCPCBs for GT and this emptied my stock on boards and LEDs for now

g_sintornillos
g_sintornillos's picture
Offline
Last seen: 3 days 8 hours ago
Joined: 04/19/2014 - 08:13
Posts: 1113
Location: Tacuarembó, Uruguay UY
td1042k wrote:
If there’s ever a kit available I’m totally in for a set

+1
I am in

The kit should include the MCPCB with the XHP70.2, driver and the centering plate.

PS. Another option, for those who have few skills, the complete light engine assembled.

Sorry for my bad English (gogole transtorla)

Lexel
Lexel's picture
Offline
Last seen: 12 hours 35 min ago
Joined: 11/01/2016 - 08:00
Posts: 5530
Location: Germany
g_sintornillos wrote:
td1042k wrote:
If there’s ever a kit available I’m totally in for a set

+1
I am in

The kit should include the MCPCB with the XHP70.2, driver and the centering plate.

PS. Another option, for those who have few skills, the complete light engine assembled.

there is no new centering plate needed

solRNY
Offline
Last seen: 19 hours 53 min ago
Joined: 03/27/2017 - 17:24
Posts: 211
Location: Syracuse, NY

another great video!
thank you for making them Smile

JasonWW
JasonWW's picture
Offline
Last seen: 39 min 17 sec ago
Joined: 10/22/2016 - 11:41
Posts: 11878
Location: Houston Texas

twisted raven wrote:
What’s the lumen output over time with the mosfet driver? Can the GT host handle the heat?

Unlike the buck driver that can maintain constant output until the voltage drops out of regulation, the FET version will taper off the lumens as the voltage drops. Same as all direct drive lights.

I’m thinking the GT host is just a bigger version of the L6 and I have a similar setup in an L6 (a lot of us do). The stock GT with 35w output will get hot, but can handle the heat without stepping down. The FET setup is closer to 120w. I’m sure it can handle the heat for several minutes. Maybe 5? Probably not more than 10 min. I’m just guessing here. It’s a crap ton of heat, that’s for sure.

Maybe VOB can give us a better idea of how long it can maintain turbo before needing to step down.

Texas Ace Lumen Tube calibrated with Maukka lights

Click this to go to signature links.

AlexGT
AlexGT's picture
Offline
Last seen: 7 hours 36 min ago
Joined: 06/07/2012 - 17:39
Posts: 4380
Location: Texas

I just finished modding my GT using the TA GT driver and an XHP-70.2 P2 Led

I LOVE THIS (expeletive) LIGHT!!!

Here are some pictures I took comparing it to my other throwy flooder, the Acebeam K60 which is using a XHP-70.2 P2 Led, the GT totally Pwns it.

Left Acebeam K60 on turbo, right GT XHP-70.2 on turbo

I did not want to unsolder the brass button of the original driver so I used a belt sander to make a copper button out of a sinkpad MCPCB it is 11 mm in diameter and 1.54mm in width

I used 18ga wire, BTW here is the correct wiring.

The lights works fine but I have this problem, when I turn off the light 2 dies stay on and the switch leds don’t light up. they do work since I see them blinking when turning on or off the light, I think the modified SD75 MCPCB might be bleeding some current to those dies instead of the switch, hopefully TA will offer the proper MCPCB’s

Life is good!!! Cool

AlexGT

JasonWW
JasonWW's picture
Offline
Last seen: 39 min 17 sec ago
Joined: 10/22/2016 - 11:41
Posts: 11878
Location: Houston Texas

Alex, what driver is that exactly? Did you switch to a FET as opposed to resistor modding the stock driver?

Is TA selling FET drivers for the GT or is it from Lexel?

Texas Ace Lumen Tube calibrated with Maukka lights

Click this to go to signature links.

AlexGT
AlexGT's picture
Offline
Last seen: 7 hours 36 min ago
Joined: 06/07/2012 - 17:39
Posts: 4380
Location: Texas

JasonWW wrote:
Alex, what driver is that exactly? Did you switch to a FET as opposed to resistor modding the stock driver?

Is TA selling FET drivers for the GT or is it from Lexel?

Its one of these TA has (Or had) 5 left…

http://budgetlightforum.com/node/60564

Geuzzz
Geuzzz's picture
Offline
Last seen: 1 week 5 days ago
Joined: 10/25/2015 - 10:27
Posts: 1114
Location: Netherlands

Thnx for the nice vid! And verry nice results Thumbs Up

Lexel
Lexel's picture
Offline
Last seen: 12 hours 35 min ago
Joined: 11/01/2016 - 08:00
Posts: 5530
Location: Germany

If there is demand I let produce more of those Buck boards

Price will go down a little to 22$ per driver

djans1397
djans1397's picture
Offline
Last seen: 2 weeks 1 day ago
Joined: 02/05/2018 - 16:58
Posts: 61
Location: Big Sky country

AWESOME video as always VOB!

My question is…. for someone not adept to do a mod like this, can you mod my light for me?

Also, any idea how this mod compares to Vinhs CFT90 as far as performance goes?

Thanks much!
