Lumintop GT4

1039 posts / 0 new
Last post
JasonWW
JasonWW's picture
Offline
Last seen: 22 min 13 sec ago
Joined: 10/22/2016 - 11:41
Posts: 12609
Location: Houston Texas

Blinkinglights wrote:
You all have too many jokes.
So will the GT4 have options for other leds than 70.2?

What other possible led could be an option?

Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights

Click this to go to signature links. I'm still around, just not reading many new threads.

mortuus
mortuus's picture
Offline
Last seen: 1 hour 51 min ago
Joined: 12/16/2014 - 09:33
Posts: 2744
Location: Sweden
Blinkinglights wrote:
You all have too many jokes. So will the GT4 have options for other leds than 70.2?

have you seen how beefy the head looks? its made for this type of emitters to absorb that amounts of heats those emitters will produce, doubt they have plans for anything else, but that depends if enough demand they might produce something after but dont count on it for now maybe..

...where Frugal meets with Flashlight!

              つ ◕_◕ ༽つ

Texas_Ace
Texas_Ace's picture
Offline
Last seen: 18 min 11 sec ago
Joined: 03/24/2016 - 07:44
Posts: 8750
Location: Everything is brighter in Texas

There are no plans for other emitters at this time but the design is such that DIY mods should not be hard. You could use 3v, 6v, or 12v LED’s without much trouble. You would just need large ~26mm+ mcpcb’s for them.

An XHP35 version was considered but honestly you might as well just get the GT70 as I expect that the throw and output would be similar. The only benefit would be better tint options but that is not enough for most people.

A boost HX version would be interesting to consider once the LED is released but till then it is impossible to say if it would be worth it.

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 2 hours 58 min ago
Joined: 11/29/2017 - 12:34
Posts: 5541
Location: Canada

I think the other guys want a CFT90 light.

That would easily cost 1200$US+ though.

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

teacher
teacher's picture
Offline
Last seen: 1 year 1 day ago
Joined: 02/23/2016 - 19:04
Posts: 9596
Location: NE & SW Alabama

/\ OUCH!!!

You never know how a horse will pull until you hook him up to a heavy load./"Bear" Bryant

 .................................. "Slow is Smooth, Smooth is Fast" ...................................

       Texas Lumens Flashlights / M4D M4X Deals : sign up - save $$$$

         Rudeness Level _ mΩ _ {width:70%} _ LightWiki _ LED Tint Chart

      Xlamp size chart _ BatteryU _ Flashaholic? Need Professional Help???            TheOriginal _ TAB _ LightSearch _ BatterySearch _ 14500's _ DiCal





EasyB
Offline
Last seen: 1 hour 17 min ago
Joined: 03/09/2016 - 15:24
Posts: 2051
Location: Ohio

Sliced XHP70.2 would be just about perfect I think. Unfortunately that will have to be done by the customer.

M4D M4X
M4D M4X's picture
Offline
Last seen: 22 min 10 sec ago
Joined: 03/19/2014 - 05:17
Posts: 8562
Location: Austria (GMT + 1)

we should hire ZozzV6 to produce the LEDs Wink

 all new deals are posted here:

deals.m4dm4x.com

ask MARTIN@M4DM4X.COM - i will try to save you money!

ZozzV6
ZozzV6's picture
Offline
Last seen: 7 hours 15 min ago
Joined: 03/24/2016 - 12:19
Posts: 2415
Location: Near to my soldering iron.

M4D M4X wrote:

we should hire ZozzV6 to produce the LEDs Wink


Maybe Big Smile
teacher
teacher's picture
Offline
Last seen: 1 year 1 day ago
Joined: 02/23/2016 - 19:04
Posts: 9596
Location: NE & SW Alabama

M4D M4X wrote:

we should hire ZozzV6 to produce the LEDs Wink

Amen to that!! . <— click <— .. He does it like a pro…. Thumbs Up

You never know how a horse will pull until you hook him up to a heavy load./"Bear" Bryant

 .................................. "Slow is Smooth, Smooth is Fast" ...................................

       Texas Lumens Flashlights / M4D M4X Deals : sign up - save $$$$

         Rudeness Level _ mΩ _ {width:70%} _ LightWiki _ LED Tint Chart

      Xlamp size chart _ BatteryU _ Flashaholic? Need Professional Help???            TheOriginal _ TAB _ LightSearch _ BatterySearch _ 14500's _ DiCal





Lothar
Lothar's picture
Offline
Last seen: 3 days 11 hours ago
Joined: 10/26/2011 - 11:22
Posts: 535
Location: Stellenbosch, South Africa

teacher wrote:
M4D M4X wrote:

we should hire ZozzV6 to produce the LEDs Wink

Amen to that!! . He does it like a pro…. Thumbs Up

I agree! Big Smile

Current Collection:

BLF: BLF-GT90, BLF-GT70 (CW Sliced), BLF GTmini, BLF-LT1;

BTU: Shocker (3 x SST-40 @ 8A)

Solarforce: L2P (XM-L2 U3 @ 4A), MPP-1 (XP-L HI @ 6A), MPP-3 (3 x XM-L2 U2 @ 12A), M6 (Nichia 319A @ 6A), M8 (XHP-50.2 @ 9A), 9x (9 x XM-L2 U2 @ 2A)

Coming Soon: Lumintop: BLF-GT4;

ZozzV6
ZozzV6's picture
Offline
Last seen: 7 hours 15 min ago
Joined: 03/24/2016 - 12:19
Posts: 2415
Location: Near to my soldering iron.

If Lumintop contact me to make dedomed leds for them I can do it just we need to agree in labour cost and they need to send me the leds on the final MCPCB-s. You can undesrstand that the shipping costs and labour will rise the final flashlight’s price by a margin. 4 leds dedoming take at least 2-3 hours continuous work on microscope making very precise moves so I think I only can make for one or max two flashlights a day to not make my eyes tired as hell.. To translate that around 7-10 flashlights per month.

vestureofblood
vestureofblood's picture
Offline
Last seen: 1 day 7 hours ago
Joined: 08/17/2012 - 15:21
Posts: 1916
Location: Missouri

I’m in for at least two Smile

In Him (Jesus Christ) was life; and the life was the light of men. And the light shineth in darkness; and the darkness comprehended it not.
http://asflashlights.com/ Everyday Carry Flashlights, plus Upgrades for Maglite.

nokoff
nokoff's picture
Offline
Last seen: 5 months 3 weeks ago
Joined: 12/12/2013 - 20:26
Posts: 344
Location: East Coast USA
ZozzV6 wrote:
If Lumintop contact me to make dedomed leds for them I can do it just we need to agree in labour cost and they need to send me the leds on the final MCPCB-s. You can undesrstand that the shipping costs and labour will rise the final flashlight’s price by a margin. 4 leds dedoming take at least 2-3 hours continuous work on microscope making very precise moves so I think I only can make for one or max two flashlights a day to not make my eyes tired as hell.. To translate that around 7-10 flashlights per month.

That’s tiring work. Would a sliced dome approach dedomed LED improvement?

Couldn’t they order dedomed LEDs on a reel? They are a manufacturer.

Nokoff..still Made in China 山寨主義

JasonWW
JasonWW's picture
Offline
Last seen: 22 min 13 sec ago
Joined: 10/22/2016 - 11:41
Posts: 12609
Location: Houston Texas

nokoff wrote:

That’s tiring work. Would a sliced dome approach dedomed LED improvement?

Couldn’t they order dedomed LEDs on a reel? They are a manufacturer.


You can’t really dedome the 70.2. They all have to be sliced. Cree does not make HI versions, only HD with the dome.

Unless Zozz has a special technique to remove the dome, but I don’t think anyone has done this successfully.

Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights

Click this to go to signature links. I'm still around, just not reading many new threads.

DB Custom
DB Custom's picture
Offline
Last seen: 2 days 9 hours ago
Joined: 01/13/2013 - 22:28
Posts: 20623
Location: Heart of Texas

Maxtoch has unless I’m remembering it wrong. They’ve also done a clean de-dome on the SST-40.

And slicing/dicing doesn’t take all that long once you get used to doing it. I cover the MCPCB with a copper plate that has the square cut out for the substrate, slice with a silicone greased scalpel, then dice the sides. Takes a few minutes at most. No microscope, no helping hands, no real set-up… just a couple of bare MCPCB’s under the outer edges of the copper plate to keep it sitting level on the board that has the die.

nokoff
nokoff's picture
Offline
Last seen: 5 months 3 weeks ago
Joined: 12/12/2013 - 20:26
Posts: 344
Location: East Coast USA

Ah, good to know thanks

That may be the only way to make this light viable if they decide to move forward with it. Even TA said the GT4 design idea is dated

Nokoff..still Made in China 山寨主義

marsalla
marsalla's picture
Offline
Last seen: 3 days 6 hours ago
Joined: 10/21/2015 - 21:26
Posts: 141
Location: Phoenix, AZ

I am in.  reserved

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 4172
Location: The Motor City

JasonWW wrote:
nokoff wrote:

That’s tiring work. Would a sliced dome approach dedomed LED improvement?

Couldn’t they order dedomed LEDs on a reel? They are a manufacturer.


You can’t really dedome the 70.2. They all have to be sliced. Cree does not make HI versions, only HD with the dome.

Unless Zozz has a special technique to remove the dome, but I don’t think anyone has done this successfully.


Yes the 70/70.2 and the XHP35 can be de-domed cleanly…. I have done it a few times…

Here is a too closely shaved XHP70.2 that started to burn….I soaked it in a strong thinner to remove the silicone. If you right click to view/enlarge + you can see the silicone and black specs of char.

Right click to view/enlarge+ Dome on the left, clean silicone free de-dome on the right. BLF GT XHP35HI chemically de-domed XHP35 E4’s It can be done… Wink

KB1428 “Live Life WOT

Blinkinglights
Offline
Last seen: 3 hours 5 min ago
Joined: 01/06/2019 - 06:28
Posts: 123
Location: NY

Yeah it can, I did about 15 successful dedomes, but about 8 failed, so make sure you got real sharp tools a steady hand and few extra leds on hand won’t hurt as well.

Me love lights lonng tyme!

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 4172
Location: The Motor City
Blinkinglights wrote:
Yeah it can, I did about 15 successful dedomes, but about 8 failed, so make sure you got real sharp tools a steady hand and few extra leds on hand won’t hurt as well.
Good advise extra emitters are a must! Slicing and Dicing isn’t de-doming it’s slicing the dome off, the 70.2 dosen’t have bond wires, pretty hard to screw that up. Now slicing too close can cause the LED to burn, or if you polish it/sand the silicone down, sometimes causes fishers in the silicone, and it could burn, only issue I have ever seen, but if caught in time can be saved, by chemical de-doming, where patience is a virtue….that is where I screw up, pulling phosphorous off the pad, removing the silicone before it’s ready to be removed, sometimes the silicone can never be removed with out ruining the phosphorous. The old 70’s and the XHP35’s are the toughest, they have bond wires. The SST40’s even worse.

KB1428 “Live Life WOT

johny723
Offline
Last seen: 1 day 6 hours ago
Joined: 06/08/2014 - 08:48
Posts: 391
Location: slovakia

Not to mention that some dedomed emitters fail after an unpredictably long period of time. In my experience, the harder you drive the LED, the greater chance it has to burn. It does not necessarily have to be the phosphorus or the chip itself, but even remnants of the silicone that have been fine for a year or even two might suddenly burn without any warning.

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 4172
Location: The Motor City

johny723 wrote:
Not to mention that some dedomed emitters fail after an unpredictably long period of time. In my experience, the harder you drive the LED, the greater chance it has to burn. It does not necessarily have to be the phosphorus or the chip itself, but even remnants of the silicone that have been fine for a year or even two might suddenly burn without any warning.

Ya man, it really sucks, out of no where…light starts to go dimmer, then you look….SMOKE! Facepalm

I have learned to use a UV light and check for silicone and missing phosphorous with a 10X glass then burn them in, on the rock and then with my test light, a SD75 Lexel Narsil/Infineon FET 6 volt driver with 4 VTC5A’s everything bypassed with 18awg, at 22-23 amps, if there is any remnants of silicone, this light will seek and destroy it.

I could give a crap about the LED, it’s the Reflector getting smoked I’m pissed about! (I usually purchase extra reflectors just in case) but now it’s really not worth it anymore, been there, done that, bought a shirt, burned it……….

But it was to say the least…. All in good fun!

KB1428 “Live Life WOT

JasonWW
JasonWW's picture
Offline
Last seen: 22 min 13 sec ago
Joined: 10/22/2016 - 11:41
Posts: 12609
Location: Houston Texas

So you can dedome it, but it might be ruined in the process and kinda sorta might not last long when pushed hard?

I guess in my head I didn’t see it as a viable option. At least now I know dedoming is possible.

Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights

Click this to go to signature links. I'm still around, just not reading many new threads.

Lothar
Lothar's picture
Offline
Last seen: 3 days 11 hours ago
Joined: 10/26/2011 - 11:22
Posts: 535
Location: Stellenbosch, South Africa

KawiBoy1428 wrote:

Yes the 70/70.2 and the XHP35 can be de-domed cleanly…. I have done it a few times…

Here is a too closely shaved XHP70.2 that started to burn….I soaked it in a strong thinner to remove the silicone.

It can be done… Wink


Interesting. I have one that I shaved too close and it started burning. I have a new XHP70.2 on the way that I plan on slicing a little higher, but in the meantime I could try your method, I’ve already written the burnt XHP70.2 off.

I know previously we used petrol/gas to dedome XML’s and XPG’s, but you now mention strong thinners.
- Does it specifically need to be thinners?
- Would turpentine, benzine, surgical spirits, or any other solvent work as well?
- For how long do you leave it in the thinners? When do you know it’s ready?
- Does the silicone float off, or do you have to peel it off?

Thanks

Current Collection:

BLF: BLF-GT90, BLF-GT70 (CW Sliced), BLF GTmini, BLF-LT1;

BTU: Shocker (3 x SST-40 @ 8A)

Solarforce: L2P (XM-L2 U3 @ 4A), MPP-1 (XP-L HI @ 6A), MPP-3 (3 x XM-L2 U2 @ 12A), M6 (Nichia 319A @ 6A), M8 (XHP-50.2 @ 9A), 9x (9 x XM-L2 U2 @ 2A)

Coming Soon: Lumintop: BLF-GT4;

Wieselflinkpro
Wieselflinkpro's picture
Offline
Last seen: 3 weeks 2 days ago
Joined: 05/21/2015 - 04:34
Posts: 973
Location: Germany - TLF

KawiBoy1428][quote=johny723 wrote:
p. I could give a crap about the LED, it’s the Reflector getting smoked I’m pissed about! (I usually purchase extra reflectors just in case) but now it’s really not worth it anymore, been there, done that, bought a shirt, burned it……….

Do you need a GT-Reflector? I have a spare one becaus of my aspheric-mod.
KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 4172
Location: The Motor City

Lothar wrote:
KawiBoy1428 wrote:

Yes the 70/70.2 and the XHP35 can be de-domed cleanly…. I have done it a few times…

Here is a too closely shaved XHP70.2 that started to burn….I soaked it in a strong thinner to remove the silicone.

It can be done… Wink


Interesting. I have one that I shaved too close and it started burning. I have a new XHP70.2 on the way that I plan on slicing a little higher, but in the meantime I could try your method, I’ve already written the burnt XHP70.2 off.

I know previously we used petrol/gas to dedome XML’s and XPG’s, but you now mention strong thinners.
- Does it specifically need to be thinners?
- Would turpentine, benzine, surgical spirits, or any other solvent work as well?
- For how long do you leave it in the thinners? When do you know it’s ready?
- Does the silicone float off, or do you have to peel it off?

Thanks


The thinner is what we have on hand at work, it will destroy 2 part epoxy paint we use on our machines, it is very strong. I kept the burnt or closely shaved LED soaked and some will fall off, some will blow off, and some can be coaxed off with a wet tipped Q’Tip ….Gently…you don’t want to pull the phosphorous off with it…..

KB1428 “Live Life WOT

KawiBoy1428
KawiBoy1428's picture
Offline
Last seen: 7 hours 33 min ago
Joined: 04/11/2014 - 18:05
Posts: 4172
Location: The Motor City

Wieselflinkpro][quote=KawiBoy1428 wrote:
johny723 wrote:
p. I could give a crap about the LED, it’s the Reflector getting smoked I’m pissed about! (I usually purchase extra reflectors just in case) but now it’s really not worth it anymore, been there, done that, bought a shirt, burned it……….

Do you need a GT-Reflector? I have a spare one becaus of my aspheric-mod.

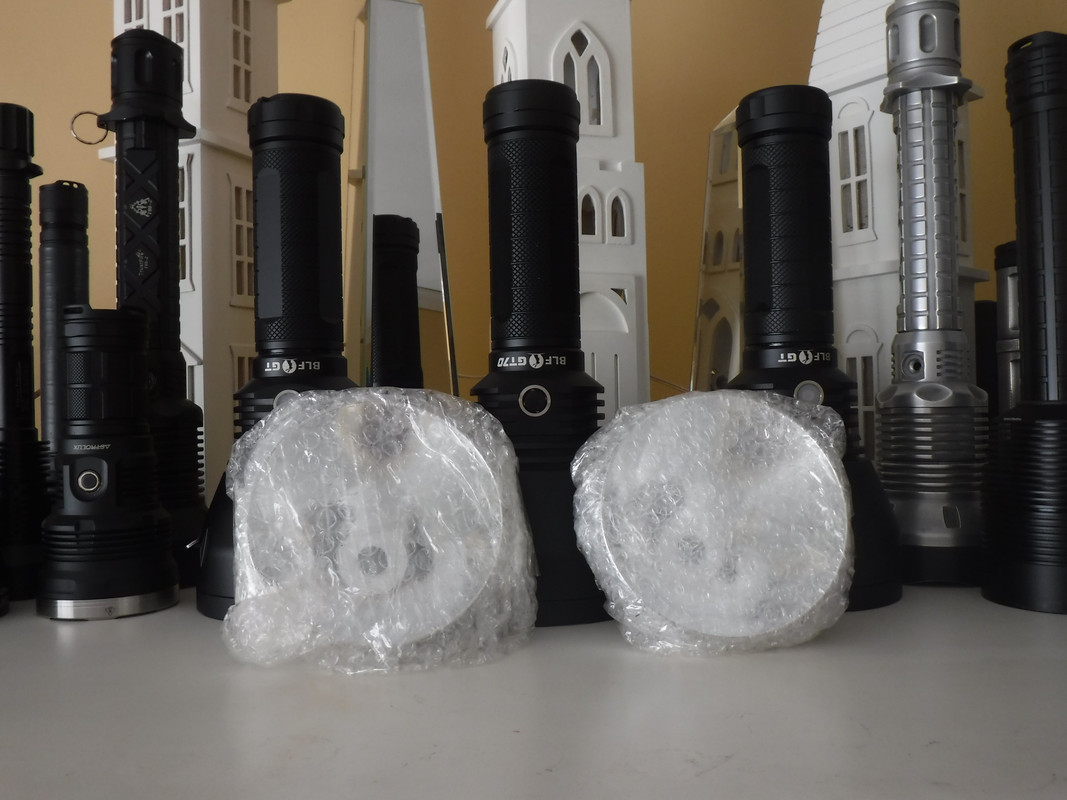

Thanks for the offer, But I have 2, they were in the picture I posted. Thanks again!

KB1428 “Live Life WOT

DB Custom
DB Custom's picture
Offline
Last seen: 2 days 9 hours ago
Joined: 01/13/2013 - 22:28
Posts: 20623
Location: Heart of Texas

A GT reflector, interesting… I am about to try a prototype driver with an XHP-35 and have been considering what to put it in… my thoughts lead me to wanting to build a light from scratch but I don’t know with what reflector. Can I get a GT reflector? Would I contact Lumintop or what?

Blinkinglights
Offline
Last seen: 3 hours 5 min ago
Joined: 01/06/2019 - 06:28
Posts: 123
Location: NY

I am selling my GT70, I just got it, still has the wrapper on it. Back in the box it goes. PM me if you anyone wants it.

Me love lights lonng tyme!

California_Prepper
Offline
Last seen: 17 min 48 sec ago
Joined: 02/23/2019 - 13:25
Posts: 393

Any possibility of the gt4 having a built in charger?

Pages
