Oshpark Projects

1808 posts / 0 new
Last post
Cereal_killer
Cereal_killer's picture
Offline
Last seen: 1 year 11 months ago
Joined: 07/22/2013 - 13:10
Posts: 4005
Location: Ohio
wight wrote:
…Do you mind posting pics / measurements…

 photo 9F4EB95D-BBEE-454C-A766-92ECDD1EFFC6.jpg

 photo AF854D13-0CA1-4837-87F5-81F31A02E3EF.jpg

 RIP  SPC Joey Riley, KIA 11/24/14. Now I am become death, the destroyer of worlds.

wight
Offline
Last seen: 1 year 8 months ago
Joined: 11/27/2013 - 16:40
Posts: 4969
Location: Virginia, USA

Sweet. Looks like they came out more or less as intended!

Thanks for posting the pics.

Still fine, still on a break. One day I’ll catch up with you folks! previous wight catchup Wink
list of my drivers & variants (A17DD, FET+1 stuff, WIP stuff, etc)

HarleyQuin
HarleyQuin's picture
Offline
Last seen: 1 year 1 week ago
Joined: 03/29/2013 - 04:47
Posts: 588

Wow,

very nice. Hardly can wait to get mine. Shipped the other day, might take about 2 weeks now.
Thanks for the pictures, nice to see that the layout seems to work well.

Oshpark Boards:
HQ ProgKey: Universal Driver Programming Key . Boost: HQ 15mm/17mm programmable boost driver with ATtiny13A
46mm Triple-Channel: BLF SRK FET v3 . 17mm Linear: HQ10D / HQ4D / HQ4S . Contact Boards: 22/24/26mm

WarHawk-AVG
WarHawk-AVG's picture
Offline
Last seen: 1 year 6 months ago
Joined: 01/04/2014 - 06:47
Posts: 5071
Location: H-Town

DBCstm wrote:
Wasn’t it said somewhere that 7135’s won’t go as low? If you go for a real low moon they act up? And also something about the PWM rate? Might check that out as well. Sorry I don’t have more pertinent information, but I am not using anything it pertains to and well, my memory is kept in a minnow bucket with oversized flow holes.
Yeah…I think it was my compile, I didn’t change the location of the ramping in the code and I used fast PWM

Cereal_killer did a few video’s for me on the next re-compile and it looked as if it worked on his builds, ramping was clean and worked as compiled
(if he want’s he can post links) It’s a SK68 with 100% variable modes w/ memory

I just have to rebuld my driver and give it a shot, using the slow PWM he reported it ramped smoothly (fast PWM went all wonky)

WarHawk-AVG
WarHawk-AVG's picture
Offline
Last seen: 1 year 6 months ago
Joined: 01/04/2014 - 06:47
Posts: 5071
Location: H-Town
Cereal_killer wrote:
wight wrote:
…Do you mind posting pics / measurements…

 photo 9F4EB95D-BBEE-454C-A766-92ECDD1EFFC6.jpg

 photo AF854D13-0CA1-4837-87F5-81F31A02E3EF.jpg

Way cool!

A little cleanup of the inner tabs and a few shots of solder and BLAMO…instant 22mm Nanjg…NICE!

djozz
djozz's picture
Offline
Last seen: 18 hours 25 min ago
Joined: 09/07/2012 - 17:04
Posts: 18088
Location: Amsterdam

djozz wrote:

I made a 3xAA in series battery-holder, using the Oshpark boards mentioned in the OP, and did some tests on it, thread here:

http://budgetlightforum.com/node/31889#new

hi RBD, this battery-carrier is therefore no longer untested, so the the OP might be updated for these triple AA boards??

Cereal_killer
Cereal_killer's picture
Offline
Last seen: 1 year 11 months ago
Joined: 07/22/2013 - 13:10
Posts: 4005
Location: Ohio

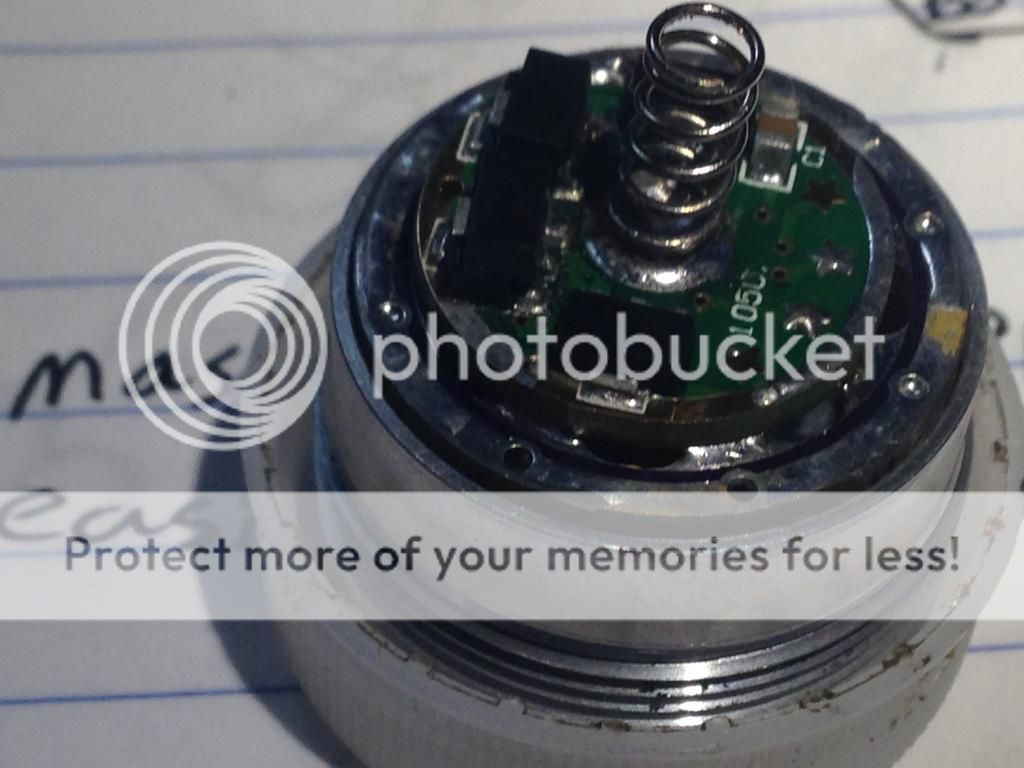

Here’s a few installed pic’s.
 photo C645CF66-7CB6-4D8C-B4AB-BEB6546FDE96.jpg

 photo 843B0E22-C74E-4D0A-886E-4FA61C11B09F.jpg

 photo D9EEEF07-9E84-46B6-8F4E-C9B666696311.jpg

I was hoping the added height would make it so I could use a normal size spring in this balder SE2 but not quite.

 RIP  SPC Joey Riley, KIA 11/24/14. Now I am become death, the destroyer of worlds.

Rufusbduck
Rufusbduck's picture
Offline
Last seen: 7 months 2 weeks ago
Joined: 04/04/2012 - 15:34
Posts: 10389
Location: Golden state

I think the op is now up to date.

Three Tanna leaves to give him life, nine to give him movement. But what if he eats the whole bag?

Scott

Mattaus
Mattaus's picture
Offline
Last seen: 9 months 1 week ago
Joined: 10/20/2012 - 23:51
Posts: 833
Location: Brisbane, Australia

26mm, 20x7135 slave: http://oshpark.com/shared_projects/KQTF0CnE

4 x XQ footprint emitter PCB (I'm uisng this for a WRGB P60 module): http://oshpark.com/shared_projects/cY3XbNnp

**************************************************************************************

WORK IN PROGRESS: "Medusa" SRK Replacement PCB: http://oshpark.com/shared_projects/NuBPKgTp

Complete all in one package replacement PCB for SRK style lights. Not sure why I'm posting this. Maybe someone else will be interested in trying it out. I figure it'd look cool having the electronics all exposed in the face of the lights, and multiple different lights for different uses.

You will have to use the stock driver PCB as a dummy contact board. Highly recommended to add a heat sink to the rear of this board. Given the height of the topics chosen this board could be stacked on top of aluminum or similar to bring the optics closer to the SRK lens.

  • 4 XP footprint emitters driven via 70N02 FET through Carclo 24mm quad optic (board pre-drilled for this optic).
  • Single XP footprint emitters driven via IRLML2502 FET through Ledil Lisa 2 optic (board pre-drilled for this optic).
  • 3 XQ footprint emitters driven via 2x7135 regulators per LED. XML Reflector 12mm in diameter (no mount holes for a reflector).
  • There are two LED+ (BATT+) connections on the board but they are electrically the same. I just couldn't get the traces down for one solder point so had to split it. Both LED+ pads connect to BATT+.
  • MLCR doubles as the SW+ pad.

Controlled via PIC16F1825 in TSSOP-14 package. Debug/programming points included. Designed to use ttrev3's MLEDv2 firmware without modificationhttp://tterev3.blogspot.com.au/2014/04/meld-v2.html

I had a link to the firmware but cannot find it right now. The single XP emitter is connected as if it were the UV emitter, while the quad XP emitters are connected as if they were the white emitter in the WRGB array of the original. Red, green, and blue are all connected as normal.

I plan on using a medium flood optics with 4 nichia 219 emitters for the quad, dedomed cool-white XP-E for the single emitters for throw, and then regular XQ R,G,B for the reflector.

Should be a versatile light for camping. I was going to use a UV emitter in place of the single emitter but I couldn't find a reliable source for a cheap UV emitter. That and I think throw will be more useful.

- Matt

wight
Offline
Last seen: 1 year 8 months ago
Joined: 11/27/2013 - 16:40
Posts: 4969
Location: Virginia, USA

Mattaus wrote:

WORK IN PROGRESS: “Medusa” SRK Replacement PCB: http://oshpark.com/shared_projects/NuBPKgTp

Nice! Good idea. Just this weekend I was reflecting on how useful it would be if more electronics could be easily exposed in a custom light without complete disassembly. Replacing or building a driver is something that we try to explain to muggles, but if you can show then a PCB with components on it, that makes the explanation much easier. Right this moment I don’t remember exactly what my idea was, but it wasn’t as cool as this one…

Still fine, still on a break. One day I’ll catch up with you folks! previous wight catchup Wink
list of my drivers & variants (A17DD, FET+1 stuff, WIP stuff, etc)

RMM
RMM's picture
Offline
Last seen: 1 year 9 months ago
Joined: 07/23/2013 - 13:47
Posts: 4006
Location: USA

Cereal_killer wrote:
Chris are you able to post a short video showing the issue? It sounds like what I have but not sure. Also is this with a clicky or momentary setup that gives you issues (or it doesnt matter, it does it with both randomly)? The biggest similar issue I've had is when I tried to use a stock FET I pulled out of an M6, it cleared up when I swapped it out for a 70N02 however I know the M6 FET's work when left on their own board but controlled by a ATTiny13A on a piggy backed board, strange...

When you piggyback on to the M6 board you are using the 7136s to supply the current to the FET gate, instead of driving them directly like we do the 70N02.

Mountain Electronics : batteries, Noctigon, and much more! What's new?

scottyhazzard
scottyhazzard's picture
Offline
Last seen: 2 years 6 months ago
Joined: 08/09/2011 - 19:02
Posts: 1127
Location: Northern California

UV can be very useful camping and exploring. Minerals light up in pinks, yellows and blues, scorpions light up pale yellow. Lots of cool things with UV but not much throw and as you noticed, not easily sourced. Very neat project. I hope someone puts it together and posts pictures.

"Those who hammer their guns into plows will plow for those who do not."

Mattaus
Mattaus's picture
Offline
Last seen: 9 months 1 week ago
Joined: 10/20/2012 - 23:51
Posts: 833
Location: Brisbane, Australia

scottyhazzard wrote:
Very neat project. I hope someone puts it together and posts pictures.

I am going to order the PCBs next pay. I have an SRK that's been waiting for something different to be done to it.

WarHawk-AVG
WarHawk-AVG's picture
Offline
Last seen: 1 year 6 months ago
Joined: 01/04/2014 - 06:47
Posts: 5071
Location: H-Town

Mattaus wrote:

26mm, 20×7135 slave: http://oshpark.com/shared_projects/KQTF0CnE

4 x XQ footprint emitter PCB (I’m uisng this for a WRGB P60 module): http://oshpark.com/shared_projects/cY3XbNnp

**************************************************************************************

WORK IN PROGRESS: “Medusa” SRK Replacement PCB: http://oshpark.com/shared_projects/NuBPKgTp

Complete all in one package replacement PCB for SRK style lights. Not sure why I’m posting this. Maybe someone else will be interested in trying it out. I figure it’d look cool having the electronics all exposed in the face of the lights, and multiple different lights for different uses.

You will have to use the stock driver PCB as a dummy contact board. Highly recommended to add a heat sink to the rear of this board. Given the height of the topics chosen this board could be stacked on top of aluminum or similar to bring the optics closer to the SRK lens.

  • 4 XP footprint emitters driven via 70N02 FET through Carclo 24mm quad optic (board pre-drilled for this optic).
  • Single XP footprint emitters driven via IRLML2502 FET through Ledil Lisa 2 optic (board pre-drilled for this optic).
  • 3 XQ footprint emitters driven via 2×7135 regulators per LED. XML Reflector 12mm in diameter (no mount holes for a reflector).
  • There are two LED+ (BATT+) connections on the board but they are electrically the same. I just couldn’t get the traces down for one solder point so had to split it. Both LED+ pads connect to BATT+.
  • MLCR doubles as the SW+ pad.

Controlled via PIC16F1825 in TSSOP-14 package. Debug/programming points included. Designed to use ttrev3’s MLEDv2 firmware without modificationhttp://tterev3.blogspot.com.au/2014/04/meld-v2.html

I had a link to the firmware but cannot find it right now. The single XP emitter is connected as if it were the UV emitter, while the quad XP emitters are connected as if they were the white emitter in the WRGB array of the original. Red, green, and blue are all connected as normal.

I plan on using a medium flood optics with 4 nichia 219 emitters for the quad, dedomed cool-white XP-E for the single emitters for throw, and then regular XQ R,G,B for the reflector.

Should be a versatile light for camping. I was going to use a UV emitter in place of the single emitter but I couldn’t find a reliable source for a cheap UV emitter. That and I think throw will be more useful.

- Matt

I have the PERFECT heatsink for this
https://www.etsy.com/listing/85401509/copper-disc-20g-50mm-blanks-cutout...

Bond that board to that copper round with alot of solder paste stuffed down in the vias! (well with a few holes drilled to make sure the batt+ didn’t ground out by accident Wink

[I really think this board needs it’s own thread!] seriously Big Smile

scottyhazzard
scottyhazzard's picture
Offline
Last seen: 2 years 6 months ago
Joined: 08/09/2011 - 19:02
Posts: 1127
Location: Northern California

Regarding the 12.2mm tactical switch by Helios, how do I incorporate this effectively in a switch for a light that takes 18350’s etc.? I suspect that it is more complex than a simple swap. I am trying to make a light that can use the Star firmware in the version RMM did with the double click to strobe and the switch is my sticking point.

"Those who hammer their guns into plows will plow for those who do not."

comfychair
comfychair's picture
Offline
Last seen: 5 years 7 months ago
Joined: 01/12/2013 - 05:39
Posts: 6198

Helios' switch board is just a thing to mount a pushbutton on one side and wires (or header pins) on the other. Meant as a direct replacement for SRK-style lights.

Adding a side switch to a light that didn't originally come with one is a much trickier project. You need a pocket for the switch PCB to sit in, and then a button on top and an outer bezel to retain it all in the light.

scottyhazzard
scottyhazzard's picture
Offline
Last seen: 2 years 6 months ago
Joined: 08/09/2011 - 19:02
Posts: 1127
Location: Northern California

I’m traveling right now, so I can’t measure but I was imagining that I might be able to remove the clickie from a solarforce or similar and measure the diameter of the board it’s on and tweak the gerber file to that diameter, order, solder and replace. Would that work?

"Those who hammer their guns into plows will plow for those who do not."

Helios-
Helios-'s picture
Offline
Last seen: 2 years 1 week ago
Joined: 01/18/2012 - 21:12
Posts: 2099

The tactile switch board is meant for side button use. Would not work for tail clickies. I can change the diameter for you.


Counterfeit 18650s, 2,<a href=“http://

scottyhazzard
scottyhazzard's picture
Offline
Last seen: 2 years 6 months ago
Joined: 08/09/2011 - 19:02
Posts: 1127
Location: Northern California

Thanks Helios, any suggestions for a tail clicker?

"Those who hammer their guns into plows will plow for those who do not."

Helios-
Helios-'s picture
Offline
Last seen: 2 years 1 week ago
Joined: 01/18/2012 - 21:12
Posts: 2099

scottyhazzard wrote:
I am trying to make a light that can use the Star firmware in the version RMM did with the double click to strobe

This RMM driver (double click for strobe) is meant for side button, right?

I’m afraid something different would have to be done for tail clickies.


Counterfeit 18650s, 2,<a href=“http://

Tom E
Tom E's picture
Offline
Last seen: 1 hour 40 min ago
Joined: 08/19/2012 - 08:23
Posts: 14991
Location: LI NY

I know I missed this somewhere? Where does the 130 or 100 ohm resistor go on the BLF17DD rev 2 to 4? Marked R3 or marked R4? There's no definite source to find out? Thought the assignment used to be on the OSHPark page for BLF17DD but it's not there. Richard's website has conflicting info - doesn't list it where he lists the parts assigned to the board, then does include a 100 ohm resistor in the kit -- but doesn't say where it goes?

If it does go in the R3 spot (guessing), then does the R4 spot have to be jumpered?

** wish there was a way to search within a thread, or at least get search results to link to a post. These large threads are a total PIA... If someone knows, please don't use post links -- just a post #...

Edit: Crap! think I answered my own questions by tracing the routes on the BLF17DD -- should be on R3, and looks like R4 is not necessarry to jumper out. Someone please confirm?

This is my first BLF17DD (I got 6) - think I'll take detailed pics when it's all tested...

Cereal_killer
Cereal_killer's picture
Offline
Last seen: 1 year 11 months ago
Joined: 07/22/2013 - 13:10
Posts: 4005
Location: Ohio

Your correct, R3 is 130 (gate) and R4 is the pull down and can be left open. R3 if not used has to be jumpered.

 RIP  SPC Joey Riley, KIA 11/24/14. Now I am become death, the destroyer of worlds.

Cereal_killer
Cereal_killer's picture
Offline
Last seen: 1 year 11 months ago
Joined: 07/22/2013 - 13:10
Posts: 4005
Location: Ohio

scottyhazzard wrote:
Thanks Helios, any suggestions for a tail clicker?

You would need to make it so the batt is always connected and have to run a wire to the tail switch (which would go to MCU pin2, pressing the bottom would cause a short to ground).

You could also get a nitecore piston drive host (like my D10) to use momentary FW with a tail mounted “click” switch. If you did want to go that route I have THE board for you.

 RIP  SPC Joey Riley, KIA 11/24/14. Now I am become death, the destroyer of worlds.

antoninodattola
Offline
Last seen: 2 years 8 months ago
Joined: 11/22/2013 - 14:19
Posts: 103
Location: Italia

I built this, it is the V2, if it worked fine before I tried the v1;)

I uploaded the file eagle (sometimes no matter oshpark well all) maybe I should upload gerber files;



If you want you can improve PCB;)



happy to help communities BLF!



https://oshpark.com/shared_projects/Ss2qkDsS

scottyhazzard
scottyhazzard's picture
Offline
Last seen: 2 years 6 months ago
Joined: 08/09/2011 - 19:02
Posts: 1127
Location: Northern California
Cereal_killer wrote:
scottyhazzard wrote:
Thanks Helios, any suggestions for a tail clicker?
You would need to make it so the batt is always connected and have to run a wire to the tail switch (which would go to MCU pin2, pressing the bottom would cause a short to ground).

Thanks Killer.

"Those who hammer their guns into plows will plow for those who do not."

Tom E
Tom E's picture
Offline
Last seen: 1 hour 40 min ago
Joined: 08/19/2012 - 08:23
Posts: 14991
Location: LI NY

OMG!! Built up a couple of BLF17DD (V2's I think??), put one in a SupFire L6 (C8 size head/reflector but uses a 26650). Wow, just wow! 1,462 OTF (I measured) from a XM-L2 T6 4C. I think I'm loving this tint... A KK 4200 gets 5.7A, a Powerizer gets 6.2A, LG HE2 gets 6.15A, and 6.05A for a Sam 25R.

The heat sinking is done up well (SinkPAD - GC Extreme - screwed down the SinkPAD - 1.5mm copper disc soldered to a brass pill top - thermal/electrically conducted greas on the pill threads), it sure gets hot in a hurry, so the heat sinking is working.

Rufusbduck
Rufusbduck's picture
Offline
Last seen: 7 months 2 weeks ago
Joined: 04/04/2012 - 15:34
Posts: 10389
Location: Golden state

antoninodattola wrote:

I built this, it is the V2, if it worked fine before I tried the v1;)

I uploaded the file eagle (sometimes no matter oshpark well all) maybe I should upload gerber files;



If you want you can improve PCBWink



happy to help communities BLF!



https://oshpark.com/shared_projects/Ss2qkDsS


So this is tested?

Three Tanna leaves to give him life, nine to give him movement. But what if he eats the whole bag?

Scott

antoninodattola
Offline
Last seen: 2 years 8 months ago
Joined: 11/22/2013 - 14:19
Posts: 103
Location: Italia

The V1 was wrong The printing on the + and -

and the size of the PCB was 12, now it is 16mm



The V2 is tested and it is ok.

DB Custom
DB Custom's picture
Offline
Last seen: 2 weeks 6 days ago
Joined: 01/13/2013 - 22:28
Posts: 20733
Location: Heart of Texas

Same light with the same driver and an XP-G2 S2 2B has some nice throw, nice tint, pretty awesome at 4.66A, 943 lumens…emitter is domed. Those “copper” (brass) pills that I got with the light are threaded wrong, thought about forcing one in and brute force changing the threads on something but ended up leaving the aluminum pill in. Still get’s hot quite fast. Not so bad as the harder driven XM-L2 though.

Tom E
Tom E's picture
Offline
Last seen: 1 hour 40 min ago
Joined: 08/19/2012 - 08:23
Posts: 14991
Location: LI NY

I used this: fasttech-C8-pill, but it's been out of stock forever. It's a standard brass pill for C8's, also sold here: lck-led-brass-pill. The copper C8 pills from VOB also fit (I threaded it in fine), but again had a lower height. The SupFire L6 aluminum pill had an o-ring to elevate the LED/star, like they designed the body or pill wrong. With the brass pill, I left out the o-ring and used a copper shim bought here to elevate the SinkPAD.

Pages
