Hi Kikkoman,

Yes it looks interesting but I have concerns that lenses are acrylic/plastic and I can’t see weather it has anodized threads…

It looks fairly well…

I would like that kind of zoomie(or slightly larger) but with anodized threads, glass lens, 25.4mm body, without any gimmick charging ports if possible…

It is very hard to find such one. I’ve been through whole ali and other sites and I can’t find suitable hosts…

Agro
Agro's picture
Online
Last seen: 1 min 41 sec ago
Joined: 05/14/2017 - 11:16
Posts: 6307
Location: Ślōnsk
luminarium iaculator wrote:
freeme wrote:

Convoy BD04?

It has plastic lens, and while I have nothing against plastic lenses since they will throw further and have clearer die projection than most commercial available glass lenses with LED emitter it does not fit in mine project…

I need glass lens in zoomie(small lightweight and practical zoomie) so that it can hide laser emitter (VCSEL) imperfections or better to say to make them blurry…

This is how VCSEL looks under plastic(acrylic zoomie):

Glass lenses should kinda merge(blur) that imperfections which plastic/acrylic lens perfectly projects…


Do you mean that you want a low prcision lens?
Maybe a precise lens with dc-fix or a frosted/patterned one is what you need?
luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/07/2013 - 09:09
Posts: 2103
Location: X

Hmmm… Yes… I just need classic glass lenses in small zoomie light(they usually are low precision ones?)…

But that idea of frozen patter from underside of lens or even better on top of the lens looks like a nice experiment. Small round “blur” or “smudge” on top of lens could do…

Guys. Please try the challenge… It is almost unbelievable how hard is to find this below:

“Zoomie(budget smaller one) but with anodized threads, glass lens, 25.4mm body, 1×18650 bat, without any gimmick charging ports if possible…”

kikkoman
kikkoman's picture
Offline
Last seen: 1 year 3 months ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

I’ve found a handful that tick all the boxes but “anodized threads”.

Redlyne22
Redlyne22's picture
Offline
Last seen: 2 months 2 days ago
Joined: 12/25/2017 - 07:02
Posts: 206
Location: United States

There is a neat way of removing the anodizing, forget the name bit I have the stuff at home, its a common oven cleaner. Works surprising well at removing any anodizing it comes in contact with,,,,right down to bare aluminium

Sometimes being a newb is the best part of a hobbie

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 11/29/2017 - 12:34
Posts: 5544
Location: Canada

It’s sodium hydroxide, lye, NaOH.

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

Agro
Agro's picture
Online
Last seen: 1 min 41 sec ago
Joined: 05/14/2017 - 11:16
Posts: 6307
Location: Ślōnsk

luminarium iaculator wrote:
Hmmm… Yes… I just need classic glass lenses in small zoomie light(they usually are low precision ones?)…

But that idea of frozen patter from underside of lens or even better on top of the lens looks like a nice experiment. Small round “blur” or “smudge” on top of lens could do…

Guys. Please try the challenge… It is almost unbelievable how hard is to find this below:

“Zoomie(budget smaller one) but with anodized threads, glass lens, 25.4mm body, 1×18650 bat, without any gimmick charging ports if possible…”


In the context of a laser talk I read your comment as “I want a great host with a bad (imprecise) lens”. I think that’s not what you meant…or is it?
luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/07/2013 - 09:09
Posts: 2103
Location: X

Agro,

I just wanted small zoomie with real glass lenses and glass lens are usually inferior to plastic lenses and they make blurry die projection in direct comparison to acrylic/plastic lenses wich have ultra clear die projection. I need glass one because I need blurry effect with VCSEL laser die…

So once again challenge for you guys:
“Zoomie(budget smaller one) with anodized threads, glass lens, 25.4mm body, 1×18650 bat, without any gimmick charging ports if possible…”

Been through hundreds of models only Sofirn SF30 is close to that but it has freaking 3xaaa body Angry , and I need 25,4mm one Flat Stare

kikkoman
kikkoman's picture
Offline
Last seen: 1 year 3 months ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

Why not use a glass lens from Yajiamei in a host that otherwise fits? (Richfire SF-168, 20$, but plastic lens.)

Or on the cheap – 6$ , plastic lens :

https://www.dx.com/p/zhishunjia-yf1017-400lm-convex-lens-led-zooming-fla...

——————————-

Or, why not re-anodize those threads (it’s not that complicated)?

That TF-Z9, I’m pretty confident it has a glass lens and counting pixels tells me the tube is 25-26mm. But no anodized threads.

luminarium iaculator
luminarium iaculator's picture
Offline
Last seen: 1 week 6 days ago
Joined: 07/07/2013 - 09:09
Posts: 2103
Location: X

Hi Kikkoman,

That is real beauty! I ordered one… Everything here but glass lenses

So why not swapp plastic to glass lens? I think it is turbo hard to find glass one that will work on place of plastic one… Yes it may fit but focal difference… I would not like any overfocus or defocus(black hole Smile ) issues. So finding that is also Sizifus job Smile

I was able to find all kind of stuff and flashlights but I can’t believe that I can’t find the one I need with mentioned criteria:
Zoomie(budget smaller one) but with anodized threads, glass lens, 25.4mm body, 1×18650 bat, without any gimmick charging ports if possible…

kikkoman
kikkoman's picture
Offline
Last seen: 1 year 3 months ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

Haven’t seen this one by Jin Heng mentioned here:

SST20 or SST40, 21700, Type C USB charging, ~30USD:

https://www.aliexpress.com/store/product/SST20-SST40-LED-Rechargeable-Aluminum-Flashlight-Torch-Type-C-USB-Charging-21700-Battery-Light-Outdoor-Camping/1242423_33004236817.html

JasonWW
JasonWW's picture
Offline
Last seen: 15 hours 41 min ago
Joined: 10/22/2016 - 11:41
Posts: 12733
Location: Houston Texas

/\ That looks like it might make a nice 21700 host.

Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights

Click this to go to signature links. I'm still around, just not reading many new threads.

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 11/29/2017 - 12:34
Posts: 5544
Location: Canada

This one looks super dope too:
https://www.aliexpress.com/store/product/30W-Powerful-Xlamp-XHP70-2-0-XH...LED-Type-C-USB-Rechargeable-18650-Flashlight-6/1242423_32968903816.html

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

4492011
Offline
Last seen: 2 months 4 days ago
Joined: 01/23/2019 - 19:39
Posts: 193
Location: USA Michigan

kikkoman wrote:
Haven’t seen this one by Jin Heng mentioned here:

SST20 or SST40, 21700, Type C USB charging, ~30USD:

https://www.aliexpress.com/store/product/SST20-SST40-LED-Rechargeable-Aluminum-Flashlight-Torch-Type-C-USB-Charging-21700-Battery-Light-Outdoor-Camping/1242423_33004236817.html


Take a look at the specifications 7 amp CC, 3 volts out, luminus SST- 40.2 ????
BlueSwordM
BlueSwordM's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 11/29/2017 - 12:34
Posts: 5544
Location: Canada

Where did you see 7A?

I don’t see anything.

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

4492011
Offline
Last seen: 2 months 4 days ago
Joined: 01/23/2019 - 19:39
Posts: 193
Location: USA Michigan

Sorry wrong info, looking at too many items at once, link to a driver that is listed that way. Interesting low 3 volts out, Luminus SST-40.2. https://www.aliexpress.com/item/22mm-2-8V-4-2V-Input-7A-Constant-Current...LED-Driver-Flashlight-Circuit/33003164774.html?spm=a2g0s.8937460.0.0.b7e52e0eMlzhNa

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 11/29/2017 - 12:34
Posts: 5544
Location: Canada

Oh it’s using dual FETs.

Probably CC at 3A, and direct drive at 7A.

I mean, at 7A in linear regulation, the regulator wouldn’t really survive.

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

4492011
Offline
Last seen: 2 months 4 days ago
Joined: 01/23/2019 - 19:39
Posts: 193
Location: USA Michigan

I have purchased a couple of lights from this seller JKK70 Manta Ray C8.2 all pretty good in my opinion. But yes it is also listed a 15 watts, 7 amps x 3 volts = 21 watts. Who knows, really only one way to find out.
I am kinda new here and I have been wondering why someone has not attacked the voltage on these low voltage emitters this way. Limiting the output voltage and increasing the amperage.

BlueSwordM
BlueSwordM's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 11/29/2017 - 12:34
Posts: 5544
Location: Canada

Because it doesn’t work like that with LEDs.

To increase the amperage going to the LED, you need to up the voltage to the LED by a bit.

Be careful though. Up the current too much(even if the LED can handle it), but gets too hot, and you might end up in a situation of a runaway with an LED, in which it kills itself.
Isn’t an issue with regulated drivers, but can be an issue with FET drivers.

Also, 15W for the SST-40 draws 4,6A at 3,27V.

My very own high current Beryllium Copper springs Gen 3:
http://budgetlightforum.com/node/67401
Liitokala Aliexpress Stores Battery Fraud: http://budgetlightforum.com/node/60547

4492011
Offline
Last seen: 2 months 4 days ago
Joined: 01/23/2019 - 19:39
Posts: 193
Location: USA Michigan

Thanks for the info.

gchart
gchart's picture
Offline
Last seen: 7 hours 45 min ago
Joined: 03/19/2016 - 11:57
Posts: 2592
Location: Central IL

kikkoman wrote:
Haven’t seen this one by Jin Heng mentioned here:

SST20 or SST40, 21700, Type C USB charging, ~30USD:

https://www.aliexpress.com/store/product/SST20-SST40-LED-Rechargeable-Aluminum-Flashlight-Torch-Type-C-USB-Charging-21700-Battery-Light-Outdoor-Camping/1242423_33004236817.html

Those look sharp. Too bad that switch retaining ring appears to be pressed in. I’m curious is the charging circuit is on the same board as the main driver components or a separate one.

Scallywag
Scallywag's picture
Offline
Last seen: 20 hours 20 min ago
Joined: 01/11/2018 - 22:23
Posts: 1491
Location: Ohio, United States

gchart wrote:
kikkoman wrote:
Haven’t seen this one by Jin Heng mentioned here: SST20 or SST40, 21700, Type C USB charging, ~30USD: https://www.aliexpress.com/store/product/SST20-SST40-LED-Rechargeable-Aluminum-Flashlight-Torch-Type-C-USB-Charging-21700-Battery-Light-Outdoor-Camping/1242423_33004236817.html
Those look sharp. Too bad that switch retaining ring appears to be pressed in. I’m curious is the charging circuit is on the same board as the main driver components or a separate one.

I might have to try one. If it’s halfway decent, it would tick all the boxes for a friend I’ve been meaning to get a flashlight for…

Old Lumens Contest 2020 - Hand-made light category

ZL SC62(w) | Jaxman E2L XP-G2 5A | Purple S2+ XPL-HI U6-3A | D4 w/ Luxeon V | RRT-01 | Purple FW3A, 4000K SST20 | Baton S1
Boruit D10 w/ Quadrupel Fet+1/Anduril | EagTac D25C Ti | DQG Slim AA Ti | Jaxman E3 | UF-T1 by CRX | Olight S15 Ti | Nitecore EX11.2
L6 XHP70.2 P2 4000K FET+7135 | Jaxman M8 | MF02 | Jaxman Z1 CULNM1.TG | Blue S2+ w/ ML Special | Thrunite T10Tv2
Supfire M6 3xXHP50.2, Sofirn C8F, Unfinished: Sofirn SP70, IYP07/Tool AAA hot-rods, Jetbeam E3S
Others: Nitecore EC23 | Nebo Twyst | Streamlight ProTac 1AA | TerraLux LightStar 100

SKV89
Offline
Last seen: 7 hours 26 min ago
Joined: 12/10/2017 - 12:46
Posts: 4171
Location: US

Man that Jin Heng flashlight looks great and has everything I was looking for in a host. However, the press 2sec to turn-off is what turns me away

F.i.l.a.s
F.i.l.a.s's picture
Offline
Last seen: 3 days 14 hours ago
Joined: 11/22/2015 - 20:10
Posts: 144
Location: Prague

Have anyone found a 18650 big reflector thrower as Supwildfire was? I was searching around Ali and nothing interesting there. I would make a mod with Osram white flat or SST40 dedomed version from Kaidomain.

kikkoman
kikkoman's picture
Offline
Last seen: 1 year 3 months ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

So today I got the ““upgraded” Revtronic F30B”:https://www.banggood.com/Revtronic-Upgraded-F30B-2-T6-800-Lumens-4Modes-...USB-Rechargeable-Portable-LED-Flashlight-p-1337893.html?rmmds=search&cur_warehouse=CN in the mail, the one with USB charging in the tail.
What do you know, it’s another tailcap driver light…. but with a reverse clicky. Shocked Sick It seems I’m a magnet for weird drivers, huh.

All that’s in the head is two resistors and a diode, antiparallel to the LED. (The diode is necessary for the TC charger.)

This is the tail driver:

Just a reverse clicky on the other side.

I don’t know what to make of this. It’s a nicely constructed light (paid 13€ for it), beefy body, 5.5mm thick LED shelf, the TC charger is nice & clean & watertight, – but the driver is an overengineered solution to a non-existent problem. And it’s not good at what it does.
The TC charger could be done with a standard driver, all it needs is that extra diode.
(Oh and there’s plenty of space in the head, it can fit a 22mm driver.)

Another one for the ‘project’ bin….
Any good suggestions ? Biscotti?

Lightbringer
Lightbringer's picture
Offline
Last seen: 2 hours 19 min ago
Joined: 08/30/2016 - 14:12
Posts: 12819
Location: nyc

Sounds a lot like the 4×AAA LuxPro I got. Just a contact board in the head, 2 sm chip-resistors acting as a ballast, and the driver in the tailcap. Hell if I can get it apart, though. Got real ring-pullers, not just pointy tweezers, and I’m cranking it cw and ccw and it ain’t budging. No visible threads to see if it’s got rh/lh threads.

Really nice feather-touch switch, though, so while I suspect it wouldn’t function long as a power-switch, even with puny AAAs.

Should fit a Li cell nicely if I ever do get the tailcap apart, though.

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

freeme
freeme's picture
Online
Last seen: 10 min 34 sec ago
Joined: 11/14/2013 - 22:00
Posts: 9023

Nitenumen TK27

Agro
Agro's picture
Online
Last seen: 1 min 41 sec ago
Joined: 05/14/2017 - 11:16
Posts: 6307
Location: Ślōnsk

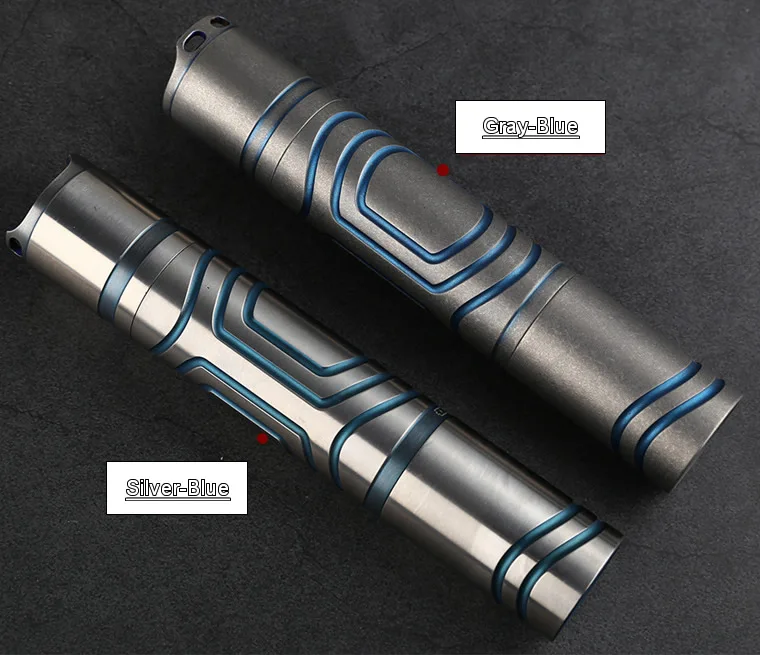

Not that budget but I just stumbled upon this Titanium 18650:

http://www.aliexpress.com/item/4000004827705.html

MascaratumB
MascaratumB's picture
Offline
Last seen: 20 hours 10 min ago
Joined: 10/29/2016 - 12:12
Posts: 5741
Location: Portugal

Too bad it has that UI Sad Seems quite pleasant to the eyes, though Wink

Scallywag
Scallywag's picture
Offline
Last seen: 20 hours 20 min ago
Joined: 01/11/2018 - 22:23
Posts: 1491
Location: Ohio, United States

MascaratumB wrote:
Too bad it has that UI Sad Seems quite pleasant to the eyes, though ;)

At that price, it's probably worth the risk to try and mod. Certainly would immediately swap the LED if nothing else, I'd expect a LatticeBright. The only thing giving me pause is the built-in charging, but I'd honestly be fine with losing that if it came down to it. Or maybe I'd just finally take the opportunity to do a charger myself.

Old Lumens Contest 2020 - Hand-made light category

ZL SC62(w) | Jaxman E2L XP-G2 5A | Purple S2+ XPL-HI U6-3A | D4 w/ Luxeon V | RRT-01 | Purple FW3A, 4000K SST20 | Baton S1
Boruit D10 w/ Quadrupel Fet+1/Anduril | EagTac D25C Ti | DQG Slim AA Ti | Jaxman E3 | UF-T1 by CRX | Olight S15 Ti | Nitecore EX11.2
L6 XHP70.2 P2 4000K FET+7135 | Jaxman M8 | MF02 | Jaxman Z1 CULNM1.TG | Blue S2+ w/ ML Special | Thrunite T10Tv2
Supfire M6 3xXHP50.2, Sofirn C8F, Unfinished: Sofirn SP70, IYP07/Tool AAA hot-rods, Jetbeam E3S
Others: Nitecore EC23 | Nebo Twyst | Streamlight ProTac 1AA | TerraLux LightStar 100

Pages
