2020 Flashlight Host and Uncommon Budget Flashlights

722 posts / 0 new
Last post
Sidney Stratton
Sidney Stratton's picture
Offline
Last seen: 1 hour 9 min ago
Joined: 01/28/2018 - 22:59
Posts: 432
Location: Canuckistan

Maybe they have a special carrier within the tube that would make it 2P?

And as for Freemes picture, maybe he (or someone) exchanged the tube to a single battery, just to tease.

contactcr
Offline
Last seen: 1 hour 54 min ago
Joined: 05/19/2017 - 18:52
Posts: 3481
Location: US

Sidney Stratton wrote:
Maybe they have a special carrier within the tube that would make it 2P?

And as for Freemes picture, maybe he (or someone) exchanged the tube to a single battery, just to tease.

KD specs suggest 2S based on voltage. Freeme translate for us Smile

Sidney Stratton
Sidney Stratton's picture
Offline
Last seen: 1 hour 9 min ago
Joined: 01/28/2018 - 22:59
Posts: 432
Location: Canuckistan

Yes, I missed that.

Well, that may be a first. Buck driver of over 20 amps.

I have the JKK03 and the driver is quite good in maintaining output. Just took it out and may look further in it.

Edit (@10:00 PM):

Tested the JKK03 and dropped from 941 to 805 lux in 6 minutes. ~15% difference and head at 57.6ºC. Very good regulation and if thermal step-down would have to be higher than 60º

freeme
freeme's picture
Offline
Last seen: 6 hours 58 min ago
Joined: 11/14/2013 - 22:00
Posts: 8995

JKK90 SBT90.2 with single 5000mAh 26650



Size: 72mm x 34mm x 165mm
Weight: 580g



Group 1: Lo > Med > High > Turbo (double click), triple click for strobe-SOS
Group 2: Ramping, double click for strobe-SOS

Triple clicks during OFF state to switch between Groups.



Mode:

Level 1: 350lm 9hrs

Level 2: 900lm 2.5hrs

Level 3: 2800lm 45mins

Level 4: 6800lm 249Kcd; temperature control, stepdpwn 1.5-2.5mins (summer weather)



JKK90 SST40 WCS F50 with single 5000mAh 26650

Mode:

Level 1: 200lm 12hrs

Level 2: 600lm 3.5hrs

Level 3: 1300lm 1hr

Level 4: 2800lm 202Kcd; temperature control, stepdpwn 5-10mins (summer weather)





contactcr wrote:
Sidney Stratton wrote:
Maybe they have a special carrier within the tube that would make it 2P? And as for Freemes picture, maybe he (or someone) exchanged the tube to a single battery, just to tease.
KD specs suggest 2S based on voltage. Freeme translate for us :)
freeme
freeme's picture
Offline
Last seen: 6 hours 58 min ago
Joined: 11/14/2013 - 22:00
Posts: 8995

JKK90 XHP70.2 version with dual 26650.

freeme
freeme's picture
Offline
Last seen: 6 hours 58 min ago
Joined: 11/14/2013 - 22:00
Posts: 8995

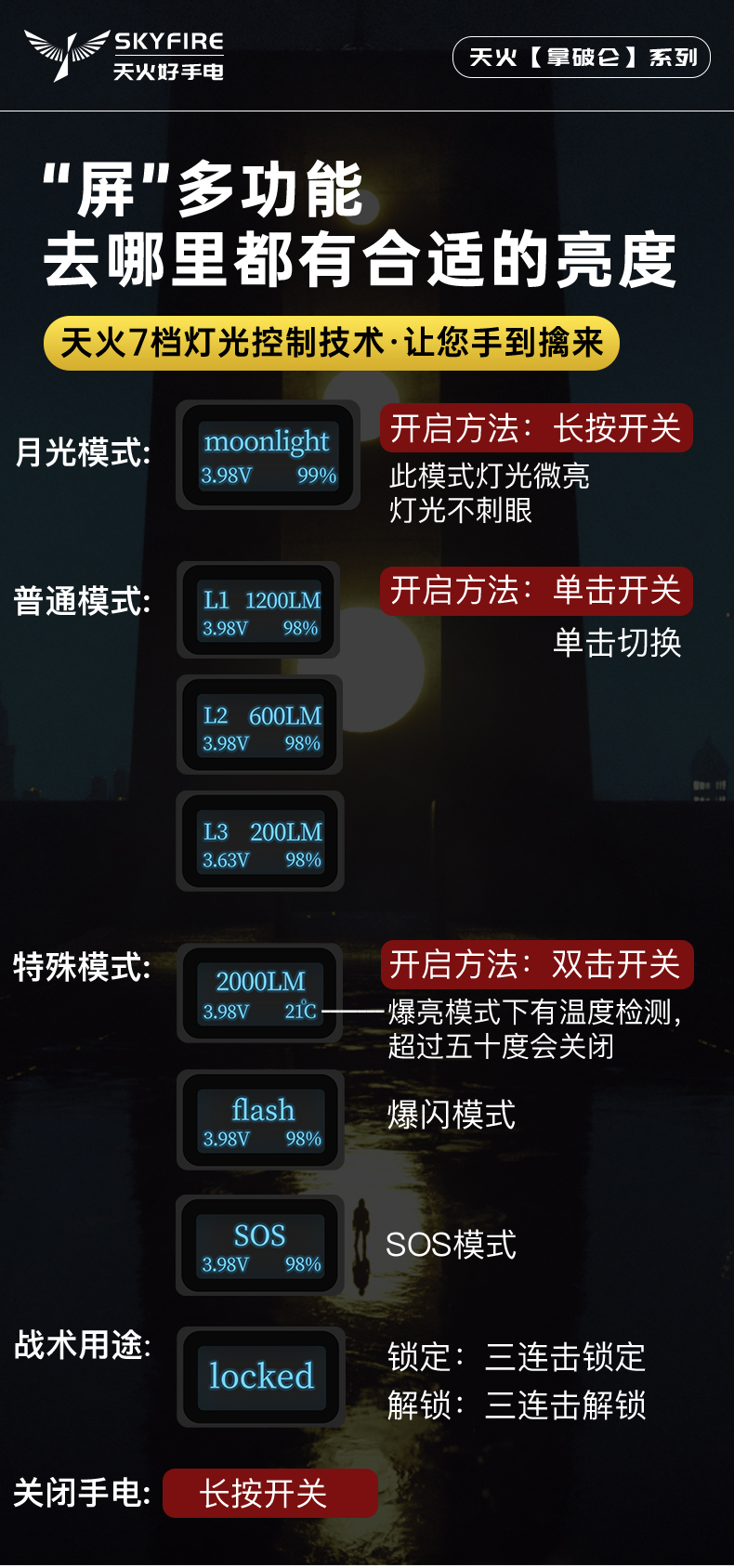

New trend for budget lights?

freeme
freeme's picture
Offline
Last seen: 6 hours 58 min ago
Joined: 11/14/2013 - 22:00
Posts: 8995

MEEJAS D201

Sidney Stratton
Sidney Stratton's picture
Offline
Last seen: 1 hour 9 min ago
Joined: 01/28/2018 - 22:59
Posts: 432
Location: Canuckistan

freeme wrote:

JKK90 SBT90.2 with single 5000mAh 26650

Size: 72mm x 34mm x 165mm
Weight: 580g
…/

I’m trying to understand this; the JKK90 w/ SBT90.2 can be found in single cell format?

freeme wrote:

JKK90 XHP70.2 version with dual 26650.


And the shown images on KD would be for the XHP70.2 2S models?

So where do I buy the single-celled light?

Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

The worse part of those digital displays is when they show the "fake" lumens for levels. But the voltage and temp shown is pretty awesome. Showing moon, low, med, hi, turbo would be better. For ramping, a percentage would be cool.

Funny they are getting more popular on budget lights. Could be problems with water and reliability issues for main stream manufacturers.

Scallywag
Scallywag's picture
Offline
Last seen: 26 min 3 sec ago
Joined: 01/11/2018 - 22:23
Posts: 1491
Location: Ohio, United States

Tom E wrote:

The worse part of those digital displays is when they show the “fake” lumens for levels. But the voltage and temp shown is pretty awesome. Showing moon, low, med, hi, turbo would be better. For ramping, a percentage would be cool.


Funny they are getting more popular on budget lights. Could be problems with water and reliability issues for main stream manufacturers.


Most likely they’ll just all get stuck with unusably bad UIs and we can’t mod them without losing the display.

Old Lumens Contest 2020 - Hand-made light category

ZL SC62(w) | Jaxman E2L XP-G2 5A | Purple S2+ XPL-HI U6-3A | D4 w/ Luxeon V | RRT-01 | Purple FW3A, 4000K SST20 | Baton S1
Boruit D10 w/ Quadrupel Fet+1/Anduril | EagTac D25C Ti | DQG Slim AA Ti | Jaxman E3 | UF-T1 by CRX | Olight S15 Ti | Nitecore EX11.2
L6 XHP70.2 P2 4000K FET+7135 | Jaxman M8 | MF02 | Jaxman Z1 CULNM1.TG | Blue S2+ w/ ML Special | Thrunite T10Tv2
Supfire M6 3xXHP50.2, Sofirn C8F, Unfinished: Sofirn SP70, IYP07/Tool AAA hot-rods, Jetbeam E3S
Others: Nitecore EC23 | Nebo Twyst | Streamlight ProTac 1AA | TerraLux LightStar 100

Chatika vas Paus
Chatika vas Paus's picture
Offline
Last seen: 4 hours 23 min ago
Joined: 09/03/2017 - 13:46
Posts: 911

New Jaxman Z3 “inspection flashlight”
Battery: 26650
Lens: Glass lens*2
Flux: about 500 lm
Switch: rotary tailcap

Link in the pic.

contactcr
Offline
Last seen: 1 hour 54 min ago
Joined: 05/19/2017 - 18:52
Posts: 3481
Location: US

Fixed flood aspheric?

Agro
Agro's picture
Offline
Last seen: 3 hours 55 min ago
Joined: 05/14/2017 - 11:16
Posts: 6298
Location: Ślōnsk

Any more info about it?

Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

It's an interesting light. Something like that would be ideal for a guy I know that has a biz inspecting and rating classic cars. He's got a few inspectors. Might want at least a lo-hi though. Doing close-up work, nice to set the output lower.

Little too pricey though. For that cost, we would need much better details. The spot size in the diagram doesn't seem to match that pic of looking down at a car - 225 cm diameter at 5 meters I would think would be a much larger spot at distance.

MascaratumB
MascaratumB's picture
Offline
Last seen: 27 min 11 sec ago
Joined: 10/29/2016 - 12:12
Posts: 5737
Location: Portugal
Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

Same light, little cheaper here: AilExpress - EDC headlamp

Don't know if any good at this point. For that price, hard to believe it's quality regulated driver, quality anodizing, good threads, decent LED, etc. Other option is for a mod host, then it's a matter of easy access, and that weird charger setup may be a problem.

MascaratumB
MascaratumB's picture
Offline
Last seen: 27 min 11 sec ago
Joined: 10/29/2016 - 12:12
Posts: 5737
Location: Portugal

Tom E wrote:

Same light, little cheaper here: AilExpress – EDC headlamp


Don’t know if any good at this point. For that price, hard to believe it’s quality regulated driver, quality anodizing, good threads, decent LED, etc. Other option is for a mod host, then it’s a matter of easy access, and that weird charger setup may be a problem.


You’re probably right! Not the best option as a pseudo Olight-wannabe!
I guess it will be a bit messy to mod one of these (with my skills I mean). I’ll pass on it then Wink
Thanks for your feedback Tom E, always helpful!! Thumbs Up
JaredM
JaredM's picture
Offline
Last seen: 7 hours 18 min ago
Joined: 10/31/2011 - 13:33
Posts: 1228
Location: Pittsburgh, Pennsylvania

bezels look pressed in as well. bummer

Blahblahblahhuh
Offline
Last seen: 32 min 42 sec ago
Joined: 10/08/2020 - 17:27
Posts: 112

MascaratumB wrote:
https://www.aliexpress.com/item/1005001488820307.html

Good or bad? Flat Stare

When you find that perfect, budget mod-ready headlamp let me know! I’m also in the market…

Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

I just modded a Amutorch AL1 headlamp last night - 20 mm FET+1 driver, sliced 351D 4000K, Anduril2, 22 AWG wires.

Was a pretty easy mod. Bezel unthreaded easy, poked out the driver easily, decent access to the MCPCB. Kept the stock MCPCB - was about 20 mm diag but only 1.0 mm thick.

It's nothing fancy though - SMO reflector, no switch LED's. It says the tube is titanium but feels like SS because of it's weight. Little too heavy for a headlamp to me.

I wanted decent tint, decent throw, to use more like an EDC rather than headlamp.

MascaratumB
MascaratumB's picture
Offline
Last seen: 27 min 11 sec ago
Joined: 10/29/2016 - 12:12
Posts: 5737
Location: Portugal

Blahblahblahhuh wrote:

When you find that perfect, budget mod-ready headlamp let me know! I’m also in the market…


Hum, headlamps sometimes are not easily modded due to the drivers/switches/chargers, but they are out there.

Getting one without charging capability would be my first point in case I wanted to mod one.
I have an Acebeam H20 in the drawer ready to be modded, once I order the driver. I will implement a driver with Anduril because I can make it fit in the flashlight. Otherwise, I’d just leave it the way it is Big Smile

Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

To me for a budget head lamp, not much better than the Boruit style single or dual LED headlamps to mod. I modded a dual, use it like every day on the bench. Quadrupel has a custom driver PCB for it now.

MascaratumB
MascaratumB's picture
Offline
Last seen: 27 min 11 sec ago
Joined: 10/29/2016 - 12:12
Posts: 5737
Location: Portugal

Tom E wrote:

To me for a budget head lamp, not much better than the Boruit style single or dual LED headlamps to mod. I modded a dual, use it like every day on the bench. Quadrupel has a custom driver PCB for it now.


I have the Boruit D10 style, single led, but I am not sure if I would be able to mod it.
https://budgetlightforum.com/node/58827

Did it imply changing the charging ? Or just “change” the driver?

gchart
gchart's picture
Online
Last seen: 1 min 27 sec ago
Joined: 03/19/2016 - 11:57
Posts: 2587
Location: Central IL

The Boruits make decent hosts if you don’t mind the custom-shaped driver. I did an MCU swap on mine and left the original driver board. I think I must have passed it along to someone else, I don’t have it anymore.

If $20 doesn’t break the bank, the Convoy H1 makes a nice host. Standard 20mm (?) driver board, e-switch with indictor on a separate board, LED on a replaceable 16mm MCPCB, no charging circuit to mess with, and the usual nice Convoy quality. I just sold mine to a buddy so I’m ordering a new one today. My first one just had an MCU swap. The driver is a decent 3 amp linear driver, but I might take this opportunity to do a whole new driver, we’ll see how well this new prototype works out.

Blahblahblahhuh
Offline
Last seen: 32 min 42 sec ago
Joined: 10/08/2020 - 17:27
Posts: 112
Tom E wrote:

I just modded a Amutorch AL1 headlamp last night – 20 mm FET+1 driver, sliced 351D 4000K, Anduril2, 22 AWG wires.


Was a pretty easy mod. Bezel unthreaded easy, poked out the driver easily, decent access to the MCPCB. Kept the stock MCPCB – was about 20 mm diag but only 1.0 mm thick.


It’s nothing fancy though – SMO reflector, no switch LED’s. It says the tube is titanium but feels like SS because of it’s weight. Little too heavy for a headlamp to me.


I wanted decent tint, decent throw, to use more like an EDC rather than headlamp.

Sounds like a great mod, and light! Very cool!

Did you flash Anduril to the MTN-20DDM? Or did you have to replace the attiny on it altogether?

I’m still unsure of the best way to remove/replace/alter tiny components on the driver. I have a KSGER T12, an electric skillet and very little skill.

I’ve destroyed two MTN-17DDM drivers this week trying to install 20AWG wire and then find the excess solder causing high-only behavior. Facepalm

Thanks for the headlamp ideas!

Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

MascaratumB wrote:
Tom E wrote:

To me for a budget head lamp, not much better than the Boruit style single or dual LED headlamps to mod. I modded a dual, use it like every day on the bench. Quadrupel has a custom driver PCB for it now.

I have the Boruit D10 style, single led, but I am not sure if I would be able to mod it. https://budgetlightforum.com/node/58827 Did it imply changing the charging ? Or just "change" the driver?

Forgot what I did, but I see I wired in a ATtiny85, so chargin should be preserved. Thought it might have been a cheap direct wired up charger though, not sure:

MascaratumB
MascaratumB's picture
Offline
Last seen: 27 min 11 sec ago
Joined: 10/29/2016 - 12:12
Posts: 5737
Location: Portugal

Thanks again TomE Wink
Always great mods Wink

Quadrupel
Quadrupel's picture
Offline
Last seen: 2 hours 29 min ago
Joined: 12/03/2017 - 10:40
Posts: 388
Location: Lithuania

MascaratumB wrote:
https://www.aliexpress.com/item/1005001488820307.html

Good or bad? Flat Stare


It only looks not bad, but for modding this headlamp host is pure crap.
Quadrupel
Quadrupel's picture
Offline
Last seen: 2 hours 29 min ago
Joined: 12/03/2017 - 10:40
Posts: 388
Location: Lithuania

MascaratumB wrote:

Did it imply changing the charging ? Or just “change” the driver?

charger board is separate ,just driver swap. Ordered boost driver PCBs it should be so f…. cool ;)) Convoy have 21mm driver it can be replaced with this one ;))
Tom E
Tom E's picture
Online
Last seen: 2 min 40 sec ago
Joined: 08/19/2012 - 08:23
Posts: 13552
Location: LI NY

Dang, Convoy may be bout the only headlamp/rt. angle head EDC I don't have... I bought like 3 of the Eagle Eye ones when they were so cheap, offered in colors, and with 18650 adapters. I got a blue, black, and silver and only spent the time to mod one Facepalm
