Lexel, I have two drivers for MF01 v1 and H03 (3V). Both have narsil, but I would like to have anduril in them. Could you send me the right files so that I can upload them myself?
22 and 24mm AMC drivers for constant current LEDs like 1mm² white flat out now
2 Channel design for low moon
number of max AMCs can be chosen 10 for example are 3.5A
Can use 209 and 150mil SOIC8 MCU
supports all firmwares including e-switch
instead a FET a certain number of 350mA AMCs is used plus a single one for moon
after the first ptototype failed due to PCB bug I can now finally announce I it for white flats running
first Prototype 20mm small LDO and MCU did not work out
2. Prototype of 22mm with D1S specifications works
still a few things to be addressed, like The not tented Viases next to the LED- Pad that are ground, they are there to get heat from MOSFET note spread but should be below mask
A public “Thank you!” and “Well done!” for the excellent 8A L6 buck driver. I received the replacement xhp70 from Simon yesterday and installed it and the driver with a large spring from BlueSwordM. The L6 is now a close second behind my Chimera for my favorite.
—
Nothing travels faster than the speed of light with the possible exception of bad news, which obeys its own special laws. – Douglas Adams
after the first ptototype failed due to PCB bug I can now finally announce I it for white flats running
first Prototype 20mm small LDO and MCU did not work out
2. Prototype of 22mm with D1S specifications works
still a few things to be addressed, like The not tented Viases next to the LED- Pad that are ground, they are there to get heat from MOSFET note spread but should be below mask
Nice!
Do you think it would be a good idea to make some future generation that would have FET on MCPCB, compatible with Led4Power’s PCBs?
I have that board thermally improved a lot filling vises with solder, placing a lot of them from ground plane right next to the FET planes
I guess up to 5-6A should be no problem with that PCB, 2 layer MCPCB would be too expensive
there is no single 20mm MOSLEDDTPMCPCB for 3030 LEd that I am aware of
also the driver runs on 2.8V
I need for OTSM with also a diode after the LDO
the MOSFET has to have a low resistance below 2.5V for good reguilation at lower battery level
SIR800, 404 and the Infineon BSC009 have down to about 2V relative constant low on resistance
for LFPAK33 package I need a new MOSFET with similar prroperties
CC FETOPAmp has to compare the voltage over the shunt
relative to to the PWM cycle which gets transformed to a DC voltage
The OPV changes the FET resistance to match both voltages the same
But for a constant max current the PWM voltage needs to be aleways the same amplitude so I have to use a 2.8V LDO
I have that board thermally improved a lot filling vises with solder, placing a lot of them from ground plane right next to the FET planes
I guess up to 5-6A should be no problem with that PCB, 2 layer MCPCB would be too expensive
there is no single 20mm MOSLEDDTPMCPCB for 3030 LEd that I am aware of
also the driver runs on 2.8V
I need for OTSM with also a diode after the LDO
the MOSFET has to have a low resistance below 2.5V for good reguilation at lower battery level
SIR800, 404 and the Infineon BSC009 have down to about 2V relative constant low on resistance
for LFPAK33 package I need a new MOSFET with similar prroperties
I didn’t mean to suggest switching entirely to FET on MCPCB but rather offering it as an option. LD4B can regulate 12A. And maybe FET removal would enable shrinking the driver so it fits more lights.
I have also a 20mm Buck driver for L2, likely retaining ring needs to be adjusted in inner diameter
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Can it be set for max 5 amp?(flat white)
i’m btw really enjoying my convoy L6 with 8amp driver. Thanks Lexel!
"It wouldn’t be so bright if there wasn’t a shadow every once in a while." - Jason Mraz
Buck drivers get always set to the desired current
when I search for this LED I get only a non 3535 package found
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
20mm special for C8F 21700

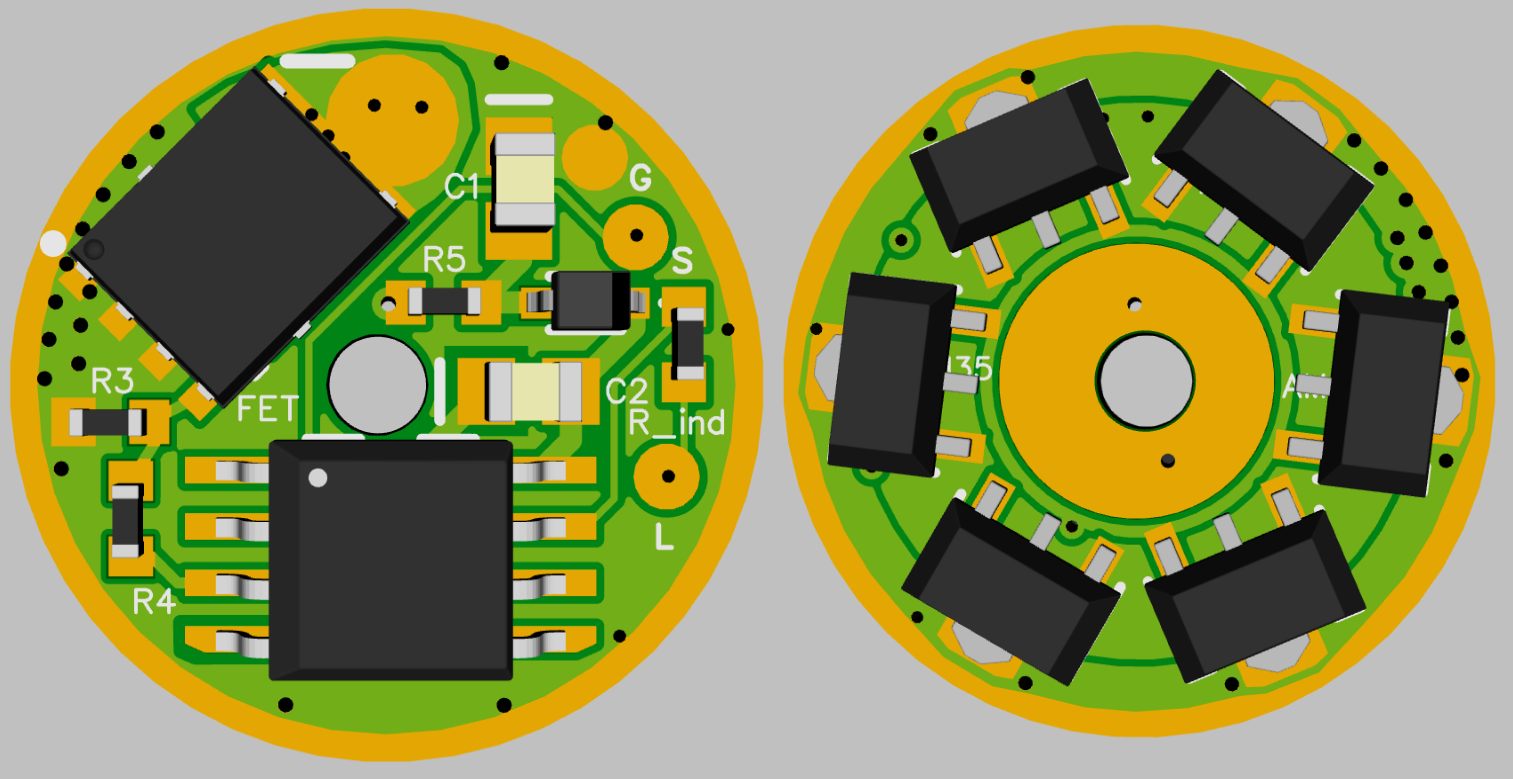

new 1S 17mm version, for e-switch added R_ind and Ind. Pad, 209mil SOIC support
Planned
35mm Haikelite MT02 Boost driver
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
How has the progress been with the boost drivers?
Are they still planned for a future release?
Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights
Click this to go to signature links. I'm still around, just not reading many new threads.
I am waiting eagerly for this boost driver. Right now i order parts to make my own gxb172 but it is good to be able to buy one from you directly!
I hope next year with the apartment finally done and settled I get enough time to do a lot testing on new driver architectures
right now I am still trying to catch up with orders getting the delivery time back to a short one
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
I’m still holding out for a 28mm boost driver for my Haikelite SC26.
17mm Programming Key and new LX

[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Lexel, I have two drivers for MF01 v1 and H03 (3V). Both have narsil, but I would like to have anduril in them. Could you send me the right files so that I can upload them myself?
What are these 12mm drivers?
some AAA rechargeable lithium battery lights
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
22 and 24mm AMC drivers for constant current LEDs like 1mm² white flat out now
2 Channel design for low moon
number of max AMCs can be chosen 10 for example are 3.5A
22mm 12+1AMCs
24mm 15+1AMCs
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
So these are PWM like the FET drivers, but without the FET part of the circuit?
What MCU do they use?
Is it for e-switch?
Uses NarsilM/Anduril?
Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights
Click this to go to signature links. I'm still around, just not reading many new threads.
Can use 209 and 150mil SOIC8 MCU
supports all firmwares including e-switch
instead a FET a certain number of 350mA AMCs is used plus a single one for moon
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+

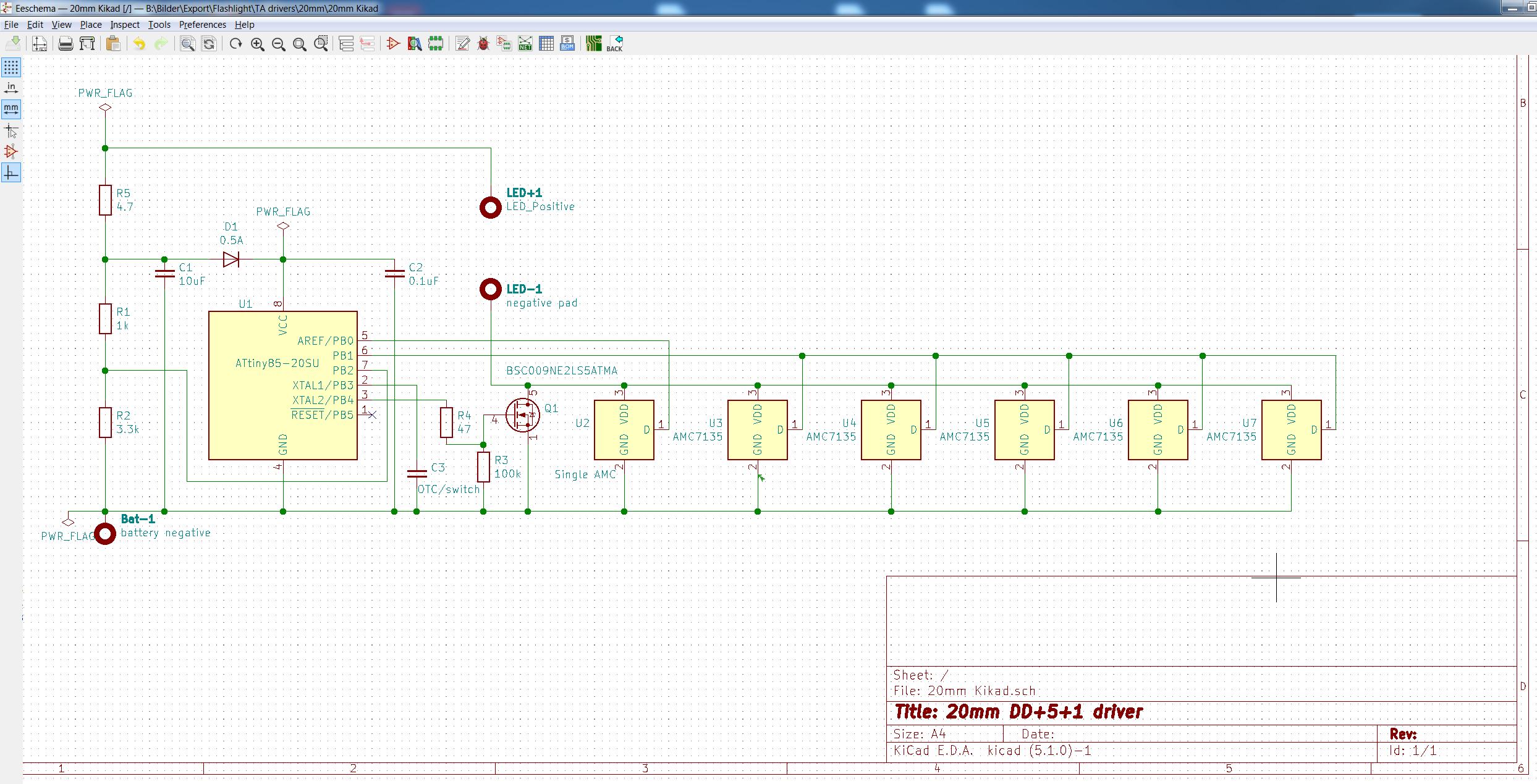

As sometimes people ask for scematics I made one
I am also trying another program for more complicated drivers so I did it with KiCad its more powerful but also harder to get used to it
This is for a Bistro HD OTSM driver, OTC not used
3D model from latest design for Lucky Sun BLF light
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Very nice. It really helps me to understand the design quickly. It’s slow trying to follow traces and vias, etc…
Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights
Click this to go to signature links. I'm still around, just not reading many new threads.
PMed you about L6 driver purchase.
Mike
I have also made a crowdfunding campaign for the new reflow oven as I will not make the drivers more expensive
https://www.gofundme.com/reflow-oven-for-blf-drivers
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Interesting. I don’t know much about go fund me’s. I’ll look into it.
Texas Ace Lumen Tube and JoshK Sphere calibrated with Maukka lights
Click this to go to signature links. I'm still around, just not reading many new threads.
22mm D1S white flat
after the first ptototype failed due to PCB bug I can now finally announce I it for white flats running
first Prototype 20mm small LDO and MCU did not work out
2. Prototype of 22mm with D1S specifications works
still a few things to be addressed, like The not tented Viases next to the LED- Pad that are ground, they are there to get heat from MOSFET note spread but should be below mask
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
A public “Thank you!” and “Well done!” for the excellent 8A L6 buck driver. I received the replacement xhp70 from Simon yesterday and installed it and the driver with a large spring from BlueSwordM. The L6 is now a close second behind my Chimera for my favorite.
Nothing travels faster than the speed of light with the possible exception of bad news, which obeys its own special laws. – Douglas Adams
Nice!
Do you think it would be a good idea to make some future generation that would have FET on MCPCB, compatible with Led4Power’s PCBs?
I have that board thermally improved a lot filling vises with solder, placing a lot of them from ground plane right next to the FET planes
I guess up to 5-6A should be no problem with that PCB, 2 layer MCPCB would be too expensive
there is no single 20mm MOSLED DTP MCPCB for 3030 LEd that I am aware of
also the driver runs on 2.8V
I need for OTSM with also a diode after the LDO
the MOSFET has to have a low resistance below 2.5V for good reguilation at lower battery level
SIR800, 404 and the Infineon BSC009 have down to about 2V relative constant low on resistance
for LFPAK33 package I need a new MOSFET with similar prroperties
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
any recommondation what to change?
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
LDO in D1? For what?
CC FET OPAmp has to compare the voltage over the shunt
relative to to the PWM cycle which gets transformed to a DC voltage
The OPV changes the FET resistance to match both voltages the same
But for a constant max current the PWM voltage needs to be aleways the same amplitude so I have to use a 2.8V LDO
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Got it.
I didn’t mean to suggest switching entirely to FET on MCPCB but rather offering it as an option. LD4B can regulate 12A. And maybe FET removal would enable shrinking the driver so it fits more lights.
why buy it for 800€ when you can hack it in 30 minutes?
[Reviews] Miboxer C4-12, C2-4k+6k, C2, C4 / Astrolux K1, MF01, MF02, S42, K01, TI3A / BLF Q8 / Kalrus G35, XT11GT / Nitefox UT20 / Niwalker BK-FA30S / Sofirn SF36, SP35 / Imalent DM21TW / Wuben I333 / Ravemen PR1200 / CL06 lantern / Xanes headlamp
[Mods] Skilhunt H03 short / Klarus XT11GT, XT12GTS / Zebralight SC50+ / Imalent DM21TW / colorful anodisation
[Sale]
Drivers: overview of sizes and types
DD+AMC based drivers Anduril or Bistro OTSM 12-24mm, S42, 24-30mm L6, Q8, MF01(S), MT03, TN42
Anduril or Bistro 8A buck driver for 20-30mm, MF01/02/04, TN40/42, Lumintop GT, MT09R
UVC and UVC+UVA drivers
programming key
Remote switch tail DD board with FET
Aux boards:
Emisar D1, D1S, D4, D4S, D18, Lumintop FW3A, Fireflies ROT66, Astrolux MF01, Tail boards like S2+
Pages
