I thought it was this one:
Doesn’t the L21A with SBT90.2 have an 18a driver?
1 Thank

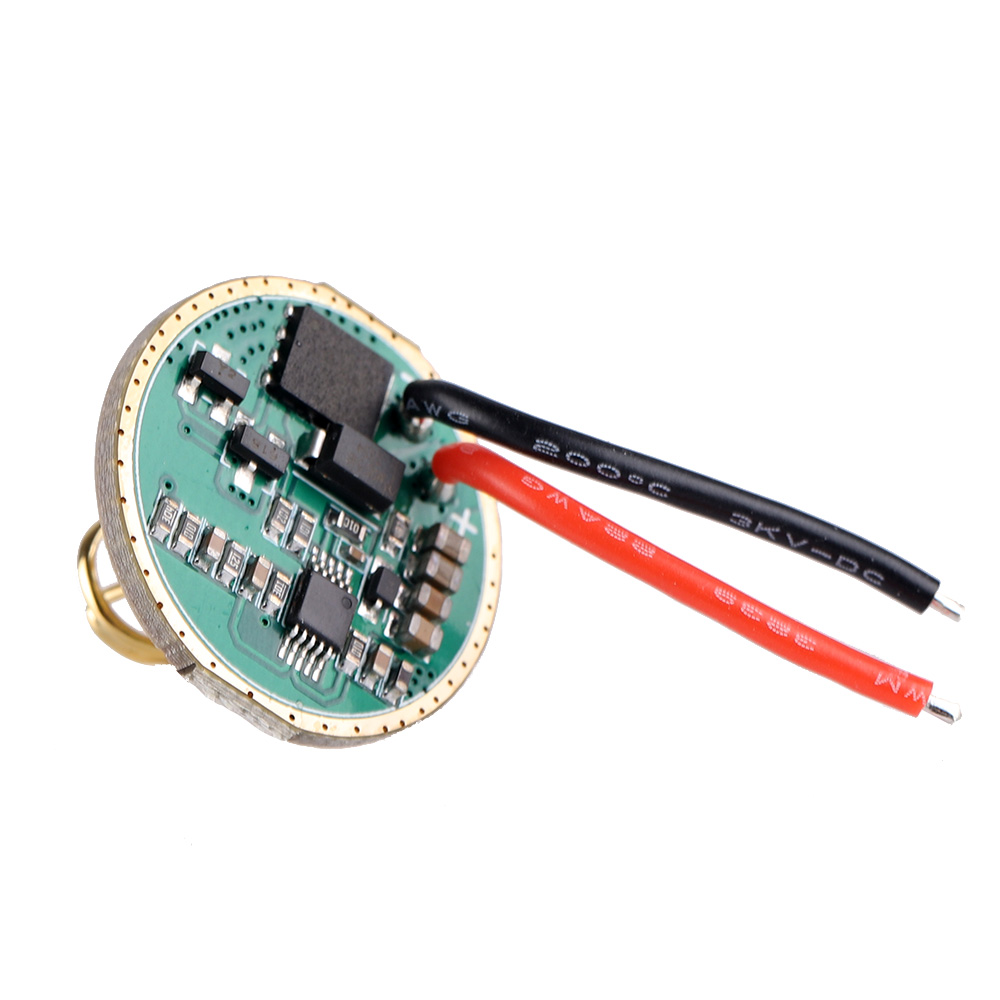

The 12A driver is a FET driver and pulls more than 12A.
I installed one in a S21A Quad 519A and it’s pulling 20A:
4 Thanks
i have this , but only 6500K in stock
2 Thanks
Simon, can you clarify please?
1 Thank
Warm hi-cri would be great. Low Vf led + properly made buck driver = perfection .
3 Thanks
In the past was the same for 3V 5A…in S2 plus measurement give me 10A.
But this measure is from the bottom side and not at the led
1 Thank
Well, FET drivers are not regulated, so any current capability indication is just random. FET current depends on IR of the battery, Vf of the LED and IR of the MOSFET.
5 Thanks
It could be linear + FET though, so either 12a or 18a + FET
1 Thank
Simon can You add T6 in your aliexpress store listing please?
1 Thank
Hey Simon, do the slim aluminum T3’s have the 5 amp driver, or is that only in the TiCu T3?
1 Thank
I only see a few 3x21 options in the store now.
Are the other options discontinued now?
I have encountered the issue with both orange and red switches.
I will add a blue switch to my next order and try the sharpie trick, thanks for the tip!
1 Thank
I think he has explained it very clearly.
3 Thanks
Only in TiCU T3 and T6 currently
2 Thanks
The driver circuit is being upgraded.
13 Thanks
Unfortunately not really.
The L21A with SBT90.2 is listed on your site as having a 18A FET driver. Are you saying the 22mm 12A FET driver is the same driver that you install for a L21A with SBT90.2? So they’re not linear + FET drivers? That’s what needs clarification
Hello, Simon. Is it possible to produce the Convoy S6 Titan? I would have bought it. Thank you.
The 12A FET driver pulls 12A in a “standard” setup with a “normal” LED
With the dual spring, SBT90.2 and high current battery it does roughly 18A in the L21A
+/- X%
1 Thank
Thanks for the input, but clarification from Simon would be much appreciated.
Seems a strange way to advertise a normal FET driver as it makes it sound like a linear + FET driver.
