Custom P60 14500 XP-G2.. Night shots added. Temporarily XM-L with Old-lumens reflector.

Flashlight Modding and DIY Parts
1

I'll let the pictures do most of the talking on this one. I wanted something different for a left over P60 reflector . This has a XP-G2 LED and a KD 7135 6 V2 driver.

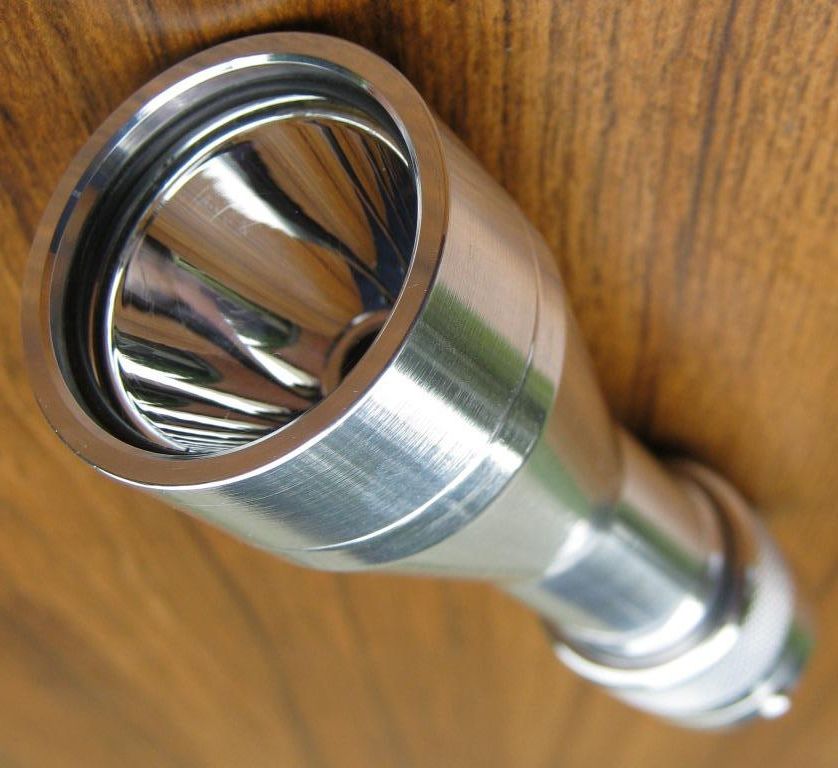

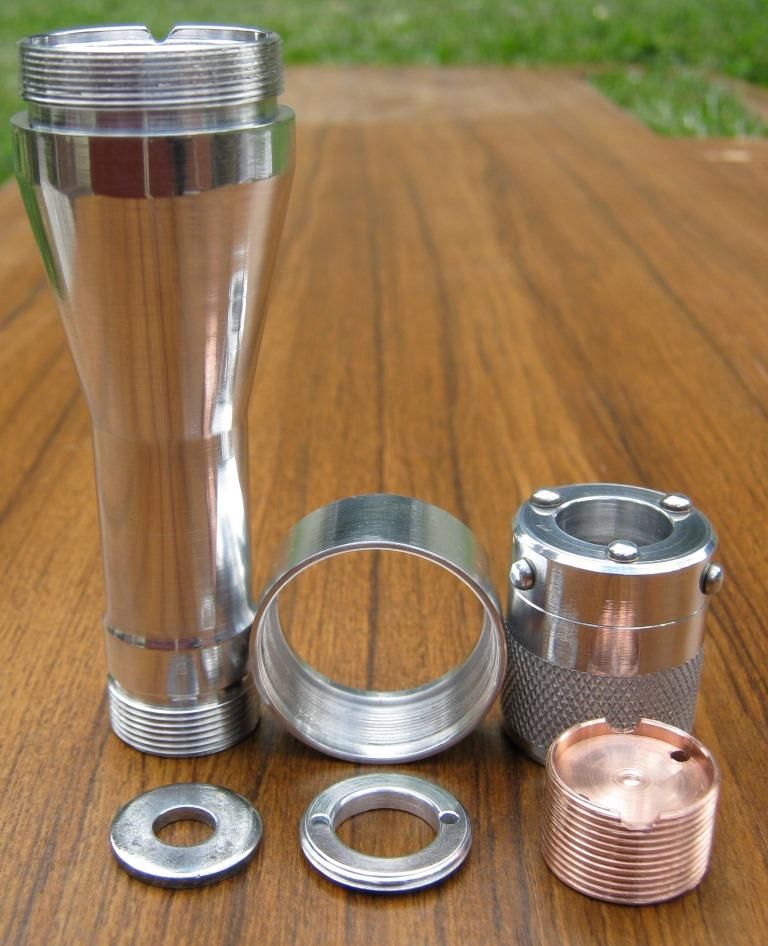

All the machined parts.

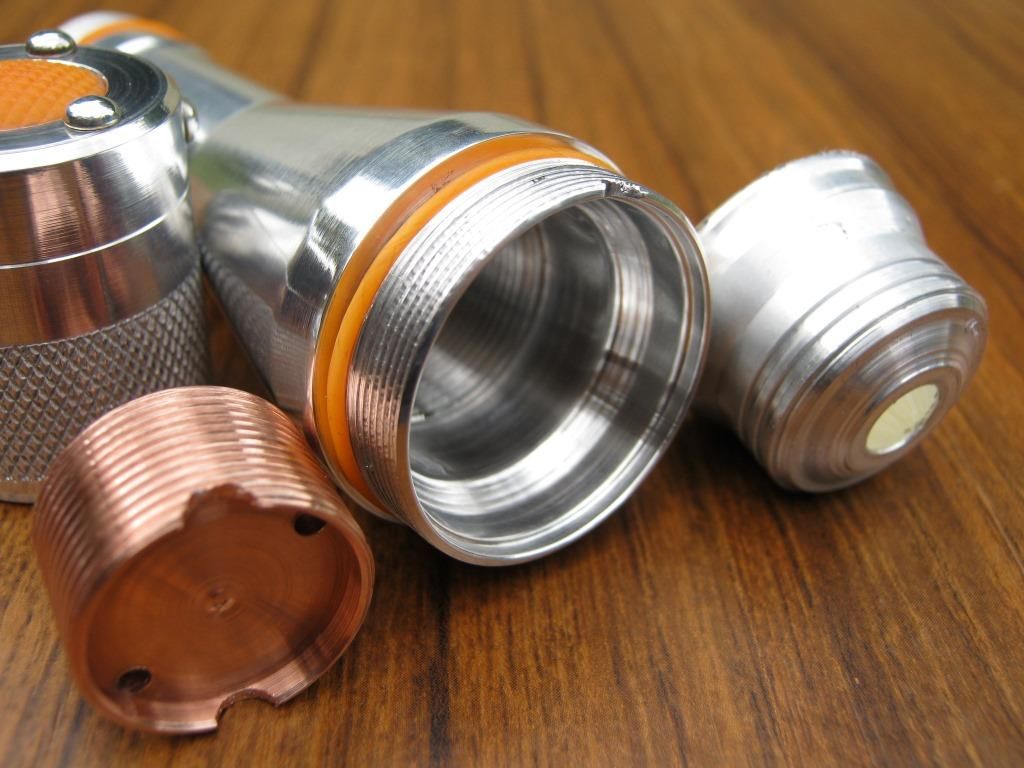

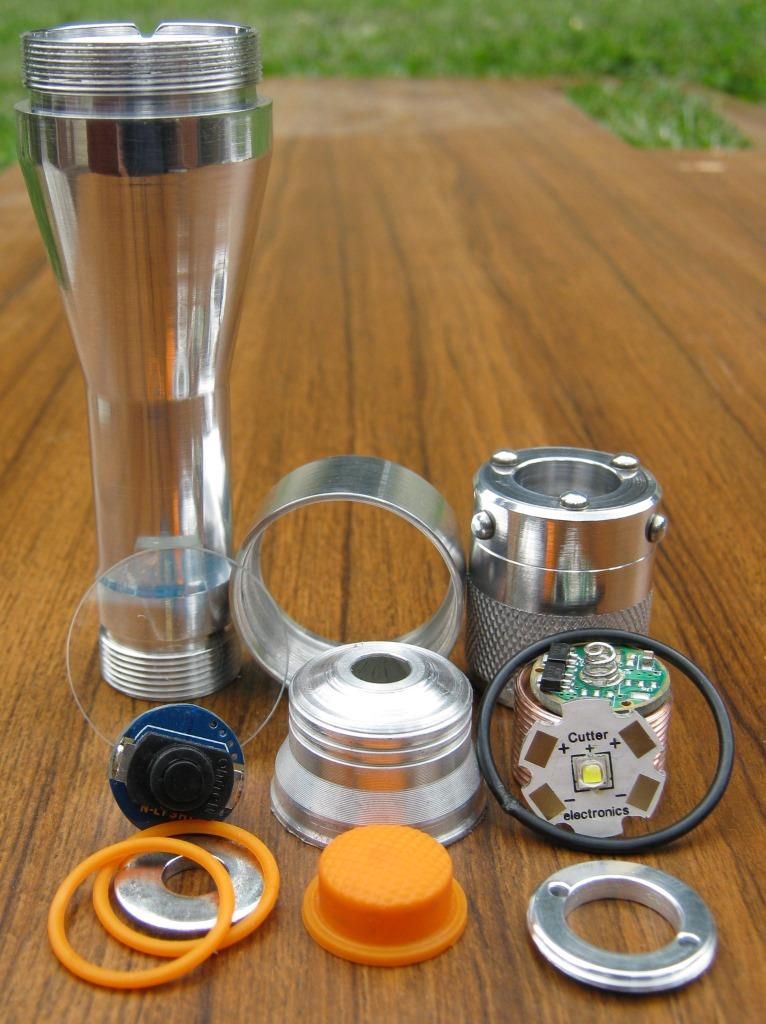

Along with the other parts.

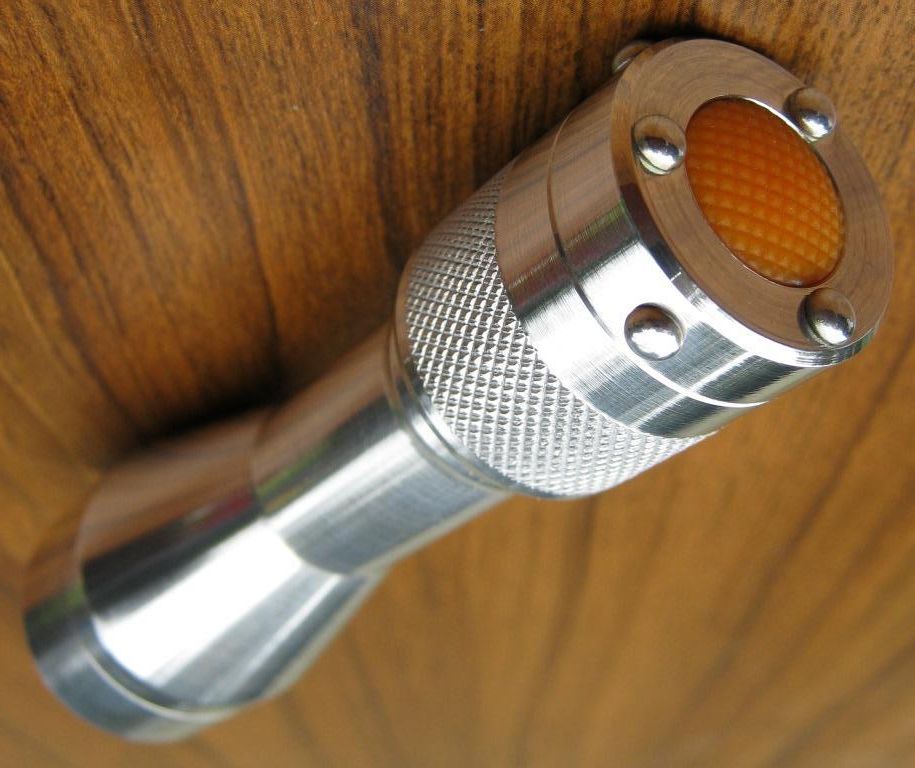

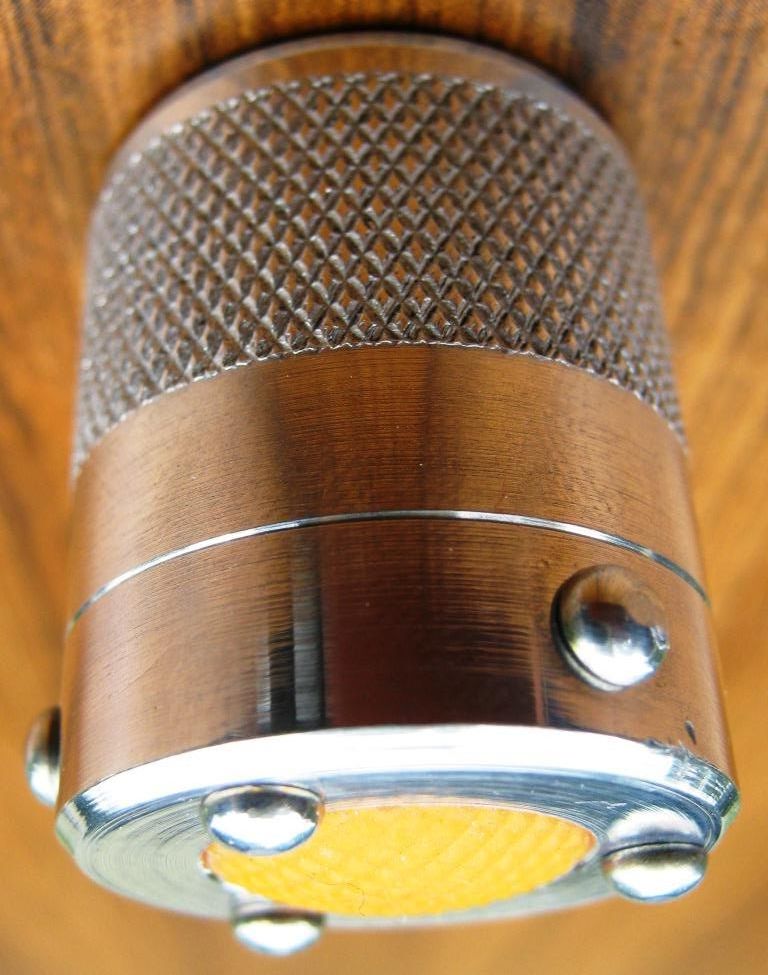

The Tailcap was intentionally built oversize as it looked better than the smaller tailcap. It measures 25mm Od and 24mm long. The drive screws do there job tailstanding and to stop it rolling. I had better luck with the knurling this time.

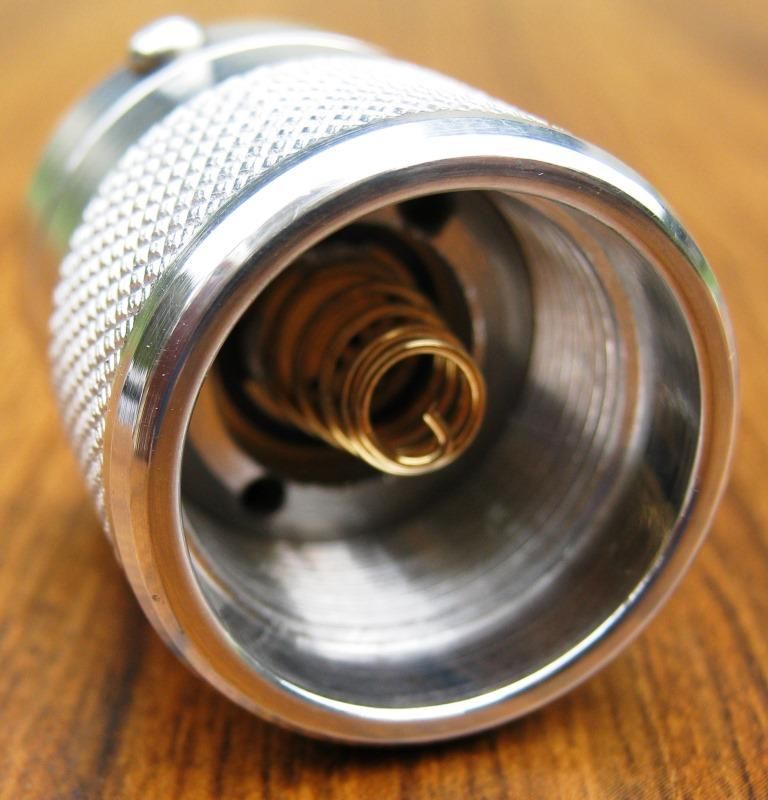

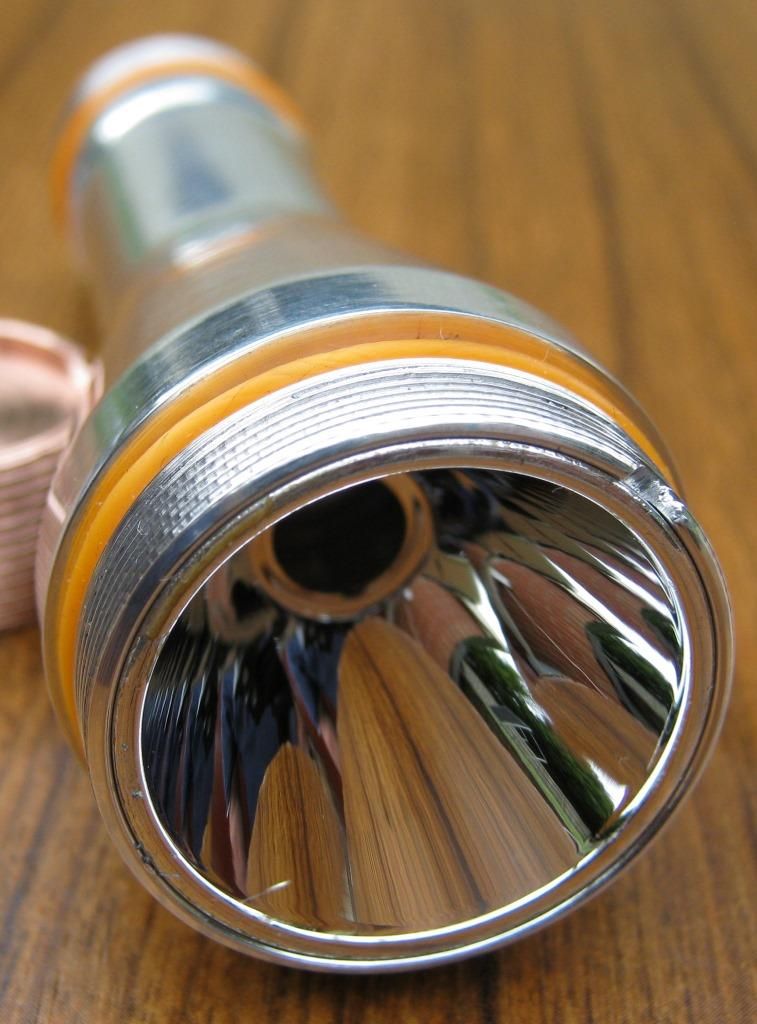

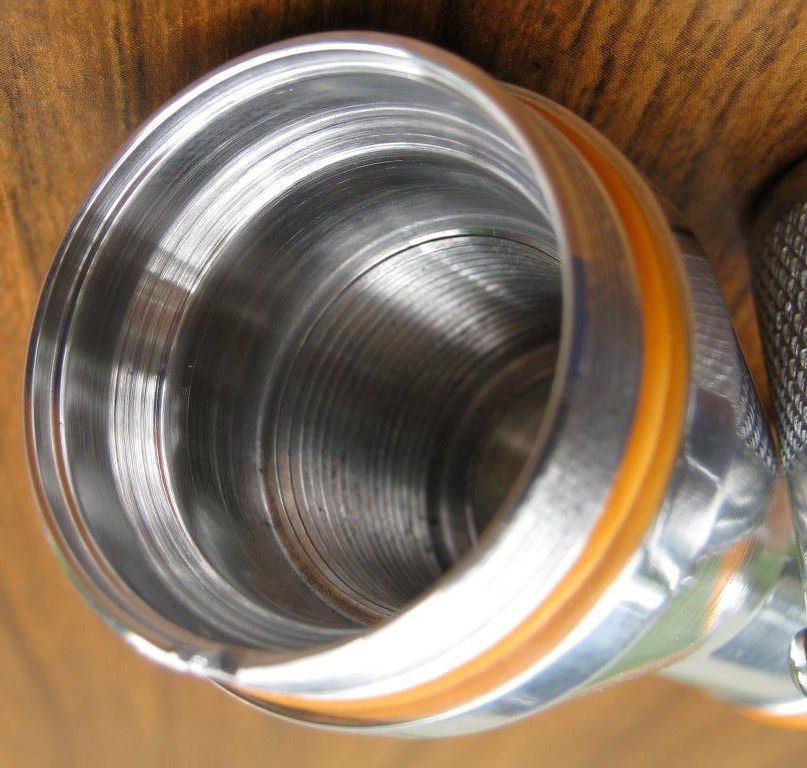

Insert pill and reflector here.

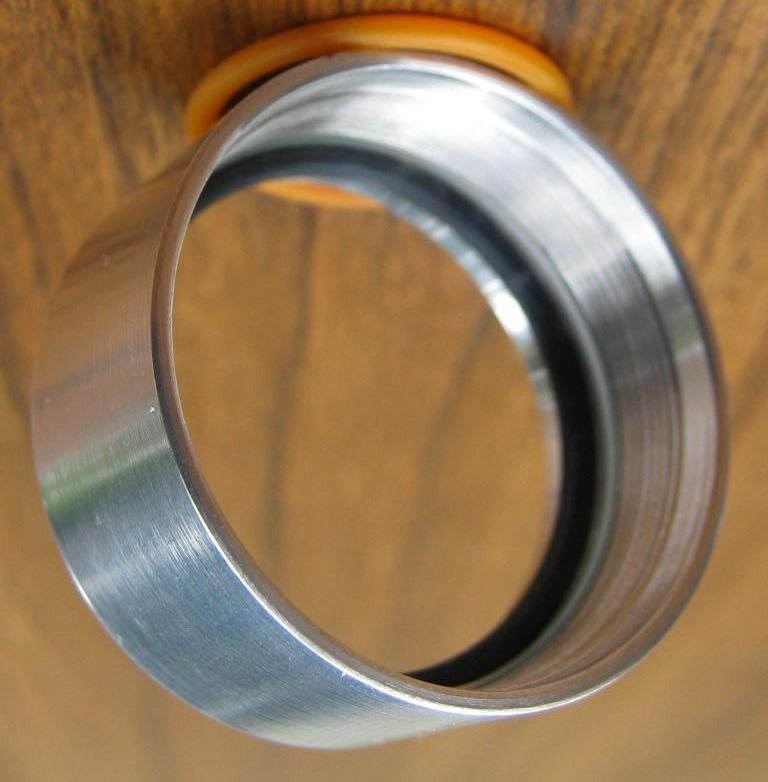

The lens retainer with coated 28x2mm lens.

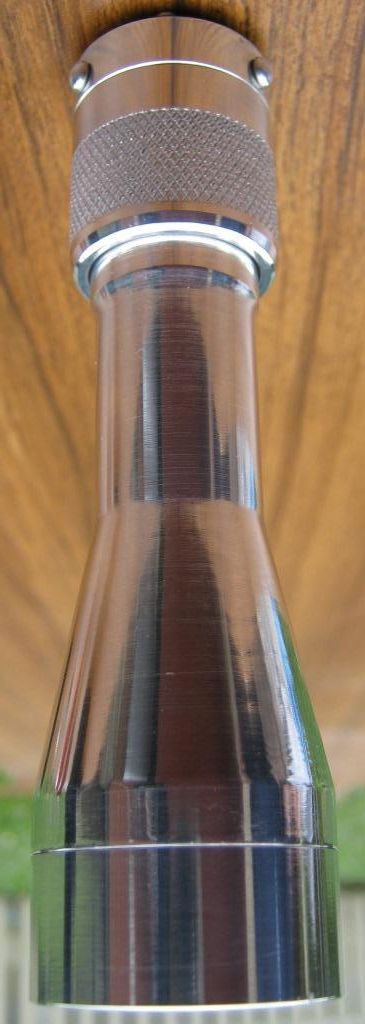

Tailstanding is not a problem.

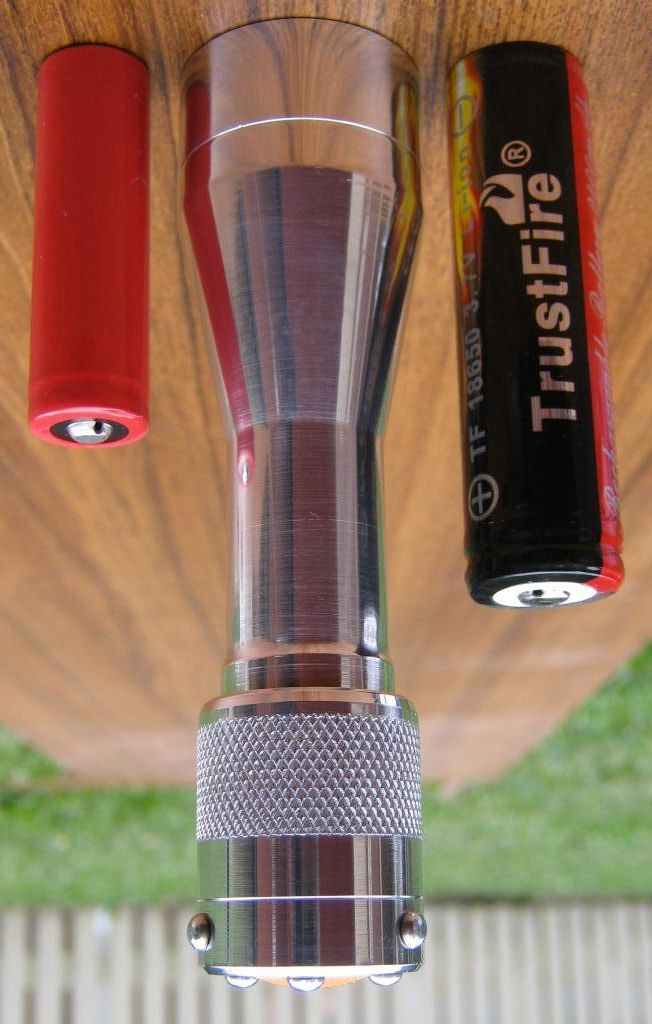

To give you an idea how big it is, left 18650 and right aw 14500.

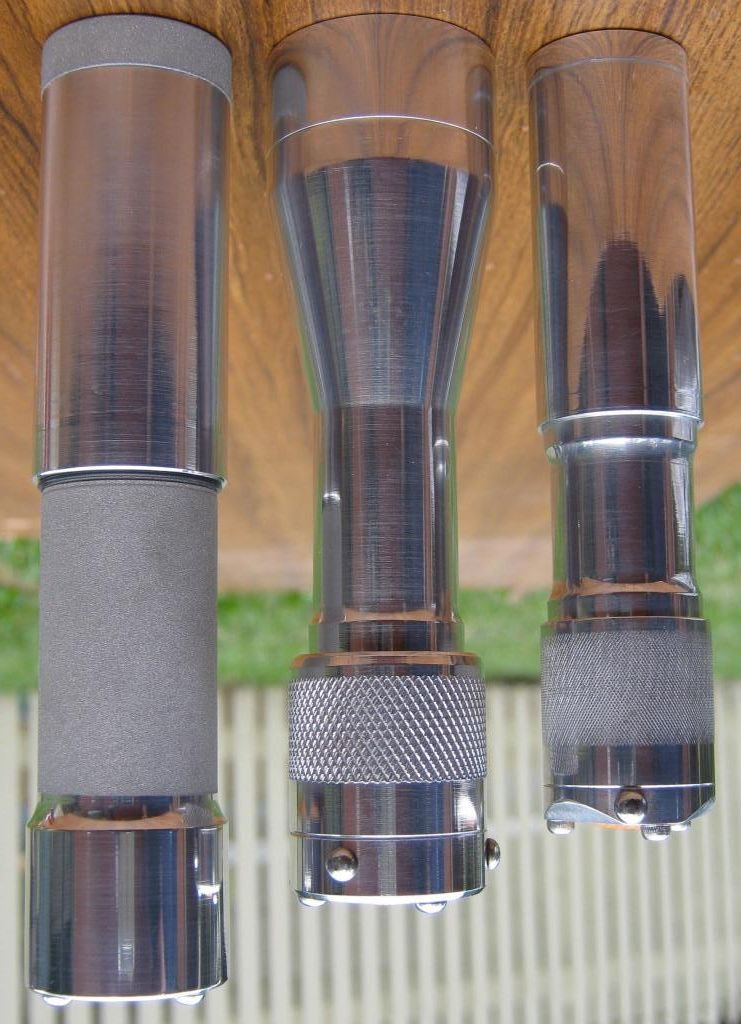

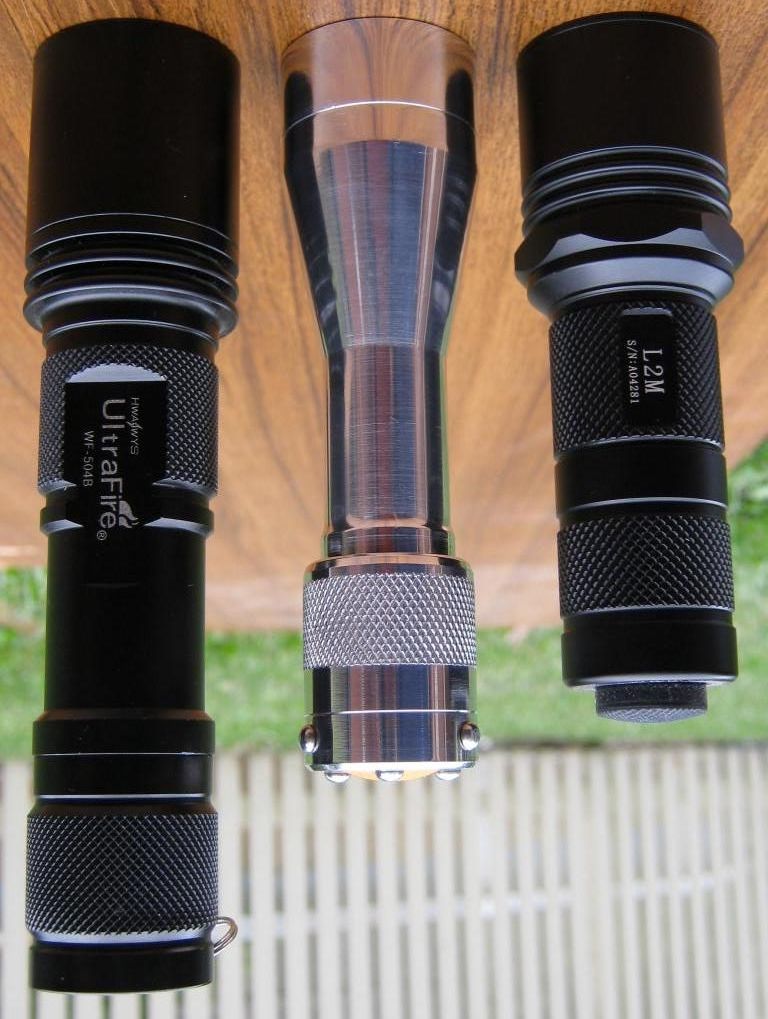

Left L2M in short form for a 16340 battery and right is an Ultrafire 504B.

The left and middle lights are 14500 and the right light is an 18500.

The build has not turned out as planned. The XP-G2 I put in this light and the reflector did not cooperate as planned. I knocked to chips of the driver to lower current output to 2.2 amps on hi and the led went into melt down turning a very bright white where medium was a very nice tint in 3B. The reflector was for an XM-L and before I put the notch in the opening for the reflector I scratched the reflector surface slightly trying to get it out on initial fitment. This showed up badly in the beam and the reflector did not match the XP-G led either. I have another reflector on order to suit the XP-G so this will have to wait. The flashlight on the left above kindly donated its pill,driver and LED to run in this light for a short time. To fix the reflector scratch the reflector was given the Old-Lumens fix and sputtered with hair spray. This fixed the scratch and gives a very broad spread of light. Tonight I got a couple of beam shots. To give this light some real competition I pulled out the HD-2010. To say the least I was not surprised at the results.

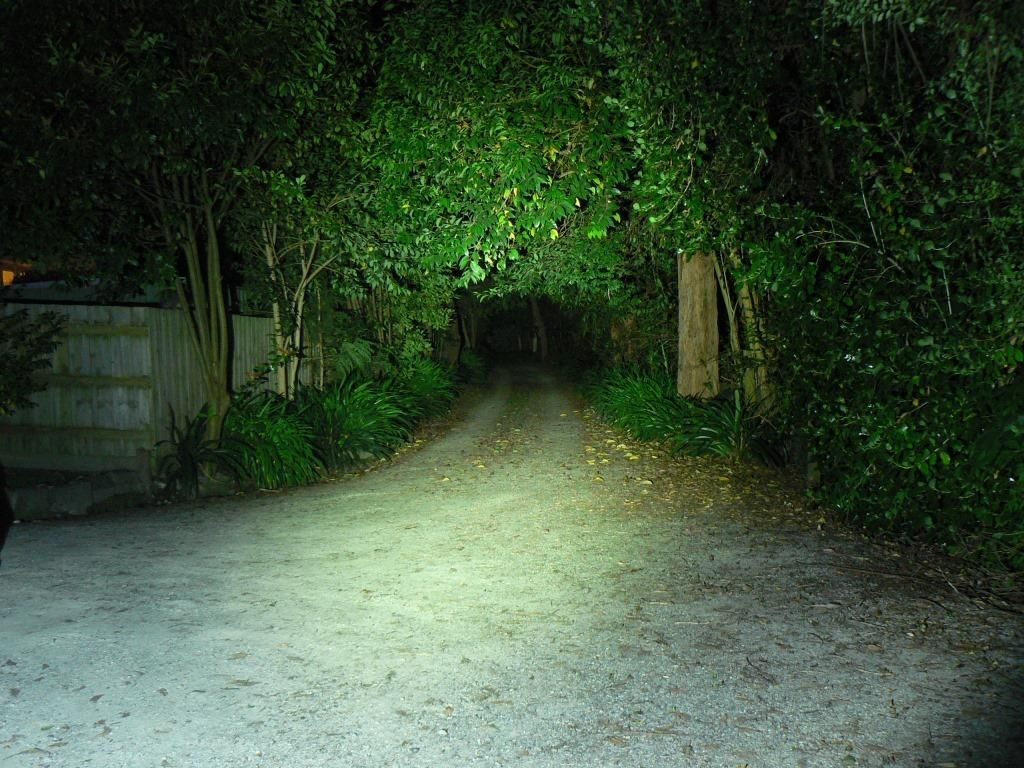

Mouse out is the P60 14500 and mouse over the HD-2010. It sure gives it a run for its money.Laughing Distance to the bush at the end of the driveway is about 65 meters.

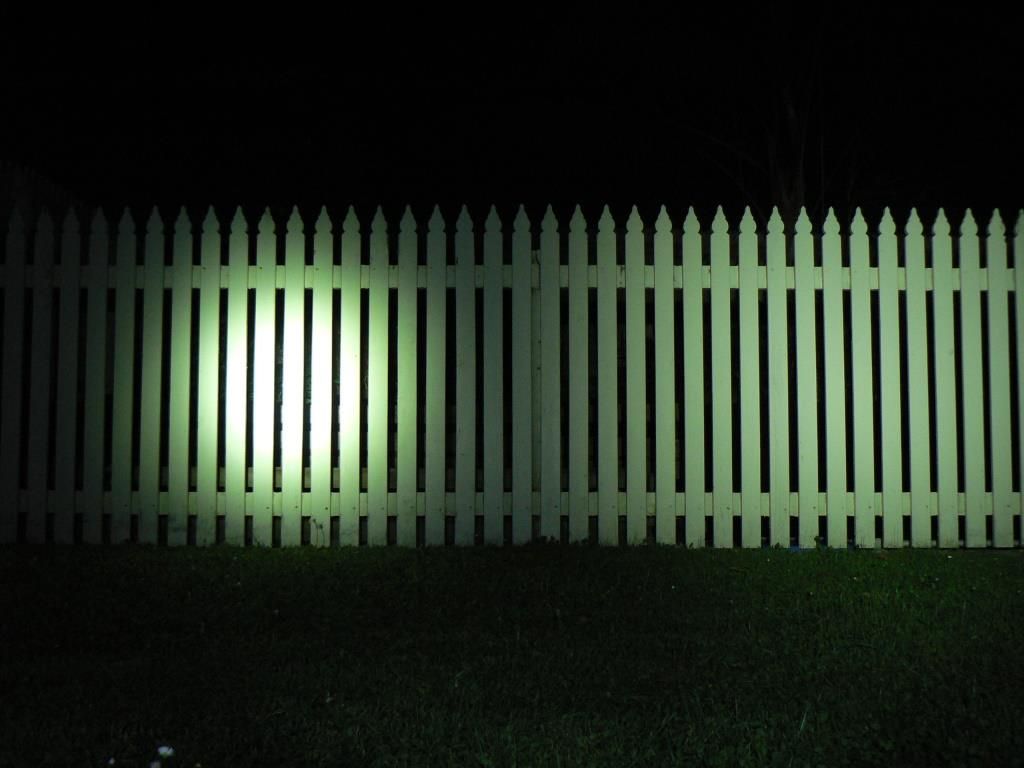

On the left is the HD-2010 and right is the P60 14500. There is no hotspot at all with the sputtered lens.

Thanks for looking.

2

Very impressive machining skills you have there.

I'm impressed, to say the least.

3

Wow! You are literally turning them out at high speed. And they look good too :-)

Looks like an awesome little light cannon. How do you like the XPG-2 in it? And how does it handle the heat on high I wonder ?

Good job I'd say. Good indeed!

4

Nice work.

5

Thanks Chicago X.

Ledsmoke. I don't think I will have a problem with heat as it will only be driven at 2.2 amps if I'm lucky. My bad luck continues with soldering as the light has 3 modes as expected but they are all very dull. I will have to do a bit of problem solving tomorrow. If it gets to hot on high there's always medium. (Smiley inserted here. Can you see it. Nothing works correctly on IE10).

6

I've been sitting here awhile swapping caps wondering why I liked the bigger switch cap on the P60 and all of a sudden it hit me.

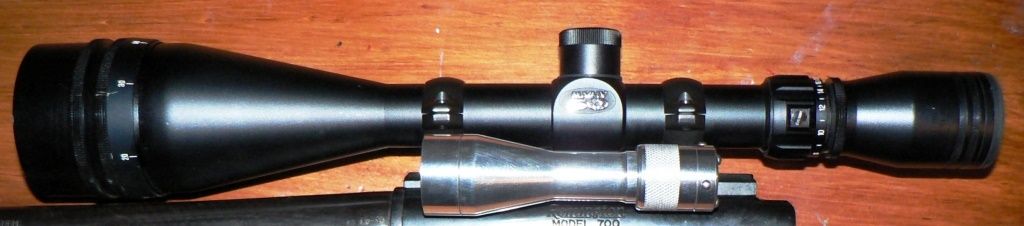

It looks like a scope. (To me it does anyway).
