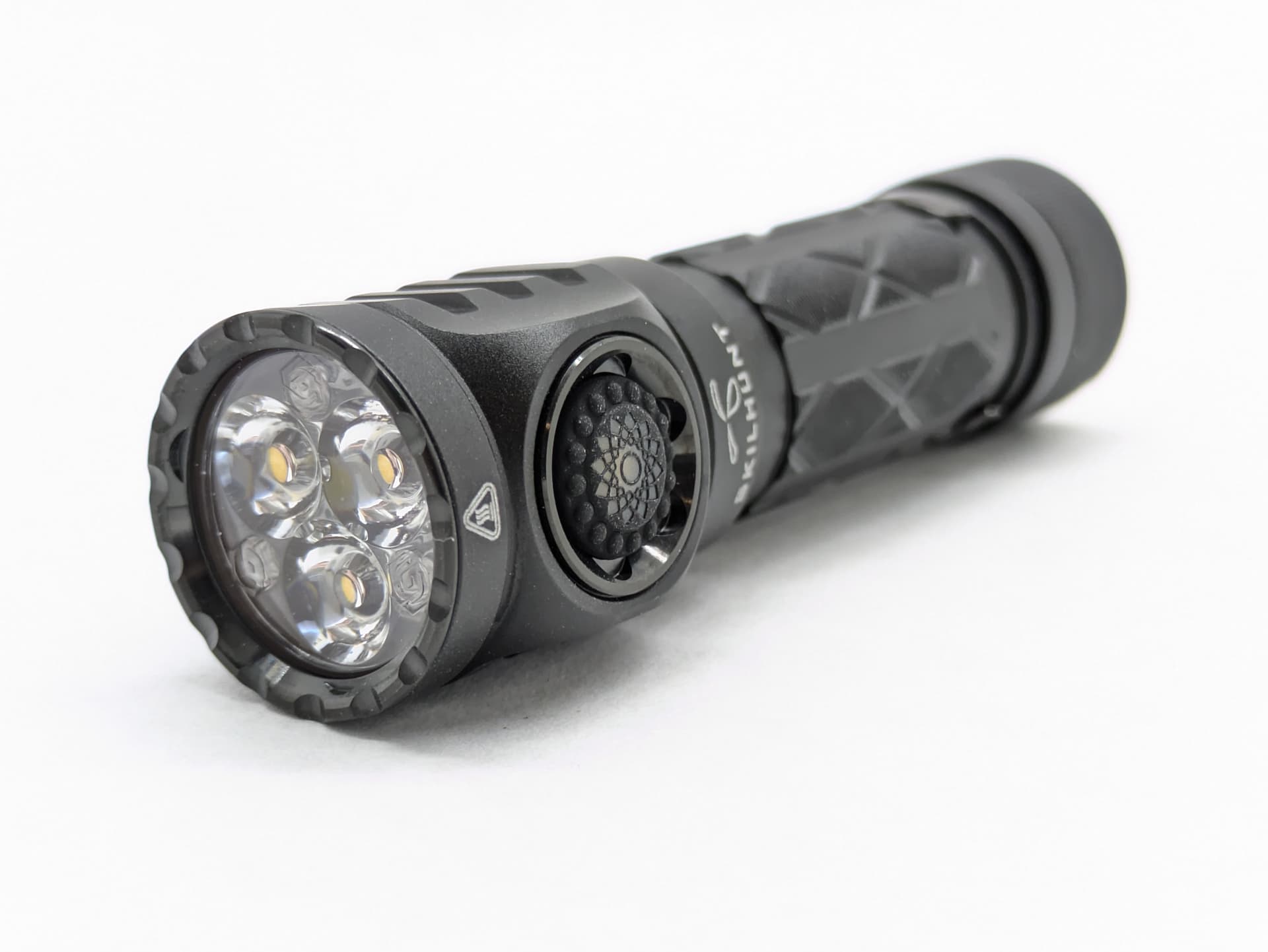

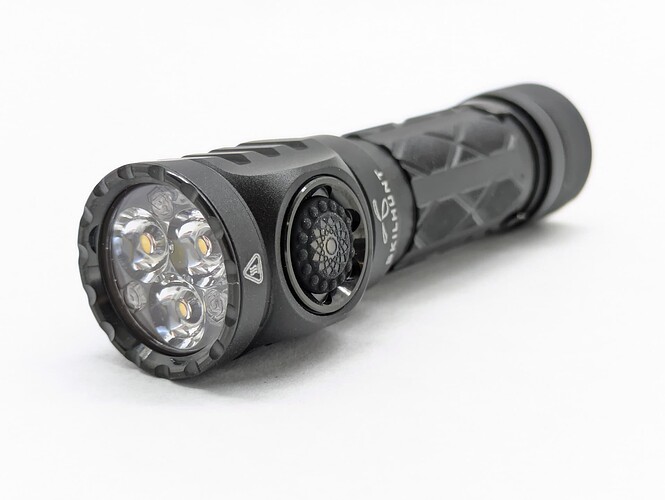

Tl;Dr: This is a fine little EDC light with compelling features. The battery options are great. The build quality, beam, switch, and performance are good. Throw isn’t great but that’s to be expected from a small triple. The UI and clip/charging interference could use some improvement. Those changes would take this light from fine to best-in-class in my opinion.
1 Thank
When running on a 14500 it’s probably linear
It’s boost.
MCPCB has two configurations and jumpers for “parallel” aren’t soldered so leds are connected in series. And those thin wires…
I forgot to check the voltage when I dedomed my EC150 but if there are still doubts that it is 9V I’ll do it tomorrow.
Thanks for the correction!
1 Thank
It’s 7.something in low modes with 519As, but they have pretty low Vf so that’s about what I’d expect from three of them in series.
1 Thank
