Is this a real or fake XP-E?

LED Flashlights – General Info
1

I received a cheap light in the mail today and wondered what LED emitter this might be - XP-E or XP-E clone?

How can I tell a fake - from my Google Image search this one seems pretty real.

Sorry for the crap pics, all I have is a cell phone with me.

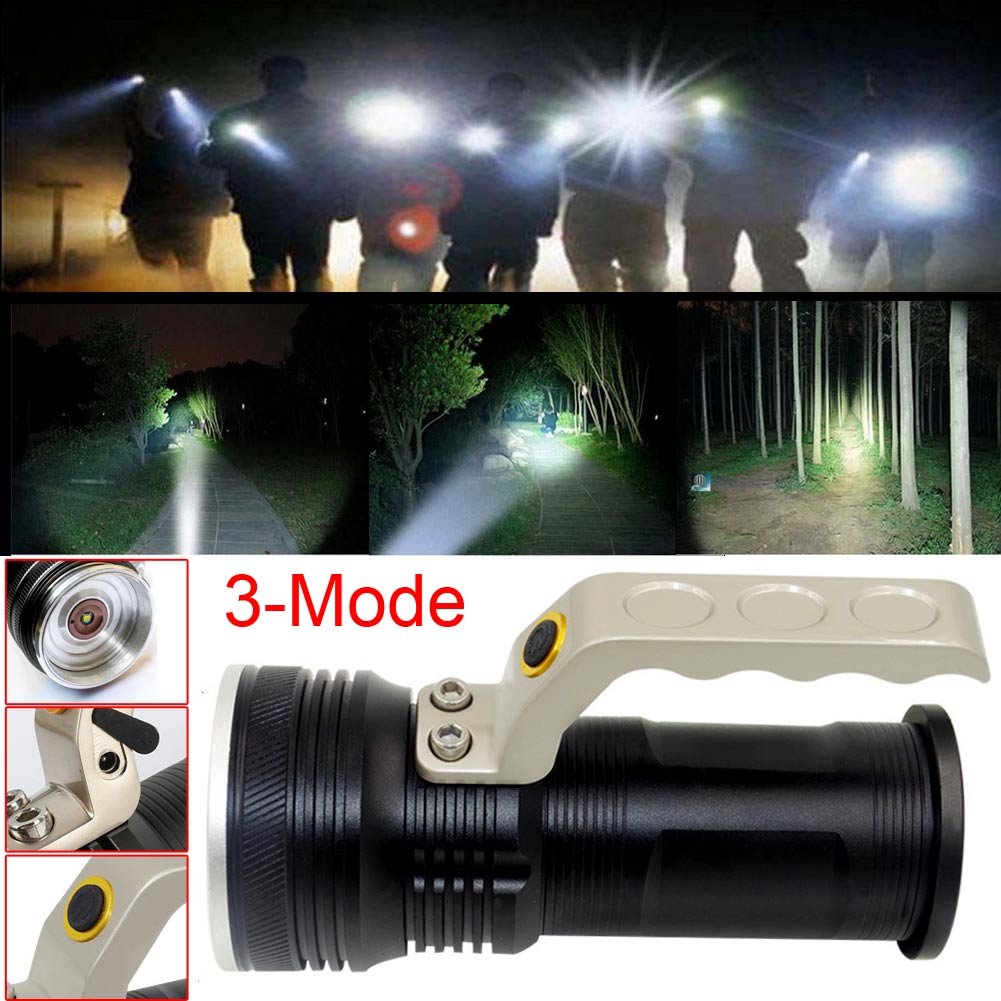

Yes, it is a laughably cheap light, the LED star is just snapped onto the plastic reflector with a plastic clip… But I bought it for next to nothing, with the intention to just to use the body as a host for a project that will not use any of the guts at all.

2

It looks fake, there is three squares in the corners where there should be two squares and a round dot.
I guess the tint is awful?

3

Yes.
Also, the picture is not clear enough but there is another element which in fakes seems to not exist, the 3rd lead.

4

Fake for me, I do not see the rectangles marked on the die. I do not see the third lead either.

Edited due new better picture, now I see the rectangles marked on the die. Still fake for me.

5

Better picture?

It has:

  • lines on the LED (it is 3 “lines” of LED substrate)
  • two lead wires
  • three rectangles on the die under the dome
  • two large and one small squares on the corners.

6

Tell us how much did you pay for it, I think there will be an answer.
Looks fake because of it’s size, color, and should it be round in the corner instead of small square?

7

Google Image search for XPE gives this, I see a circle instead of small square on the corner, and I can see the third lead wire now.

So thanks for making me look closer, it certainly is a fake.

Oh yeah, the tint is awful.

Paid

8

I paid $5 for this :

Like I said, I was only interested in the body shell as a host that I’m going to chop up pretty significantly. Just curious if the LED was real b/c at first glance I thought it might be, which surprised me (I was assuming it would be fake).

9

yep the missing circle dot is a give away I think. I have two old XPE emitters from 5-6 years ago (before they days of counterfeiting) and they both have that circle.
