RD6012H output no overshoot
aliexpress: RD Riden RD6012H RD6012H-W 60V 12A DC zu DC Buck Boost Modulgerät - AliExpress 1420
for now the first sale for RD6012H release finished already, next sale should be at 11.11 sale and black friday time
RD6012H input current limit 16A max, if it reaches 16A, it will adjust the output to protect the device
aliexpress: RD Riden RD6012H RD6012H-W 60V 12A DC zu DC Buck Boost Modulgerät - AliExpress 1420
RD6012H current accuracy test, compared with RD6012, it is 5-digit display, it is more accurate
aliexpress: RD Riden RD6012H RD6012H-W 60V 12A DC zu DC Buck Boost Modulgerät - AliExpress 1420
when you are charging battery with battery charging terminal of RD power supply, if you disconnect input power, device will turn off, power from battery will not go back to device, if you use red terminal to charge battery, disconnect input power, battery will power on screen, consume battery power but no damage
RD6030 link: RD RD6030 RD6030W 60V 30A DC Einstellbare Abwärtsspannung Tischgeregeltes Netzteil Buck Converter Batterieladung & 1500W Netzteil - AliExpress 1420
Why is the Shipping on this unit so Expensive, all your other units are minimal shipping charge or even free
what’s your address ?
Guess I should’ve mentioned that Baton Rouge, La USA
sorry, I did not check the chat record
for shipping fee different , could you take a picture to show me . i just check our page , there is not problem , they are same
Differences between RD6012H and RD6012, RD6012H is buck boost mode, current is 5-digit display, RD6012 is buck mode only, current is 4-digit display, other functions are same
RD6012: RD RD6012 RD6012W USB WiFi DC DC Spannung Step-down Tischnetzteil Einstellbarer Abwärtswandler 60V 12A & 800W Netzteil - AliExpress 1420
RD6012H: RD Riden RD6012H RD6012H-W 60V 12A DC zu DC Buck Boost Modulgerät - AliExpress 1420
https://youtube.com/shorts/TdZpX3HreD4
hello, in this video we introduce that when use green and red terminal to charge a battery, what will happen when disconnect input power, if you use green battery charging terminal, disconnect input power, device will turn off, nothing happen, if you use red terminal to charge battery, disconnect input power, battery power will light the screen, consume battery power but no damage caused
Is there a standalone case available for the unit? A compact case without space for PSU, for use with an external battery.
sorry，we don’t have it now ,
A customer asks me how to charge a battery pack, we can only set a total voltage and current to charge them as a whole
A battery pack is comprised of many single battery cells, When the state of individual cells changes, the battery pack becomes unbalanced. An unbalanced battery cannot be fully charged or completely discharged, and this imbalance accelerates battery aging,This not only reduces battery performance but also shortens the overall lifespan of the battery.
To solve this problem, you should add a cell balance board, you can search it to keep each battery same voltage
hello, RD6030-Max has 2 versions, 1140W 110V US plug and 1440W 230V EU plug, they have same front panel, case, input PSU, what makes them different, the input PSU is RD-1500-68, under 220V AC input, it is 1500W, under 110V AC input, it is 1200W, this is the reason
hello, if you want to install RK6006 into DPS series power supply case, there is a problem, this case allow 60V max DC input, but if you want to use RK6006 in full output, you need 68V DC input, it is not suitable, unless you use low output voltage, it is ok
RK6006: RD RK6006 RK6006-BT 60 V 6 A 4-stellige Kommunikation, einstellbare DC-zu-DC-Abwärtsspannung, Tischnetzteil, Abwärtswandler - AliExpress 1420
hello, a customer asks me that if his DPS5020 can update firmware, sorry it cannot,we add this firmware update function since RD series, so RD, RD-Max and RK series can update, DPS/DPH/DP series cannot
what happened when you see output voltage=input voltage, especially when you do not even turn on the ON/OFF button, normally it is caused when you connect a inductive load like motor, and do not limit current in 1/3 range
hello, for RD6024 we have 1500W PSU to let it full output, but some customers just need high current, they do not need high voltage, then they can choose 800W 1200W PSU, the price is lower, and they are suitable with S800 case too

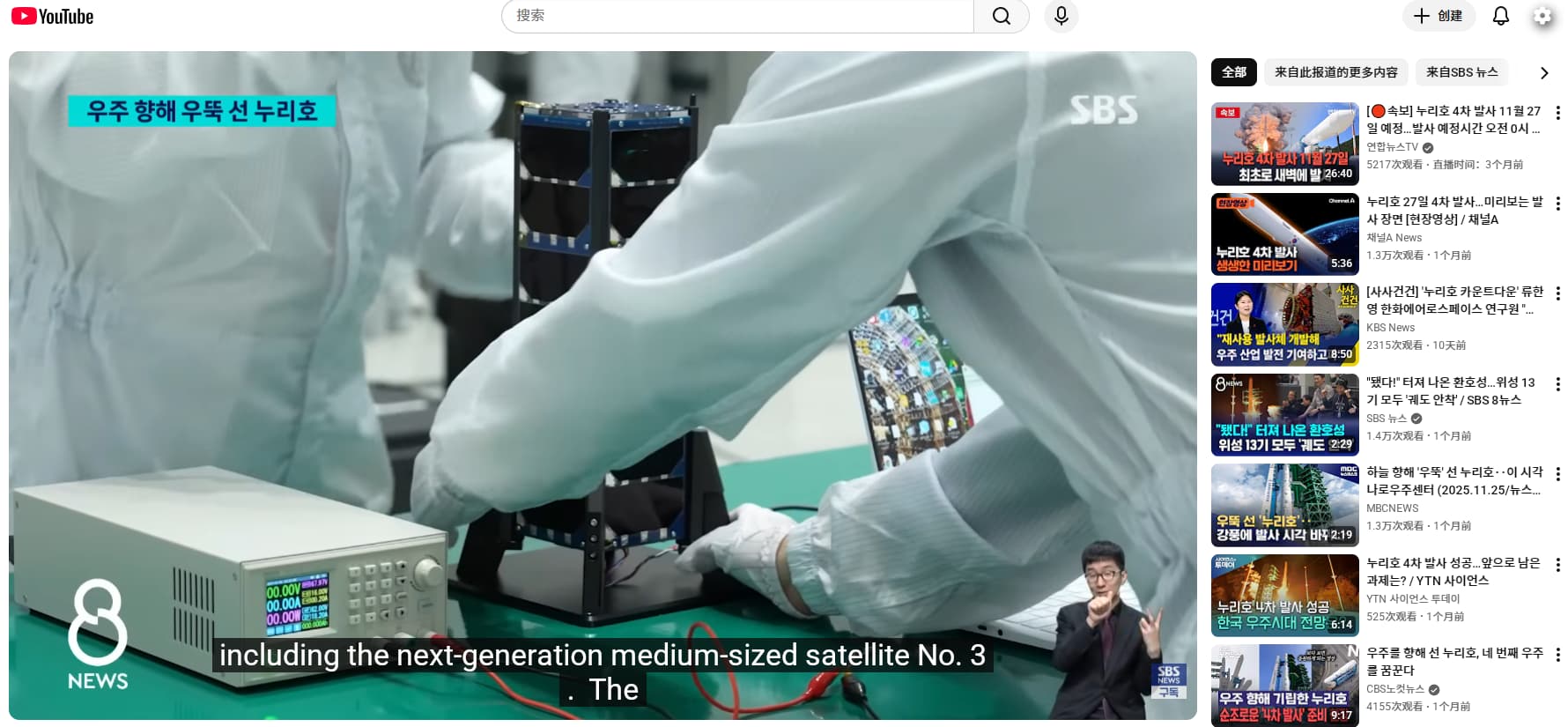

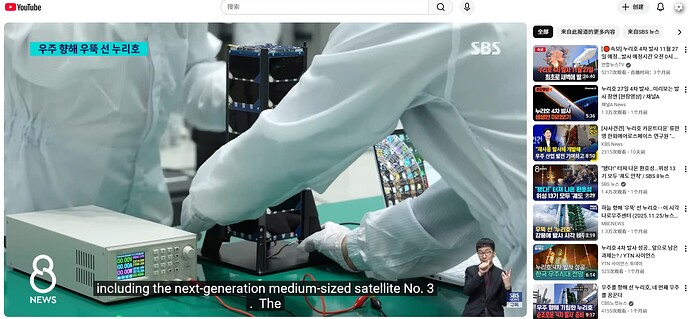

Coincidentally, we saw our RD6018 adjustable DC power supply in the news about South Korea’s rocket launch. At 67 seconds of the original video.
2 Thanks
a customer told me that his RD6024 green terminal cap is lost, so we send a new cap, but we forget that he ordered RD6024 in 2022 and we change the terminal once, so new cap does not fit the old terminal, he needs to replace whole terminals
