XPG2 and XP-L Die Pics (Many More Pics Added!!!)

Flashlight Modding and DIY Parts
1

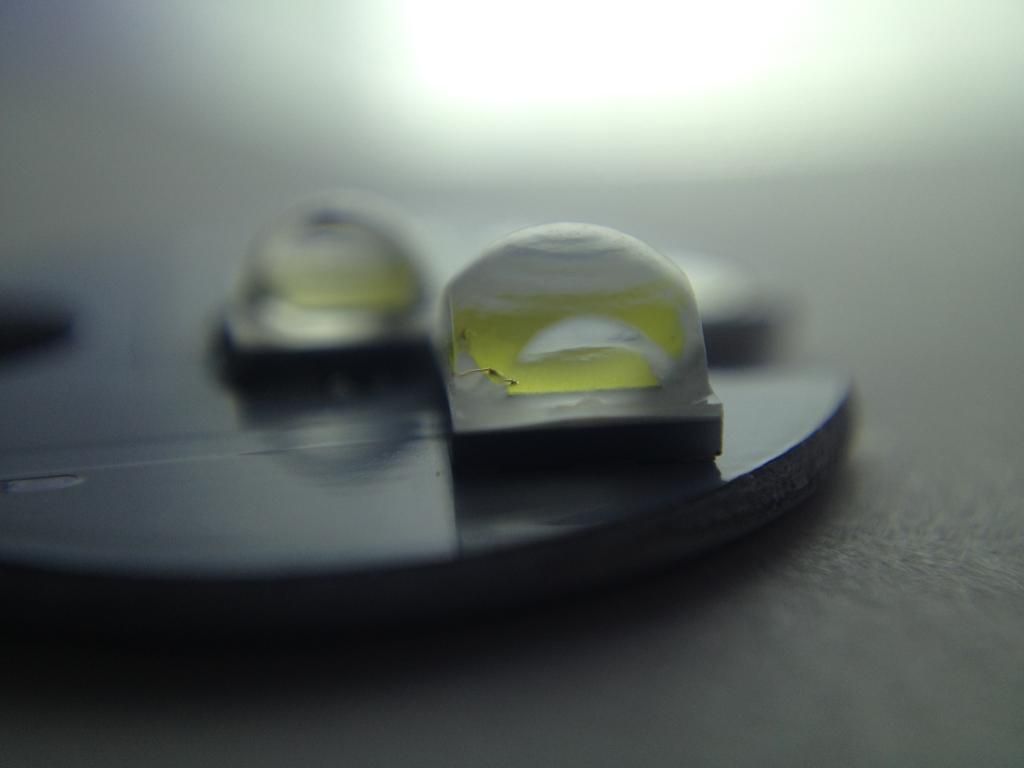

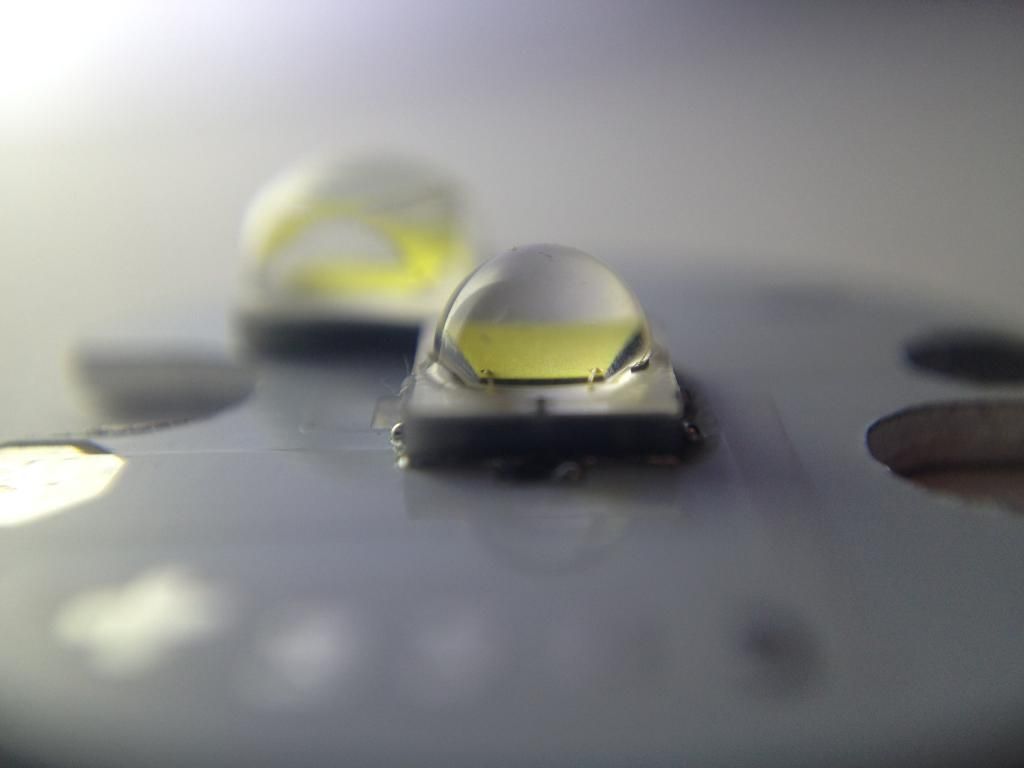

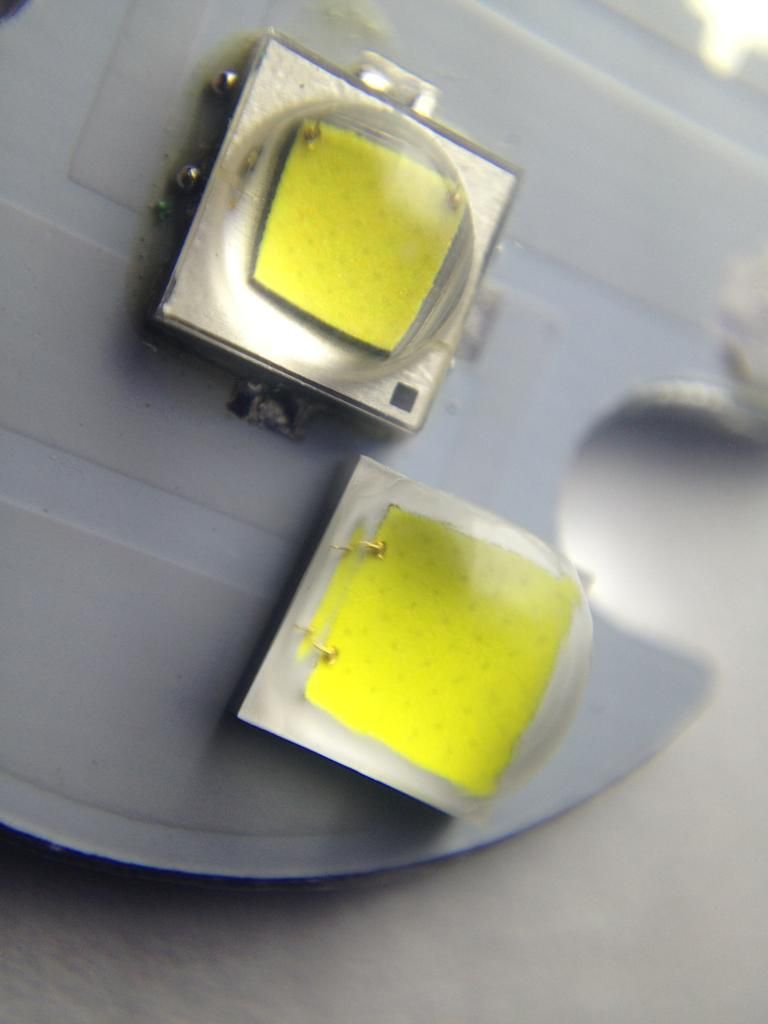

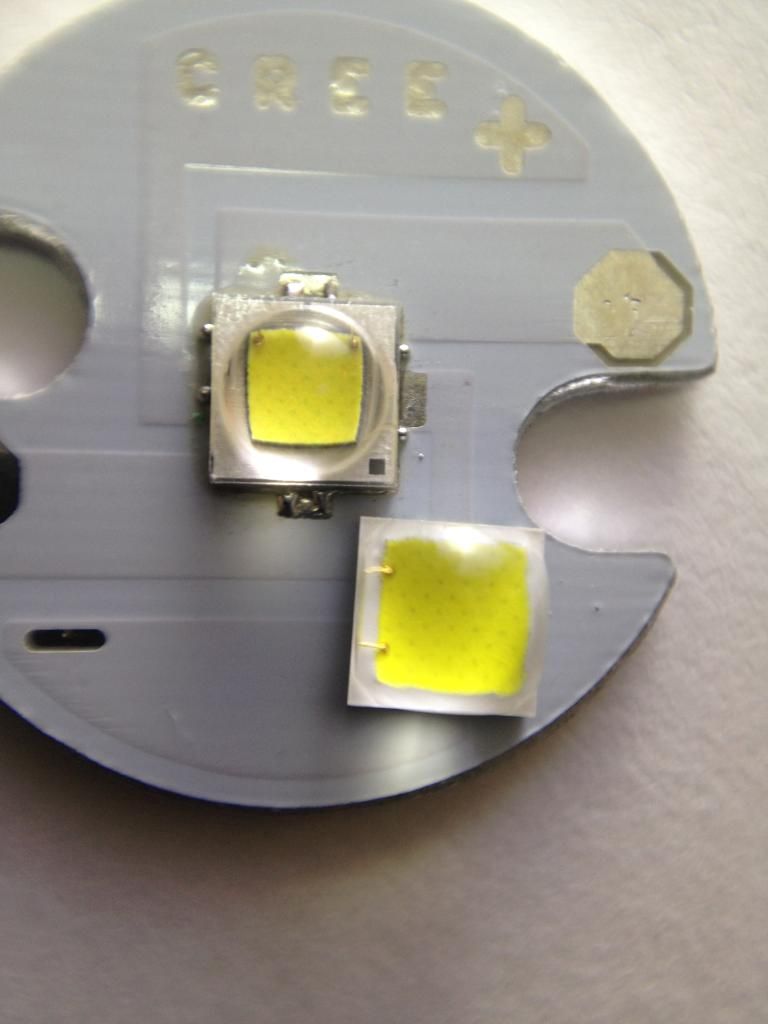

Dismantled an old camera and used a lens from it to take these pics with my iPhone.
Enjoy.

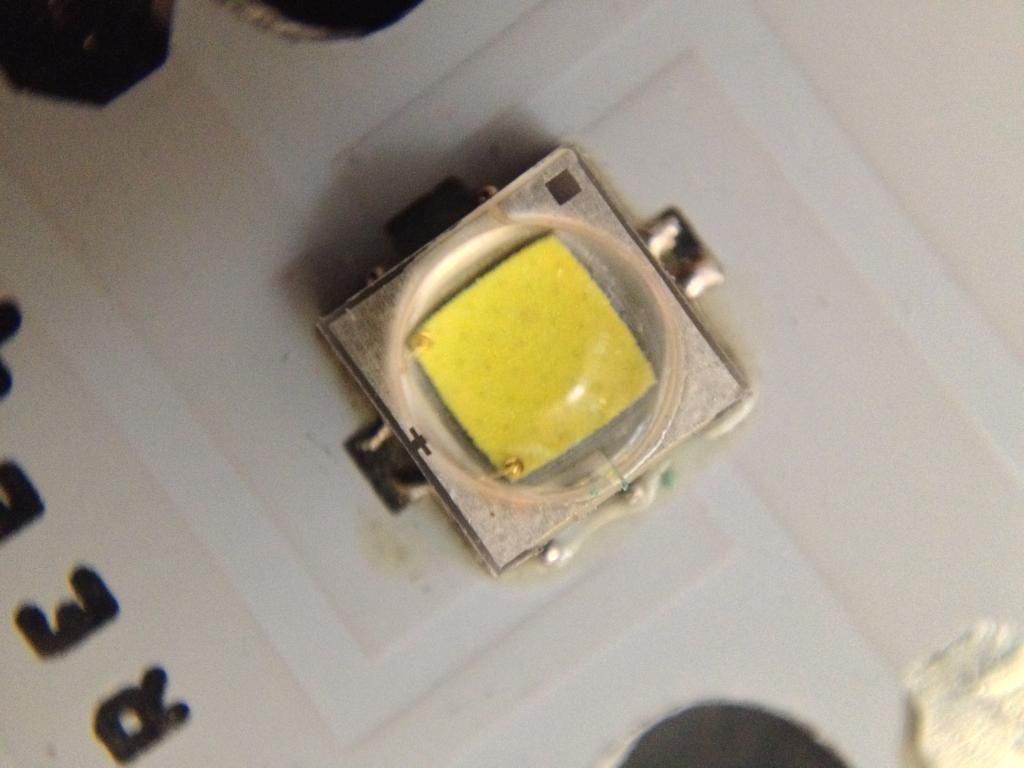

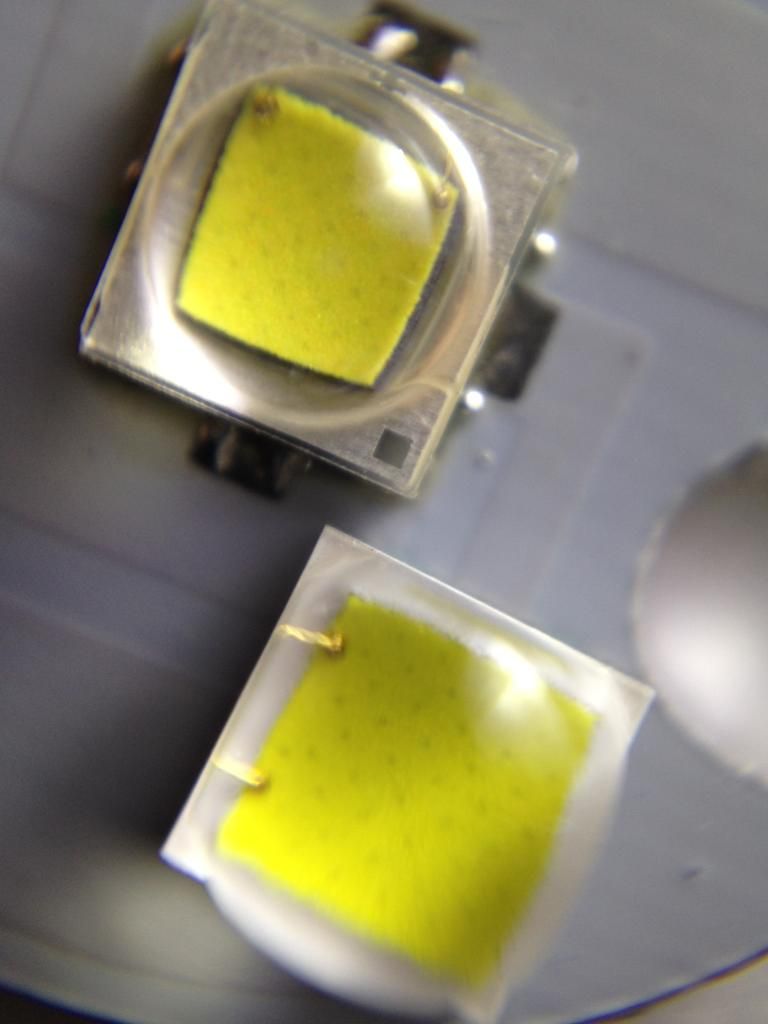

XP-G2 R5 1A

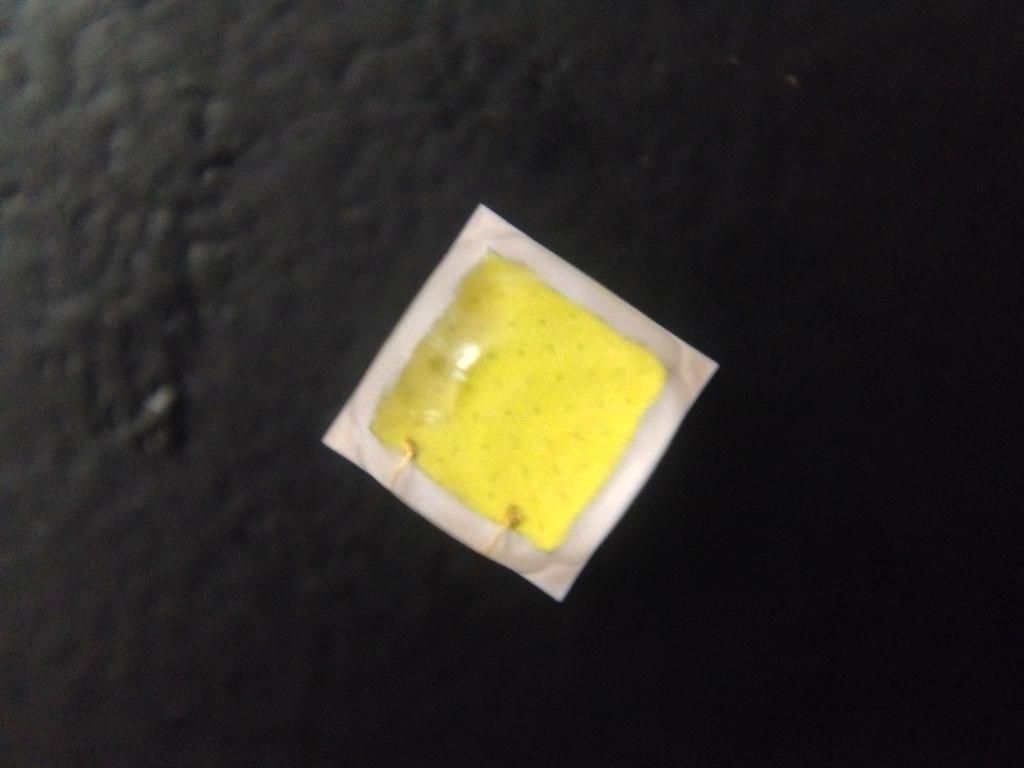

XP-L V5 2A

2

Wow, wow, wow. Phenominal pictures. The XP-L looks like piece of paper with a thin pillow of phosphor on it. Is the emitter dedomed or in some other way altered?

3

Emitters are untouched. It’s just the way it took the picture. The camera lens is only half an inch away from the object when taking the pictures.

4

Added more pics.

5

Flash-aholic porn

6

Too funny! :bigsmile:

Cool photos.

7

The XP-L seems like an XM-L2 in an XP-G2 die? :~

Does it perform the same with XM-L2 when dedomed?

8

The XP-L is an XM-L2 die in a smaller XP-sized package.

Word on the street is that it dedomes somewhat better than an XM-L2. There has been a lot of discussion on here in threads like these:

So post #165 in the second thread for one of DBCstm’s reports on how nicely the XP-L dedomes.

9

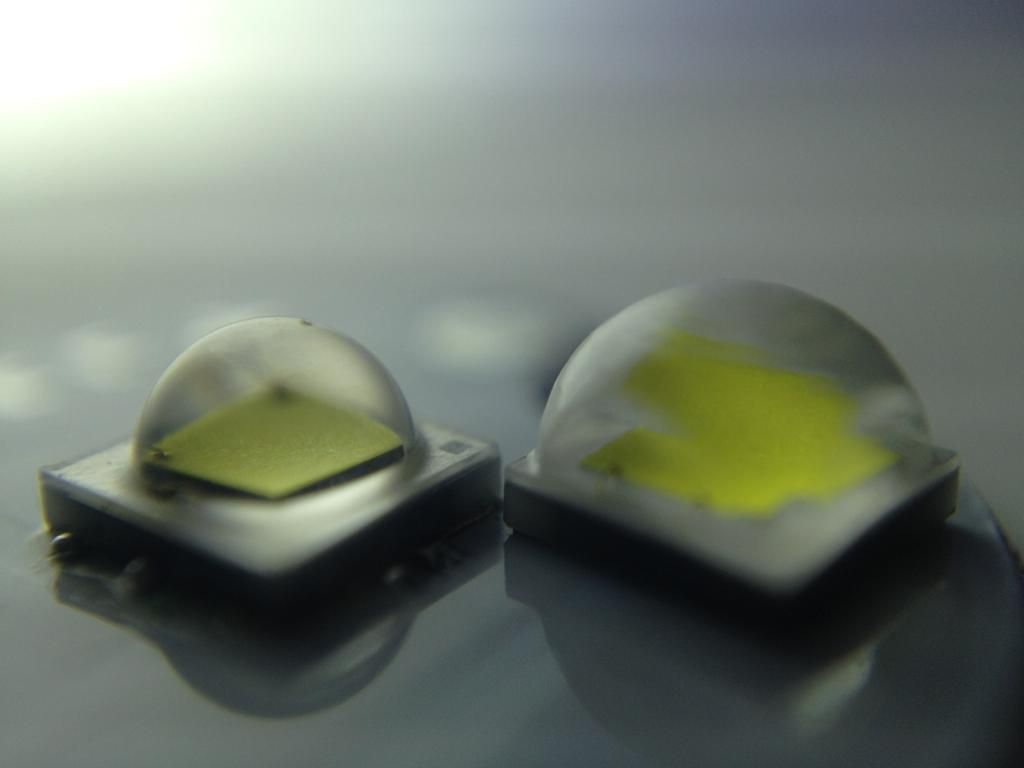

Thanks for the pics! They look good. I especially like the sixth one.

10

Oh! :open_mouth:

Thanks wight! :slight_smile:

11

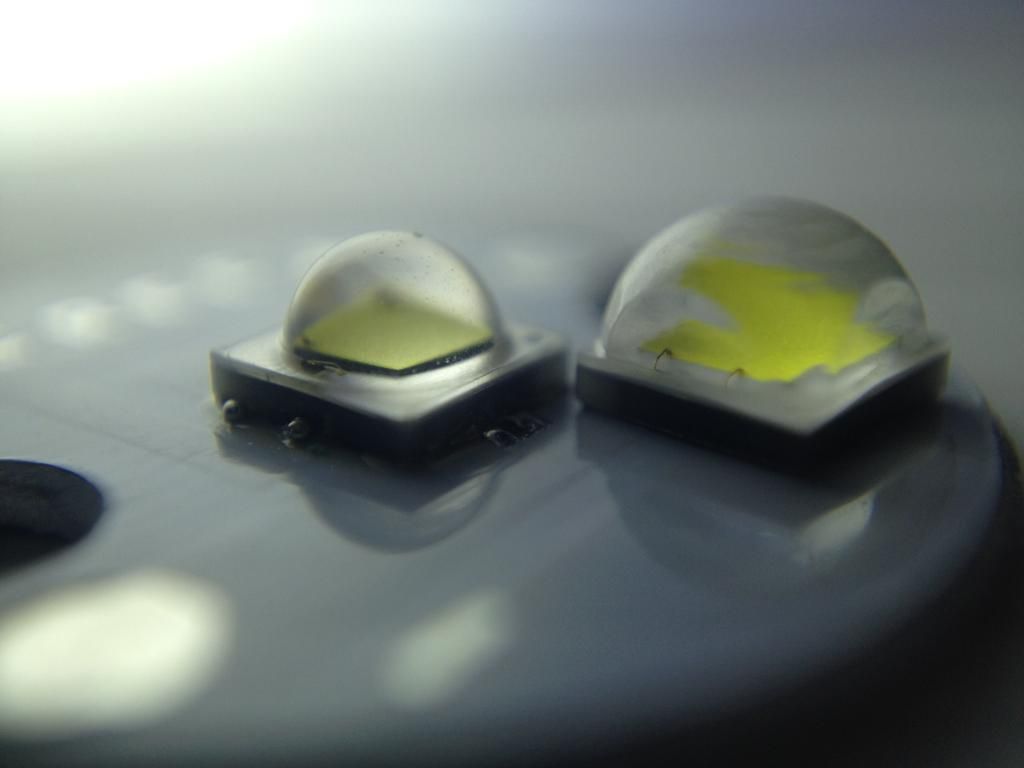

Now you can see why the XP-L won’t fit under the triple TIR’s due to the dome

Thanks for the pics!

12

You can use the 35mm Ledil Cute Triple which will fit the XP-L with dome intact.

13

Wow!

14

Beautiful photos, especially since they’re taken with an iPhone, external lens notwithstanding!
