Test cut a couple of the S2+ xp series rings. It seems the process is more forgiving than I thought it would be so I will probably be able to make these out of black acetal (delrin) rather than nylon. :bigsmile: Acetal machines a lot nicer than nylon and should require less deburring effort. I will test the process with acetal shortly.

42

Very nice looking! For me, I don't give a hoot about color, so anything will be ok for me.

43

Nice work hoop.

44

I would like to have one of the XML to KD 86mm reflector please.

45

Hi Hoop

I’m in the process of getting a mini lathe & -mill. I’m very much still a newbie related to fabrication of parts & the 2 machines mentioned.

Would it be possible to do the round center rings with a mini lathe/-mill combination? It would be great if I can make my own, on small scale?

I’m thinking of the following steps…

  1. Starting with a solid peace of nylon tubing.
  2. Turning the ring to size.
  3. Turning the extruded centering part to size.
  4. Then milling out the center square. I’m not sure if one gets such a small milling bit though?
  5. Then when all is done, cutting the final ‘disc’ to the correct thickness from the piece of solid nylon.

Hope it makes sense? Will this be possible to do?

Thanks a lot.

46

This is awesome, I would definitely want some XP/Nichia to C8 ring.

47

Hi Sirius9. Can you maybe post a photo of how the XML centering ring is used here? I can’t 100% picture what you guys are describing. Thanks.

48

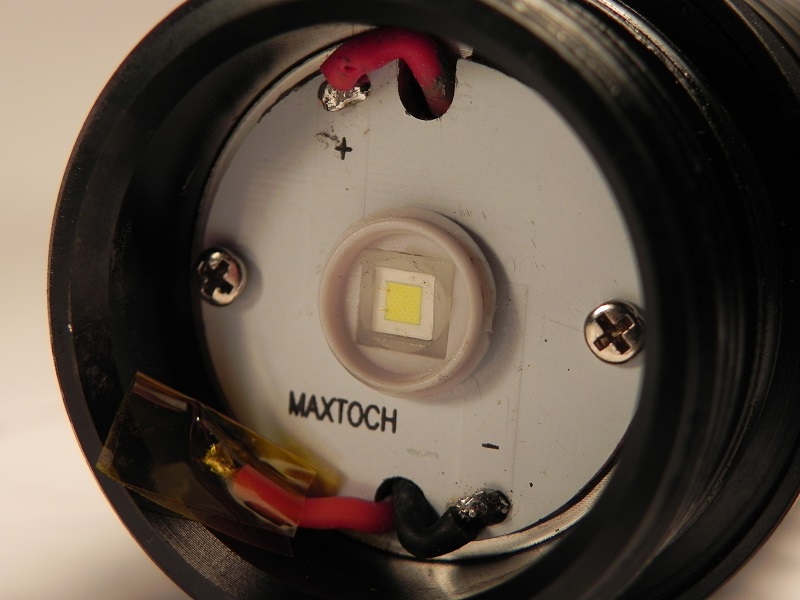

I usually sand down the centering ring bottom side and then use superglue to prevent it from rotating when tightening reflector/bezel. I also put a tiny-tiny bit of grease on the top edge/lip of centering ring where reflector will sit so that it could slide more easily when I tighten everything up

49

Thanks, appreciated.

50

Wow, just noticed Hoop hasn’t been around for - 3 weeks?

51

Thanks for the effort Sirius9. Im gonna to give it a try,

52

Hi fellas. I got into a rather large machining job which I had to prioritize and haven’t had time for anything else. I see the light at the end of the tunnel though and will be able to get back to my fun/hobby projects soon. I will update when I cut some of these these from black acetal.

shrick, I’d recommend using acetal (delrin) if you make them manually. It’s doable but not the easiest project for a novice and it will probably take more effort than it’s worth. As for the tiny end mills, you can use a 1/32” 2fl which shouldn’t give you any trouble in acetal. In the square pocket, machine a relief past the corners in one axis to provide clearance, at least the radius of the cutter in length.

53

Hi Hoop. Welcome Back :slight_smile: Thanks for your feedback, appreciated. I’m going to find out if I can get my hands on acetal/delrin and what it costs.

54

hoop do you still make those ?

i would like similar ,BUT for XP-G2 led.

55

Are these still available for order?

56

LSX, the last post from Hoop was quite a while back (05-25-2015), in which he said:

Maybe you could PM him and see if he answers?

57

I just notice this thread, but Hoop doesn’t seem to online very often. I would like to order a few pieces of XP-G2 size to new Convoy C8 XM-L2 reflector, is this offer still going on?

58

Hi,

would such an XP2XM-Adapter be possible? Outer diameter of XM-Footprint and inner Diameter of the XP-Footprint so they could fit the original centering adapters. I often swap XM-L2 against XP-L or XP-G2. At the moment i make these by hand with a file from an XP-centering adapter …

Greetings

Kenjii

59

I would buy like 20-30 of those if I could get some. It frustrates me to no end that I can’t get an XM centering ring just with an XP internal dimension. It seems soo simple and yet no one has them and the fasttech ones suck, have already tried them.

60

Could this be done on a 3D printer?
