Changing the voltage of a boost driver

Flashlight Modding and DIY Parts
1

Hi All,

Looking to put an emitter in that can take up to 8v/2a (Yingfeng HYF90E42N660AG-D9A) in a M21b, and would like to eventually upgrade from a Convoy 6v boost driver to a Hank driver that can provide the full wattage.

I think I can get 8v/2a by reducing a 12v boost to 8v (per the calculations from m4potofu on reddit here):

TopR = BotR * ( Voutavg - VFB ) / VFB

Where VFB = 1 and Voutavg is roughly the average VF of the LED, so ~6V for a 6V LED.

If I use VFB = 1 (not sure if this is a constant), Vout = 8v, and BotR = 10 ohm, I get 10*(8-1)= 70 ohms.

Is this the best way to dial in a specific voltage for my application? And will the driver still output 2 amps?

LED test / review - 36-chip 9090 LED very similar to FFL909A (9 V, 4000 K 90 CRI rosy) - over 10000 Lumen with rosy Tint!
2

You’re going to love it here, blacklightning!

3

Welcome to BLF,

Yes except the bottom resistor of the voltage divider is most definitely not 10Ω, I don’t remember the value but it’s in the 10s of kΩ.

2 Thanks
4

Haha, and he gets a reply from the perfect person. I love this.

1 Thank
5

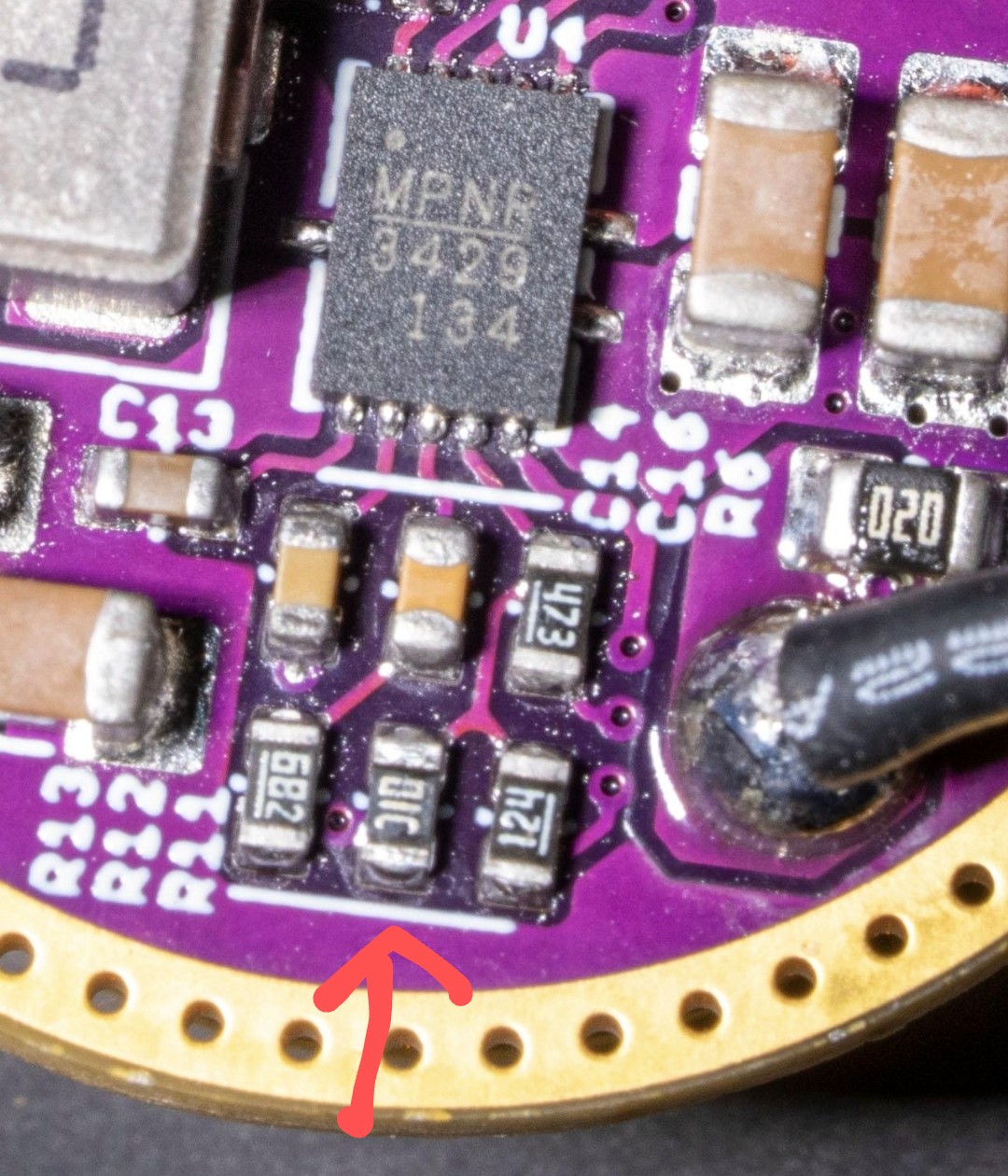

Thanks, finally made it over from r/flashlight! And you’re right, I completely forgot to convert the SMD resistor code😅 Can you tell if R12 says 01C (10k) or 31D (20.5k)?

(though probably should just order both and verify once I have the part off)

Screenshot_20240107_233045_Chrome~2
Screenshot_20240107_233045_Chrome~21080×1260 322 KB

@Scallywag haha can’t go wrong with thefreeman himself!

6

I think it says 31D, looks like it has the orientation line on the right

Can’t check it with a multimeter?

7

10k.

2 Thanks
8

Ya it’s 01C.

1 Thank
