JAXMAN M3, our first 21700 light

Commercial Sellers' Spot
1






We found that there are available for the good 21700 batteries, such as LG and Samsung. So we developed the M3 for 21700 users.
below is our store webpage, you can find more details.
Our store on Aliexpress

2

Hi Jaxman, nice looking flashlight :+1:

  • What is the driver diameter?
  • What are maximum height and diameter of battery?
  • Is anything glued?
  • Is PWM used by the driver?
  • Can it be ordered without ceramical beads? Or at least less aggressive bezel?
  • Can modes be programmed differently? I mean e.g. 0.02, 1, 3, 4A are probably more like one low mode and three high modes. I’d like something like 0.02, 0.4, 1.3, 4A.
  • Does the driver have memory?
  • Will it be possible to buy only host?
3

my congratulations

what`s about UI, color temperature and stabilization?

4

I just received the Jaxman M3 (xpl hi 2800k) and conducted some rough tests. I found abnormal noise when shaking when using the Samsung 30T flat-head battery. Using the camera, I found PWM in 1A. The overall quality is very good.

5

hi so many quesitons.
driver OD. is 20mm at present. while it can be enlarge in future.
the battery tube is 22mm inner diameter. due to all soft springs in both side, so the battery is not a problem.
No, no glue.
No ,not a PWM power adjusting.
We now have not other kind of bezel. while it is not a problem. we will made some without aggressive type.
Programing MCU scripts is too complex for me. I dont want do such kind of light. Never.ever.
Yes ,with memory function.
As Host, I think it is ok for BLFers for a small qty. mainly because it is too trouble to package, and aftersale affairs are also a main considering. We now are near to the Spring Festival of the traditional Lunar year.

Happy new year.

6

Thank you.
simple UI. As tint, we have kinds of. What means stabilization?

7

But not for some BLFers :smiley: .

Don’t take me too serious regarding your light, but I’d love if manufacturers would document which lines of the MCU do what. Makes writing a new firmware an option if in-system programming/flashing is possible. Documentation saves reengineering efforts and gives the manufacturers a selling argument.

Happy new year.

8

Thanks. new year holidays are run out…
Start to make flashlights…
Have a nice day!

9

Regulated?

10

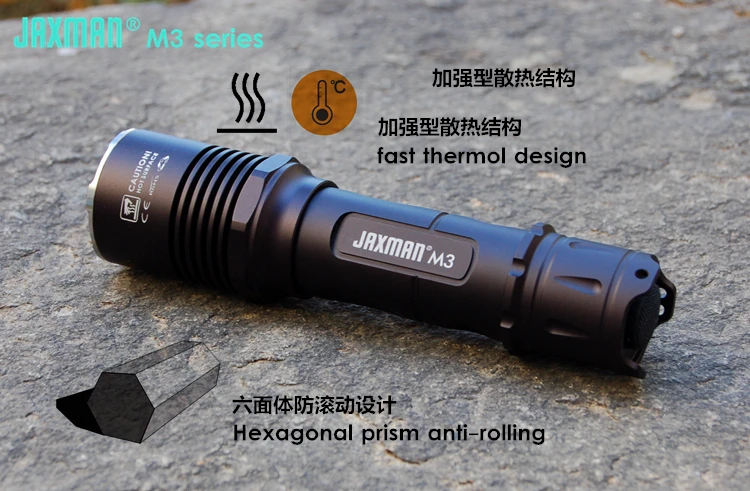

Fast thermol? You rulezzz

50.2 shitty led. Bad tintshift.
Down the drain…
Mike

11

What is the range when equipped with each emitter?

12

Excellent! Congratulations!

I love that you offer a forward switch option.

Have you considered offering Samsung LH351D hi cri LED?

13

Interesting light. Seems like the LH351D would be a better fit than the 219C, higher amps and higher output. I’m generally a fan of 3000-4000k so take that for what it is.

14

Excellent! Congratulations!

I love that you offer a forward switch option.

Have you considered offering LH351D hi cri LED?

15

16

I like the form factor. :+1:
Just wish the bezel wasn’t so thick! You could fit a much larger reflector in there.

17

Noice. Reminds me of Solarforce L2Ms and such.

And I like the ceramical beads. I’d definitely keep ’em. Were just discussing glass brokers, too.

18

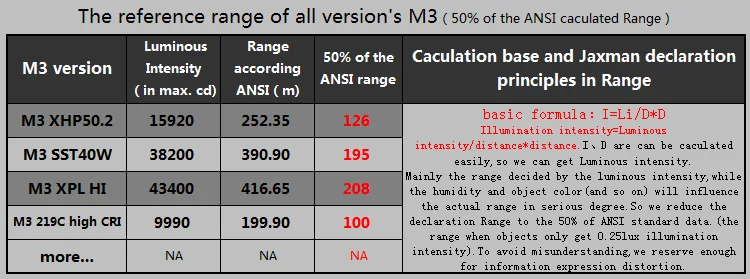

hi as to the range, I am feeling puzzled. My opion is this:

Or see my facebook.

19

hi I m trying Nichia 18w high CRI led… :smiley:

20

In fact the bezel is not a fat one. And we design ed the inner surface to be a very fit size.
And the reflector is 28mm OD. we think it is a propper size for a Max. OD 35mm flashlight.
But after all it will be fatter (thicker) than normal light . while just a bit of.
