The Nitecore EDC07 was sent to me directly by Nitecore for review.
For technical details and to purchase:
DESCRIPTION AND TECHNICAL DATA:

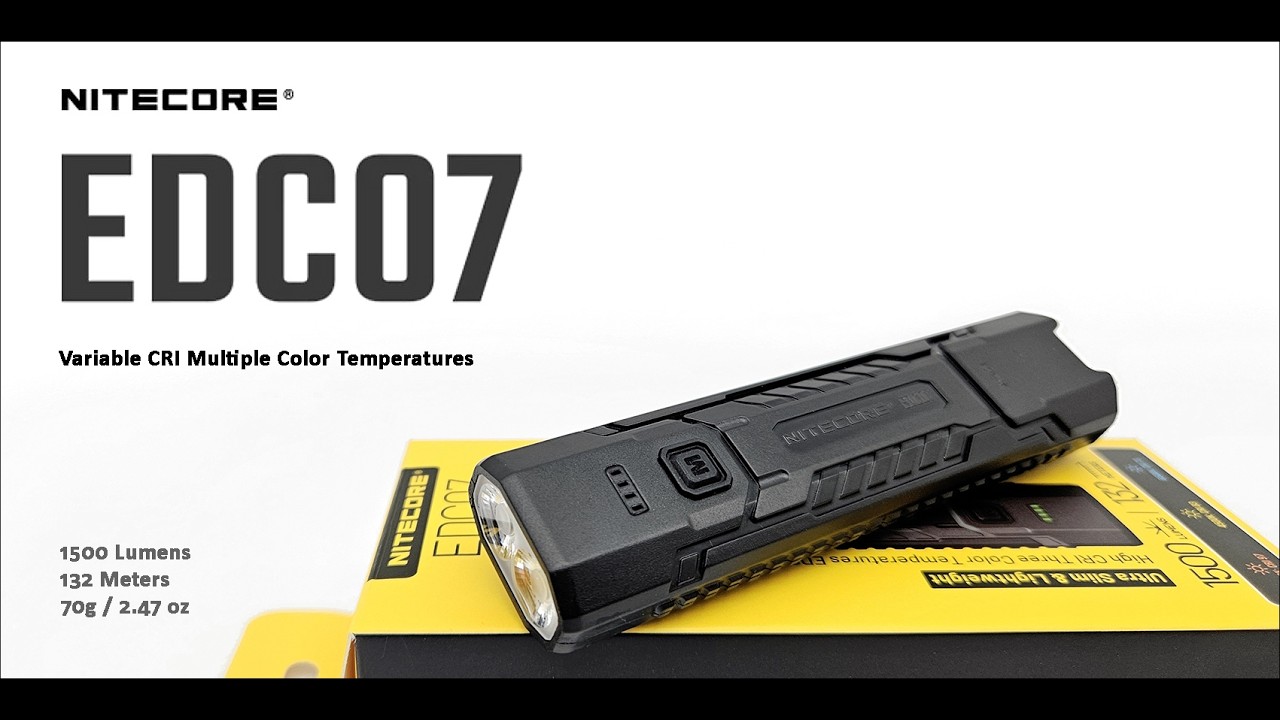

Nitecore recently updated its EDC Slim flashlight line with a new product featuring MTC (Multiple Color Temperature) technology, offering three color temperatures: 3000K, 4500K, and 6500K.
The new EDC07 features a slim body (17mm thick) and weighs just 70 grams, making it easy to carry. It supports high CRI MCT technology with good light efficiency thanks to two quad-core UHE MCT (Multiple Color Temperature) LEDs with a maximum output of 1,500 lumens and a beam that reaches 132 meters.
The Nitecore EDC07 has a very simple, intuitive interface controlled by two switches: a button at the tail and an (M) button at the top.
The new Nitecore EDC07 is rechargeable via a USB-C port with a built-in 1500mAh Li-ion battery that offers a maximum runtime of 360 hours (1 lumen). The EDC07 has five brightness levels, as well as Strobe and SOS. The Nitecore EDC07 is constructed primarily of polycarbonate (PC), a high-performance plastic, making it extremely lightweight and impact-resistant, and is IP67 certified.

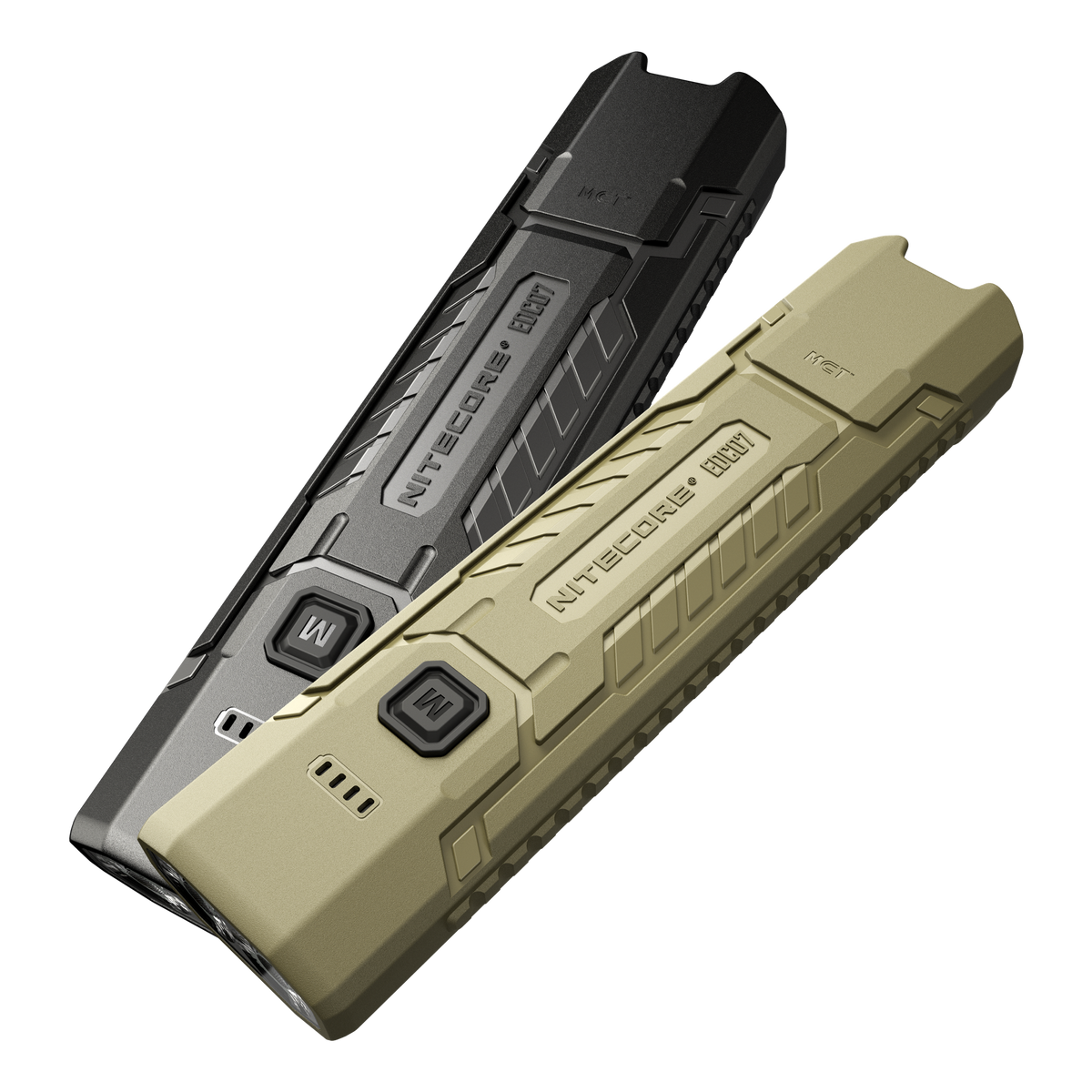

Thanks to its features and portability, the Nitecore EDC07 is recommended for everyday use, for evening outings, as well as for work and construction site inspections. It is available in two colors: Classic Black and Desert Yellow.
Main Features:
- Utilizes two quad-core UHE MCT (Multiple Color Temperature) LEDs with a maximum output of 1,500 lumens
- Equipped with three color temperatures: cool white 6,500K (CRI 73), neutral white 4,500K (CRI 83), and warm white 3,000K (CRI 97)
- Offers 5 brightness levels, STROBE, and SOS for each color temperature
- STROBE mode with randomly changing frequencies for more intense dizzying effects
- Maximum beam intensity of 4,410 cd and a maximum throw of 132 meters
- Powered by a built-in 1,500 mAh lithium-ion battery for up to 360 hours of battery life
- Adopts dual TIR optical lenses for a soft and uniform beam
- Advanced Power Cut-Off (APC) technology for extremely low standby power consumption
- Mains-powered circuit High-efficiency constant current provides stable output
- Designed with a rear button and an M button for easy operation
- Power indicators indicate remaining battery power
- Intelligent lithium-ion battery charging circuit with USB-C charging port
- Built-in ATR (Advanced Temperature Regulation) module (Patent No. ZL201510534543.6)
- High-performance PC housing
- Includes a stainless steel clip
- IP67 water and dust resistant
- Shockproof up to 2 meters

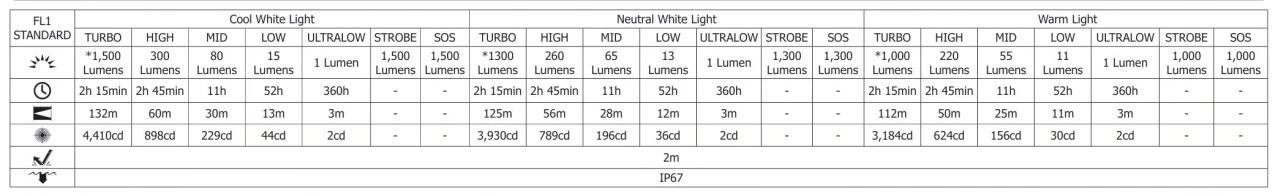

Specifications
Length: 120 mm / 4.72", Width: 31 mm / 1.22", Height: 21 mm / 0.83" (clip included) 17 mm / 0.67" (clip not included)
Weight: 70 g / 2.47 oz (accessories not included)
Warranty:
Any DOA/defective product It can be replaced through a local distributor/retailer within 15 days of purchase. After that, malfunctioning NITECORE® products can be repaired free of charge within 24 months of purchase. Beyond 24 months, a limited warranty applies, which covers the cost of labor and maintenance, but not the cost of accessories or replacement parts.
Note: The data shown is measured using the built-in lithium-ion battery (1,500 mAh), in accordance with the international flashlight test standards ANSI/PLATO FL 1-2019, at an ambient temperature of 26°C (79°F) provided by the NITECORE Lab. Actual data may vary due to different environmental conditions.
- Data is tested without temperature adjustment.

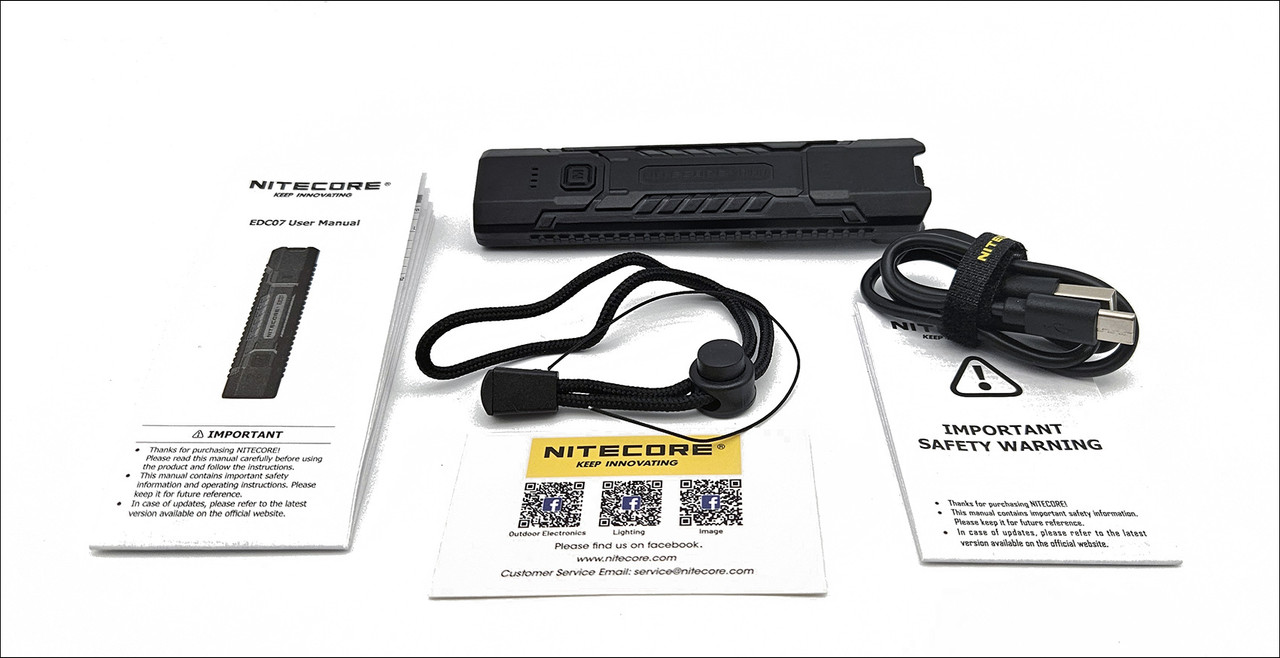

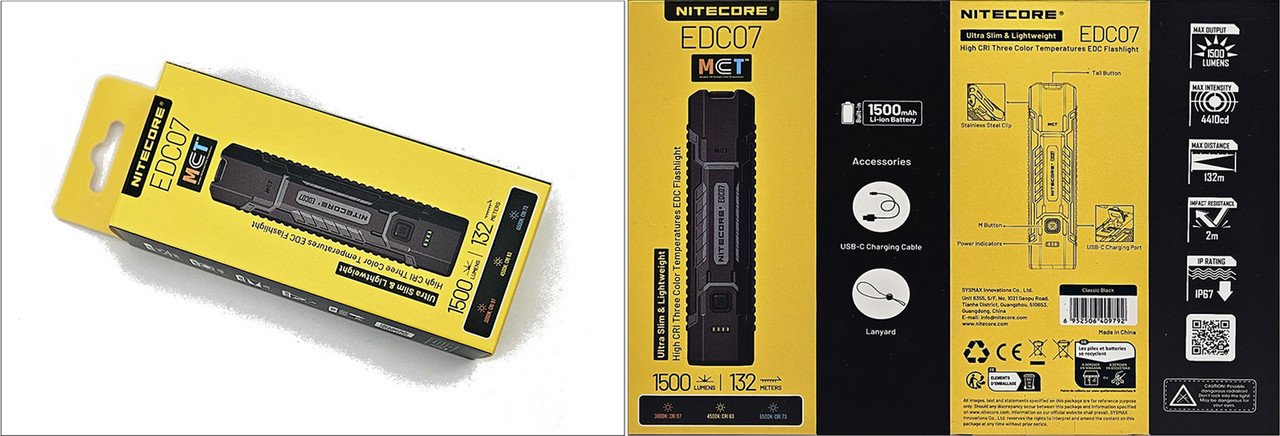

The Nitecore EDC07 arrives in a yellow/black cardboard box. The main features of the new EDC are printed on the sides, while inside, in addition to the EDC07 with the clip attached, we also find a lanyard and the USB-C cable for charging the product. Finally, as always, the multilingual manual, warnings, and warranty card are included.

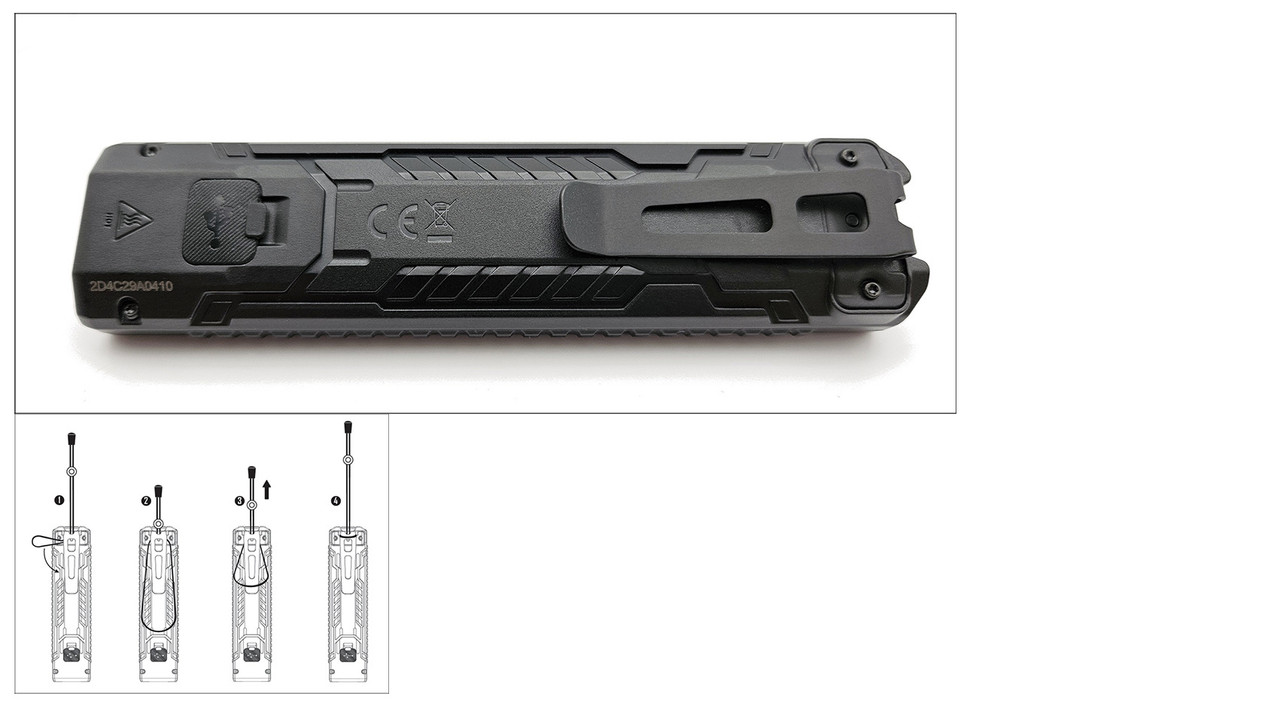

The steel clip is shorter than previous models but still effective for safely attaching the flashlight to a jeans pocket or backpack. It features two holes for inserting the included lanyard (as clearly specified in the user manual).

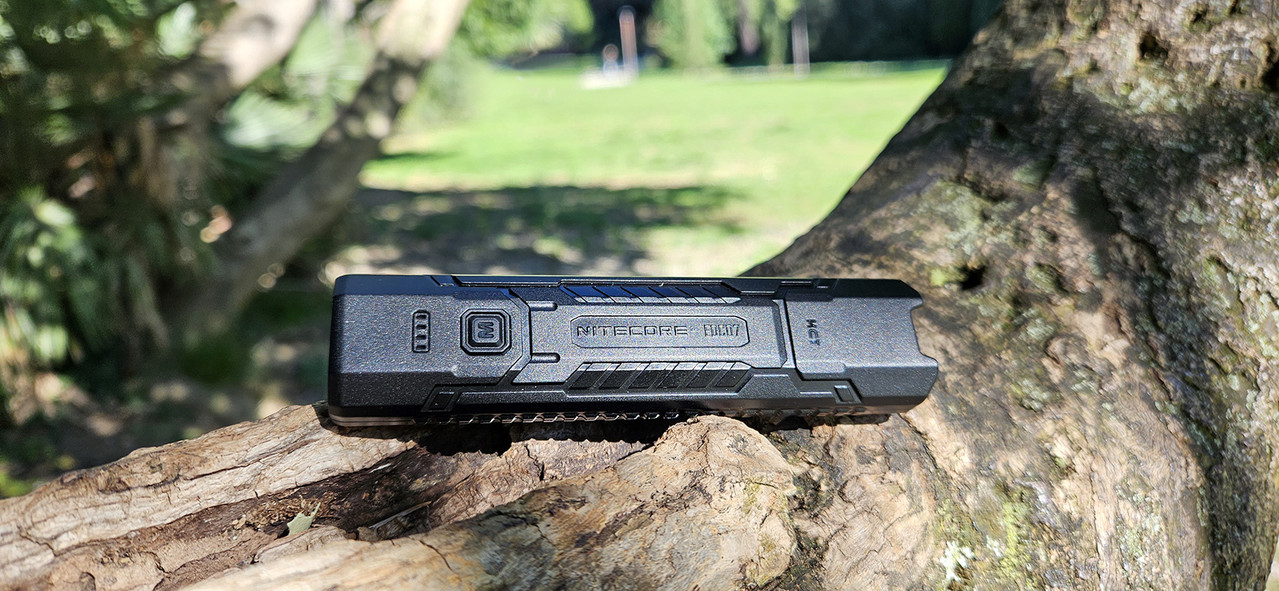

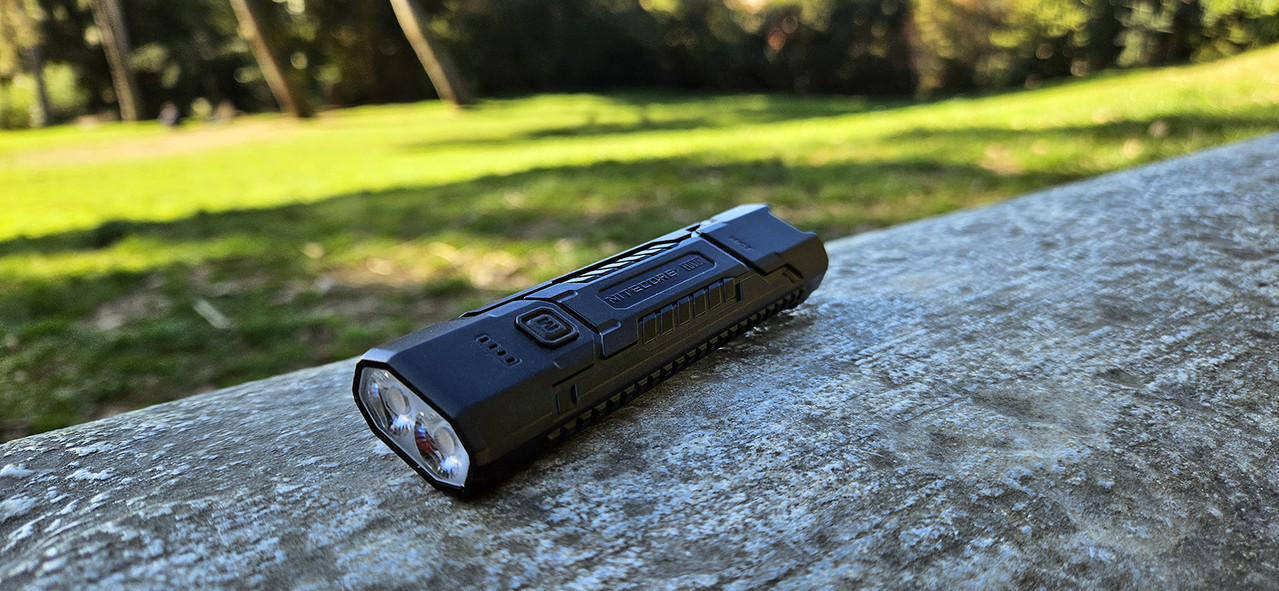

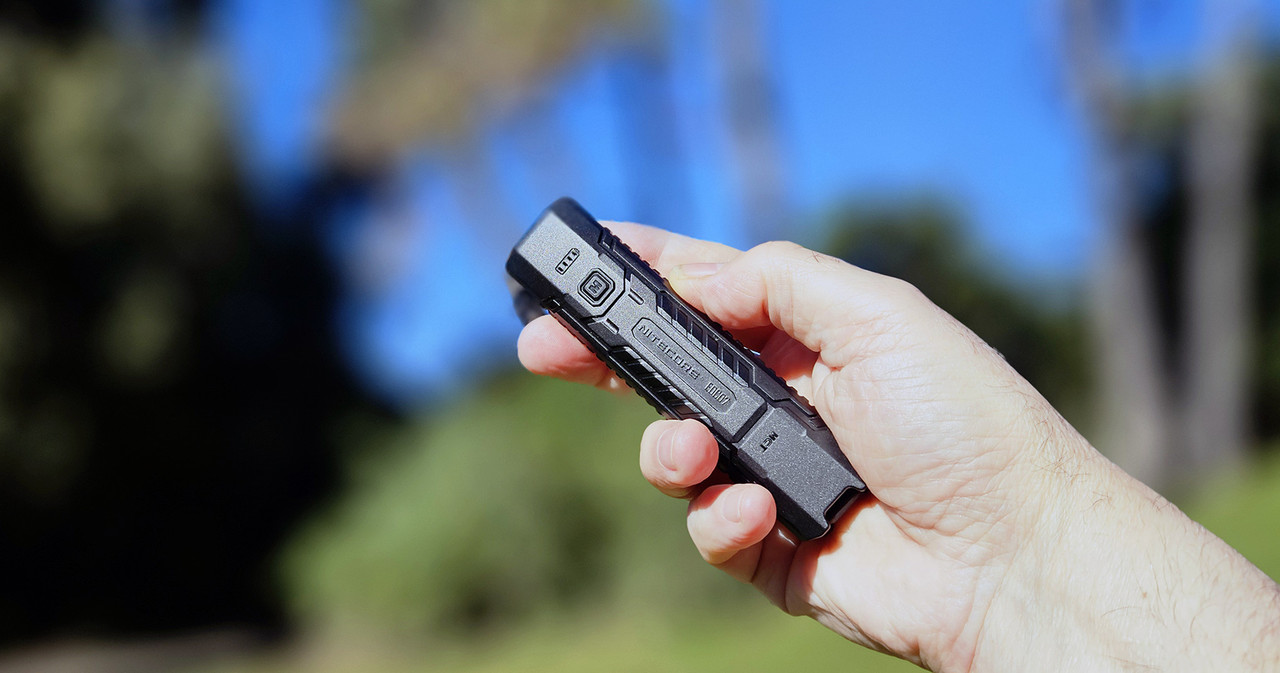

The Nitecore EDC07 has good build quality with a polycarbonate case and IP67 water and dust resistance (resistant to temporary immersion in water up to 1 meter deep for up to 30 minutes). Its main body is flat, weighing just 72 grams (with the clip), while its dimensions are compact. It has a length of 120mm. It’s so light it barely feels in the hand, and its use is simple thanks to the convenient layout of the two switches.

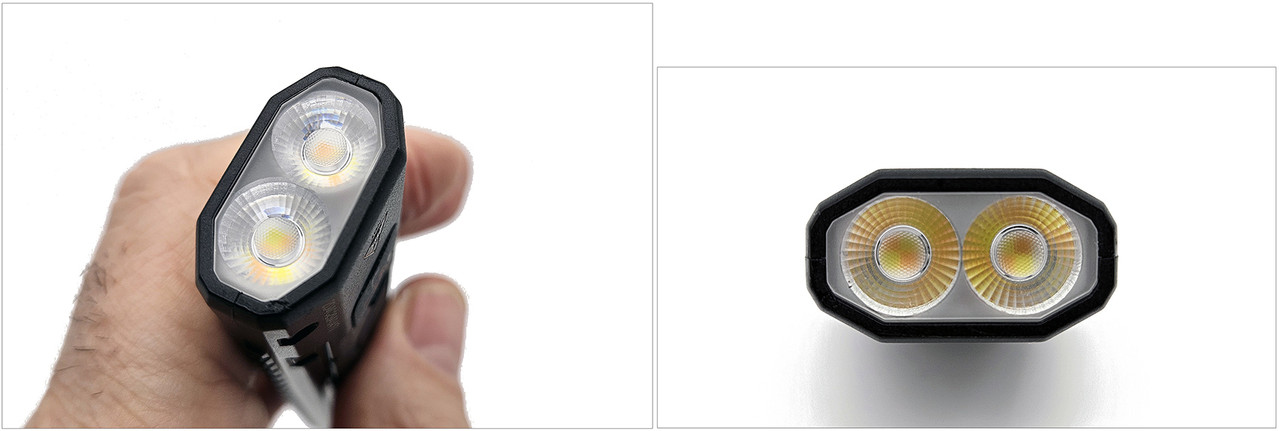

The EDC07 uses an optical system with dual TIR optical lenses and two quad-core UHE MCT (Multiple Color Temperature) LEDs with a maximum output of 1,500 lumens. The MCT system provides three color temperatures: cool white 6,500K (CRI 73), neutral white 4,500K (CRI 83), and warm white 3,000K (CRI 97).
The beam has a maximum range of 132 meters, more than sufficient for short- to medium-distance lighting.
The optics are not protected by any glass and are almost flush with the top edge, making them vulnerable to knocks or scratches. On my evening outings, I really appreciated the EDC07’s well-balanced beam, along with the ability to quickly change the color of the light beam.

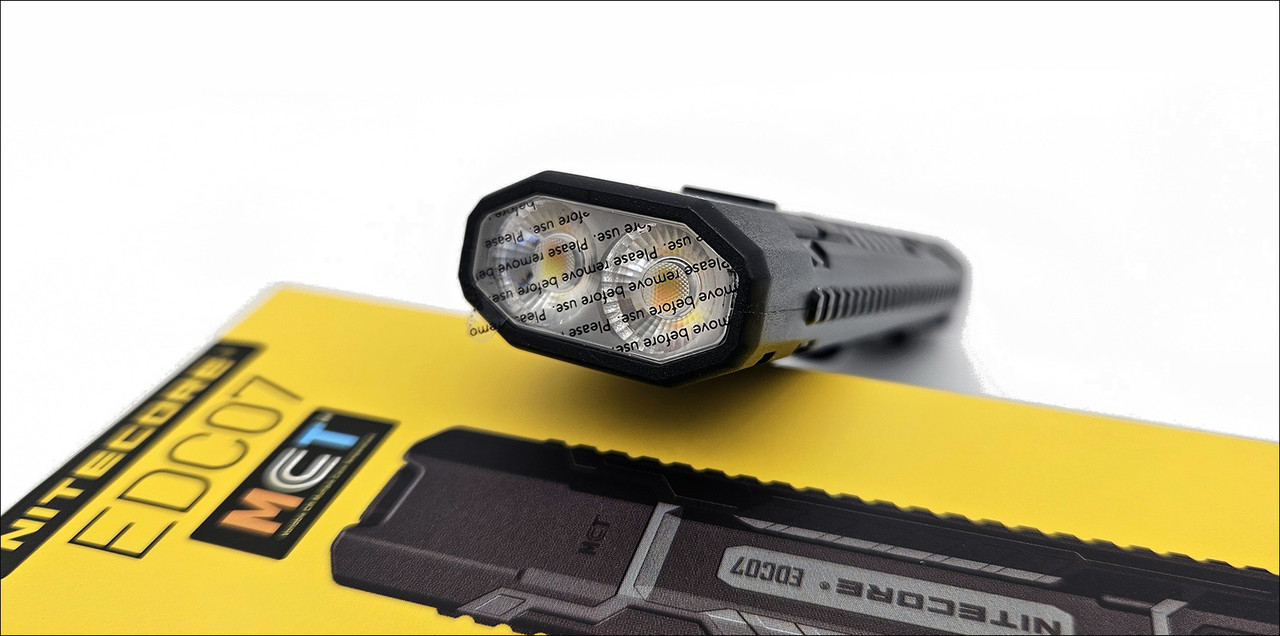

The Nitecore EDC07’s optics are protected by a clear plastic cover that must be removed before use.

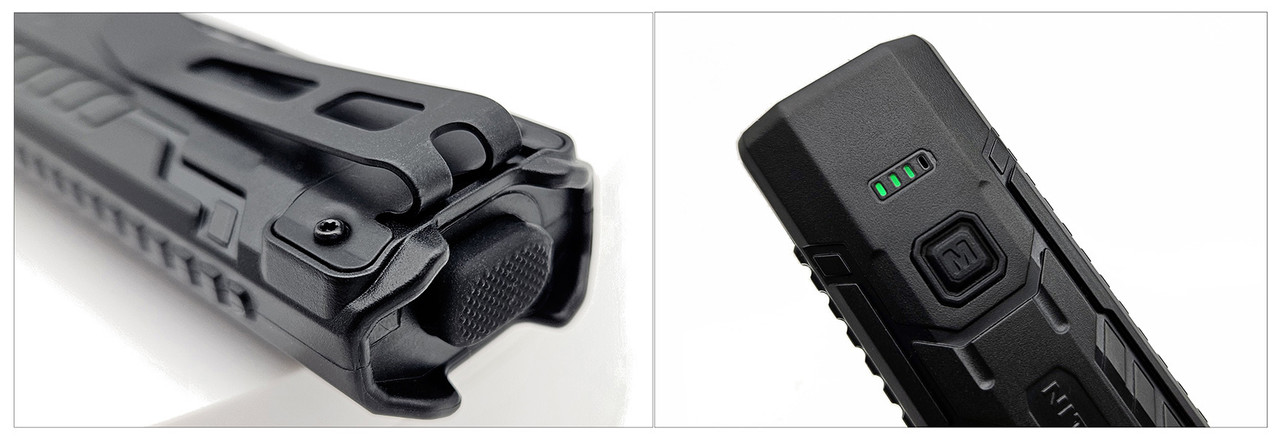

On the body of the Nitecore EDC07, there are two switches for complete control of the flashlight. The main On/Off switch is located at the tail and allows momentary power by pressing it halfway, while for other functions, use the “M” button located at the top under the head. The power button is quite hard to press and is protected on the side from accidental activation, especially considering that the EDC07 does not have an electronic lock. The two switches are easy to find in the dark and can be operated while wearing gloves.
The Nitecore EDC07 can be stood upright (candle-shaped).

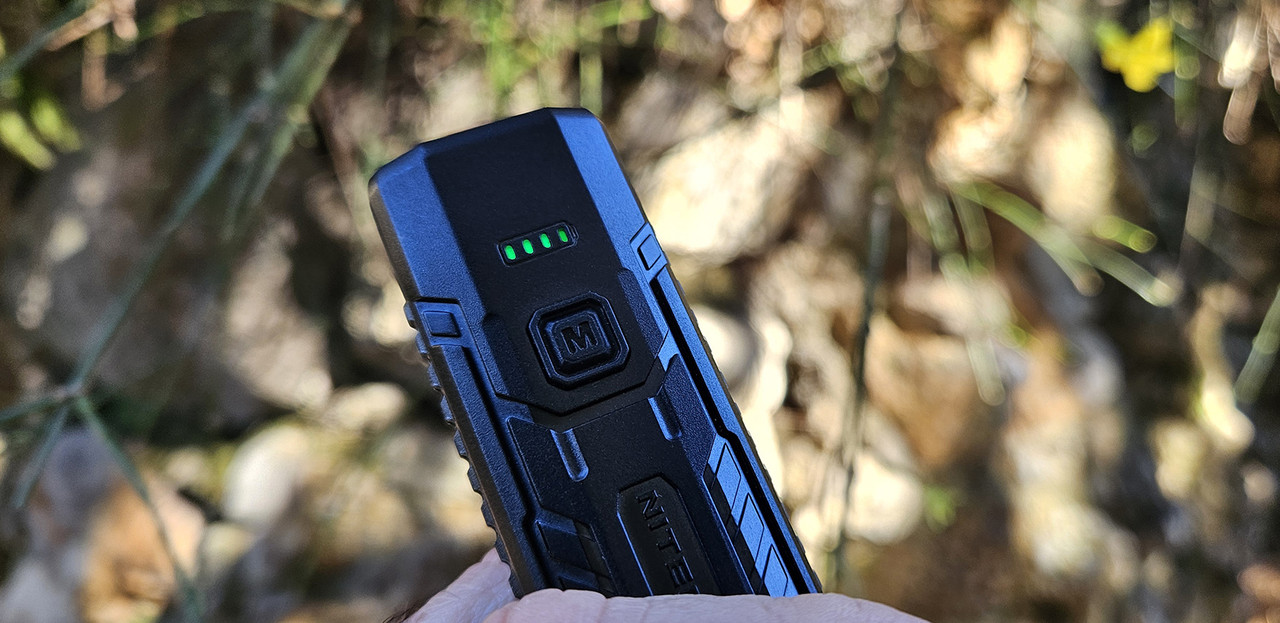

Above the “M” button, there are four LED charge indicators that activate after turning on the light, or by lightly pressing the “On/Off” button, to indicate the remaining battery charge (they turn off automatically after 3 seconds).
Indicator Status Power Level
4 Solid 75% – 100%
3 Solid 50% – 75%
2 Solid 25% – 50%
1 Solid 10% – 25%
1 Flashing <10% (Recharge as soon as possible)

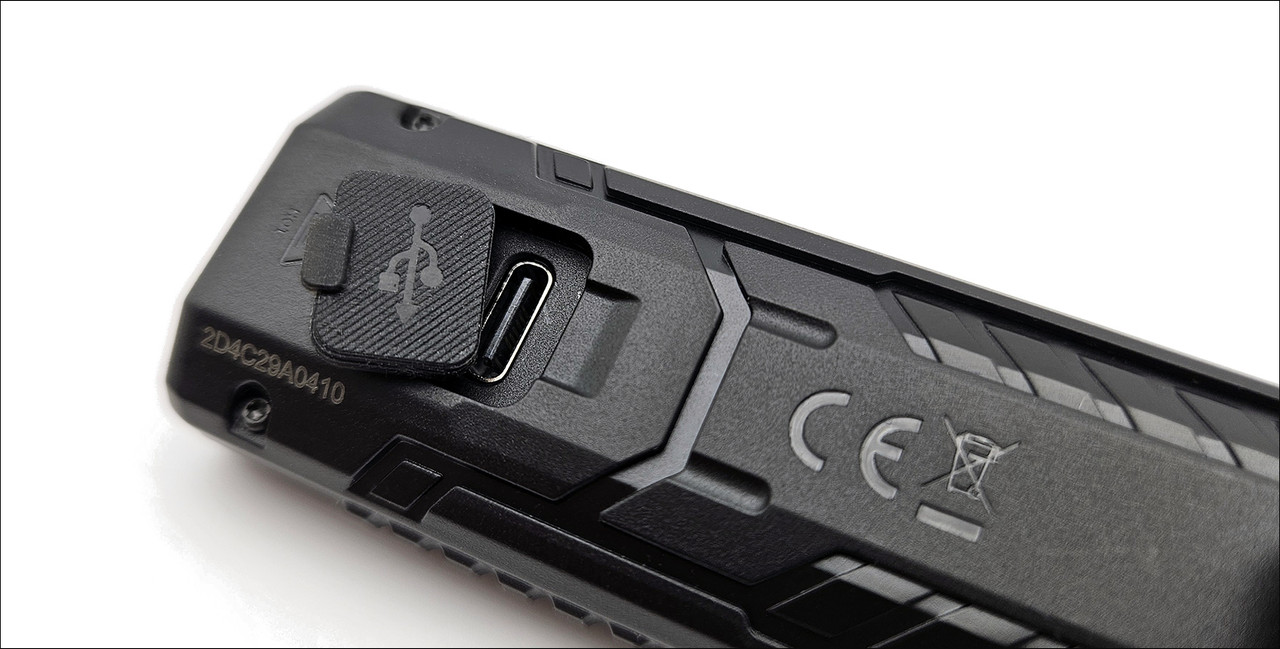

The Nitecore EDC07 uses a USB-C port for charging. The internal battery capacity (non-replaceable) is 1,500 mAh with a maximum battery life of 360 hours. A USB-C cable is included for connecting to an external power source (e.g., a USB adapter, a computer, or other USB charging devices) to begin charging.
The charging time, measured in my tests, is approximately 1 hour and 15 minutes with fast charging (via a 5V/2A adapter).
During charging, the four green LEDs display the battery’s charge status. When the battery is fully charged, the LEDs remain lit to indicate charging is complete.
The Nitecore EDC07 can be turned on and operate normally while charging (or remain permanently on when using a USB device such as a power bank).
The EDC07 uses APC (Advanced Power Cut-Off) technology to offer extremely low parasitic drain, allowing for up to one year (365 days) of standby time.

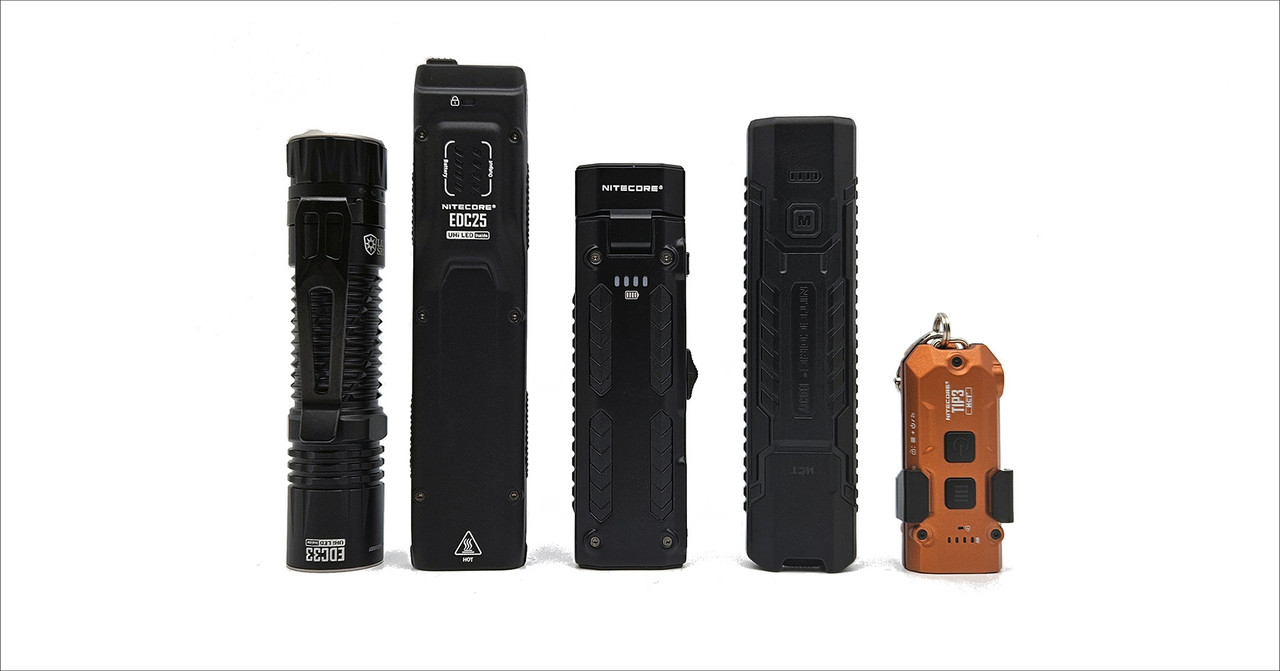

The Nitecore EDC07 is seen alongside other Nitecore EDCs.
From left: Nitecore EDC33, Nitecore EDC25, Nitecore EDC09, Nitecore EDC07, and Nitecore TIP3.
User Interface (UI):
Momentary Tactical Illumination
When the light is off, half-press and hold the rear button to momentarily turn it on. Release to turn it off.
On and Off
On: When the light is off, press the rear button fully until you hear a click to turn it on.
Off: When the light is on, press the rear button fully until you hear a click to turn it off.
Color Temperature Switching
The product offers three color temperatures: cool white, neutral white, and warm light. The color temperature can be changed as needed. When the light is on, press and hold the M button to cycle through the following color temperatures: cool white, neutral white, and warm light. Release to confirm and save the selected color temperature.
Brightness Level Adjustment
When any color temperature is active, briefly press the M button to cycle through the following brightness levels: LOW, MEDIUM, HIGH, and TURBO.
Note: The product has a memory function. When reactivated, it automatically accesses the previously saved brightness level and color temperature.
Activating ULTRALOW / STROBE / SOS
• When the light is off, while holding down the M button, press the tail button completely to activate ULTRALOW.
• When the light is off, while holding down the M button, press the tail button completely. Continue holding down the M button even after activating ULTRALOW. The light will pass through the following sequence: ULTRALOW – STROBE – SOS. Release to confirm and save the selected mode. Briefly press the M button to switch to the LOW setting of the current color temperature.
Note: The product has a memory function. When reactivated, it automatically accesses the previously saved ULTRALOW / STROBE / SOS modes.
BEAM and RUNTIME:
I would like to point out that the photos and values shown in the graphs should be taken primarily as reference values because they were taken with hobbyist-level equipment and under environmental conditions different from those used in the laboratory.

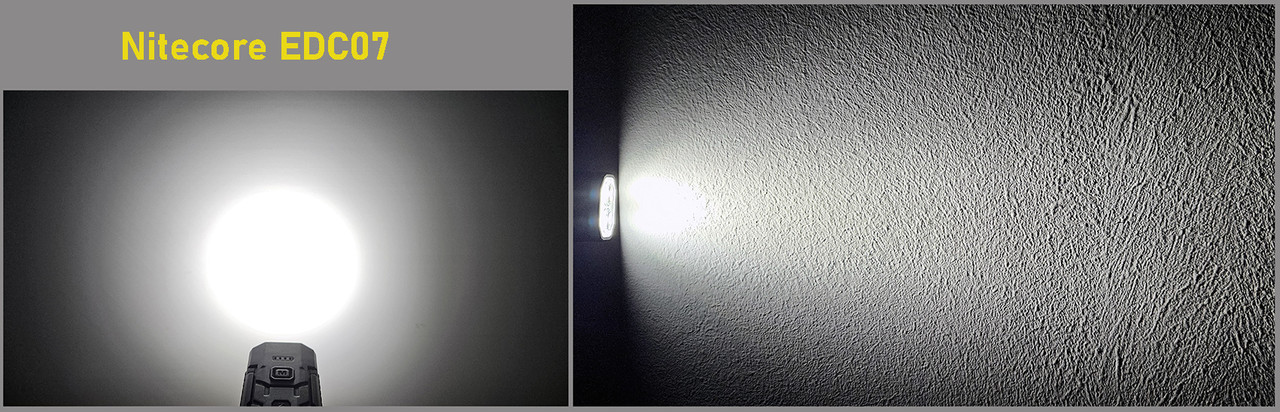

When tested on a wall, the Nitecore EDC07’s beam showed no particular artifacts.

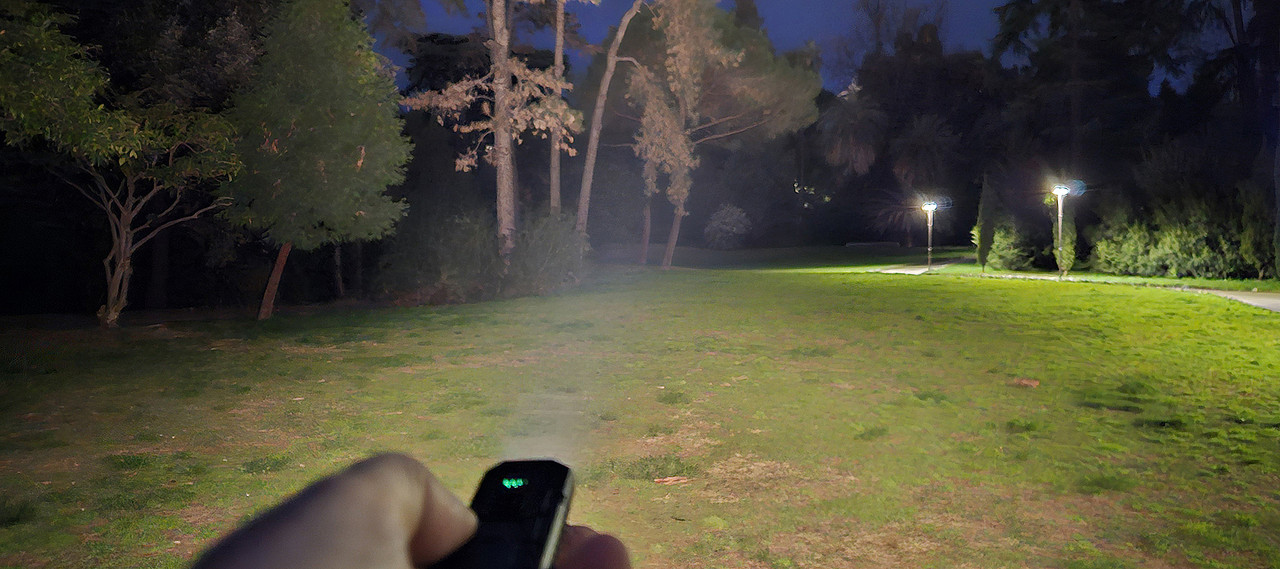

The optics do a good job; the flood beam illuminates outdoors with a decent depth, with the levels well spaced. I did not notice any PWM at the various brightness levels. The distance from the start of the spill to the feet is minimal.
The three beam colors are well controlled by the “M” button, providing good lighting quality.

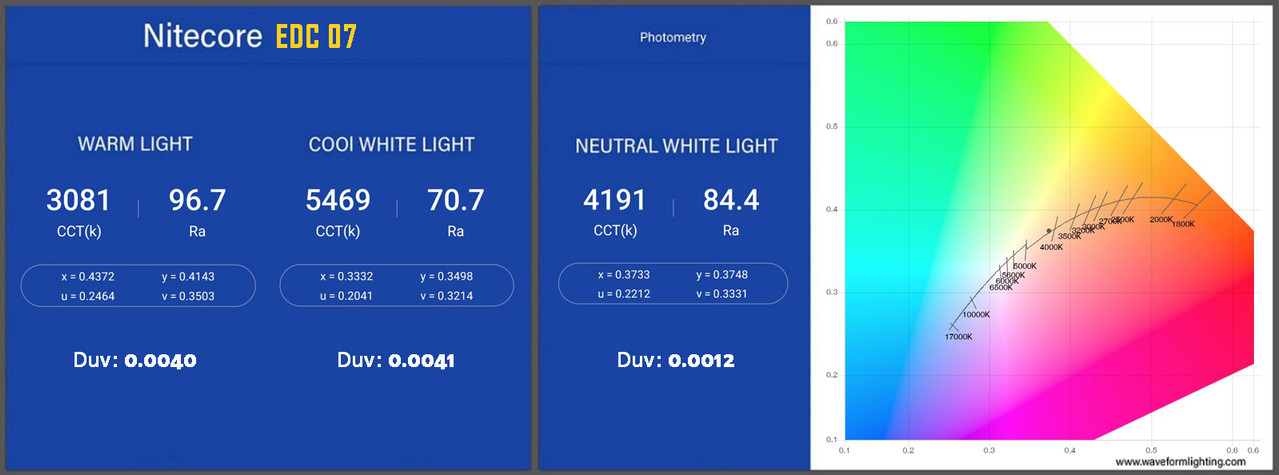

Using the OPPLE Light Master Pro, a fairly accurate device even if not calibrated, I measured the CCT color temperature and Ra color rendering index (CR) for each of the three colors. The neutral white beam achieved excellent values, with no particular color casts and an excellent DV value.
Note: The Duv is a metric that measures the distance of a color point from the blackbody locus on a chromaticity diagram. A positive DV value indicates that the color is above the locus (greenish hue), a negative DV value indicates that it is below (pinkish/magenta hue), and a DV value of zero indicates that the color is perfectly on the locus.
The CRI (Ra) is a measurement that evaluates the ability of an artificial light source to faithfully reproduce the colors of objects compared to a natural light source. Sunlight is considered the gold standard, with a CRI of 100, indicating the highest color reproduction capability.
Here are some values found for the Nitecore EDC07:
Warm Light: Color Temperature (K): 3081 - Color Rendering Index (Ra or CRI): 96.7 - Duv = 0.0040
Cool White Light: Color Temperature (K): 5469 - Color Rendering Index (Ra or CRI): 70.7 - Duv = 0.0041
Neutral White Light: Color Temperature (K): 4191 - Color Rendering Index (Ra or CRI): 84.4 - Duv = -0.0012

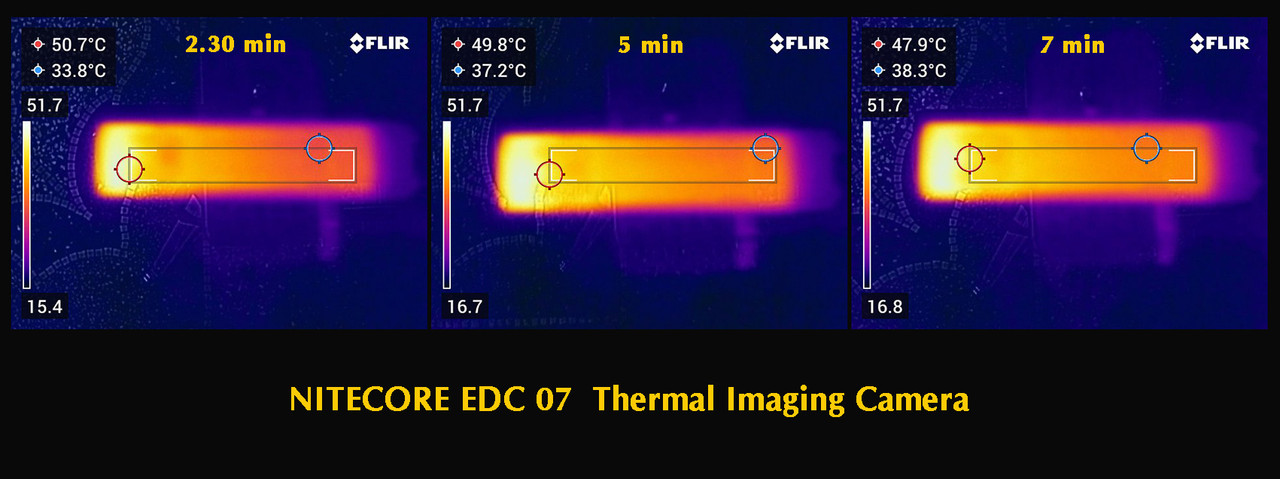

Using a thermal imaging camera, I measured the heat distribution on the body of the Nitecore EDC07 in the most powerful mode (Turbo 1500 lumens) after 2 minutes 30 seconds, 5 minutes, and 7 minutes from startup. The heat distribution on the body of the flashlight is fair.

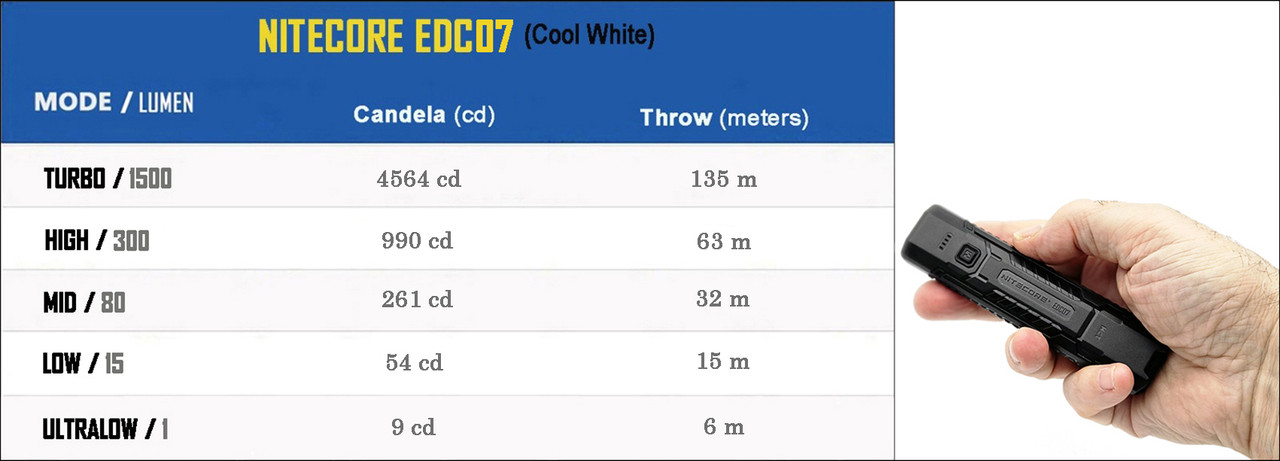

The table below shows some peak candela (cd) values taken with my Luxmeter for the five levels: Turbo, High, Medium, Low, and Ultralow. These values were taken with the Nitecore EDC07 set to Cool White color temperature. The values found are within Nitecore’s specifications.
The runtimes were performed indoors at a temperature of approximately 18°C using the fully charged 1500mAh internal battery.
The Nitecore EDC07, with the ATR module, adjusts its output power to the surrounding environment to maintain optimal performance.

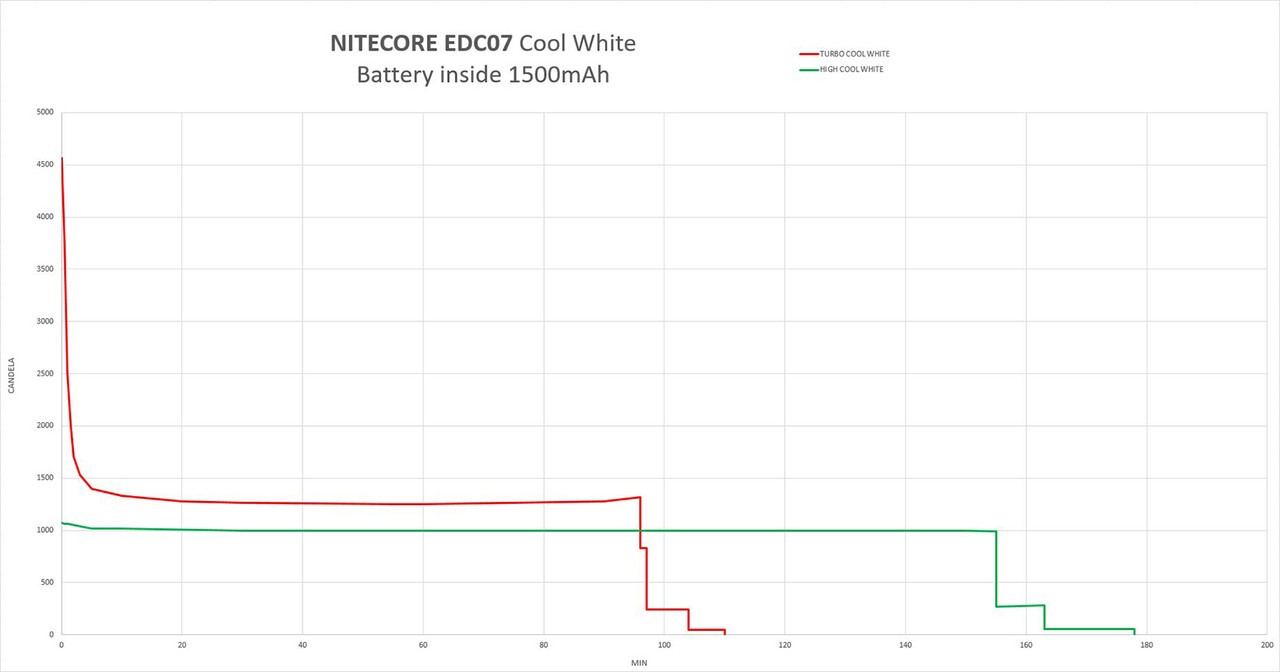

The runtime tests were performed in TURBO mode (1500 lumens) and HIGH mode (300 lumens) with a cool color temperature (Cool White). The Turbo mode test at 1500 lumens was repeated twice with approximately the same results. The discharge time at this brightness level is shorter than that shown in the table.
Switching to the 300-lumen High mode, the Nitecore EDC07 shut down after 179 minutes, in line with Nitecore’s stated time. These are still decent values with good regulation.
In Turbo mode, the brightness decreases immediately and stabilizes after about 6 minutes, with constant output until minute 96, when the decrease begins due to the internal 1500mAh battery being depleted.
In High mode, there is a slight decrease in the first 5 minutes after startup, with the brightness then remaining constant until minute 155, when the first stepdown occurs due to battery depletion.

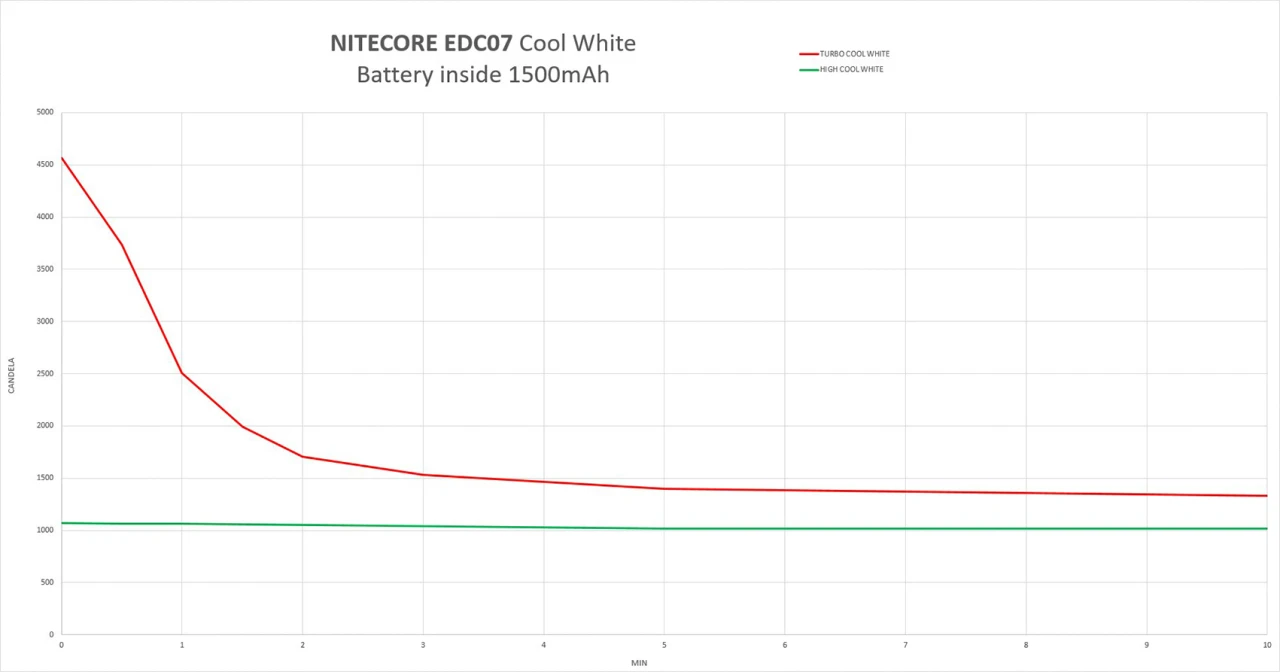

The first 10 minutes:
VIDEO Unboxing e Use
CONCLUSIONS:
The new Nitecore EDC07 is a lightweight, easy-to-use all-purpose flashlight. The EDC07 offers excellent brightness control thanks to its two switches, and features excellent MCT (Multiple Color Temperature) technology, which provides three different beam colors, including an excellent warm light with a CRI of over 96.
The internal 1500mAh battery has good battery life, with a full charge taking just over an hour.
In conclusion, the Nitecore EDC07 is definitely a product worth considering if you need a very lightweight EDC flashlight with good brightness and the ability to quickly and easily select the beam color.
Thanks for reading the review.
Roberto
