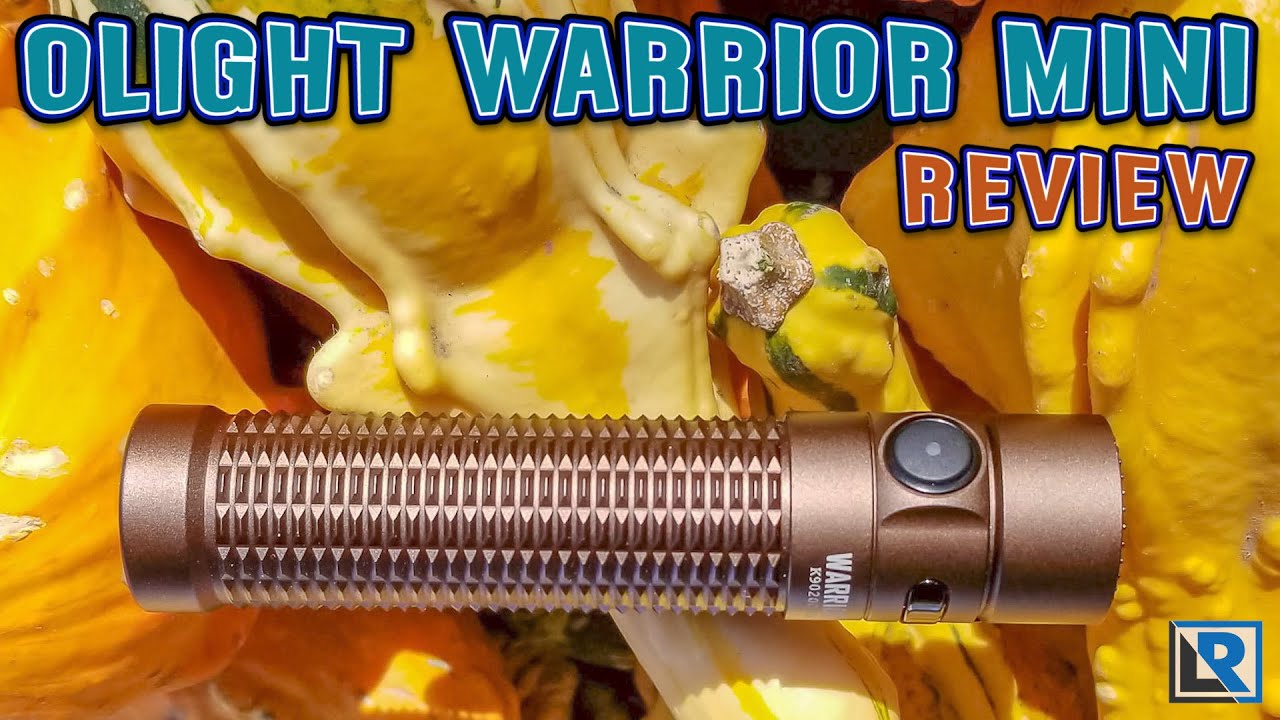

Today I have Olights new smaller form factor tactical light the Warrior Mini. It’s capable of 1500 lumens, runs on an 18650 battery and is available in 3 colors, black, a splatter camo, and the desert tan that I have here. Thanks to SkyBen (Affiliate Link) for sending this to me to review, please make sure to check them out in the description below.
Watch this review on YouTube:
Follow me on Instagram: https://www.instagram.com/liquidretro/
Join the Facebook Page: Liquidretro Gear & Reviews
Packaging & Accessories
Packaging is no big surprises from Olights the past year or so, it’s the white high quality sleeve over a plastic tray inside that houses the light and all the accessories. On the rear of the box you have details about the light and a runtime chart. Accessories include the light itself with the clip pre installed, Proprietary 3500mAh 18650 battery, MCC2A USB charger, Olight branded lanyard that attaches on the clip, and the manual. No extra orings on this light, but in most scenarios your opening it up to charge so it shouldn’t be a wear item, still a little
Construction
The Warrior mini shares similar construction to a combination of other Olights, like the Baton Pro and the Warrior Pro. The tail is a one piece design with the body tube, so batteries go in only from the head side. The button on the rear is all metal exterior construction and features the tri lug design we have seen on other recent olights. It’s also magnetic and strong enough to hold the light horizontally. The button itself is spongy, and fairly stiff. It’s a two stage actuation which I like quite a bit from a UI perspective but it’s sometimes hard to know how hard to press to get into that first lower output mode.
The texture on the body is aggressive but not sharp in the hand. I really like the feel of it, and hope we see it on future Olights. The downside is it’s aggressive enough to tear up pockets with pulled in and out during use. Threads are smooth, square cut and nicely greased.
The head internally has a single short spring in the center, and then a ring with pogo pins for making contact with the proprietary batteries negative terminal on the top. This is a little different design than we have seen in the past but seems to be very compact. On the exterior the clip is captured. The button is the same as Olight has used in recent models with the LED underneath.
The top of the head has a TIR style optic, with no glass lens over the top. There have a been a few reports online of this lens melting during extended periods of use, I didn’t see that on mine with normal stepdowns. There is also a press fit plastic bezel. It has very small raised sections to let light out if standing on it’s head.
https://i.imgur.com/qLcFEVq.jpg
Size and Weight
I measured the overall length of the light at 107mm, maximum diameter at 23mm, minimum diameter is the same. The weight with the battery and clip is 104.8g. For comparison the warrior mini is between the Baton Pro and S2R Baton length wise. Diameter wise they are all within 1mm of each other. The light is IPX8 water rated.
Retention
As an EDC I found this carried well, I carried it in a front jeans pocket for a week every day and found it to be comfortable. I don’t mind Olights dual direction clips, they leave enough from for jeans but they can catch on things like a seat belt. This is a heads up carry, so if the light activates in your pocket, and there have been a few user accounts of this online, it has done damage to people’s clothes by melting them. For that reason I strongly recommend using lockout on this one.
LED & Beamshots
The LED being used in the Warrior Mini is the SST40 in a 6000-7000k tint. It has a little green tinge on the lowest modes but once you apply more power that fades substantially. I have no problems with the SST40 LED but wish one of the neutral tint bins was used here.
The beam is nice through the TIR optic, but I wonder if something has changed with the material being used here from older lights as there are several reports of burnt or melted lenses with this it seems. So far mine is fine after extended runtimes. Overall the beam here is great for EDC in my opinion with a medium to large hot spot and quite a bit of spill, good for close up and medium to far range. With the tail switch this would be a good option to do a one handed grip of your weapon and have the light nearby in the opposite hand (Harris or Chapman style) if you wished.
Olight lists the official output modes as:
- Turbo - 1500 - 500 - 170 Lumens with step downs.
- High - 500 - 170 Lumens
- Medium - 120 Lumens
- Low - 15 Lumens
- Moon - 1 Lumen
Heat & Runtime
The light is able to maintain 98% of relative output until the 2 minute mark (Timed) before stepping down to 32% relative output. At this point the output is very flat for 3:34:00. From there you get another hour at about 12% relative output before stepping below. FL1 output runtime total was 4:18:00. If you let it continue going the light will run out to 8:33:00 suggesting there is no LVP. It shut off at 2.735V which I suspect is where the battery protection kicked in. Max heat I saw was 46C at the 10 minute mark.
UI
The UI on the Warrior Mini is the same that’s was on the Olight M2R Pro. It has 2 buttons for operation, first the two stage tail switch which is the more tactical operation, and then the standard silicone button up front for normal uses. It follows Olights basic UI for the most part.
When you half press the tail button, you get medium in configuration 1, and then turbo 1500 lumens when you full press. This is in configuration 1, In configuration 2 the tail switch goes to turbo on half press and strobe on full press.
UI is similar to other Olights but with some differences. Long press from Off to go to moon light mode, Double click to go to Turbo, and Triple click to go to strobe.There the front eswitch is mostly used as a mode switch but can be used to turn the light on and off from off as well. If you plan to use this for EDC in a pocket make sure you know how lockout mode works too.
Recharging
The Warrior Mini comes with Olights newest MCCA2 charging system which is faster and denoted with the red ring inside. The magnetic charging system is convenient and easy but does require a proprietary battery (3500mAh in this case) and the Warrior Mini is no different. The proprietary Olight battery goes with the positive terminal facing the head in this light though which isn’t always the case.
I saw total charging time take 2:35:00, and as usually my charging monitoring system doesn’t like the drops in current that the MCC chargers do so my graph is incomplete. Max charge rate I saw was 1.3A at 1:16:00 mark. Once full the battery measured 4.3145V.
Pro’s
- Big fan of the desert tan color
- Great fit and finish for production lights
- Turns out to be a nice pocket EDC for 18650 size, and the TIR is great for EDC.
Con’s
- Plastic inner bezel, more prone to scratching then metal.
- Seems to be melting lenses if activated in an enclosed space, make sure to use lockout mode.
- Proprietary battery, but this one will charge in a traditional charger
Conclusion
The two words I would use to describe the Olight Warrior Mini is “Practical Tactical”. Sure you can use it tactically, the rear tail switch despite being a bit mushy and a tad hard to predict works well, and I find myself using it in an EDC roll too, the two stage switch is so much better then just a one mode straight to turbo switch like you find on other tactical lights at least in my EDC style usage. The UI here is the same as other Olights too so you don’t really need to learn a new UI for just this light. The Olight TIR’s are my favorite too for single LED lights.
Something’s don’t change though, that proprietary battery that’s required here means you have to use the Olight battery and pay a premium for it. It also has the cool emitter which is Olights standard MO. On a tactical light it might make more sense but on a light that does great as an EDC I would prefer neutral white strongly.
Overall the Warrior Mini is probably my favorite recent EDC/Tactical light, and I can recommend it if your ok with the cool white and proprietary battery. I wonder what special edition color Olight will come up with next on this light.
