| Host model | Head Ø | Reflector composition | MCPCB | Driver | Battery tube Ø | Overall length | Host weight | Available colour | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| D6F | Ø65mm | Ø60x50mm, 10/16.5mm opening | 32mm | 47mm, side switch | 53mm(46950) | 195mm | 541g | Black | 3x21700/46120 tube avail. |
| D7F | Ø65mm | Ø60x33mm, 3-emitters(7070 PCB) | 50mm | 47mm, side switch | 53mm(46950) | 180mm | 530g | Black | 3x21700/46120 tube avail. |
| D7F(Single) | Ø65mm | Ø60x33mm, 23mm opening | 50mm | 47mm, side switch | 53mm(46950) | 180mm | ?g | Black | 3x21700/46120 tube avail. |
| D8DF | Ø85mm | Ø80x70mm, 10/16.5/23mm opening | 32/50mm | 47mm, side switch | 53mm(46950) | 218mm | 769g | Black | Cooling fan, 3x21700/46120 tube avail. |
| F8B | Ø85mm | Ø80x23mm, 8-emitters(7070) | 60mm(8x7070) | 47mm, side switch | 53mm(46950) | 198mm | 845g | Black | Cooling fan, 3x21700/46120 tube avail. |
D6F
D7F
D7F with 3x21700 tube
D8DF
F8B
===========================================================
Driver options
| Diameter Ø | Output | Ramping | Stepped | Thermal Stepdown | USB-C Charging | PowerBank Fuction | Remarks | |
|---|---|---|---|---|---|---|---|---|
| XBY Driver | ||||||||
| XBY32 v4.25/EX | Ø32mm | 18A Buck +170A FET | 0.15-18A | 1/1.7/2.9/4.5/5.2/13A | Yes | 22.5W | Yes | 14C Buck Turbo (23/28¾/34.5A), Technoman UI for v4.25EX |

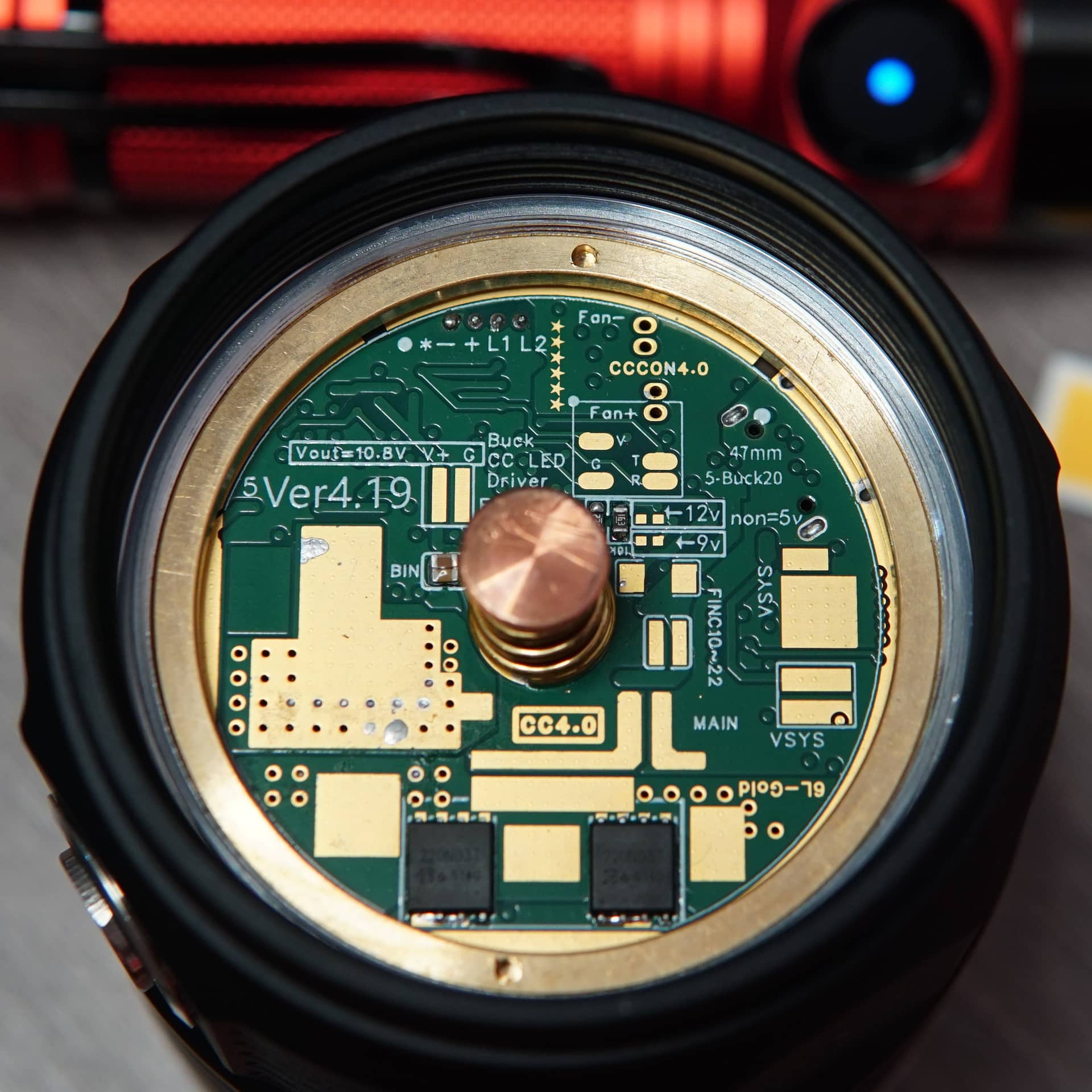

| XBY47 v4.15/4.19 | Ø47mm | 40A Buck +300A FET | 0.15-40A | Yes | 22.5W | Yes | Fan Controller | |

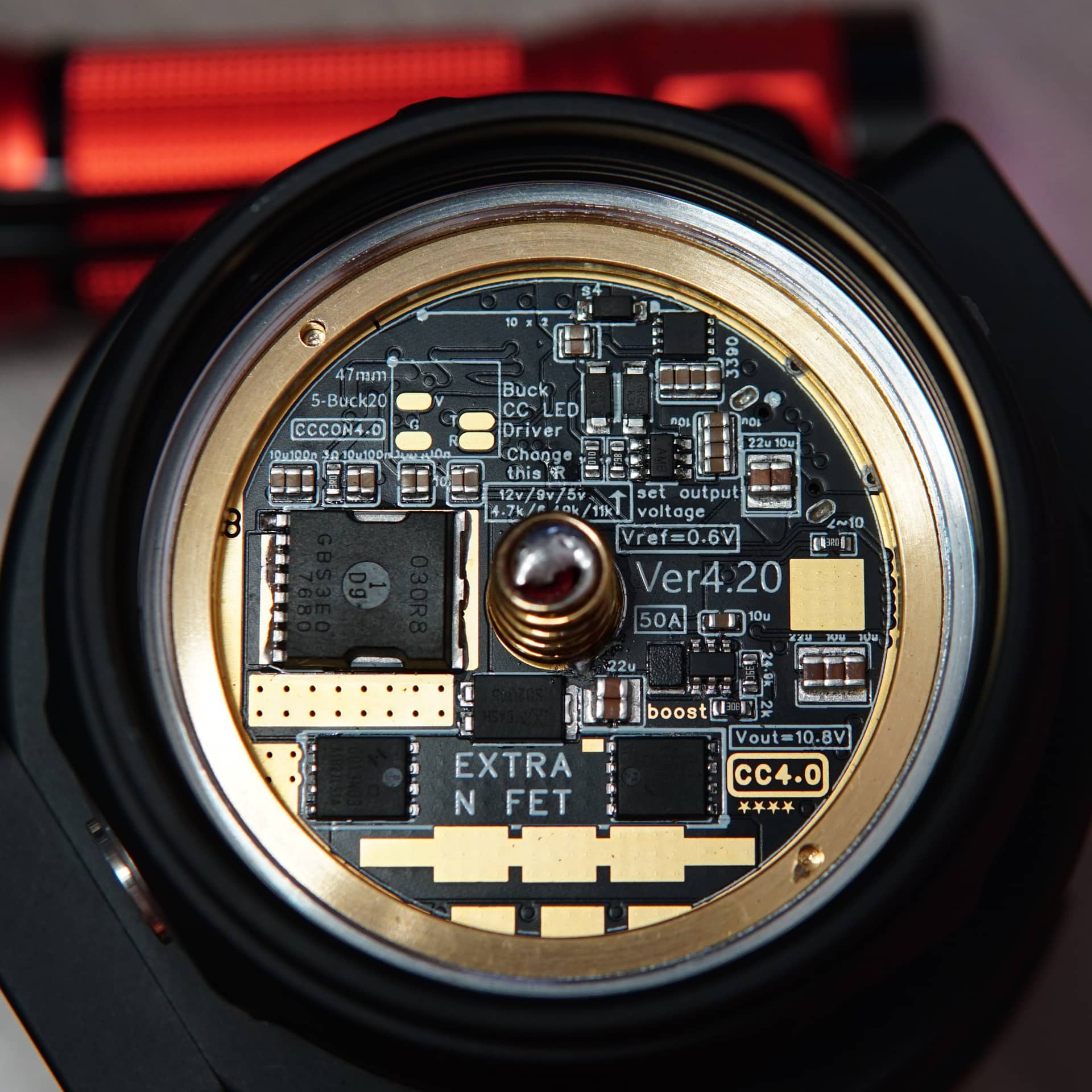

| XBY 47 v4.20 | Ø47mm | 50A Buck +350A FET | 0.15-50A | 1/3.5/7.5/15/30/50A | Yes | 22.5W | Yes | Technoman UI, Fan Controller |
| INeedMoreLumens Anduril2 driver | ||||||||
| 22mm_FET+1_v1.1 | Ø22mm | FET+1 | Yes | Anduril2 | ||||
| 32mm_FET+1_v1.0 | Ø32mm | FET+1 | Yes | Anduril2, for M4B | ||||

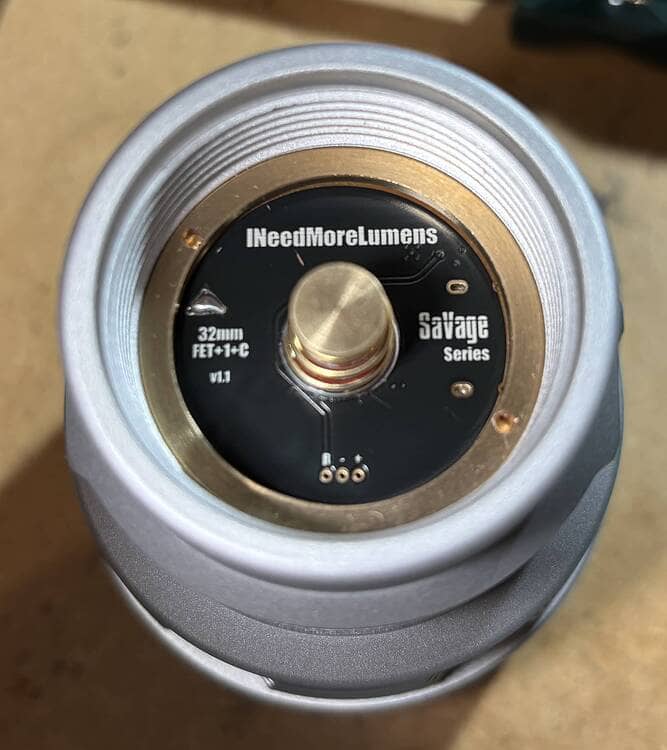

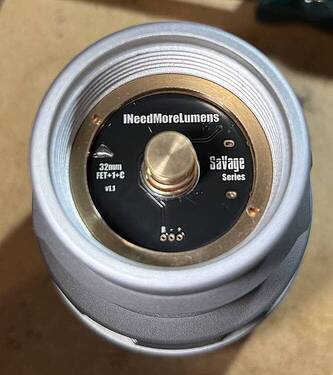

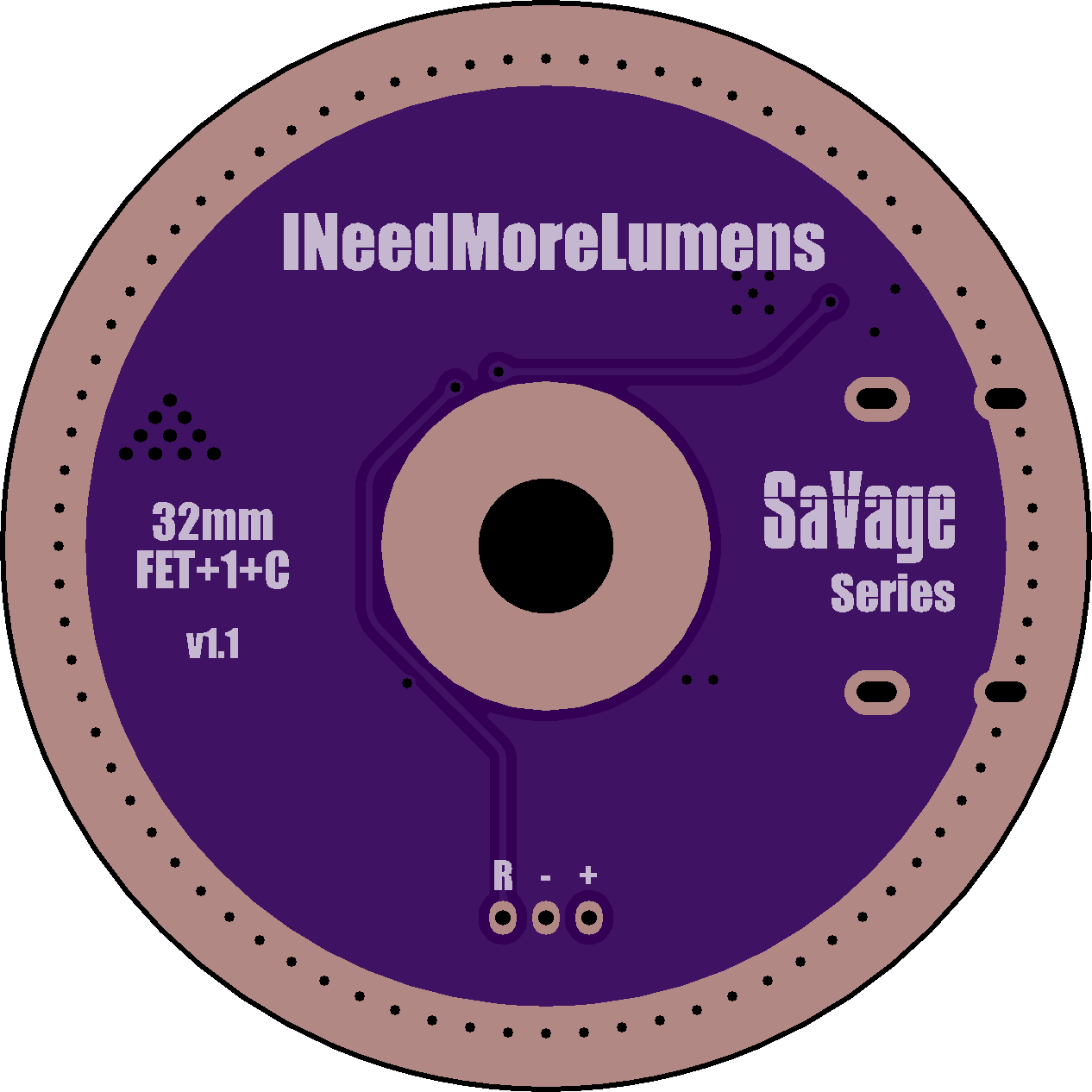

| 32mm_FET+1+C_v1.1 | Ø32mm | FET+1 | Yes | Yes | Anduril2, for D2iC, M4C, D5F |
Previous release(pre v4.xx)
