TS10 V2 driver pinout

[devryd]

Hey guys,
I am doing an emitter swap on my TS10 and wanted to extend the wires a little bit to fit the new emitters. I unsoldered the cables but unfortunately didnt note which colour was where. Does anyone here have a picture or a pinout for the driver?

Thanks in advance

[Zwerglein02 (Lucas)]

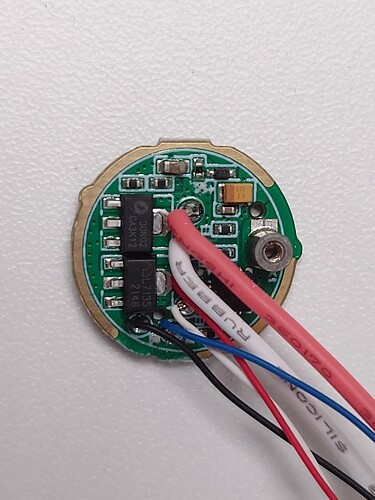

Swapped the wires already, same colours except for white/green. Hope this helps!

[YBF650]

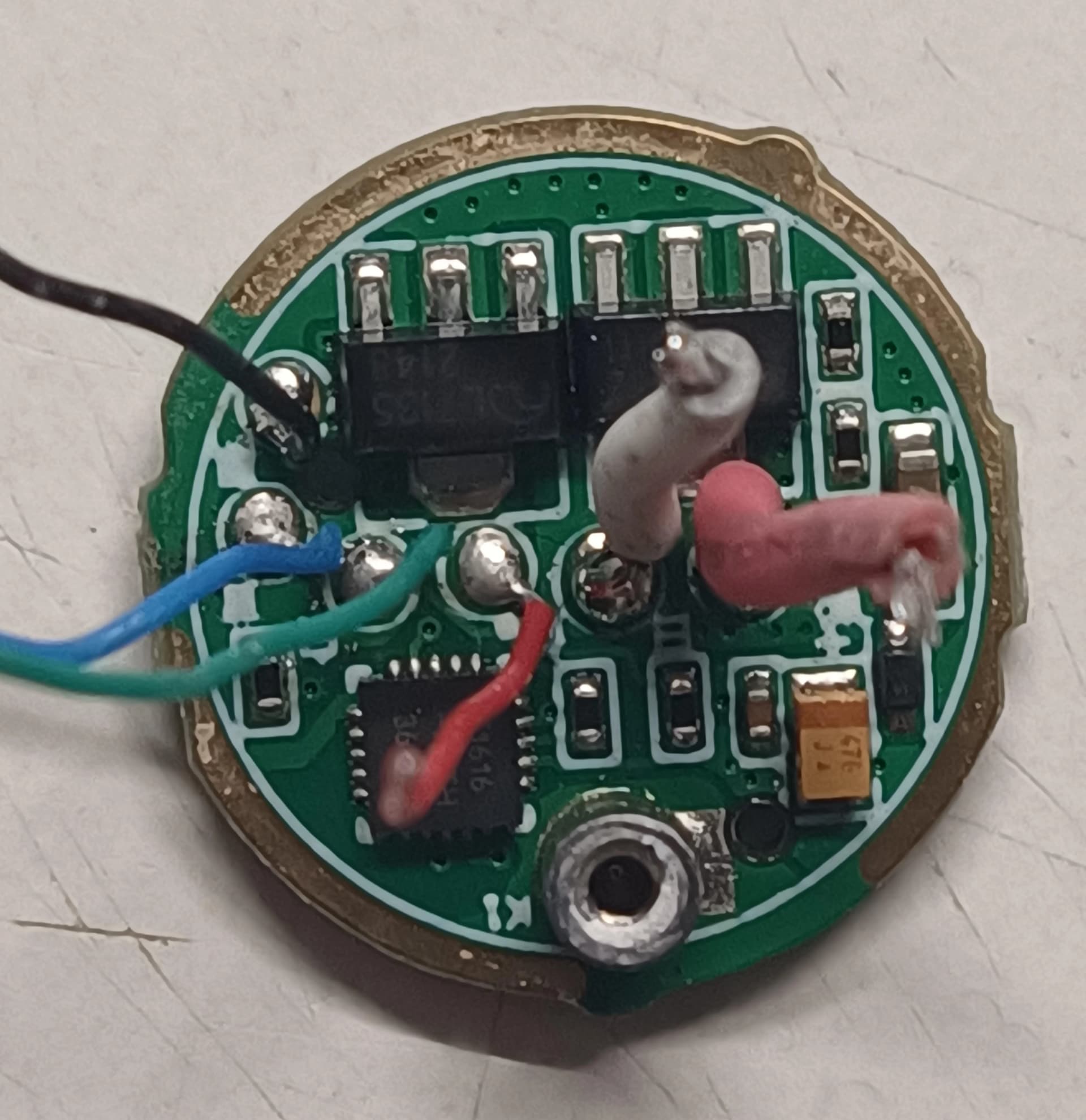

Tangentially related, but could you take another photo with the main wires moved out of the way?

I’m curious as to what the large component next to the MEL7135 is. I’m assuming it’s the FET, but I don’t know which model specifically.

[Zwerglein02 (Lucas)]

Yup, just a FET.

[devryd]

Thats great, Thanks.
