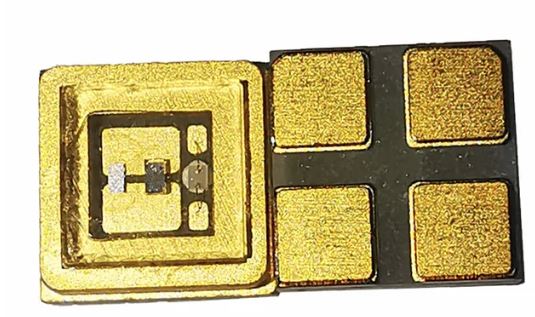

I have been given a few 3535 UVC LED lamp beads like the photo below.
I am trying to find aluminum PCB mounts for them but they all seem to be for the vertical types solder pads not these 2x2 style.
Does such a thing exist?
Thanks
What voltage are the LED’s? I’ve never seen a footprint like that before. Do you have the datasheet for the emitters so we can see what voltage they take?
1 Thank
It’s the usual 5 to 7v @150mA - the data sheet they sent shows a different footprint.
The footprint shown in the datasheet should fit on a standard 3535 MCPCB.
For the one on the first post, this shouldn’t be too difficult to do on easyeda and get it made by JLC.
