Hello BLF community,
We are excited to introduce the WP-RL813 – a ready‑to‑integrate high‑power LEP subsystem that saves months of development time. Just add housing, driver, and control interface and then one and done.

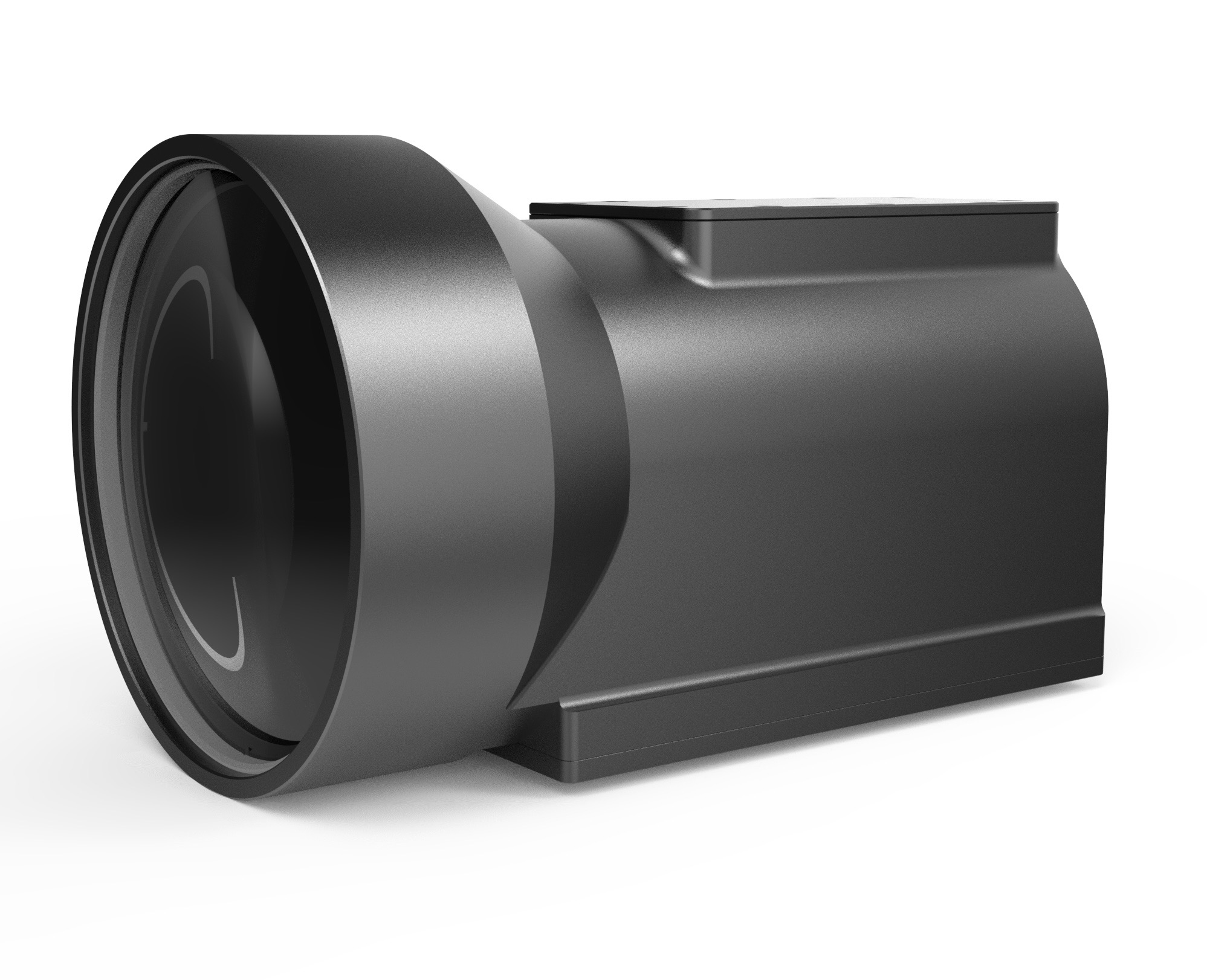

1. Product | WP-RL813
Built‑in:LEP light source, zoom lens, driver, motorized zoom mechanism, housing.
User provides: Heat sink / active cooling, final outer housing, switch controller, power supply.

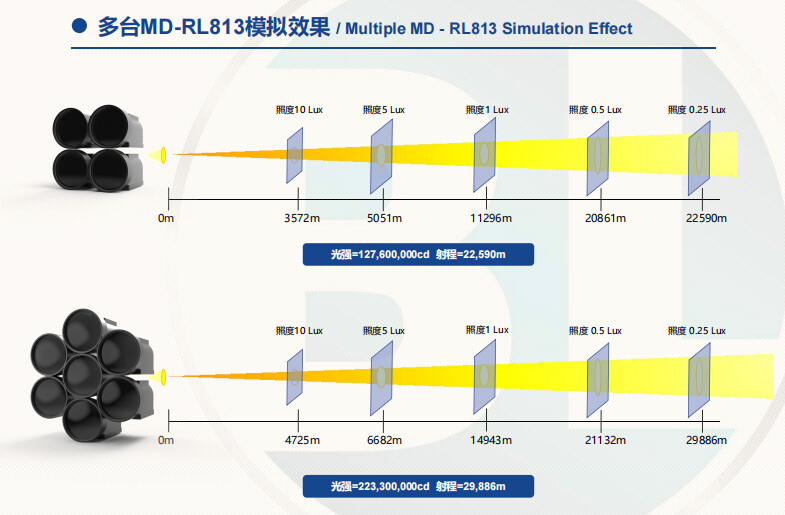

2. Mind‑blowing Multi‑unit Stacking
With 9 units, you can light up targets 30 kilometers away – unprecedented for a portable LEP subsystem.
3. Real‑World Beam Demonstration
-
0.6° spot mode –
- 20m: brick wall texture and windows clearly visible
- 50m: every window of a residential building resolved
- 400m: high‑rise building outline and vertical lines distinguishable
-
Motorized zoom 0.6° → 31.2°*– smooth, stepless, uniform beam, no stray light.
4. Principle | Blue Laser to Ultra‑High‑Intensity White Light
The WP-RL813 uses a 100W blue laser exciting a proprietary phosphor coating to produce cool white light, then shaped by a precision motorized zoom lens system – achieving an extreme 0.6° divergence.
5. Applications

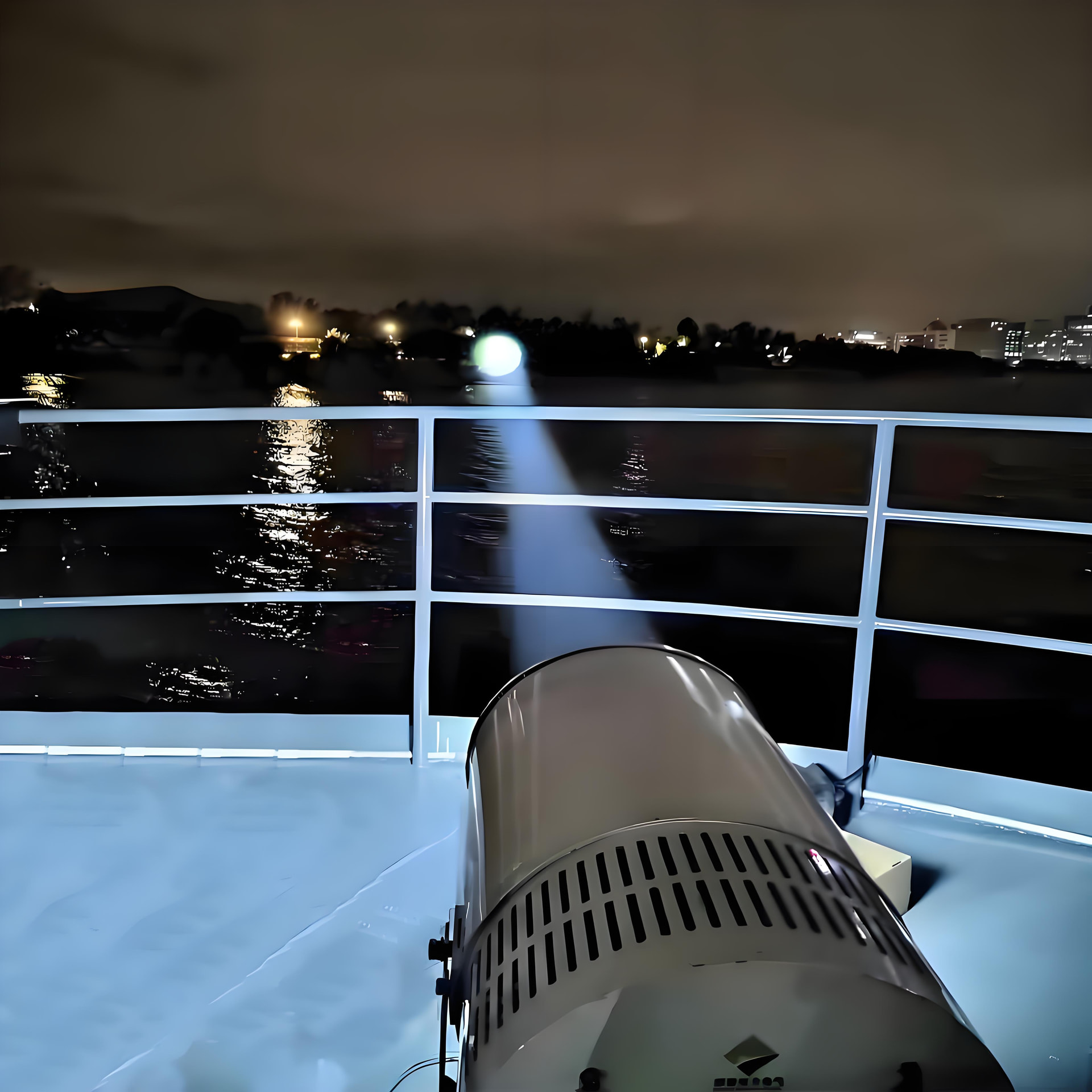

- Marine: Ship searchlights, sweeping lights
- Emergency: Search & rescue, explosion‑proof lights
- Aviation: Helicopter onboard illuminators
- Military/Tactical: Long‑range surveillance
- Industrial: Lighthouses, border patrol
Posted by BlueLakeLEP
