Hi everybody!
I know I’m late, hopefully I’m still allowed to join the contest. During the last months I’ve been too busy with other projects but now I’ve some free time and really don’t want to miss this contest. Unfortunately the remaining time of the contest is not sufficient for a full featured build, so I’ll join the Modified Light Category. Although I fear this mod is not too sophisticated I’ll call it the “Ultimate Tactical Mod”.
The flashlight to be modded will be a Convoy S2+. I don’t know yet which of these two I’ll actually use, maybe parts of both.
More to come …
I guess it’s clear now that my tactical mod is going to be a lightsaber which undoubtedly is perfect for self-defence.
As you may have noticed already I used my 3D printer for this “mod”. Everything has been designed by myself with Fusion360. All parts beside the red end pieces of the handle are printed in spiral (vase) mode with a thickness of 0.9 mm. This guaranties a beautiful skin, stability, short printing times and little material usage.
All tubes (handle and blade components) and the handle end pieces have threads which ensure good stability. Even when you push someone with the expanded lightsaber it wouldn’t collapse. Blade parts and handle are connected by steep double threads: 2 opposite entries for the threads of the counterpart which allow to tighten the components with less turns.
I used the red S2+ for this mod since it has a smooth reflector and a XP-L HI which makes it pretty throwy. This allows more light to reach the end of the blade.
1) Joining black handle and red top end piece. You’ll notice the red part has 2 threads, one for the blade and one for the handle.
2) Pushing blade components into each other and the handle and glueing the end cap to the end of the blade. The end cap has threads for fixing the collapsed blade with about a quarter turn. And it has a ribbing for better grip.

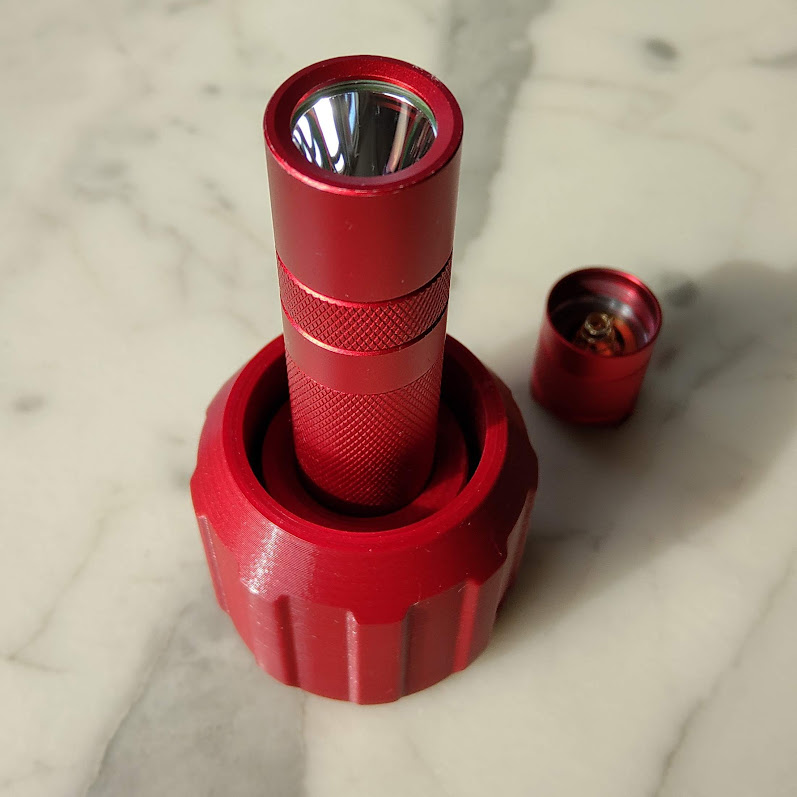

3) Mounting the flashlight to the red bottom end piece and joining the end piece with the handle. There is a lip in the red end piece where the flashlight is firmly held in place by only screwing together flashlight body and tailcap.

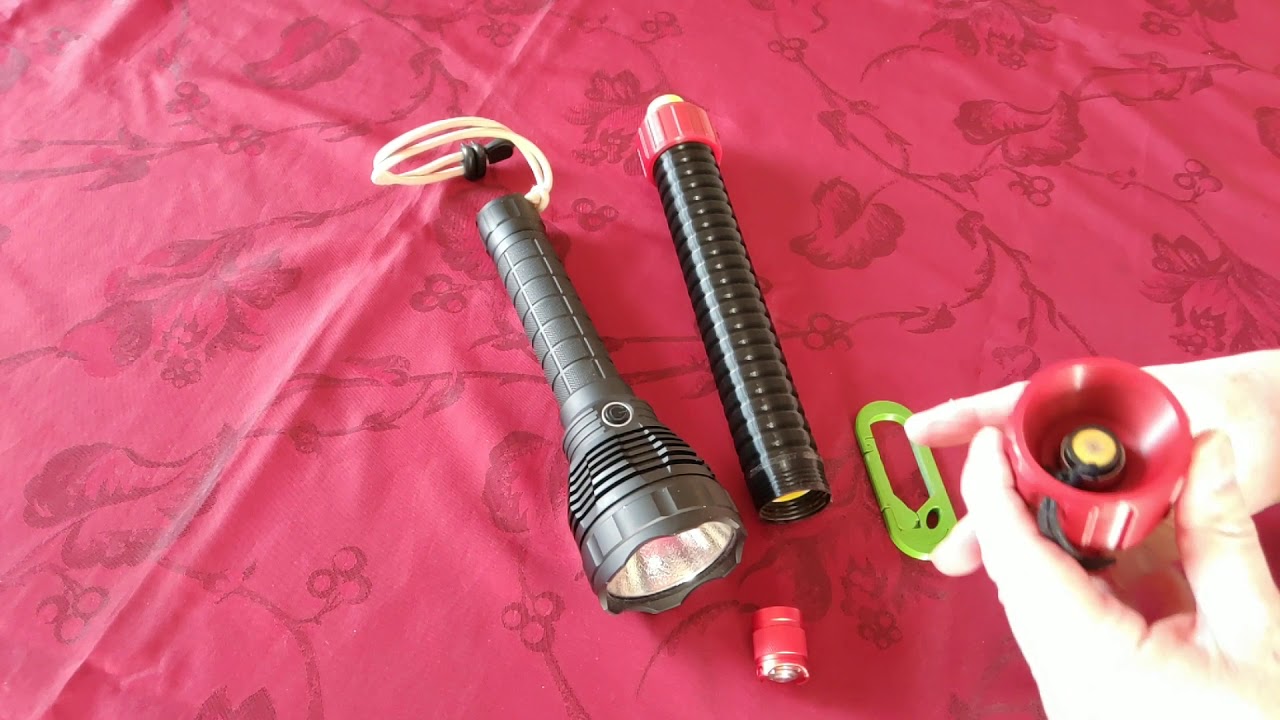

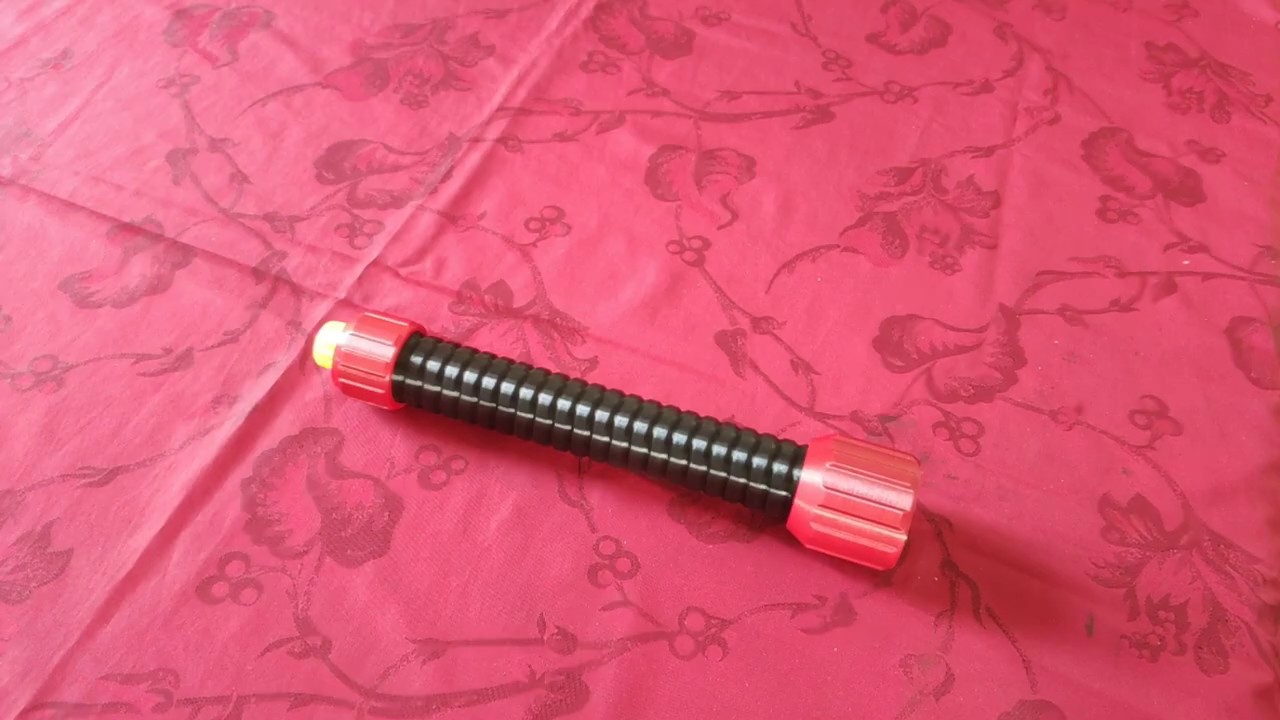

That’s it, here are some more pictures of the collapsed and expanded lightsaber. There is also a hole in the bottom end piece which allows to mount a lanyard. For size comparison I added a Convoy L6 to one of the pictures.
Videos:
Numbers:
Length (collapsed): 31.5 cm
Length (expanded): 103.5 cm
Diameter handle: 4.0 cm
Diameter (largest): 6.0 cm
Weight with cell: 325 g
that is a very cool build, besides a cool toy it can be used as a candle, and if your driver has anduril firmware with candle mode, it will flicker too,
