I got no idea what could cause this, I had never voltage readout making problems, sometimes the diode bridge was closed by solder paste and I got 4.4V readout
Thanks. I’ll have to refer to the schematics to better understand the extra caps.
I wonder if I bypassed the diode by mistake somehow. I cant remember how low I took the actual cell voltage. I know I haven’t tested it with low SoC cell, but I thought I’d check with a cell @ ~3.7.
I got atm not enough time to get ahead with the Boost, I made some progress just to run into a problem again
I ordered version 3 of prototyp boards 10 days ago, with enhanced thermal path to cool the MPS chip as I ran likely on 50W output into thermal problems I hope the new board will fix it
new 17mm for 2 S eliminating AMC7135 dedicated indicator resistor and pad
20mm new dual small FET and AMCs
20-22mm
new version with 1S 3 channel AMC and 2S dual MOSFET

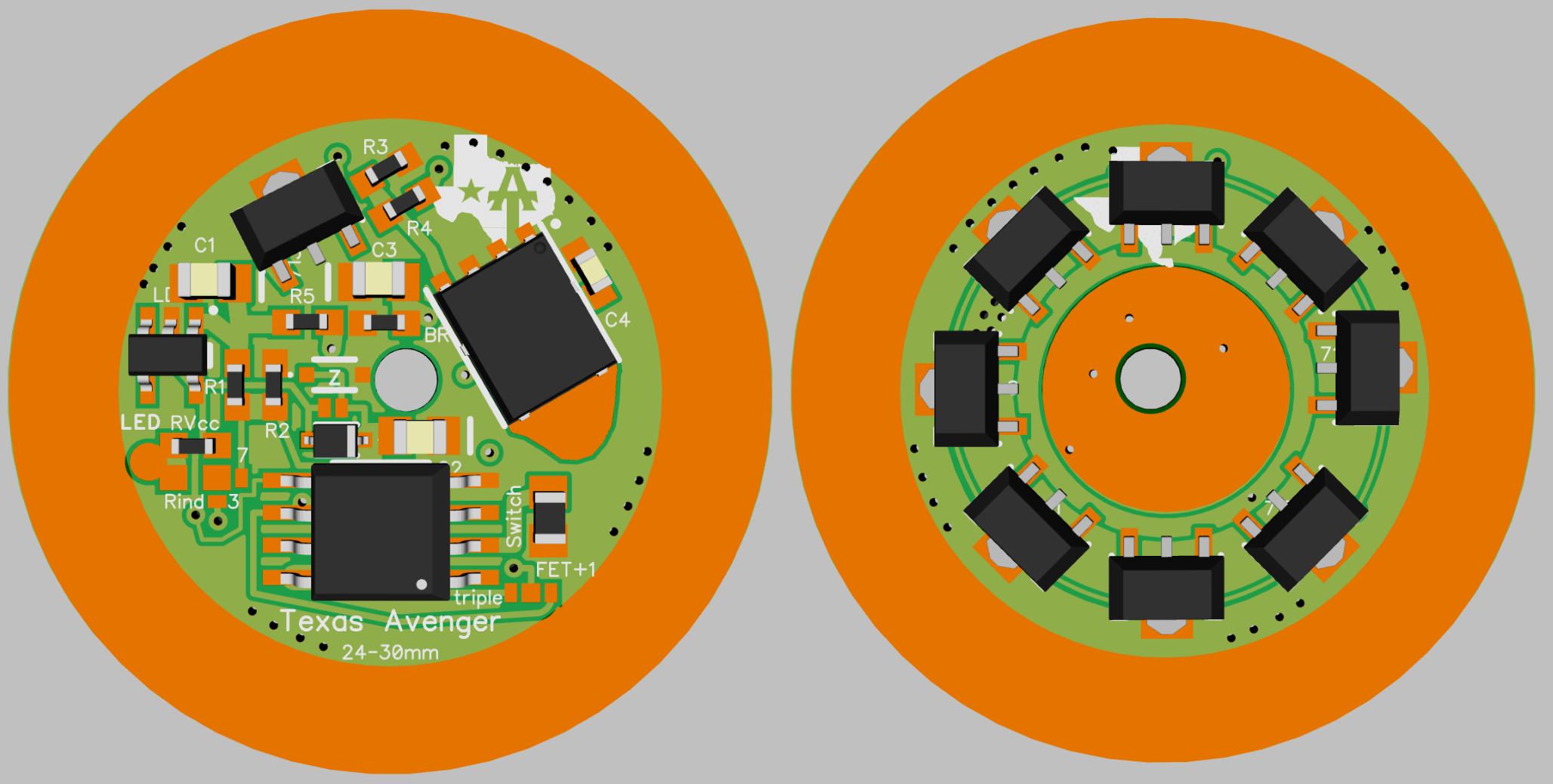

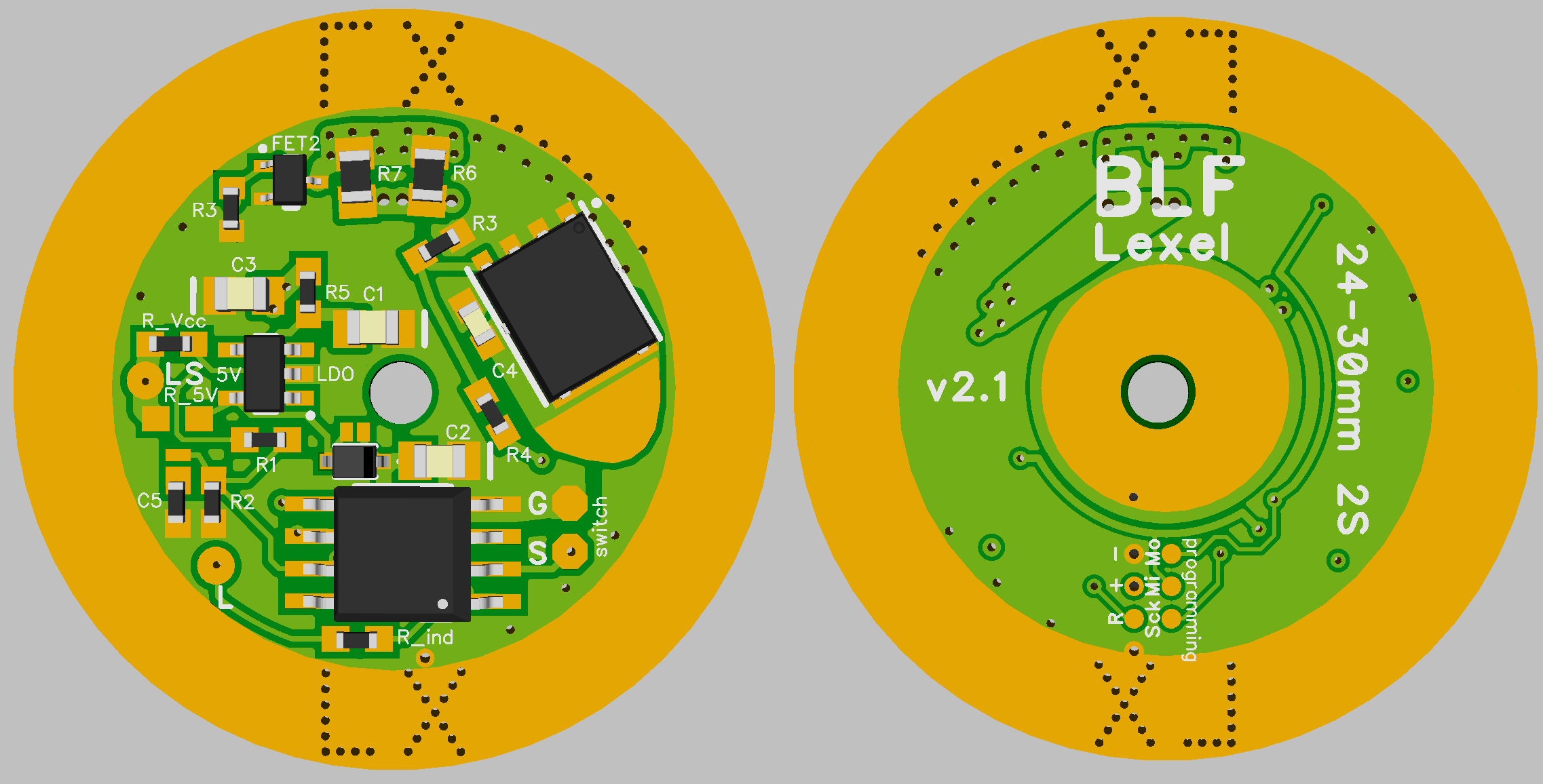

24-30mm
new design with added LED resistor to support new 2s 2x2 LED Boards and a little bugfix
new 2S version without AMC for more realibility, also added 2 switch LED support
46mm 2S/2P MT03
new enhanced version no more AMC7135
3 step filtering to get the rininging from PWM under control
.
Buck drivers:
20mm and 22mm
4 layer for better thermal properties
new more efficient MOSFET and minor changes
23mm for Klarus XT11/12GT running 2 18350s for Oslon BF or other 3V LED

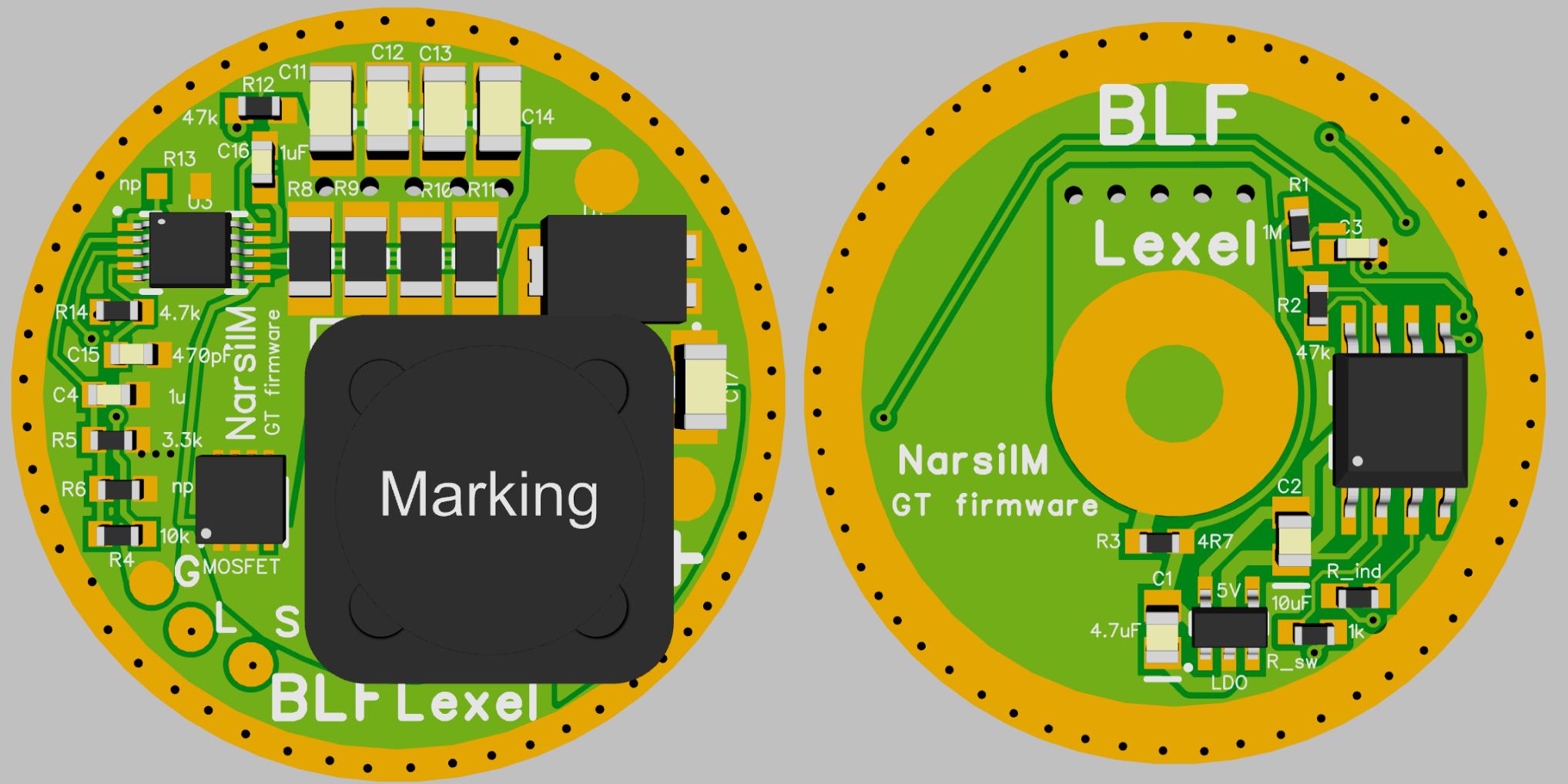

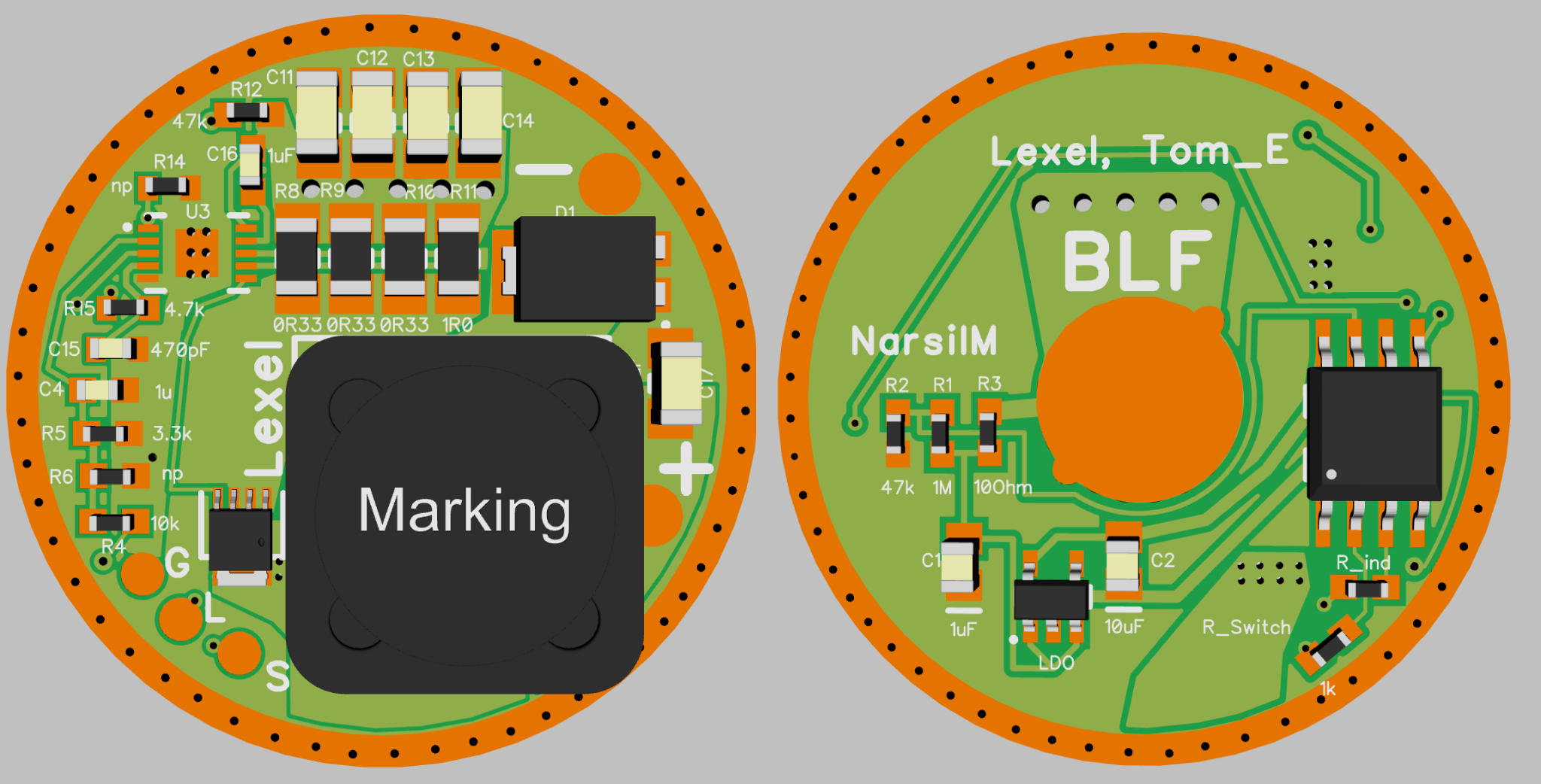

30mm cheaper but bigger inductor
new with L6 compatible Ground ring and new MOSFET
42mm TN42
new version up to 8A also for TN40S mods with XHP35s
46 mm MT07/MT07S
new version a lot more efficient MOSFET

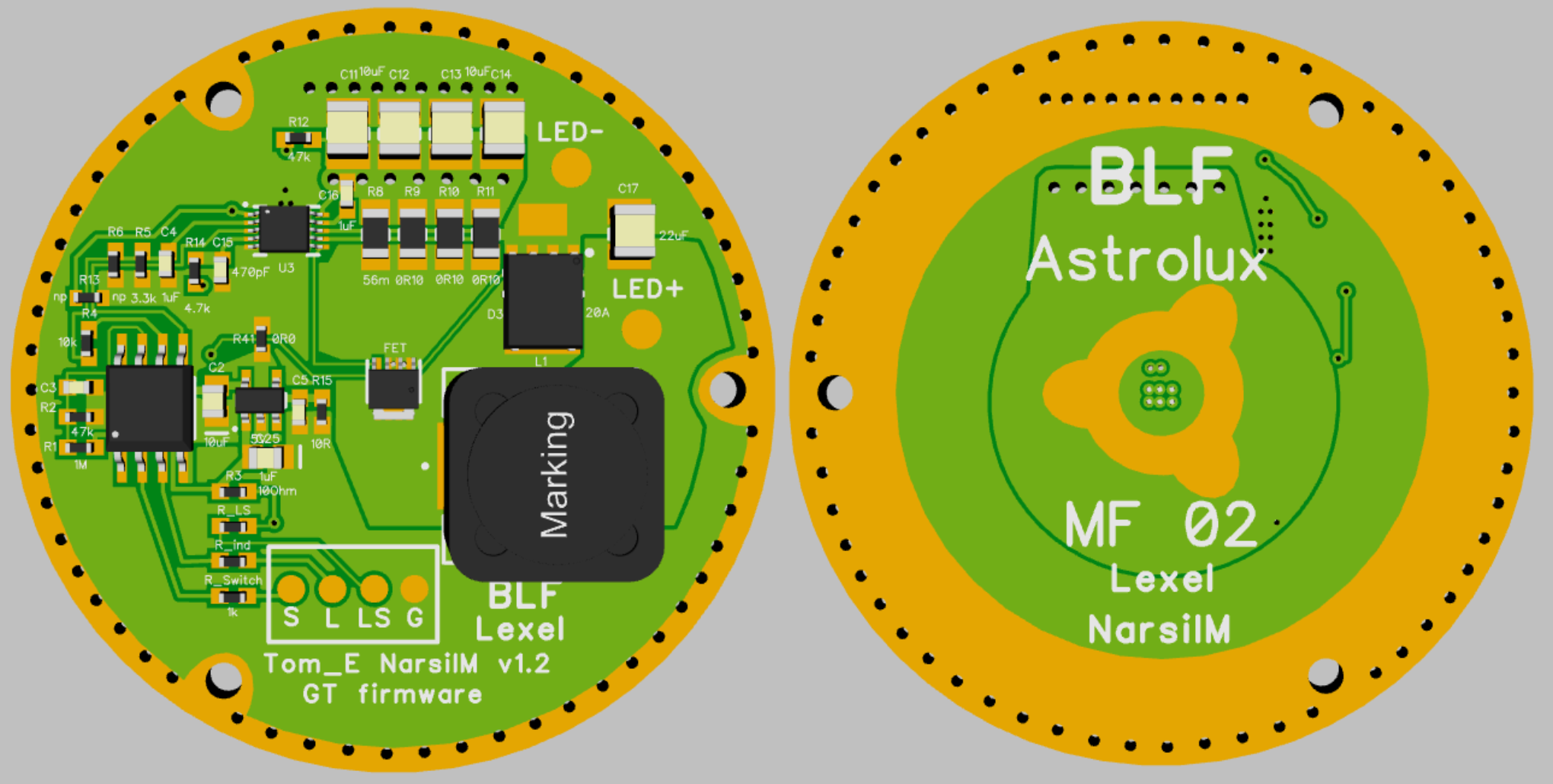

47,5mm MF02
new with better MOSFET and a lot imptrovements
46/47,5mm 2S/2P or 4S/1P AstroluxMF01/ Haike LiteMT03
MF01 v2 in 3S/6P LED Board mod, driver has 4S input 3S Output
MF01 v2 3S 14A dual Buck driver with new MOSFET and now single sided
BLF GigaThrower driver
XHP70.2 or Oslon Black Flat up to 8A
new version
also made a programming adapter for my future drivers
same order in 2 Oz from Oshpark that gives 0.8mm thickness
So I think final version of programming port found
rearranged pins to fit MCU pins arrangement better than original v1.0 had
improvement machanically
2 traces on the pogo pin board to self align it by the solder
increased pad size on drivers to 0.8mm, to compensate wrong pogo pins
length of the solder traces on board reduced as some flux went in the pogo top, can be solved with alcohol but more distance is better
Added a key head for easier handling
added 2 holes to use a wire strap to secure the programming wire
Picture of v1.1 on V1.0 board, pin alignment does not work on the small 0.6mm pad on first reflow
over time new ones, but I have here hundreds of old boards stocked up, likely 600-800
so if I take a new board over an old I would charge something, as I am usually try to use older designs if the performance is the same
If a board got new MOSFET like on the Buck I am sitting on dead boards and parts if noone want a XHP35 Buck driver, where old parts have no disadvantage
I even cancelled the current enhancement fee for high power parts, but those 6-8A all get all new parts
