Hello, everyone

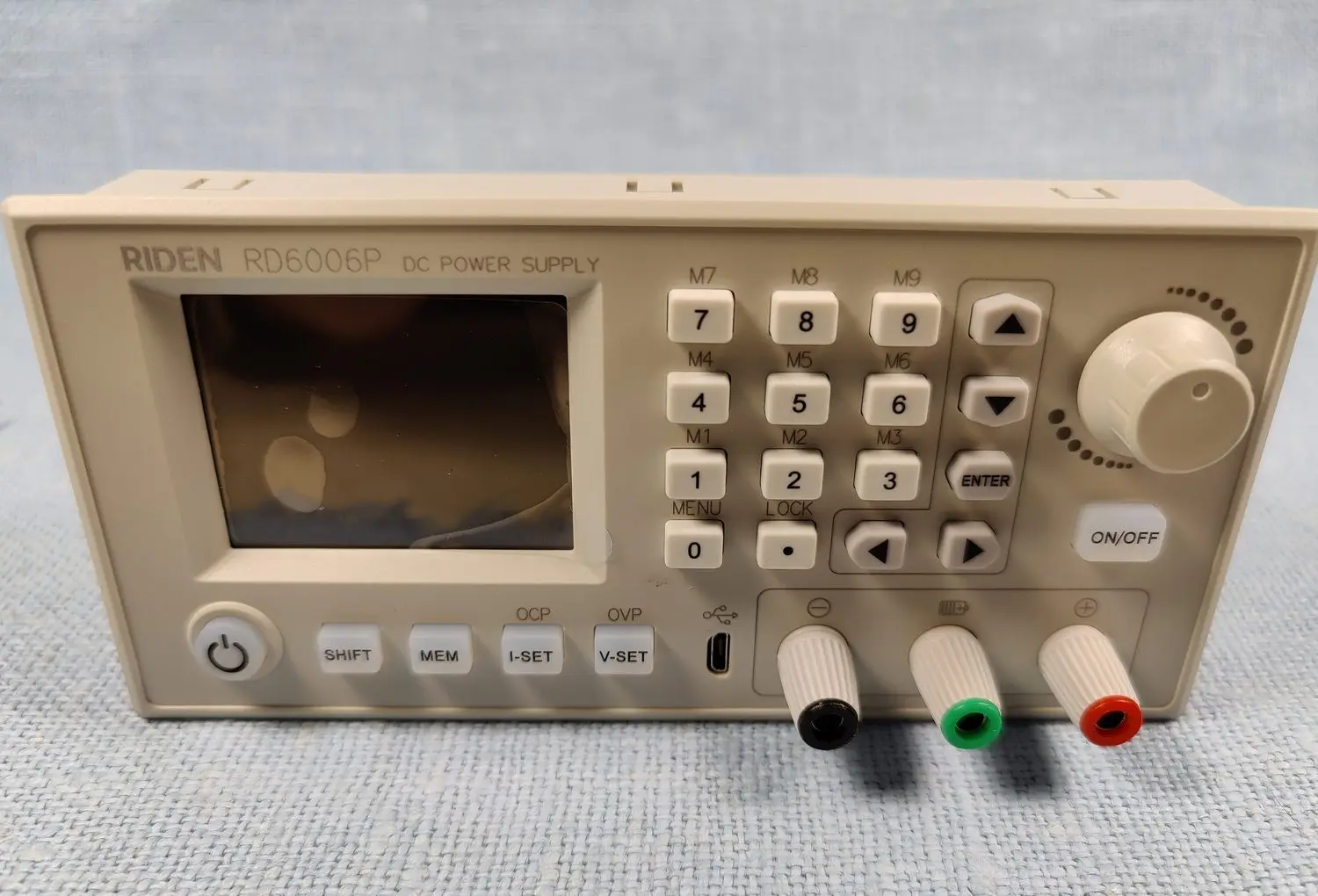

today we release a new device RD6006P, you can treat is as a update version of RD6006, it has 5 digit, voltage resolution 1mV, current resolution 0.1mA , lower ripple , more accurate it can be used to fix phone , computer and other devices.
As what we always do, when a new product is released, we will set the lowest price for 5 days, and then we will sell them at normal price
Here is the product link: www.aliexpress.com/item/1005002185722889.html
you can get all the information at the product description page
RD6006P:64.99 USD (normal price 80USD)
RD6006P-W: 68.99 USD (normal price 84USD)
Notice: this price is only for 5 days

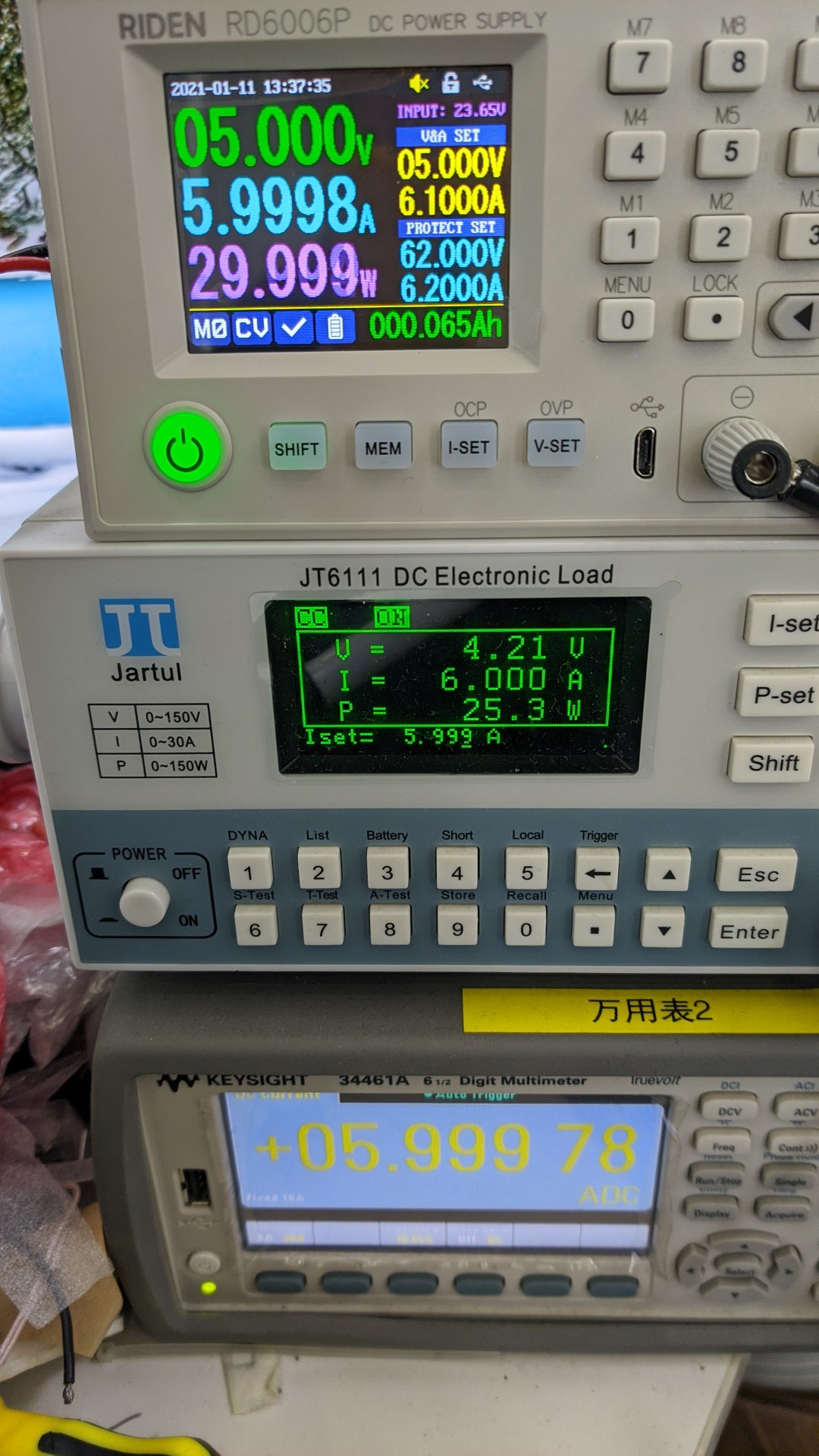

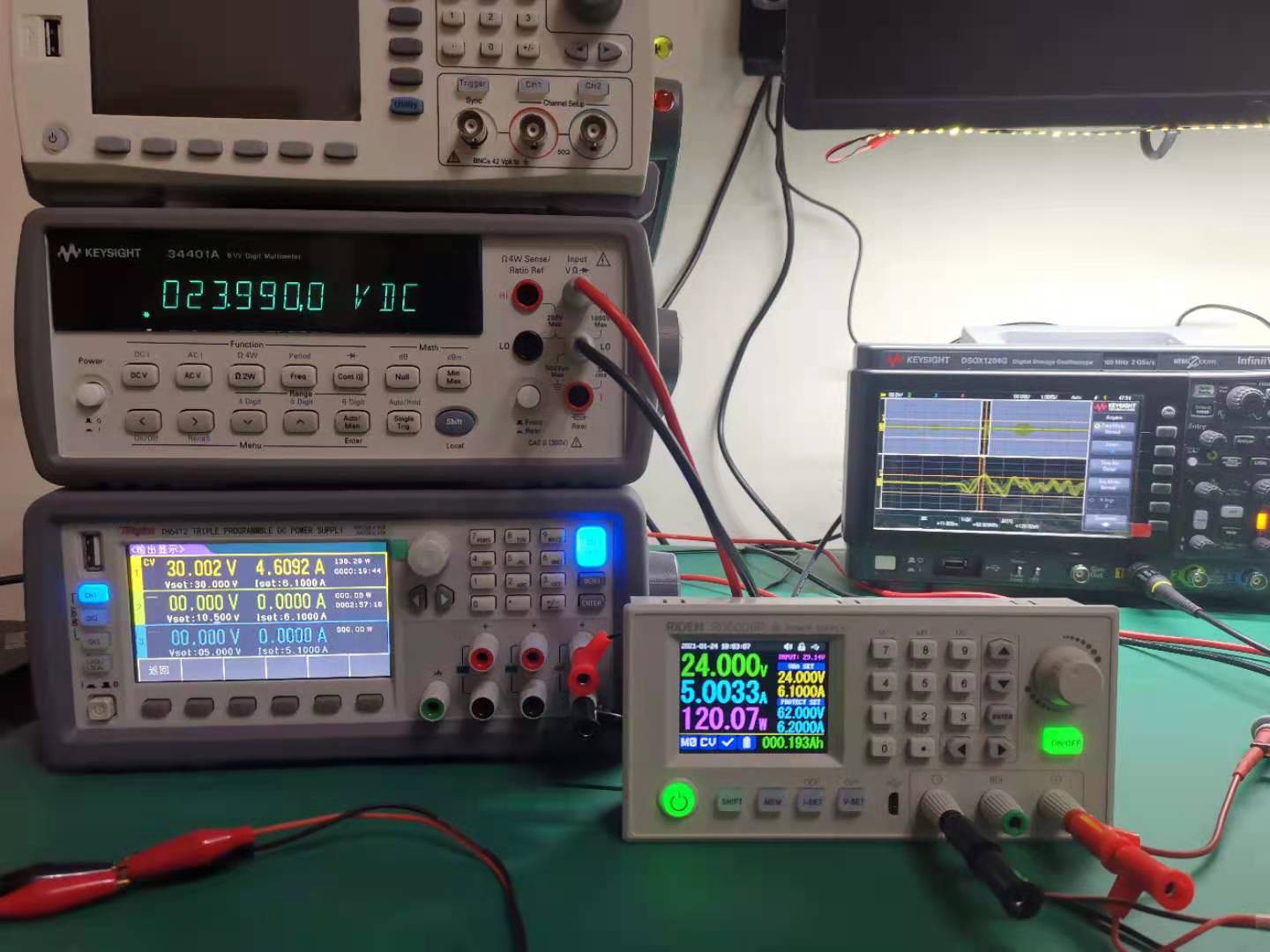

We have test the accuracy, efficiency and ripple of RD6006P, you can check it in this link:
www.youtube.com/embed/ZncOU4eSjvk
Compared with RD6006, it improves a lot and you can see the improvement below:
1.Ripple: Output ripple typicalis 20mV VPP (RD6006: 100mV VPP )
Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals
2.Higher Accuracy: RD6006P is 5-digitdisplay in Voltage/Current/Power(RD6006: 4-digit), and the output voltage and current has lower error.
|
RD6006P |
RD6006 |
Output ripple typical |
20mV VPP |
100mV VPP |
Display |
5-digit display |
4-digit display |
Output voltage setting measurement resolution |
0.001V |
0.01V |
Output current setting measurement resolution |
0.0001A |
0.001A |
Output voltage accuracy between setting and measurement |
±(0.5‰+4 digits) |
±(0.3%+3 digits) |
Output current accuracy between setting and measurement |
±(1‰+6 digits) |
±(0.5%+5 digits) |

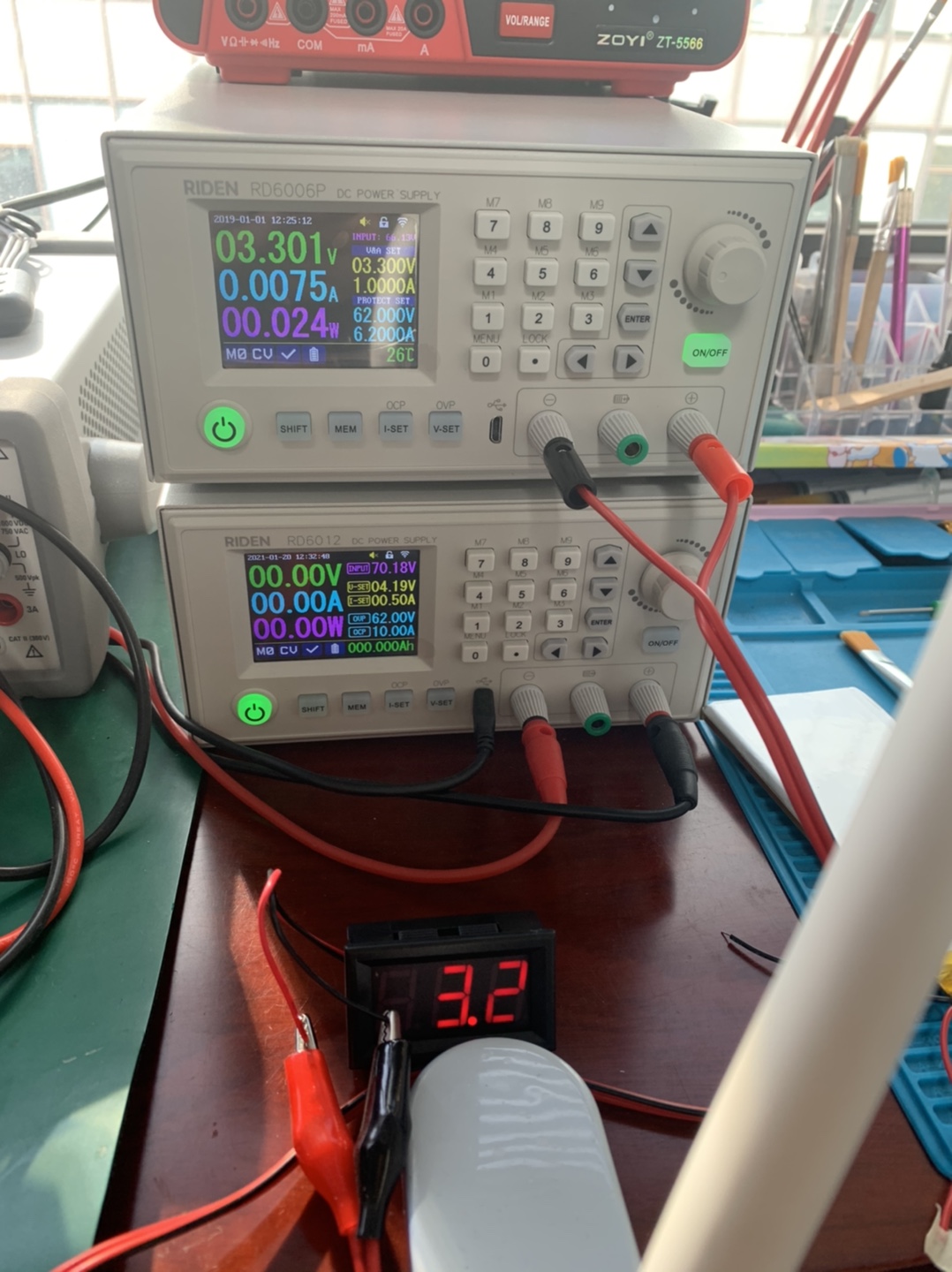

Usually RD series power supplies are not suitable for phone repair, but if you use RD6006P version, it can be used for repairing phone and other electronic product.

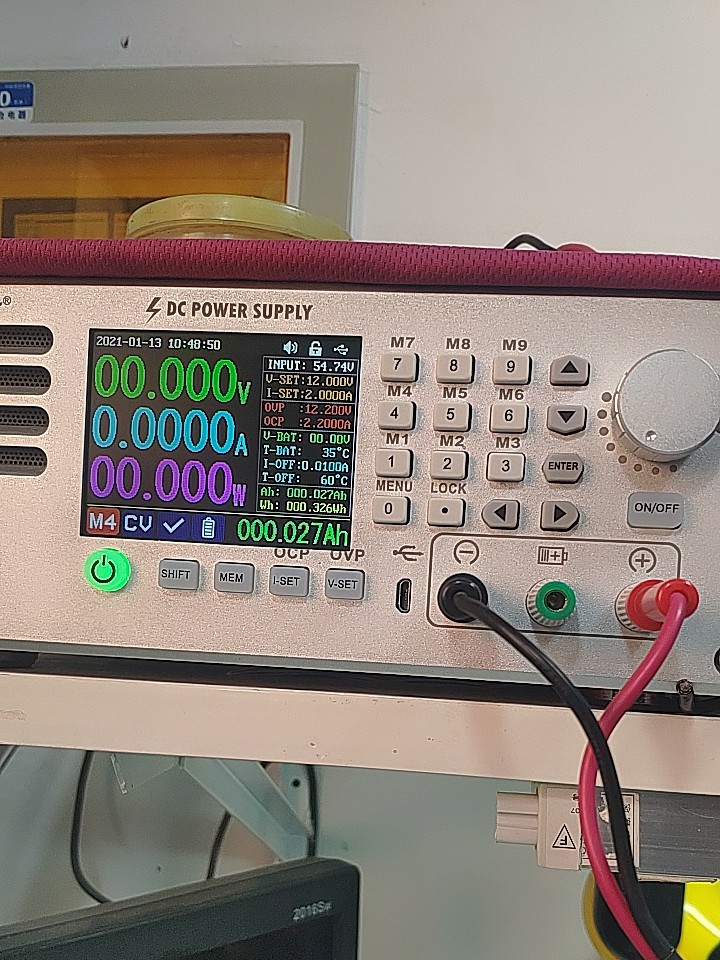

There are other improvements that you can set the display style
And it has PC software control and app control(only for RD6006P-W):
For detail parameter, you can check it below:
Model |
RD6006P |
RD6006P-W |
Input voltage range |
7-70.00V |
|
Output voltage range |
0-60.000V |
|
Output current range |
0-6.0000A |
|
Output power range |
0-360.00W |
|
Input voltage measurement resolution |
0.01V |
|
Output voltage setting measurement resolution |
0.001V |
|
Output current setting measurement resolution |
0.0001A |
|
Battery voltage measurement resolution |
0.01V |
|
Input voltage measurement accuracy |
±(1%+5 digits) |
|
Output voltage accuracy between setting and measurement |
±(0.5‰+4 digits) |
|
Output current accuracy between setting and measurement |
±(1‰+6 digits) |
|
Battery voltage measurement accuracy |
±(0.5%+3 digits) |
|
Automatic cut off current value when charging |
Set by yourself |
|
Output ripple typical |
20mV VPP Note① |
|
Working temperature range |
-10℃~40℃ |
|
External sensor Temperature detection range: |
-10℃~100℃/0℉~200℉ |
|
External sensor Temperature detection accuracy: |
±3℃/±6℉ |
|
Constant voltage mode response time |
2ms（0.1A-5A Load） |
|
Constant voltage mode load regulation |
±(0.1%+2 digits) |
|
Constant current mode load regulation |
±(0.1%+3 digits) |
|
Capacity measurement range |
0-9999.99Ah |
|
Energy measurement range |
0-9999.99Wh |
|
Capacity and energy statistical error |
±2％ |
|
Buck working mode |
Voltage drop >10%*VOUT+2V |
|
Cooling fan start condition |
Output current >4A or System temperature>45℃ |
|
Cooling fan shut down condition when working |
Output current <3.9A and System temperature <45℃ |
|
Over temperature protection |
System temperature >80℃ |
|
Screen brightness setting |
0-5(6 levels) |
|
Screen |
2.4 inch color HD display |
|
Weight(with package) |
About 0.62Kg |
|
Product dimension |
167*81*65mm |
|
Support USB communication |
Yes |
|
Support WiFi communication |
No |
Yes |
