Noctigon Thrower Comparison + Specs (KR1, DM11, K1)

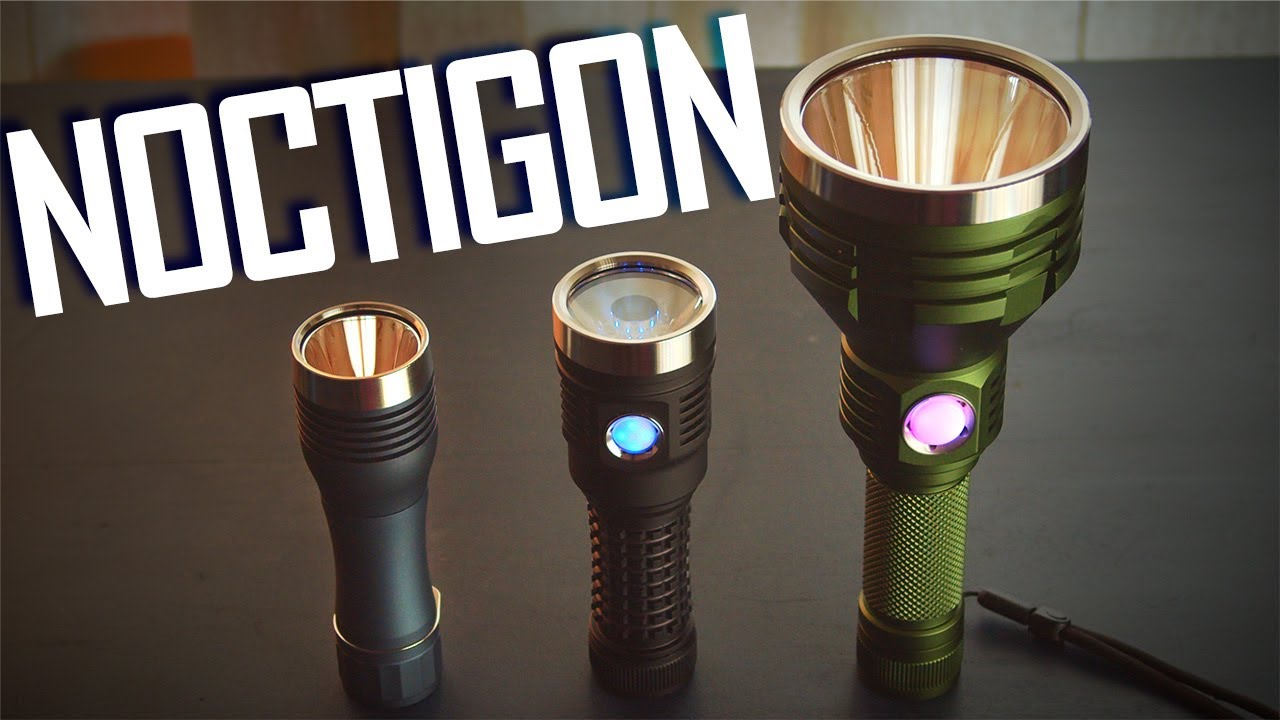

Here is a video I put together comparing the three (currently available) throwers from Noctigon. - The KR1, the DM11, and the K1.
Note this comparison doesn’t cover the DM1.12, as the throw channel in that light is identical to the DM11.

This video is a more general comparison of the three different lights, with a discussion of the available LED options.

A couple things I wanted to note:

  • The Wurkkos TS30S is seen briefly in this video to show off the Luminus SBT90.2 - While I didn’t discuss this light in the video, it is one that I highly recommend as it offers the SBT90 while coming in at $70-90, depending on sale price. It’s an Anduril thrower with a FET+7135 driver that fits right in between the DM11 and K1 in terms of size, and I would recommend it over the K1 with that LED, as it has a much nicer form factor in my opinion.
  • Rather than the SBT90.2 in the DM11, I recommend the Emisar D4SV2 with 4x Osram CSLPM1 (W2) LEDs, as it will provide a very bright (5k+ lumens) and throwy (100kcd) beam with great neutral tint and 5700K color temp. It’s less expensive than any of the Noctigons with an SBT90.2. It will probably also be available in a boost driver variant.
  • This video doesn’t really go into the advantages of the boost driver. While it does offer better efficiency, in the case of these single-emitter lights the driver is tied to the choice of LED, so it’s not going to be a primary deciding factor for these lights. However if Hank ever offers a buck driver, things will change…

Beyond just this video, I wanted to put together a more thorough list of these lights’ actual specs, as measured by other reviewers. In the second post of this thread, I’m going to list the three lights and their specs which every LED option that I can find measurements for, with links to the respective reviews.

If you have any light/emitter combo not on the list and can take measurements, please contribute in the thread below! This will hopefully be helpful for anyone looking to compare the various lights with detailed info.



  • Osram CSLNM1 (W1): (Tactical Grizzly )
    • 790 lumens
    • 139 cd/l
    • 110 kcd
  • Osram CSLPM1 (W2): (LuxWad )
    • 1,300 lumens
    • 78 cd/l
      **107 kcd
  • Luminus SST20 5000K:
  • Luminus SST20 4000K 95CRI:
  • Luminus SST40: (Stephen Knight )
    • 2,300 lumens
    • 12.6cd/l *
    • 29kcd *
  • Luminus SFT40: (Tactical Grizzly )
    • 2,200 lumens
    • 34.5 cd/l
    • 76 kcd
  • Luminus SBT90.2:
    • 4,500 lumens *
    • (unknown)
    • (unknown)
  • GT-FC40: (Hank)
    • (unkown)
    • (unkown)
    • 14 kcd *
  • Nichia B35AM:
    • 1,600 lumens
    • 7.5 cd/l *
    • 12 kcd *
  • Cree XHP35 HI: (Hank)
    • 1,800 lumens *
    • 16.7 cd/l *
    • 30 kcd *
  • Nichia 519A (dedomed):
    • (unknown)
    • (unknown)
    • 20 kcd *


Linear 5A Driver

  • Osram CSLNM1 (W1): (Tactical Grizzly )
    • 645 lumens
    • 155 cd/l
    • 100kcd
  • Cree XP-L HI:
  • Cree XP-L HI (2850K 85CRI):
  • Luminus SST20 5000K:
  • Luminus SST20 4000K 95CRI:

Linear 7.5A Driver

  • Osram CSLPM1 (W2):
    • 1,300 lumens *
    • 100 cd/l *
    • 130 kcd *
  • Luminus SST40:
  • Luminus SFT40: (LuxWad )
    • 2,200 lumens
    • 68 cd/l
    • 150 kcd

Linear + FET

  • Luminus SBT90.2: (LuxWad )
    • 4,900 lumens
    • 25.5 cd/l
    • 125 kcd

Boost 6v 3.6A

Boost 12v 2A

  • Cree XHP35 HI: (LuxWad )
    • 1,600 lumens
    • 40 cd/l
    • 64 kcd

  • Osram CULNM1 (W2.1): (ZeroAir )
    • 790 lumens
    • 779 cd/l
    • 615.5 kcd
  • Osram CULPM1 (W2.2): (LuxWad )
    • 1100 lumens
    • 550cd/l
    • 600kcd
  • Cree XHP35 HI 6500K/5000K:
    • 2,000 lumens *
    • 145 cd/l *
    • 290 kcd *
  • Cree XHP35 HI 4000K/3000K (80+ CRI):
    • 1,800 lumens *
    • 150 cd/l *
    • 270 kcd *
  • Cree XHP35 HI 2700K (90 CRI):

Asterisk denotes specs from Hank

Nice review. My K1 with SBT90.2 has been patiently waiting in Hong Kong since 4/1. Hopefully it starts to move soon.

Hell yeah!

Love your videos! Never stop doing them! :slight_smile:

Good info here! Thanks!

It would be helpful to note which ones are FET driven only versus those with Buck-Boost drivers and better efficiency.

Then there is the issue of intensity and light coverage. Kcd is a synthetic throw distance only isn't it? Is Cd/L an average intensity? Lumens are the raw light output but, usefulness depends on the head size and reflector performance.

Personally, I'm most interested in the flood area coverage and the intensity in the flood along with hot spot size and intensity. I hope that makes sense as I'm not looking for a throw monster or a Mule for flood specifically but, a more balanced light.

Excellent video!!!
I really enjoy all your stuff.

I enjoyed this comparison.

As I was looking at how the lights should stack up previously, although I was initially drawn to the B35AM, I started to suspect the XHP35 HI is the option I’d probably like the most. Your video further reinforces that.

If I pull the trigger, I think my eventual goal would be to swap in a 4500K, 90CRI variant. Since the original generation is out of production, hopefully the XHP35.2 HI doesn’t have any weird artifacts - I noticed it appears to have a visible gap between the dies.

Maybe in post #2 you could also add the specs listed on intl-outdoor?

You’re right, it would be helpful to add driver info to the list, I’ll start putting that together as well. One thing that was not discussed in the video is the fact that the linear drivers will be configured differently depending on the chosen LED; for example, the DM11 with XP-L HI, SST20, and W1 have a 5A driver, while the Osram W2 and SFT40 versions have a 7.5A driver.

Regarding your question of intensity vs light coverage, that is mostly addressed by the candela per lumen measurement - the more candela per lumen, the tighter the beam. However, that only really tells how how tight the hotspot of the beam is.

Another useful measurement that can help with this is beam angle, which describes the width in degrees of both the hotspot and the spill. This is definitely a useful measurement to have, but unfortunately it’s not very common in specsheets or reviews. I know Stephen Knight’s reviews have beam angles, I might start taking these measurements in my own reviews too since they’re pretty simple.

I don’t know this for sure, but I believe cd/l should have a direct relationship to beam angle, at least for the hotspot. I don’t know how that would be worked out though.

Added, thanks

You guys missed the best part: the NOCTIGON tee shirt. How geeky is that? Love it, Excellent video.
