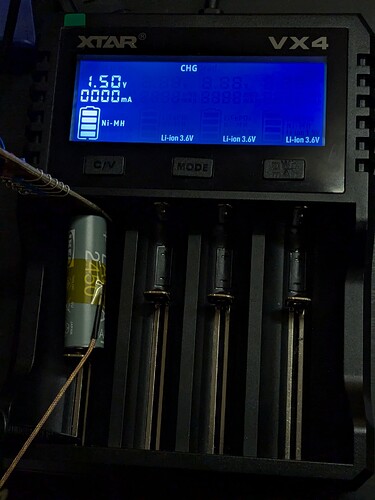

Charge CH1 1.2V Ni-MH #1
CH1: LADDA AA Ni-MH 2450mAh (button top)
Voltage | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start | 1.179 | |||
Finish | 1.493 |
The VX4 applied 150mA initially and then the charging current went up to 500mA. Termination looks ok.
CH1: LADDA AA Ni-MH 2450mAh (button top)
Voltage | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start | 1.179 | |||
Finish | 1.493 |
The VX4 applied 150mA initially and then the charging current went up to 500mA. Termination looks ok.
Big Thank you for trying all this scenarios
Also the Vapcell have limits, TBH, never tried Automatic mode with the S4+ but it looks the minimum is twice the current of VX4 in Automatic, 3x with manual mode.
Still not impressed by the VX4, to many drawbacks for a new charger. It looks to be not a charger for experienced users in this forum, more for beginners.
XTAR tend to aim more at the consumer market than experts, so I guess the product is suitable for its intended market. 1.5V Li-ion support in a basic analyzing charger is potentially quite an attractive feature set.
Agree for 1,5V LiIon, the VX4 and the Gyrfalcon S4000/S8000 are the only for testing this type.
But I doubt the normal customer knows fora like BLF and will trust more Amazon reviews than a advanced test here . Most will buy some very basic chargers in price range <20$, chargers with maybe one/some LED for state or charging in the flashlight itself.
And donĀ“t think Xtar is more focused to these consumers, Xtar is in many features only many years behind the competitors
Xtar asked in one topic about the discharge-feature so I guess they are interested in making a new charger that ppl like us would like, maybe they show IĀ“m wrong with the classification of their chargers, but maybe not.
Time will tell
My VX4 has now arrived for review. Testing underwayā¦
CH1: XTAR AA 1.5V Li-ion 2500mAh (button top) (dark blue)
Measurement | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start Voltage | 1.510 | |||
Finish Voltage | 1.510 | |||
Capacity (mAh) | 2478 | |||
Capacity (mWh) | 3566 |
The capacity listed on the wrap of a XTAR AA 1.5V Li-ion 2500mAh (button top) (dark blue) cell is 2500mAh / 4150mWh.
2500mAh at 1.5V should be around 3750mWh.
CH1: XTAR 26650 3.6V Li-ion 6000mAh (flat top)
Voltage | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start | 3.907 | |||
Finish | 4.165 |
I selected 3000mA and the VX4 charged at 2000mA. The internal resistance might have been high.
āGRADEā (= capacity test) of XTAR AA 1.5V Li-ion 2500mAh (button top) (dark blue)
yeah ā¦ I always wondered, when we finally will (NOT ā¦ ) see those magic ā4150 mWhā in the display of this charger ā¦
but this is the energy of the internal 3.6V Li-Ion cell ā¦ !
that is a 14430 3.6V Li-Ion 1150 mAh :
3.6V x 1150 mAh = 4140 mWh
but using the energy of the internal cell in advertising is a common practice at 1.5V Li-Ions ā¦
the usable energy here should be 3550 mWh, that is because 80 % of the capacity is delivered at 1.5V and 20 % at 1.1V ā¦ (@ 500mA = 0.2C)
that is well matched by the measured 3566 mWh ā¦
CH1: XTAR 26650 3.6V Li-ion 6000mAh (flat top)
Measurement | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start Voltage | 4.102 | |||
Finish Voltage | 4.175 | |||
Capacity (mAh) | 6174 |
I selected 3000mA during Grade mode and the VX4 charged at a rate of 2000mA initially. It resumed charging at 2000mA during the second Charge stage of the Grade cycle (Charge-Discharge-Charge).
Would you agree that the VX4 is using -dv/dt termination for NiMH?
It is a bit difficult to see. I canāt tell if itās 0dV/dt termination or -dV/-dt termination based on my graph.
It looks like -dV/dt termination when looking at @SammysHP graph:
Itās really hard to say. Could be -dV/dt with a low threshold or just 0dV/dt. Both are perfectly fine, as long as it works reliable.
XTAR VX4 measured 6174 mAh
Atorch DL24 measured 6163 mAh.
I discharged an XTAR 26650 3.6V Li-ion 6000mAh (flat top) with an A
torch DL24 at a rate of 0.28A to measure the capacity. It took 22 h
ours.
Measurement | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start Voltage | 4.204 | |||
Finish Voltage | 3.099 | |||
Capacity (mAh) | 6163 |
Updated with another Grade test for the XTAR 18650.
CH1: LADDA AA Ni-MH 2450mAh (button top)
Voltage | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start | 1.470 | |||
Finish | 1.450 |
I charged a fully charged cell to see what would happen.
The VX4 applied a current of about 150mA for about 10 minutes and then it started pulsing (stopped).
Bluetooth connectivity dropped for about 30 minutes while measuring the current.
So itās the 10 minutes detection phase followed by two hours trickle charging.
CH1: XTAR 16340 3.6V Li-ion 850mAh (button top)
Measurement | CH1 | CH2 | CH3 | CH4 |
---|---|---|---|---|
Start Voltage | 4.140 | |||
Finish Voltage | 4.097 | |||
Capacity (mAh) | 833 |
Grade mode worked normally when the initial voltage of the XTAR 16340 cell was 4.14V and the internal resistance was low.
Thanks XTAR for the XTAR VX4 Anniversary Set + 16340/18650/26650 cells.
Here is a small video review (45 minutes cut down to 6 minutes 19 seconds):
Just wonderingā¦ so you can adjust the current charge rateā¦ Iām not a big battery aficionadoā¦ But would you just automatically set the charge rate to 3 amps and trust the charger to adjust accordingly to whatever battery you put inā¦ or would you need to manually adjust for different battery sizes and types?
Specifically Iām charging some lithium ion 1.5 volt AA and AAA batteriesā¦ Would I just set the charge current to 3 amps and trust the charger to adjust accordingly or when I need to reduce the charge current (I understand that if you have more than one cell placed in the charger it wonāt charge all of them at 3 amps anyway)
Many thanks
1.5V Li-ion batteries come with their own integrated charging controller. NiMH batteries are always charged with 500mA with the VX4. So for both types you canāt select the current.
I donāt trust automatic selection because there are other factors than the internal resistance (which the VX4 cannot measure precisely). So I would always like to choose the current myself. With the VX4 you can set the limit only for all four slots at once, which makes it less flexible if you want to charge very different batteries at the same time.
