What did you mod today?

7686 posts / 0 new
Last post
kikkoman
kikkoman's picture
Online
Last seen: 1 min 24 sec ago
Joined: 05/03/2012 - 08:08
Posts: 219
Location: Austria

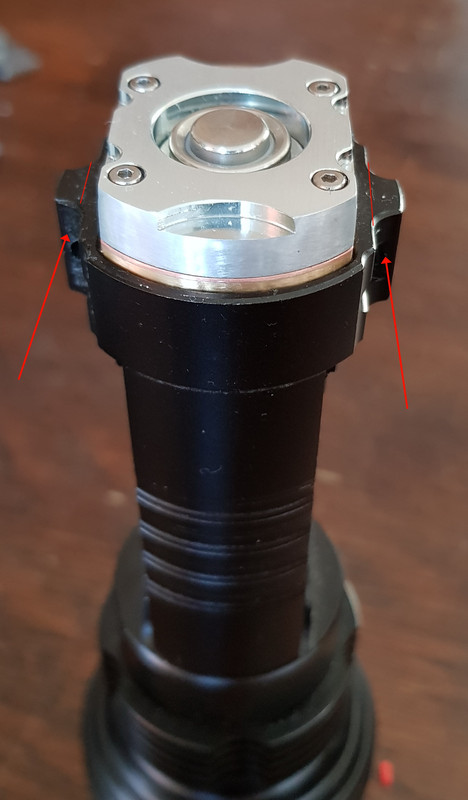

New switch and boot for the MT22A so it can tailstand.

Also turned down the edge of the release button a tad so it’s much less prone to opening accidentally.

Next – a better driver (of course)

TheOnlyDocc
TheOnlyDocc's picture
Online
Last seen: 2 min 52 sec ago
Joined: 06/26/2015 - 05:17
Posts: 811
Location: Mönchengladbach /Germany

First pic is the original Switch rubber boot from the ZY-T08. On the second pic you see the original 1288 switch that i would like to change to the one on the pic. To make space for it i dremel milled the ring where the retaining ring is screwed in down from 5 to 2mm. After that i noticed that the Convoy S2+ metal switch boot could fit. So i grinded a 1,5mm metall ring to fit the Metal switch boot to the tailcap. And to make it look a bit better i added a o-ring. One is a simple black o-ring the other a blue GITD o-ring. The metal switch boot sits 100% flush with the tailcap end. So tailstand is possible and it feels soooo nice compared to the original 1288 with rubber boot. Now i have to get the new pill and the 3V XHP-50.
, ,
, ,

New LuckySun D80 looking good so far http://budgetlightforum.com/node/66255

Geuzzz
Geuzzz's picture
Offline
Last seen: 2 hours 23 min ago
Joined: 10/25/2015 - 10:27
Posts: 1008
Location: Netherlands

Put a small trit in the clip of my s mini ti.

trailhunter
Offline
Last seen: 1 hour 49 min ago
Joined: 12/23/2015 - 17:56
Posts: 299
Location: VA

I have a couple m43s laying around. Reflowed one from 219c to 219b. Amazing rose flood.

AgentSteel
AgentSteel's picture
Offline
Last seen: 4 hours 40 min ago
Joined: 02/21/2017 - 12:04
Posts: 441
Location: France

I replaced the XP-L Hi star in my Klarus Mi7 with a SST-20 (4000K) from Simon/Convoy (had to reduce the diameter of the star a bit).

Ultra-basic beginner mod but it’s where I’m at Smile

Quidquid latine dictum sit, altum sonatur

Henk4U2
Henk4U2's picture
Offline
Last seen: 3 hours 39 min ago
Joined: 02/13/2014 - 17:52
Posts: 2682
Location: The heart of the Netherlands (GMT+1)

AgentSteel wrote:
I replaced the XP-L Hi star in my Klarus Mi7 with a SST-20 (4000K) from Simon/Convoy (had to reduce the diameter of the star a bit).

Ultra-basic beginner mod but it’s where I’m at Smile

Lao Tzu: The journey of a thousand miles begins with one step’.

You are a flashaholic if you are forced to come out of the closet, to make room for more flashlights.

CRX
CRX's picture
Offline
Last seen: 1 hour 21 min ago
Joined: 04/02/2013 - 15:27
Posts: 3643
Location: Scotland

Brass lighter mod I did yesterday.http://budgetlightforum.com/node/67591

johnkey68
Offline
Last seen: 9 hours 18 min ago
Joined: 10/12/2017 - 06:29
Posts: 119
Location: Russia
TrueRMS
Offline
Last seen: 1 day 8 hours ago
Joined: 08/09/2013 - 13:24
Posts: 216
Location: Marysville OH

Wow nice build! You make the spacer?

Caleb
Caleb's picture
Offline
Last seen: 13 hours 30 min ago
Joined: 03/13/2016 - 01:28
Posts: 572

Chatika vas Paus wrote:
I haven’t posted anything here for a long time.
Gray C8. Dual 2nd Blue spring on the tail. TA fet+6+1 with 20awg wire. 3x lh351d 4000k & 3x lh351d 5000k, both cri90. Ledil Anna-40-6-M. Mcpcb and alu spacer from l4p.
I measured almost 10A on the tail with vtc5a. Probably it would be more if I had a clamp meter.
I would like to be able to do more measurements…


Super nice!

I am contemplating a similar build with the M21A.

Beam shots??

lumenzilla
lumenzilla's picture
Offline
Last seen: 3 days 11 hours ago
Joined: 06/09/2015 - 04:18
Posts: 682
Location: DIY, Indonesia
CRX wrote:

Brass lighter mod I did yesterday.http://budgetlightforum.com/node/67591

Stunning!
You give me idea for my unused zippo Thumbs Up

Is that a switch (the cylinder shaped stuff)?
I’m thinking about using reed (magnetic) switch for my future build.

johnkey68
Offline
Last seen: 9 hours 18 min ago
Joined: 10/12/2017 - 06:29
Posts: 119
Location: Russia

Yes .
Yes, but only for myself, it’s just a hobby …
I’m not going to make money on it.

CRX
CRX's picture
Offline
Last seen: 1 hour 21 min ago
Joined: 04/02/2013 - 15:27
Posts: 3643
Location: Scotland

lumenzilla wrote:

Stunning!
You give me idea for my unused zippo Thumbs Up

Is that a switch (the cylinder shaped stuff)?
I’m thinking about using reed (magnetic) switch for my future build.


Yes it has three switches, you can see it working in the linked thread Thumbs Up
MascaratumB
MascaratumB's picture
Offline
Last seen: 16 min 32 sec ago
Joined: 10/29/2016 - 12:12
Posts: 3682
Location: Portugal

I used a Sanrenmu knife clip and put it in one of my Convoy S2+ Wink

[REVIEWS] AMUTORCH: S3 / S3 vs 219c / AM30 / AX1 / VG10 /// SOFIRN: SF14 & SP10A / SP32A / SP10B /// NITEFOX: UT20 / ES10K / K3 /// ODEPRO: KL52 / B108 /// ACEBEAM: H20 /// BLITZWOLF: BW-ET1 /// DQG: AA Slim Ti /// HC-LIGHTS: SS AAA /// XTAR: PB2 Charger /// OLIGHT: M2R Warrior /// WUBEN: TO10R / E05 / T70 / E10 /// ON THE ROAD: M1 / i3 / M3 Pro /// ROVYVON: A2 & A5R / E300S / A8 /// KLARUS: XT1C /// LUMINTOP: Tool AA V2.0 & Tool 25

Tricks: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 /// TIR Lenses:1 / 2 /// Others: Biscotti 3 & 1*7135 / Triple TIR & XP-G2 ///// My Collection ///// My Review's Blog (PT)

GIVEAWAY: 1



TheOnlyDocc
TheOnlyDocc's picture
Online
Last seen: 2 min 52 sec ago
Joined: 06/26/2015 - 05:17
Posts: 811
Location: Mönchengladbach /Germany

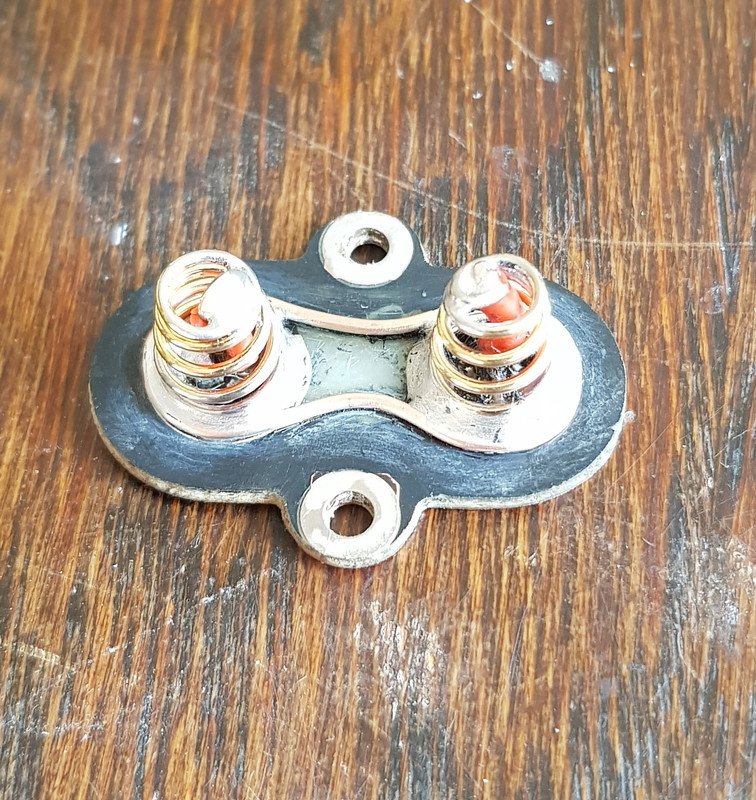

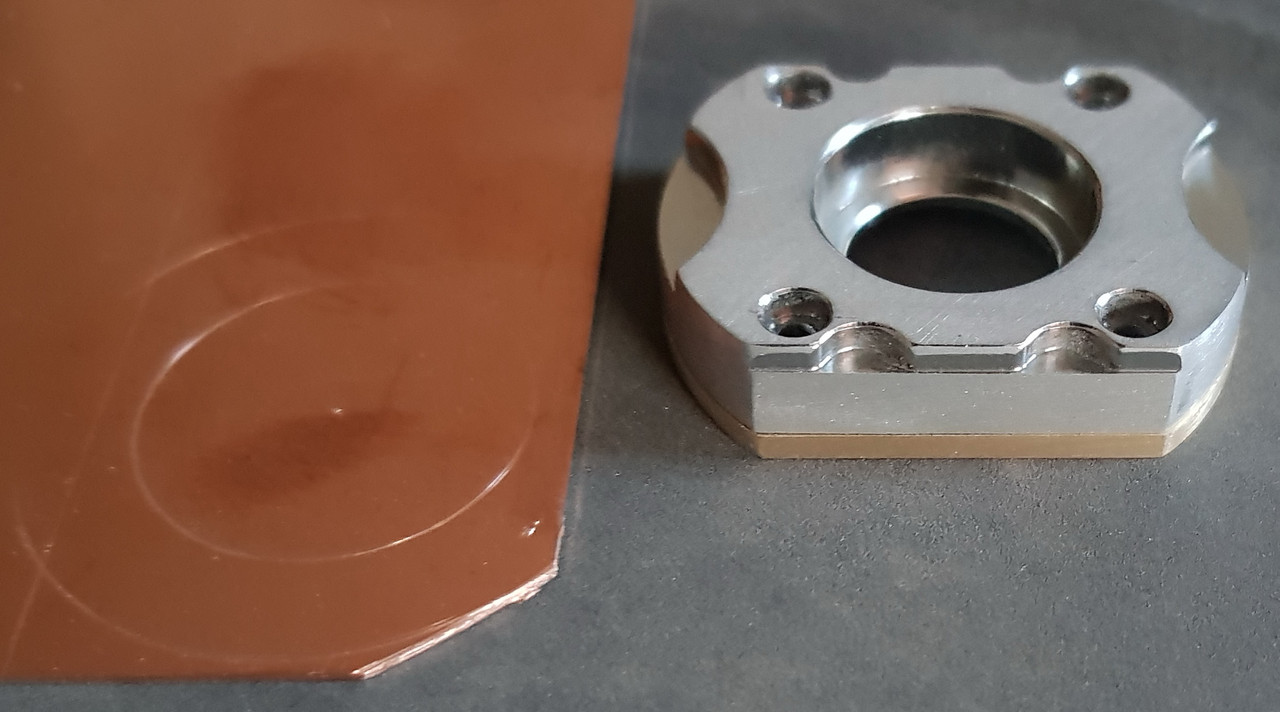

Switch PCB is modded back to 2P battery. In the past i removed the copper layer on 60% of the switch side. So i had to fix it. Used a 0,1mm copper sheet, soldert 2 layers together and glued it on the pcb with thermal glue. Then i were able to install the new switch and the new metal button. Needed a spacer to make it work nicely. But i did not have the right material on hand. So i had to make one brass spacer 2mm and one copper 0,5mm. Soldert both together and made it fit to the aluminium Tailcap. Now i am waiting for some GITD powder to fill the space arround the metal switch button. And the new pill from Kirill that seems to be stuck in customs. But untill then i will remove the red marked area on the pics to make the tube more flat on both sides.
, ,


New LuckySun D80 looking good so far http://budgetlightforum.com/node/66255

MascaratumB
MascaratumB's picture
Offline
Last seen: 16 min 32 sec ago
Joined: 10/29/2016 - 12:12
Posts: 3682
Location: Portugal

Put some magnets on the Sofirn C01’s I have. Bought here (Convoy Store):
Used a drop of super glue to fix the magnets in the lights!
https://www.aliexpress.com/item/D5-3-magnet-for-18650-flat-head-battery/...

[REVIEWS] AMUTORCH: S3 / S3 vs 219c / AM30 / AX1 / VG10 /// SOFIRN: SF14 & SP10A / SP32A / SP10B /// NITEFOX: UT20 / ES10K / K3 /// ODEPRO: KL52 / B108 /// ACEBEAM: H20 /// BLITZWOLF: BW-ET1 /// DQG: AA Slim Ti /// HC-LIGHTS: SS AAA /// XTAR: PB2 Charger /// OLIGHT: M2R Warrior /// WUBEN: TO10R / E05 / T70 / E10 /// ON THE ROAD: M1 / i3 / M3 Pro /// ROVYVON: A2 & A5R / E300S / A8 /// KLARUS: XT1C /// LUMINTOP: Tool AA V2.0 & Tool 25

Tricks: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 /// TIR Lenses:1 / 2 /// Others: Biscotti 3 & 1*7135 / Triple TIR & XP-G2 ///// My Collection ///// My Review's Blog (PT)

GIVEAWAY: 1



TheOnlyDocc
TheOnlyDocc's picture
Online
Last seen: 2 min 52 sec ago
Joined: 06/26/2015 - 05:17
Posts: 811
Location: Mönchengladbach /Germany

Rebel Lime in a Convoy C8+ on a LD25 3A driver. I wanted to use one of my old D80. But the 17mm driver was not a good fit. Even with almost empty battery the rebel lime is pulling the full 3A. It is still not 100% centered. But it is looking fine as it is now.
, ,

New LuckySun D80 looking good so far http://budgetlightforum.com/node/66255

DavidEF
DavidEF's picture
Offline
Last seen: 19 hours 22 min ago
Joined: 06/05/2014 - 06:00
Posts: 7222
Location: Salisbury, North Carolina, USA

So… what is Rebel Lime good for? I mean, is it an aesthetic choice, or is there a practical purpose?

The Cycle of Goodness: “No one prospers without rendering benefit to others”
- The YKK Philosophy

TheOnlyDocc
TheOnlyDocc's picture
Online
Last seen: 2 min 52 sec ago
Joined: 06/26/2015 - 05:17
Posts: 811
Location: Mönchengladbach /Germany

DavidEF wrote:
So… what is Rebel Lime good for?

To put out a lot of lime colored light Cool Kidding! I really have no special use for it. But i find it more interesting to work with a led i never used.
And i like the green/lime colored leds. So i had to get at least one Rebel Lime. To bad that the MCPCB is a Aluminium board and not a Copper DTP
Waiting for new boards from Neven to complete a few more color light mods.

New LuckySun D80 looking good so far http://budgetlightforum.com/node/66255

djozz
djozz's picture
Offline
Last seen: 3 hours 54 min ago
Joined: 09/07/2012 - 17:04
Posts: 15333
Location: Amsterdam

TheOnlyDocc wrote:
DavidEF wrote:
So… what is Rebel Lime good for?

To put out a lot of lime colored light Cool Kidding! I really have no special use for it. But i find it more interesting to work with a led i never used.
And i like the green/lime colored leds. So i had to get at least one Rebel Lime. To bad that the MCPCB is a Aluminium board and not a Copper DTP
Waiting for new boards from Neven to complete a few more color light mods.

I have a load of (20mm) Rebel Sinkpads doing nothing, I can send you some if you like.
TrueRMS
Offline
Last seen: 1 day 8 hours ago
Joined: 08/09/2013 - 13:24
Posts: 216
Location: Marysville OH

With the rebel does the star have to be a little off center to properly center the dome of the LED?

Lightbringer
Lightbringer's picture
Offline
Last seen: 11 hours 23 min ago
Joined: 08/30/2016 - 14:12
Posts: 8505
Location: nyc
TheOnlyDocc wrote:
Rebel Lime in a Convoy C8+ on a LD25 3A driver.

Reminds me of my Quarks and Jetbeams… Evil

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

led4power
led4power's picture
Offline
Last seen: 1 hour 8 min ago
Joined: 12/29/2012 - 09:48
Posts: 1178
Location: Croatia,EU

TheOnlyDocc wrote:
Rebel Lime in a Convoy C8+ on a LD25 3A driver. I wanted to use one of my old D80. But the 17mm driver was not a good fit. Even with almost empty battery the rebel lime is pulling the full 3A. It is still not 100% centered. But it is looking fine as it is now.



Tint is almost as bad as some white CREEs laughing

DavidEF
DavidEF's picture
Offline
Last seen: 19 hours 22 min ago
Joined: 06/05/2014 - 06:00
Posts: 7222
Location: Salisbury, North Carolina, USA

“almost” Innocent

The Cycle of Goodness: “No one prospers without rendering benefit to others”
- The YKK Philosophy

Scallywag
Scallywag's picture
Offline
Last seen: 12 hours 29 min ago
Joined: 01/11/2018 - 22:23
Posts: 440
Location: Ohio, United States

Rebel Lime... For a second I thought it was a joke for how the oldgood XPG2s look with a wavien collar and FET.

It's, uh, a color of LED I've only witnessed within the bands of the Cree Fried Egg.

EDC Rotation: ZL SC62 | Jaxman E2L XP-G2 5A | Purple S2+ XPL-HI U6-3A | D4 w/ Luxeon V | RRT-01
EagTac D25C Ti | DQG Slim AA Ti | UF-T1 by CRX | Olight S1 | Klarus Mini One Ti
L6 XHP70.2 P2 4000K FET+7135 | Jaxman M8 | MF02 | Jaxman Z1 CULNM1.TG | Blue S2+ w/ ML Special
In-progress: Supfire M6 3xXHP50.2
Others: Nitecore EC23 | Nebo Twyst | Streamlight ProTac 1AA | TerraLux LightStar 100

TheOnlyDocc
TheOnlyDocc's picture
Online
Last seen: 2 min 52 sec ago
Joined: 06/26/2015 - 05:17
Posts: 811
Location: Mönchengladbach /Germany

djozz
Thanks! But i have one Rebel Lime and one Rebel Alu Sinkpad left here.
I never thought that it would be such a pain to center this led. Even when the dome is right in the center you get a beamprofile that looks not centered. Only thing that helped was to tilt the reflector a tiny bit. This way you get a good looking hotspot. But still some artifacts arround the hotspot.
Next led i want to build a light with is the KP CSLNM1 F1. The Led4Power 6A driver is ordered (will turn it down to ~5A) and i can not wait to see how it looks in the D80 or the Cometa.
But i am really interested in a deep red led with high output.

New LuckySun D80 looking good so far http://budgetlightforum.com/node/66255

Capital
Offline
Last seen: 2 days 2 hours ago
Joined: 05/23/2018 - 16:21
Posts: 14
Location: SW Missouri

Has anyone had trouble with blowing an SST-40? I’ve been messing with TIR lenses in an 18350 S2+ and it lasted about 3 seconds on the highest level. I was using a FET driver but thought I would be OK without a bypassed spring and the Efest 18350. Regardless of mode the led will only come on as if it’s in a moonlight mode.

I thought Astrolux was using a FET in one of their SST-40 lights? Maybe I just got a bad one?

Scallywag
Scallywag's picture
Offline
Last seen: 12 hours 29 min ago
Joined: 01/11/2018 - 22:23
Posts: 440
Location: Ohio, United States

Capital wrote:
Has anyone had trouble with blowing an SST-40? I've been messing with TIR lenses in an 18350 S2+ and it lasted about 3 seconds on the highest level. I was using a FET driver but thought I would be OK without a bypassed spring and the Efest 18350. Regardless of mode the led will only come on as if it's in a moonlight mode. I thought Astrolux was using a FET in one of their SST-40 lights? Maybe I just got a bad one?

There's a few possibilities. You could have damaged something in the current path, like an unbypassed spring or a switch that wasn't up to the current, in a way that increased the resistance a lot. You may have blown the SST-40, as they can only handle about 9A max... however, I don't think it's likely, as my recollection is that they burn bond wires and die completely. There could also be something wrong with the driver, but I wouldn't know what or how to troubleshoot it. With TIRs, there's no chance you shorted to the reflector, so I'm not sure what else could have happened to it. I'd also check the battery voltage and the thermal paste under the MCPCB just to be thorough.

EDC Rotation: ZL SC62 | Jaxman E2L XP-G2 5A | Purple S2+ XPL-HI U6-3A | D4 w/ Luxeon V | RRT-01
EagTac D25C Ti | DQG Slim AA Ti | UF-T1 by CRX | Olight S1 | Klarus Mini One Ti
L6 XHP70.2 P2 4000K FET+7135 | Jaxman M8 | MF02 | Jaxman Z1 CULNM1.TG | Blue S2+ w/ ML Special
In-progress: Supfire M6 3xXHP50.2
Others: Nitecore EC23 | Nebo Twyst | Streamlight ProTac 1AA | TerraLux LightStar 100

contactcr
Online
Last seen: 14 min 9 sec ago
Joined: 05/19/2017 - 18:52
Posts: 2067
Location: US

More likely a problem with the driver or a bad reflow.

Capital
Offline
Last seen: 2 days 2 hours ago
Joined: 05/23/2018 - 16:21
Posts: 14
Location: SW Missouri

Thanks for the input. I swapped the SST-40 with an XM-L2 and all is well. I didn’t change anything else. It has me puzzled.
