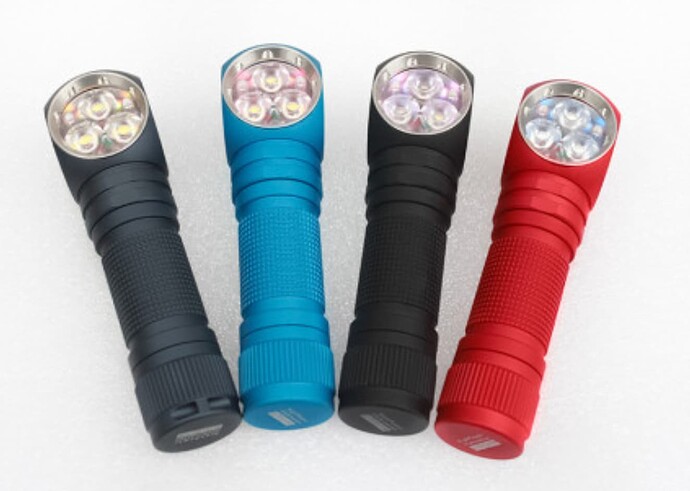

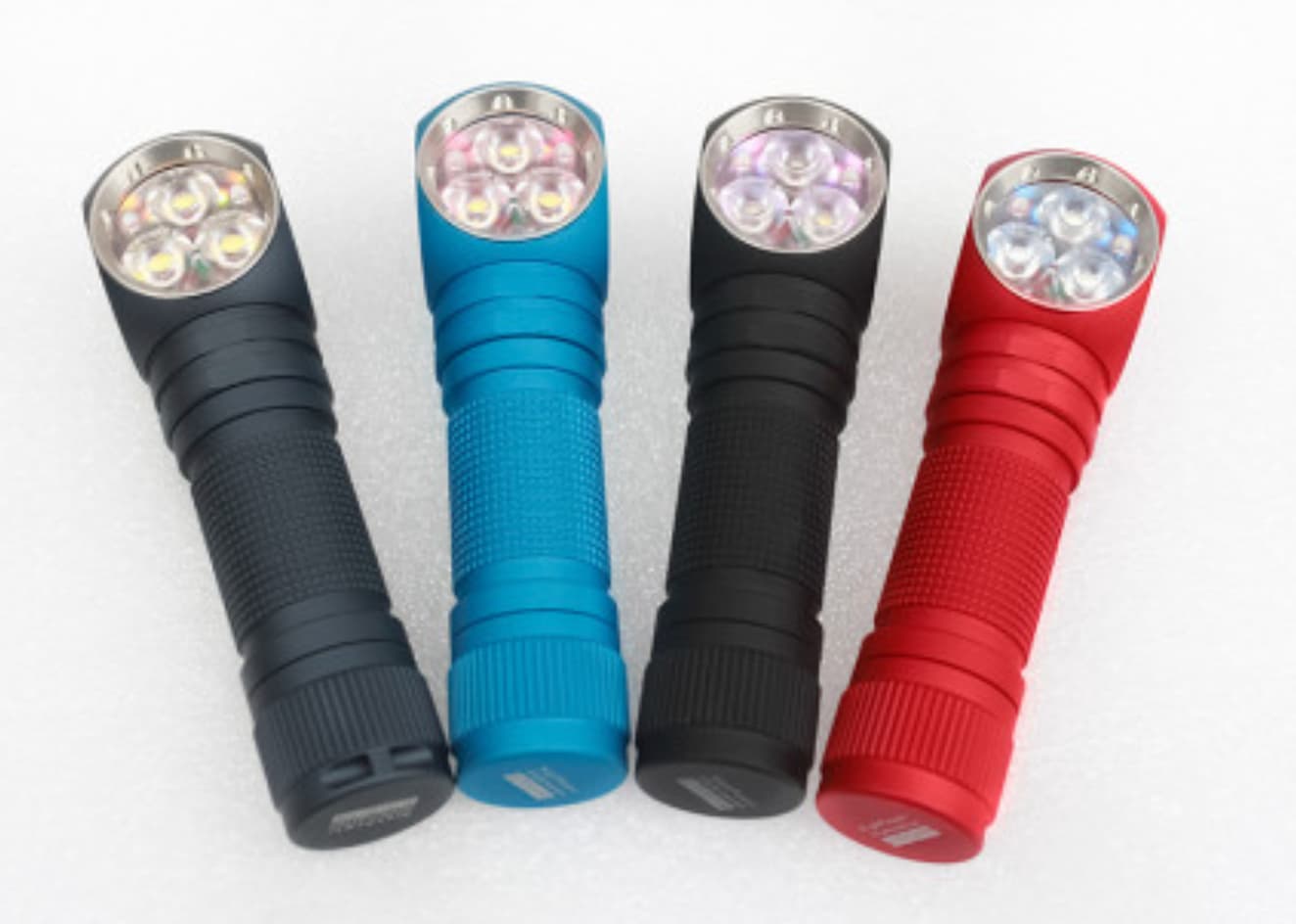

New Emisar Dw3AA Anduril Headlamp now available

The Dw3AA is a right angle light that just came out. I ordered a Red one with DeDomed 4500K 519a. With tailcap magnet, pocket clip, plus a 10511 optic. I chose the Amber switch button.

The Dw3AA has regulated output and NoPWM. It uses The Most Advanced driver design of any AA/14500 light available. It is Very Efficient.

Battery is not included, the light works with both Flat Top and Button Top LiIon, plus AA and Eneloop.

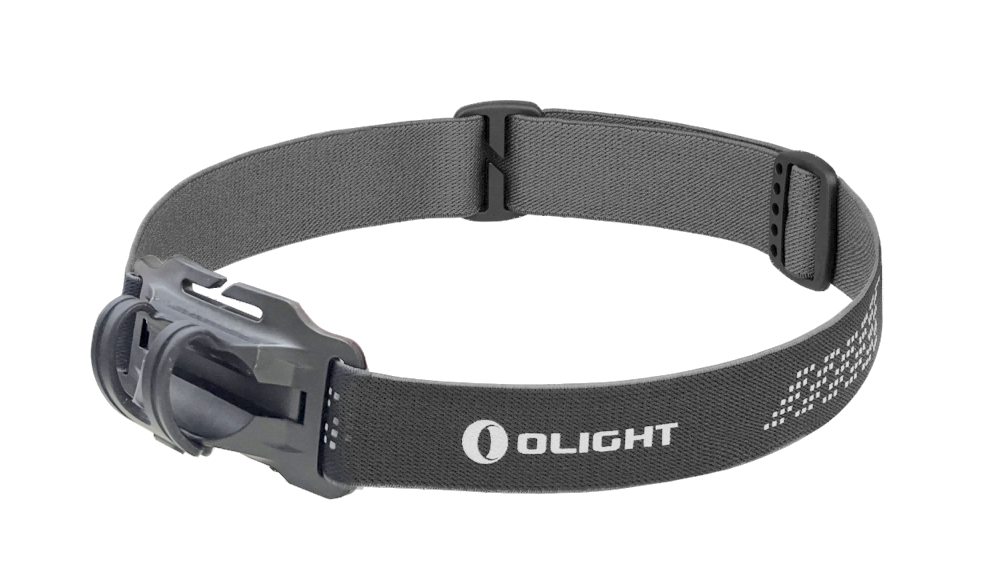

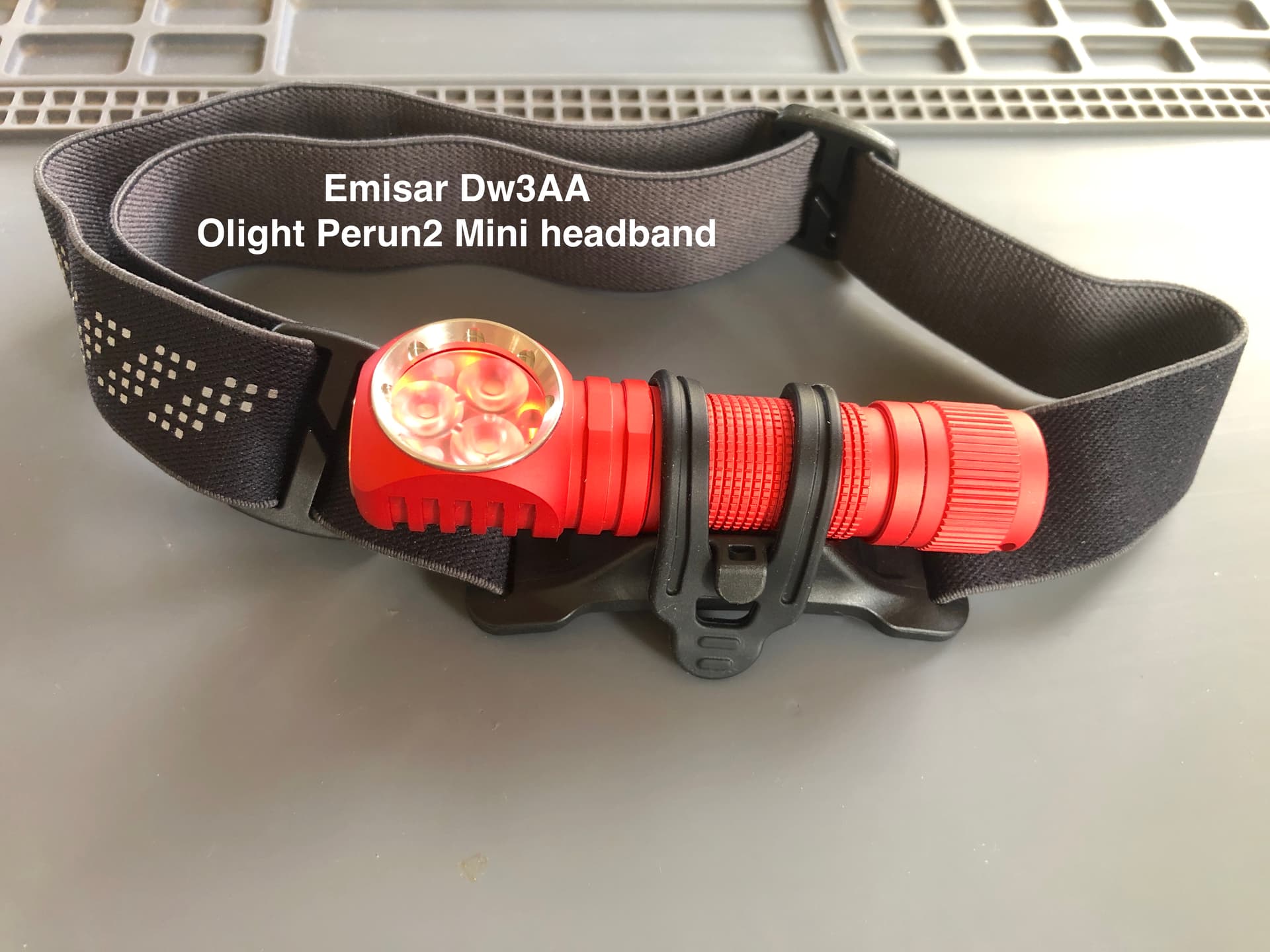

I suggest buying the Olight Perun Mini Headband, very inexpensive and easy to attach and remove the light.

13 Thanks

Yeah, to keep it on the shelf, headband is not necessary :grinning:

1 Thank

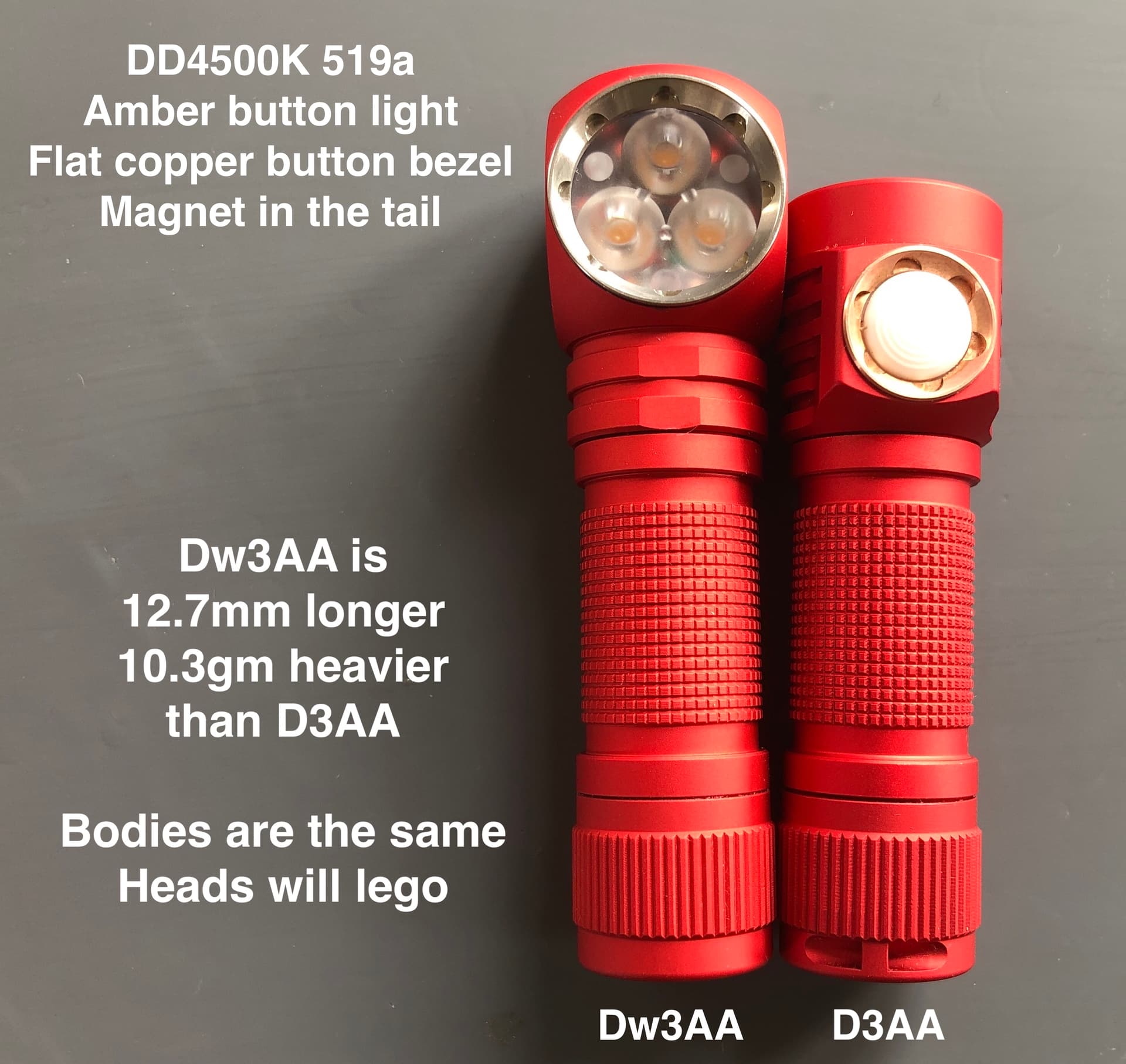

Dw3AA is The Only AA/14500 Anduril Headlamp:


It is slated to become my Car light. Replaces a Skilhunt H150 so I can have an AA Headlamp with Anduril!

3 Thanks

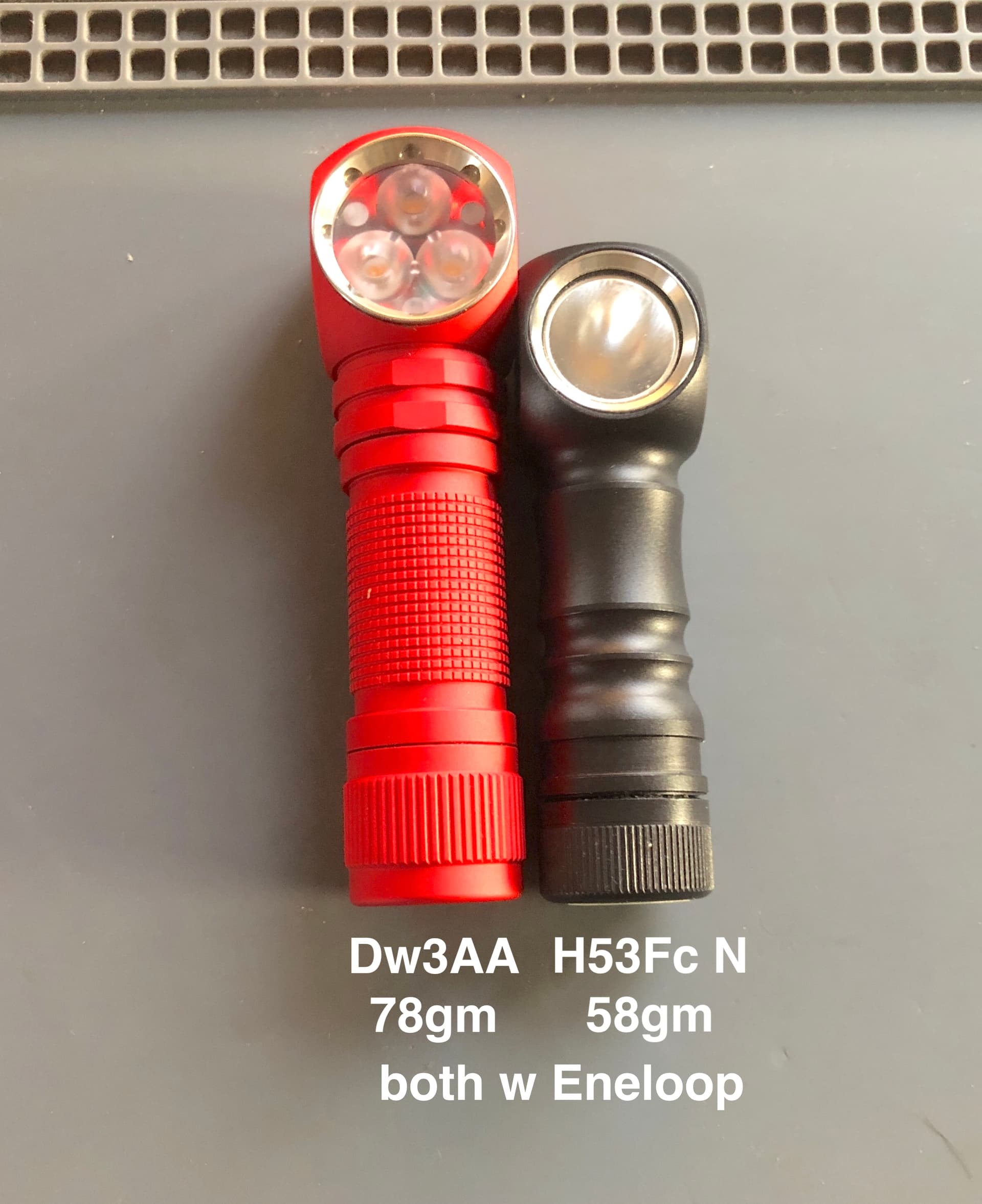

Put it next to the zebra h53 series!

1 Thank

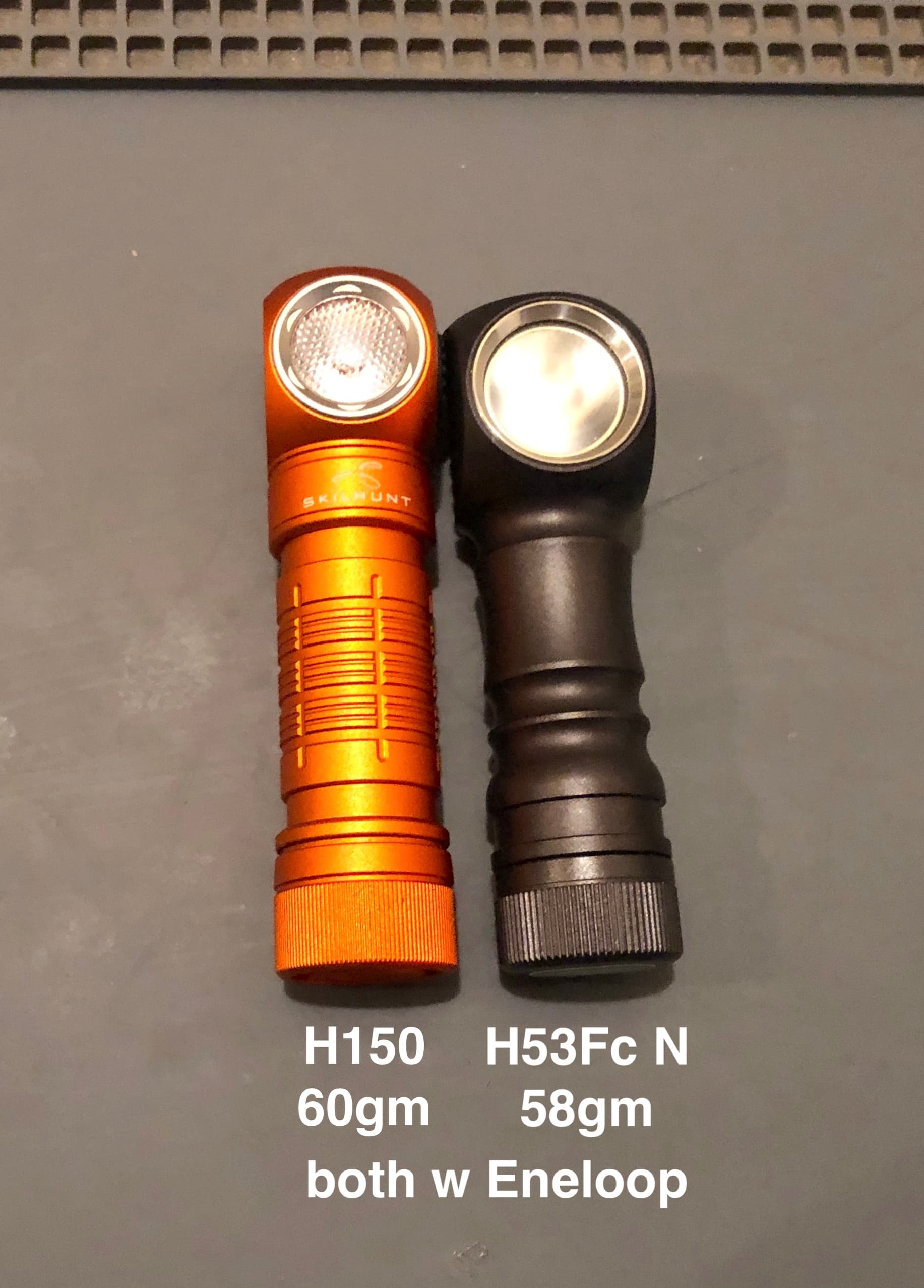

Compare size weight with H150 and H04… I can not understand why use triple with 14500 format. It just irrational. This driver deserves a better host.

The Zebra is a smaller animal… The Dw3AA is more of a Clydesdale.


the Zebrs is definitely smaller, costs more, has no tailmagnet, no Aux, and No Anduril.

The Skilhunt is just 2 grams heavier than the Zebra


the Skilhunt head is actually narrower, and there is no glass that can break the way it can on a Zebra.
But the Skillhunt also has no Aux, and No Anduril.

The Dw3AA is definitely bigger and heavier. It is also More Efficient than both the Skilhunt and the Zebra.

They are all nice lights in their own right, but the Dw3AA is the Only Headlamp that offers AA capability And Anduril.

1 Thank

Freemans - Toykeepers driver is piece of art , Hanks Dw3AA host … :slight_smile:

1 Thank

Hank doesn’t seem to like using B35AM, and with the boost driver he has to either use a 6V+ emitter, or 3 of them… Everything else needs a less efficient buck-boost.

I’d prefer a single B35AM host over it as well.

2 Thanks

Dang forgot to ask for the copper option with my order.

I do enjoy the Flat Copper Switch Bezel. I asked for it by replying to the confirmation email for my order.

but dont feel bad if it is too late… as the main bezel of the Dw3AA is Stainless, and only the switch ring can be optioned to copper… So they wont match…

either way, I hope you enjoy your new light :wink:

I’m using the Skilhunt HB4 headband with mine, size S. Works well so far. The DW3AA fits into the mount a bit more tightly than the D2 but it doesn’t feel like I’m pushing the plastic to the point of snapping.

1 Thank

I really enjoy my Emisar D2 with a 219B behind a frosted optic, and an Osram W1 behind a throwy optic. Flood and throw in one little lightweight headlamp. Very versatile. So that’s what I’ve been using ever since I got it. It replaced my Zebralight.

The triple format would be good for flood, but I don’t really use enough power to need a triple. Ideally I’d prefer something smaller with a single LED or pair or even 3-4 LEDs all in a straight line along the side of the battery tube, behind a frosted lens. I don’t usually need throw in a headlamp, and an in-line layout would provide a wide emission surface for more blurred-out shadows. Plus, the emitters would be centered instead of off to one side… which can be really helpful when working up-close.

For a non-angled 1xAA torch with an Eneloop, I’d love to see a smaller Emisar D1AA type thing. One nice emitter, in a host which is as small as possible. Like a DA1K but scaled down to AA size. And given a choice between shorter or narrower, I’d go for narrower… even if it meant the host had to be longer. I think the main benefit of 1xAA lights is that they can be skinny, and that seems preferable to being stubby.

4 Thanks

Wish I had unlimited time… I’d love making a dual fuel capable Wurkkos HD10 replacement driver. I really like the HD10 form factor wise.

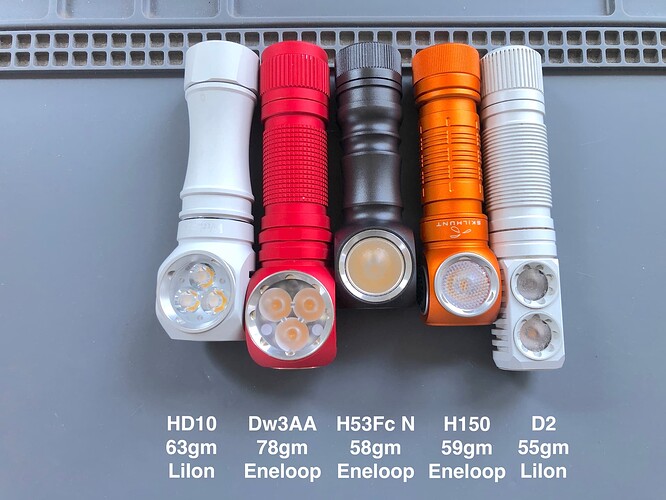

Headlamp size and weight comparisons:

My thoughts:

I do not use the HD10 because it has PWM, even though I like the tailmagnet, Aux, and Anduril UI very much.

The Dw3AA is now my car light, because it can use AA and has Anduril w NoPWM. My favorite driver, by far.

The Zebra is cute and smooth, but the UI is a nightmare, and some outputs have High Flicker Index. The Zebra has no Aux to locate the light in the dark and no tailmagnet to secure the light on metal surfaces.

The Skilhunt H150 is a great little dual fuel light with NoPWM. I like the UI much better than a Zebra. It has no Aux, but it does have a tailmagnet.

The Emisar D2 is my personal favorite of the group, because it is so lightweight, slim, dual channel (DD4500K and 660nm), with Aux, tailmagnet, and Anduril UI with NoPWM.

6 Thanks

Still extremely impressed with the driver, but it won’t be replacing my TH20 for AA or ramping function.
I often like to wear headlamps on my work shirt button placket. It prevents blinding co~workers, bounce back from highly reflective HVAC ducting,etc etc .
The DW3AA length, clip retention and weight balance doesn’t lend itself to a successful carry, in this aspect, for my own use. Looking forward to possible single emitter option and reduced size.

1 Thank

thanks for the photo… :wink:
I can see why you like smaller lights than the Dw3AA…

I recommend the Skilhut H150 as a High CRI alternative, with NoPWM. It is Single Emitter, more slender, and as lightweight as a Zebra.

1 Thank

HD10 and DW3AA are both triple emiters and Emisar looks soooo big! Also HD10 has USB charging and still is smaller.
I’m staying with my H150, despite lack of aux and Anduril, also it has switch on side which is cool. Also in some way - magnetic charging.

2 Thanks

Do you think Hank will make triple channel DW3AA with white + red + UV (with filter)?
I think it would be awesome.

not an option w the D3AA driver, there is only one channel

more Technical Info about the D3AA driver

Thank you for the reply and for the link. Very interesting discussion there.

1 Thank
