Today I modded an SP10 Pro to 620nm Red:
.

and an SC21 Pro to DeDomed 519a 5700K:
.

NeutralFan
NeutralFan's picture
Offline
Last seen: 20 hours 53 min ago
Joined: 03/20/2014 - 19:22
Posts: 2148
Location: Wisconsin, USA

Looks good jon_slider! I like the red on red. Thumbs Up

I was planning on dedoming a 5700K 519A too to replace a 219C in a cheapo AA flashlight that I modded 5 years ago. Any insight on how the beam profile will differ between dome vs dedome? The OP reflector is 18×12mm:

I’d rather use my flashlight around the house than turn on the lights.

jon_slider
jon_slider's picture
Offline
Last seen: 10 hours 9 min ago
Joined: 09/08/2015 - 12:20
Posts: 6899
Location: Central North America

the domed 519a has a nice large hotspot, similar to LH351d

(pic does not do justice, this is an xml reflector that has a large bottom hole, which does not produce a clean transition. Your reflector will probably produce a better beam profile)

dedoming will make the hotspot smaller, similar to 219c
(this reflector has a smaller bottom hole, and the pic is more representative)
.

NeutralFan
NeutralFan's picture
Offline
Last seen: 20 hours 53 min ago
Joined: 03/20/2014 - 19:22
Posts: 2148
Location: Wisconsin, USA

Thanks for the info!

Kinda figured the hotspot would be smaller and thus more throw, but was concerned about rings and artifacts. But it looks like I should be fine and the improved tint and more desirable CRI (to me) is worth the risk.

Maybe I’ll do a before and after beam profile and post it here.

I’d rather use my flashlight around the house than turn on the lights.

jon_slider
jon_slider's picture
Offline
Last seen: 10 hours 9 min ago
Joined: 09/08/2015 - 12:20
Posts: 6899
Location: Central North America

NeutralFan wrote:
was concerned about rings and artifacts.
it mainly depends on the reflector..

wont know til you try.. have fun Wink

——-

SC21 Pro mod to sw45k w 30° Pebbled Tir

.

MtnDon
MtnDon's picture
Offline
Last seen: 5 hours 56 min ago
Joined: 08/27/2015 - 18:25
Posts: 4506
Location: Canuk in NM

I haven’t actually modded anything, but I have assembled 4 – LH351D 4000K LEDs on an mcpcb, a led4power LD-A4 driver, a Li-po 3700mAh cell, a switch, a 2 amp TP4056 charger and USB-C port plus a Convoy S2 pill and some copper pieces, into a test configuration for a light I am thinking about making.

vwpieces
vwpieces's picture
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/17/2016 - 19:49
Posts: 2206
Location: PA, USA

Can’t wait to see what that is going into Don.

I made this the other day. 12V 2A wall wart power with dimmer and 4 12V LEDs to light up a MCM Spaghetti globe.
Final sanding and finish put on it today. Xmas gift… the lighted stand.



Still unfinished.

MtnDon
MtnDon's picture
Offline
Last seen: 5 hours 56 min ago
Joined: 08/27/2015 - 18:25
Posts: 4506
Location: Canuk in NM

Cool! I haven’t seen a spaghetti globe in a while. It’ll be nice with the dimmer.

It might take a while to complete my project, there are other things higher up the priority list. Plus now I need to complete the ways of carrying out the idea I have and turn it into something other than some parts that I have shown actually do work.

crbnfbr
crbnfbr's picture
Offline
Last seen: 2 days 8 hours ago
Joined: 04/23/2021 - 20:53
Posts: 13
Location: South Carolina

Not a flashlight mod but a mod none the less.
I took an old feit 9w led bulb and replaced the original some 2835 leds with some 5000k and 4000k Bridgelux Thrive 2835s. I alternated between 5000k and 4000k trying to get 4500k.

I didn’t take any before measurements with the Opple since I just received it and I had already had taken the bulb apart and was too eager to start reflowing some leds.

Overall I’m pretty happy with the CCT and obviously the CRI is great. I was hoping the tint would’ve been closer to the BBL, but it only cost about $2.50 and less than an hour of my time. So, in the end it was definitely worth it.

Before shot

After shot

NeutralFan
NeutralFan's picture
Offline
Last seen: 20 hours 53 min ago
Joined: 03/20/2014 - 19:22
Posts: 2148
Location: Wisconsin, USA

I spent many many hours filing, sanding, and polishing a cheapo AA flashlight in order to reuse a 5700K 519A LED that came with a Convoy S2+. I purchased the MAO S2+ with the intension of converting it into a triple dedomed 5000K 519A and it turned out great.

I made a makeshift lathe using a portable drill, a large drill bit, and plenty of tape. I think the host turned out pretty darn good. I added another hole for the lanyard so it will be able to tail stand.

The worse part of trying to use the cheapo AA flashlight as a host is the pressed in driver retaining ring. It’s not reusable and was very difficult to remove. So I took an S2+ retaining ring and added solder to the perimeter. Then screwed it back and forth onto the head along with some oil to cut new threads. Now I’ll be able to use it to secure the new copper (cap) pill and the driver that came with the S2+.

I just ordered the lens, reflector, silicone switch cover, etc. from Kaidomain so will have to patiently wait until the parts arrive.

New host bottom and right:

I’d rather use my flashlight around the house than turn on the lights.

vwpieces
vwpieces's picture
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/17/2016 - 19:49
Posts: 2206
Location: PA, USA

Damn, lotta work and looks good. Thumbs Up

LunaLoves
Online
Last seen: 7 min 32 sec ago
Joined: 05/13/2021 - 16:21
Posts: 93
Location: Hamburg, Germany

YinDing 5050 in a S11
Surprisingly intense beam for only 3A
I used a leftover 3A qlite driver.

Lightbringer
Lightbringer's picture
Offline
Last seen: 49 min 51 sec ago
Joined: 08/30/2016 - 14:12
Posts: 18094
Location: nyc

Damn, that’s a nice tight beam for a tubelight.

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

kokosnh
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/02/2021 - 06:27
Posts: 305
Location: Polska

T3 519A 5000K (dedome + 60 TIR) getting 3600-3750K  (had to file down the TIR to fit the T3)
It's little to long like 0.1mm or so, to screw it down all the way, but there's an o-ring, so there shouldn't be a problem with water



WB 5000K, 1/60s, ISO50, f1.8


And teaser (I will try to finish it soon, for now it's a test fit, and it fit perfect)


innovative rotary design, you can change the brightness, and tint, by screwing in different bulb


jon_slider
jon_slider's picture
Offline
Last seen: 10 hours 9 min ago
Joined: 09/08/2015 - 12:20
Posts: 6899
Location: Central North America

kokosnh wrote:
very nice floody beam
do you have Opple data for Tint DUV?
kokosnh
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/02/2021 - 06:27
Posts: 305
Location: Polska

jon_slider wrote:
very nice floody beam do you have Opple data for Tint DUV?

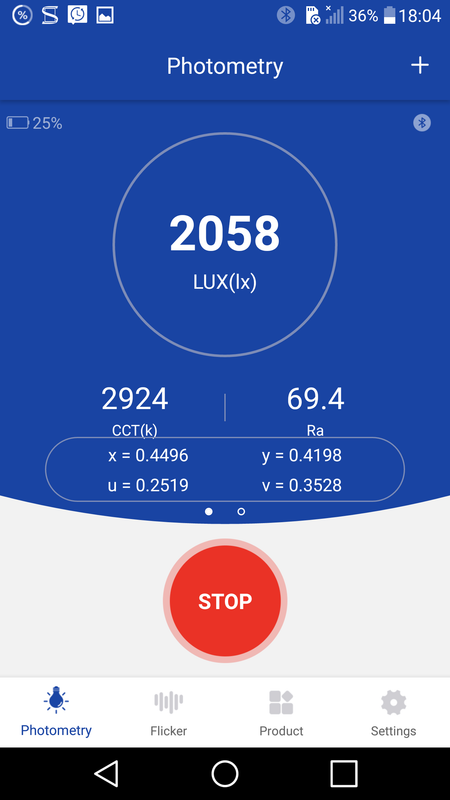

100% center  3622K Duv -0.0032   97Ra
100% side 3707K Duv -0.0039   96.5Ra
20% center 3726K Duv -0.0040   97.3Ra
20% side 3833K Duv -0.0054   97.4Ra
20% near opple, center 3606K Duv -0.0031  97.3Ra
20% near opple, side 3676K Duv -0.0037   Ra 97.1


jon_slider
jon_slider's picture
Offline
Last seen: 10 hours 9 min ago
Joined: 09/08/2015 - 12:20
Posts: 6899
Location: Central North America

kokosnh wrote:
3622K Duv -0.0032
thanks

your pic looks so much more rose colored

kokosnh wrote:

than mine at DUV -0.0042:

kokosnh
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/02/2021 - 06:27
Posts: 305
Location: Polska

jon_slider wrote:
kokosnh wrote:
3622K Duv -0.0032
thanks your pic looks so much more peach colored, than mine at DUV -0.0042:


did you lock the white balance? at what value?
I don't remember if the picture was on, 100% or 20%.  It could be 20%. so it's  Duv -0.0040 center to Duv -0.0054 sides, and my wall is white...
jon_slider
jon_slider's picture
Offline
Last seen: 10 hours 9 min ago
Joined: 09/08/2015 - 12:20
Posts: 6899
Location: Central North America

kokosnh wrote:
did you lock the white balance?
no..

I have an iPhone w auto white balance..

that is why I take the photo during daylight when the CCT is about 5300K and the Tint DUV is about 0.0032

I dont know if your photo would look like mine, if you took it at the same time of day.. that is why I think it is helpful to compare Opple numbers.. they bypass photo WB differences.

anyway.. just pointing out how much photos can vary.. I do think it is great that you can lock WB.. your pic looks great..

kokosnh
Offline
Last seen: 3 weeks 2 days ago
Joined: 07/02/2021 - 06:27
Posts: 305
Location: Polska

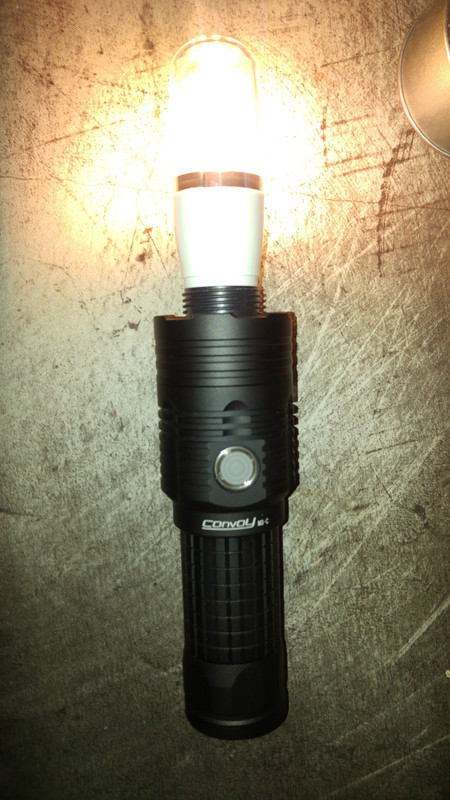

innovative rotary design, you can change the brightness, and tint, by screwing in different bulb

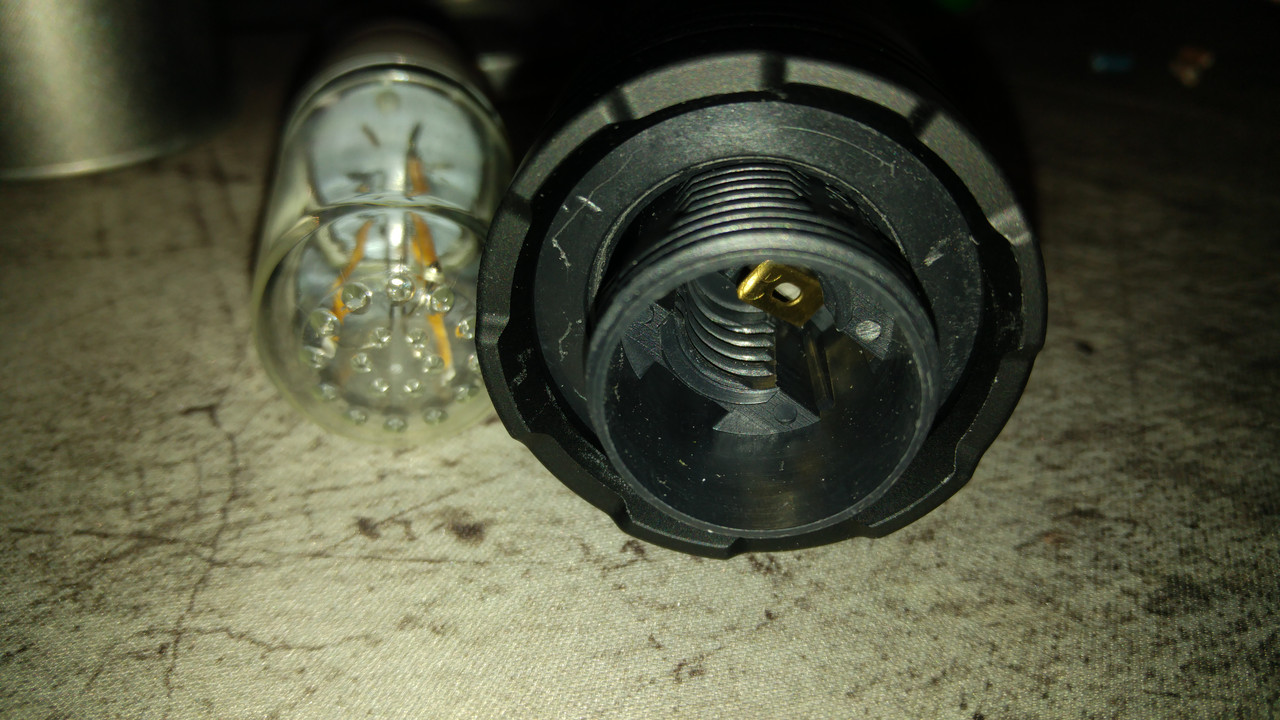

I didn't bother to take out the MPCB, I just cover it...
Soldering, with my FWAA CU in hand. You can tell, it's my 5 time soldering anything.

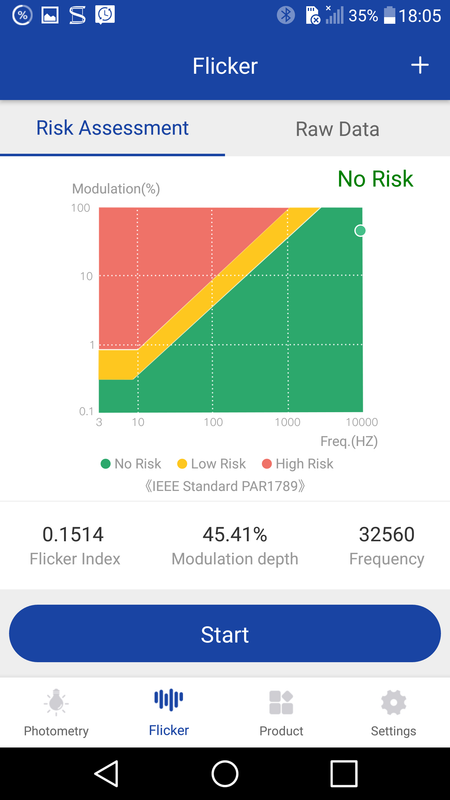

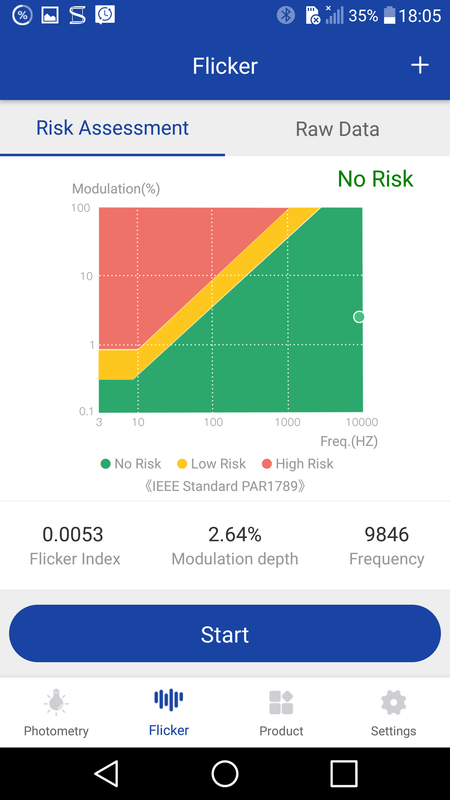

Isolation (it was sparking :D) didn't bother to heat shrink it.



parasitic drain is 256µA
moonlight mode is 30mA (and it's working)
next mode is full brightness all the time, on any ramp mode 850/1400mA (depending if with 3W, or 6W bulb)
Strobe, battery check and so on, works ok.

The only problem is with the 6W bulb, as when screwed it, it's always in moon mode, you can't turn the flashlight off (the 3W bulb works fine, you can turn it on, and off)

No bad PWM (on any mode)

m47mu74nt
Offline
Last seen: 1 day 9 hours ago
Joined: 08/25/2020 - 02:58
Posts: 117
Location: France

A lot less innovative on my side :

Convoy M2

SFT40 emitter & OP reflector


and “tactical” forward switch (instead of the factory reverse clicky), you can see I got some trouble to get it working as I melted the first switch during soldering and had to “shave” the rubber boot because the forward switch is taller than the factory one

(but it works, and I am really happy)

NeutralFan
NeutralFan's picture
Offline
Last seen: 20 hours 53 min ago
Joined: 03/20/2014 - 19:22
Posts: 2148
Location: Wisconsin, USA

I removed 1 of the 7135 driver chips in my S2+ Nichia UV flashlight to make it less bright.

I’d rather use my flashlight around the house than turn on the lights.

Haukkeli
Offline
Last seen: 1 day 15 hours ago
Joined: 06/24/2021 - 05:27
Posts: 523
Location: Suomi

Few weeks back I modified Maglite ML25LT with better led. I used Samsung LH351D, because it’s dome is somewhat diffused in hopes of cleaner beam with stock reflector. It was a real hurdle to disassemble this light. No parts that you usually find in led flashlights, but I managed to pull it through. Vastly improved light that is safe to give to kids.



Beamshot ~6m away

ShmazPro
ShmazPro's picture
Offline
Last seen: 1 month 2 weeks ago
Joined: 09/06/2022 - 11:49
Posts: 2
Location: United States

e1000 wrote:
And another one, same 519A, 3500K. AceBeam Raider RX

!{width:80%}https://i.imgur.com/RWtMUuK.jpg!

Any advice on how to get this disassembled? I can’t get access to the MCPCB. Everything past the driver is a no-go for me.

e1000
Offline
Last seen: 1 day 6 hours ago
Joined: 04/07/2018 - 19:57
Posts: 284
Location: LA, CA

if you take the pill out, the front blue bezel is rightly-loosey

darosk
Offline
Last seen: 3 weeks 6 days ago
Joined: 10/06/2019 - 22:03
Posts: 458
Location: Sabah, Malaysia

Put an sft40 in my sp35t, the emitter it should have shipped with.

Much better throw with still plenty of kick in terms of lumens – without the crazy overheating of the sfn43 led.

Sk9
Offline
Last seen: 7 hours 43 min ago
Joined: 02/08/2022 - 13:29
Posts: 104
Location: Canada

It was quite a struggle to get my FW1A bezel off.

ts10 4000k vs fw1a pro

Swap in a tir

tir used

NeutralFan
NeutralFan's picture
Offline
Last seen: 20 hours 53 min ago
Joined: 03/20/2014 - 19:22
Posts: 2148
Location: Wisconsin, USA

Nice improvement Sk9! It didn’t look like that bezel was meant to come off. Evil

I’d rather use my flashlight around the house than turn on the lights.

Sk9
Offline
Last seen: 7 hours 43 min ago
Joined: 02/08/2022 - 13:29
Posts: 104
Location: Canada

Thanks! The tir might have damaged the led dome due to no centering device, so it will stay together until the next upgrade.

Nachtfeuerzeug
Nachtfeuerzeug's picture
Offline
Last seen: 19 hours 2 min ago
Joined: 08/31/2013 - 16:10
Posts: 876

I put a 5000K 219C in a Yootoo SD2 and like it so much better than the SST20. The 219C came out of an S21A that now has a 4500K 519C and definitely enjoying this new to me Nichia.
