jon_slider wrote:
it is Anduril that has a problem with low level flickering, using LiIon. AA is not the cause of Andurils inability to support flicker free firefly levels.

You've posted this several times, in various threads, since at least last year. (I've also attempted to gently correct you before.) I don't care if you dislike Anduril (you've mentioned blinkies and complexity before which are very valid points in their own right), but I ask that you stop spreading false information about it.

It is not an Anduril problem. It is a driver problem. It is consistently difficult to achieve very low levels using the traditional 7135 and/or FET design. The lowest lows of all my flashlights are as follows:

  1. Absolute lowest: Jetbeam RRT01
  2. SC62(w)
  3. Nitecore EX11.2 on 16340
  4. FW3A and Emisar D4 (pretty even match, actual usability is indistinguishable but I'm sure the lumen count is technically different)
  5. Several lights I've modded to use the "Moonlight Special" driver
  6. My modded Convoy L6
  7. A bunch of other FET/7135-driver lights that don't have a dedicated 1x7135 channel for moonlight

(Note: IIRC there's one or more Manker AA/AAA lights that have a pretty low moonlight)

Notice the common factor between 1, 2, and 3? They don't use FET/7135 driver styles. (The tradeoff, of course, is that 7135/FET is very simple and cheap.)



For a more technical view of things... My understanding is that, in general, you can only effectively run these things so low. You also talk about "flicker-free" low modes, which is fun. I'm not aware of other good ways to control a single 7135's output besides PWM, but I'm starting to get out of my depth there. Anyway, as I understand it, you can only PWM it so much before you start to get some disgusting flicker going on. PWM itself isn't necessarily bad, because it can be done on the scale of thousands of cycles per second, speeds where you'd be lucky to catch it on a camera. But to get down to the ultra lows without switching driver technologies, the PWM gets into lower frequencies.

Also, the KR4 driver in particular has a further limitation on moonlight, which has been gone over a few times: some part of the driver (the MCU or the FET I think, but I'm too lazy to look it up again) doesn't officially support the current of, as I recall, the lowest two configured ramp levels. So by default it ships with the minimum ramp (and therefore lowest mode) as ramp level 3. This can be configured lower but may land anywhere in the range of "works fine what's the problem" to "just doesn't power on at that level", with a lot of in-between landing at "turns on visibly slowly, almost ramping up to the moonlight". This is, again, a driver issue rather than an Anduril issue.



Edit: SammysHP covered some of the finer points in an excellent post above.

Scallywag
Scallywag's picture
Offline
Last seen: 8 hours 13 min ago
Joined: 01/11/2018 - 22:23
Posts: 1959
Location: Ohio, United States

BurningPlayd0h wrote:
jon_slider wrote:
Thujone wrote:
If the AA leads to poor low level flickering

it is Anduril that has a problem with low level flickering, using LiIon.

AA is not the cause of Andurils inability to support flicker free firefly levels.

This is really an issue with driver design (and instability at very low outputs) rather than the firmware. Anudril itself uses PWM fast enough to be completely imperceptible at every step AFAIK.

I don’t see why Anudril couldn’t be adapted to a driver that solved that issue – however lights and drivers with extremely low moonlight that is flicker free generally aren’t cheap, because the drivers that can accomplish this are difficult to engineer and more expensive to produce.

Yeah, this. In fact it’s so difficult to design and/or expensive to build drivers that can do this properly, that LoneOceans neglected to address it in his lume1 driver “to keep this as simple as possible and to keep the BOM cost down without sacrificing on the engineering”.

MascaratumB
MascaratumB's picture
Online
Last seen: 14 min 37 sec ago
Joined: 10/29/2016 - 12:12
Posts: 6476
Location: Portugal
Lightbringer wrote:
MascaratumB wrote:
3 – “Anduril is full of blinky and clicky stuff that I dont want.” – I may agree with you on this, although having a candle mode could be nice on a AA light Wink

Hey, you already got it!  <snark/>


I have 3 stock lights and 1 modded light with Anduril, and none of them flickers! So, I guess I didn’t get those issues with my lights Wink
Geuzzz
Geuzzz's picture
Online
Last seen: 4 min 57 sec ago
Joined: 10/25/2015 - 10:27
Posts: 1384
Location: Netherlands

Sublumen Moonlight works fine on my Anduril lights. Use it every evening.

MascaratumB
MascaratumB's picture
Online
Last seen: 14 min 37 sec ago
Joined: 10/29/2016 - 12:12
Posts: 6476
Location: Portugal
jon_slider wrote:
you are right Smile My D10 lowest mode is 1 lumen with sw45k it is actually the D11.2 firmware that produces 0.01 lumens minimum

Now you got me envious Wink
I still didn’t give up on getting one of those Thumbs Up

jon_slider wrote:
not for me Smile to me, candle mode is just a fancy word for flicker, it has no real resemblance to a real candle

Hum, I guess it is not just flickering , but I do recognize that it is not like a real candle! Nothing will ever look like a real candle, specially because of the fire’s “tint” and the flame’s random movements Wink

jon_slider wrote:
clearly you, and others who “love anduril” do not require firefly Smile

carry on… this is not the droid Im looking for

Well, I do like and use firefly modes, as you know from our conversations about the RRT01.
At the same time, I admit that a good moonlight level (even if not as low as the RRT01 or the Reylight) would be good in this project.
This is a personal preference and opinion, of course, but I guess the the achievement or not of a firefly level shouldn’t hinder this project from being done.
And I like anduril, I confess Innocent Even if it is not perfect Evil

jon_slider
jon_slider's picture
Online
Last seen: 4 min 20 sec ago
Joined: 09/08/2015 - 12:20
Posts: 4508
Location: Central North America

thanks guys Smile

I stand corrected,

With the right driver, Anduril will run on AA at firefly levels, with no flicker..

Beer

WTB Novatac Pocket Clip

BurningPlayd0h
BurningPlayd0h's picture
Offline
Last seen: 1 day 19 hours ago
Joined: 06/22/2018 - 02:16
Posts: 1723
Location: MN

jon_slider wrote:
thanks guys Smile

I stand corrected,

With the right driver, Anduril will run on AA at firefly levels, with no flicker..

Beer

If you’ve experienced this with the KR4 you’re not alone though. Like SammysHP said due to the driver itself very low levels can be unstable. Just how low it will stay stable depends on the individual light because of variances in the driver components.

Lightbringer
Lightbringer's picture
Online
Last seen: 3 min 14 sec ago
Joined: 08/30/2016 - 14:12
Posts: 14570
Location: nyc
MascaratumB wrote:
I have 3 stock lights and 1 modded light with Anduril, and none of them flickers! So, I guess I didn’t get those issues with my lights Wink

Thanks for popping my balloon…

09 F9 11 02 9D 74 E3 5B D8 41 56 C5 63 56 88 C0

MascaratumB
MascaratumB's picture
Online
Last seen: 14 min 37 sec ago
Joined: 10/29/2016 - 12:12
Posts: 6476
Location: Portugal
Lightbringer wrote:
MascaratumB wrote:
I have 3 stock lights and 1 modded light with Anduril, and none of them flickers! So, I guess I didn’t get those issues with my lights Wink

Thanks for popping my balloon…


Big Smile
patmurris
patmurris's picture
Offline
Last seen: 2 days 11 hours ago
Joined: 12/22/2014 - 15:54
Posts: 1710
Location: Nice, France

Interested.

Tom E
Tom E's picture
Offline
Last seen: 7 hours 46 min ago
Joined: 08/19/2012 - 08:23
Posts: 14243
Location: LI NY

There's work going on with the driver.



We have top men working on it right now.

Who?

Top .... Men



Indiana Jones of course...

Lux-Perpetua
Lux-Perpetua's picture
Offline
Last seen: 6 hours 52 min ago
Joined: 03/01/2018 - 04:39
Posts: 3001
Location: Post Tenebras Lux

+1 @ Tom E Smile

Thank you Tom E, ToyKeeper, Lexel and gchart for continuously supporting this project. Your expertise is highly appreciated. Thumbs Up

Thanks also to SammysHP and Scallywag for your kind explanation of the flickering's root cause. So, we can officially call Andúril...

SammysHP
SammysHP's picture
Offline
Last seen: 15 min 36 sec ago
Joined: 06/25/2019 - 14:35
Posts: 820
Location: Germany

But a candle flickers! Big Smile

thefreeman
thefreeman's picture
Offline
Last seen: 3 hours 3 min ago
Joined: 01/06/2020 - 09:56
Posts: 548
Location: France

Interested, this is a cool project.
Regarding the magnet discussion on previous page, I’d rather there wasn’t one (or as an optional tailcap) to keep it as small and lightweight as possible, and to that end, I’d also prefer not supporting protected 14500s (granted that the driver will have a LVP) to keep it shorter, but maybe that’s not possible if the the body has to stay unmodified from the SP10S.

Sari33
Offline
Last seen: 1 day 4 hours ago
Joined: 07/17/2019 - 05:43
Posts: 367
Location: EU

Wow,more than 1 year passed from the start of project.
They can do now a version with Eco mode memory for AA batt.?
Hope to get Anduril later

Lexel
Lexel's picture
Offline
Last seen: 7 months 2 weeks ago
Joined: 11/01/2016 - 08:00
Posts: 5895
Location: Germany

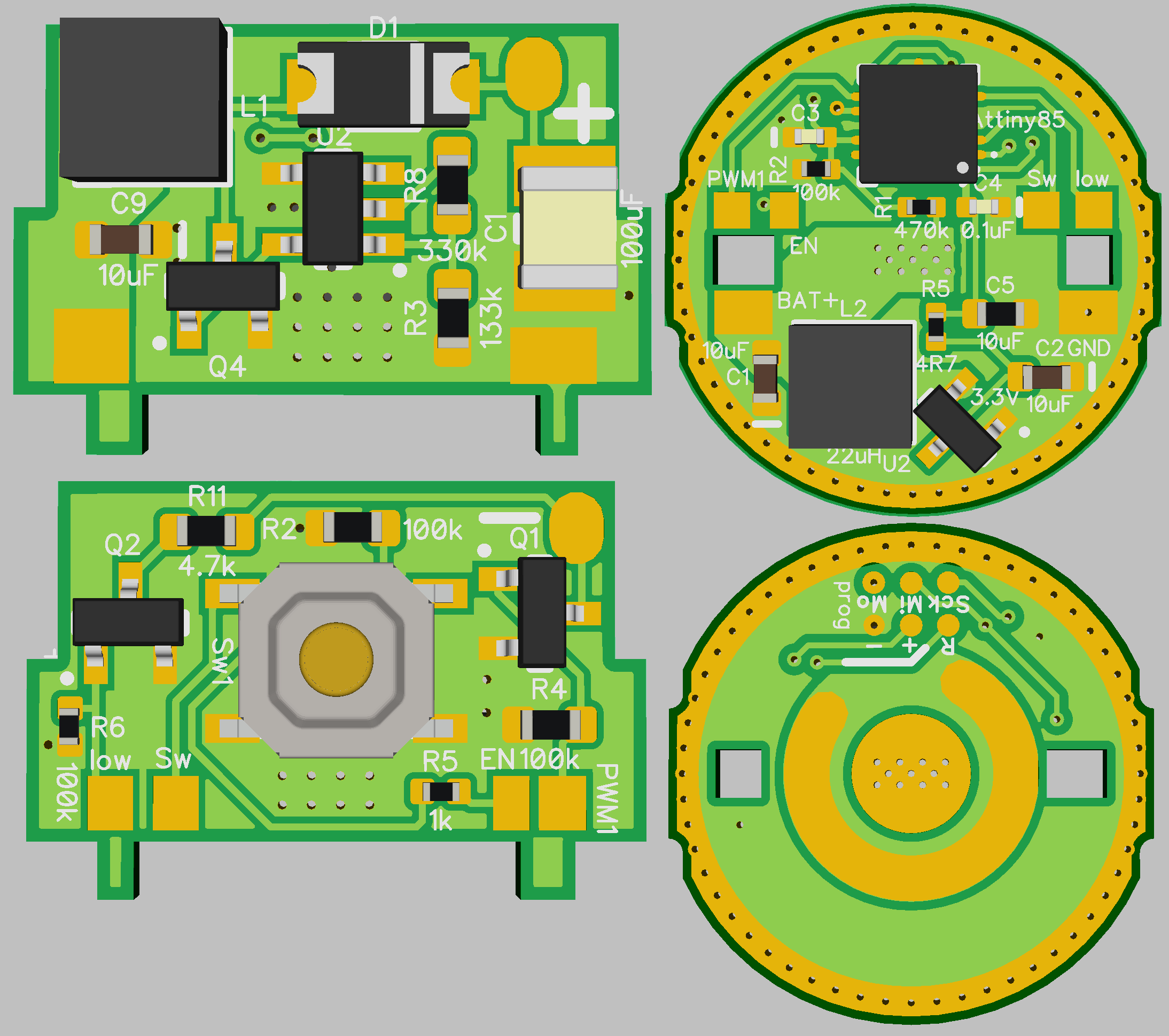

I made the design for this one based on the original driver replacing MCU and gave it to Sofirn to double check if the sort of reverse engeneered+scematic one matches the original
